Description
Product Overview

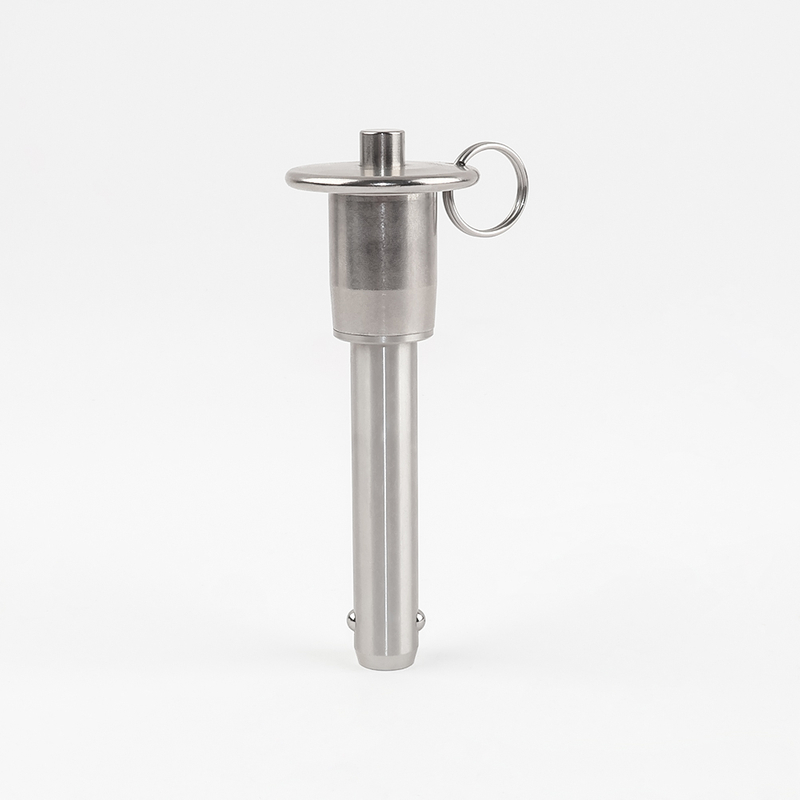

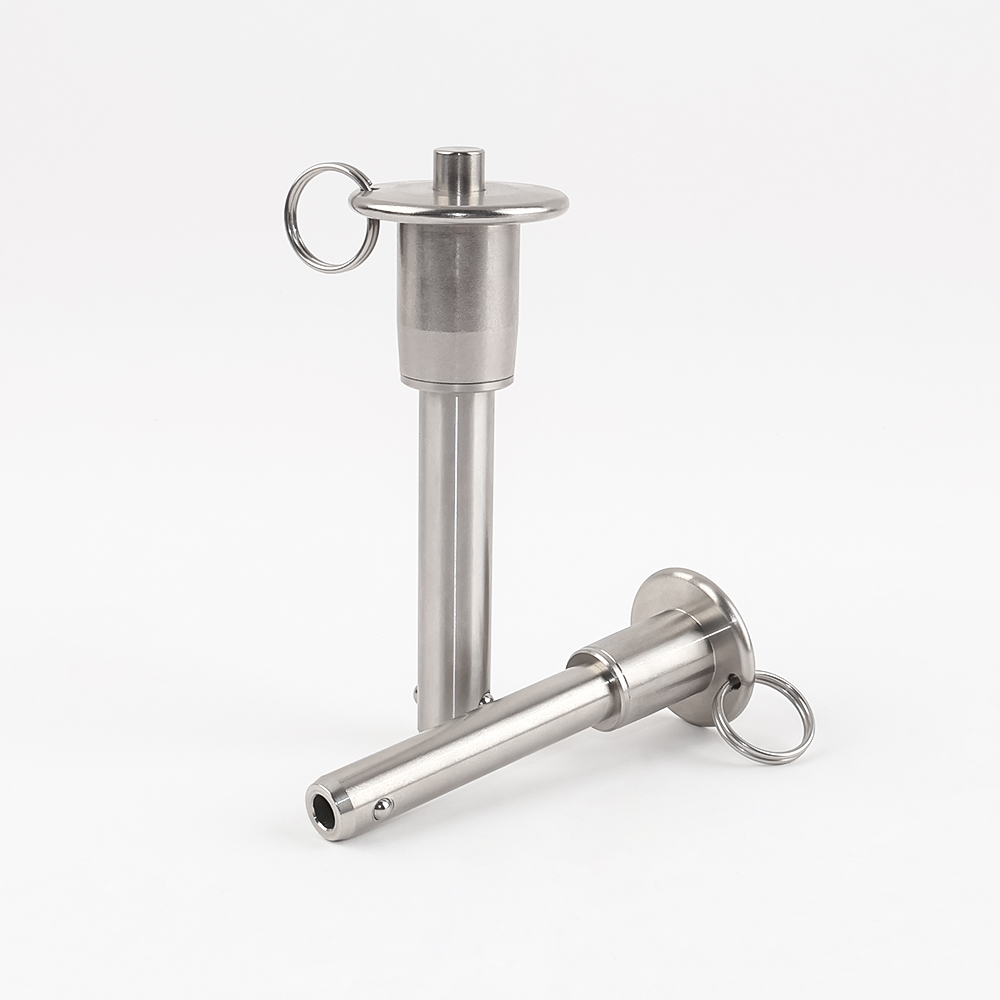

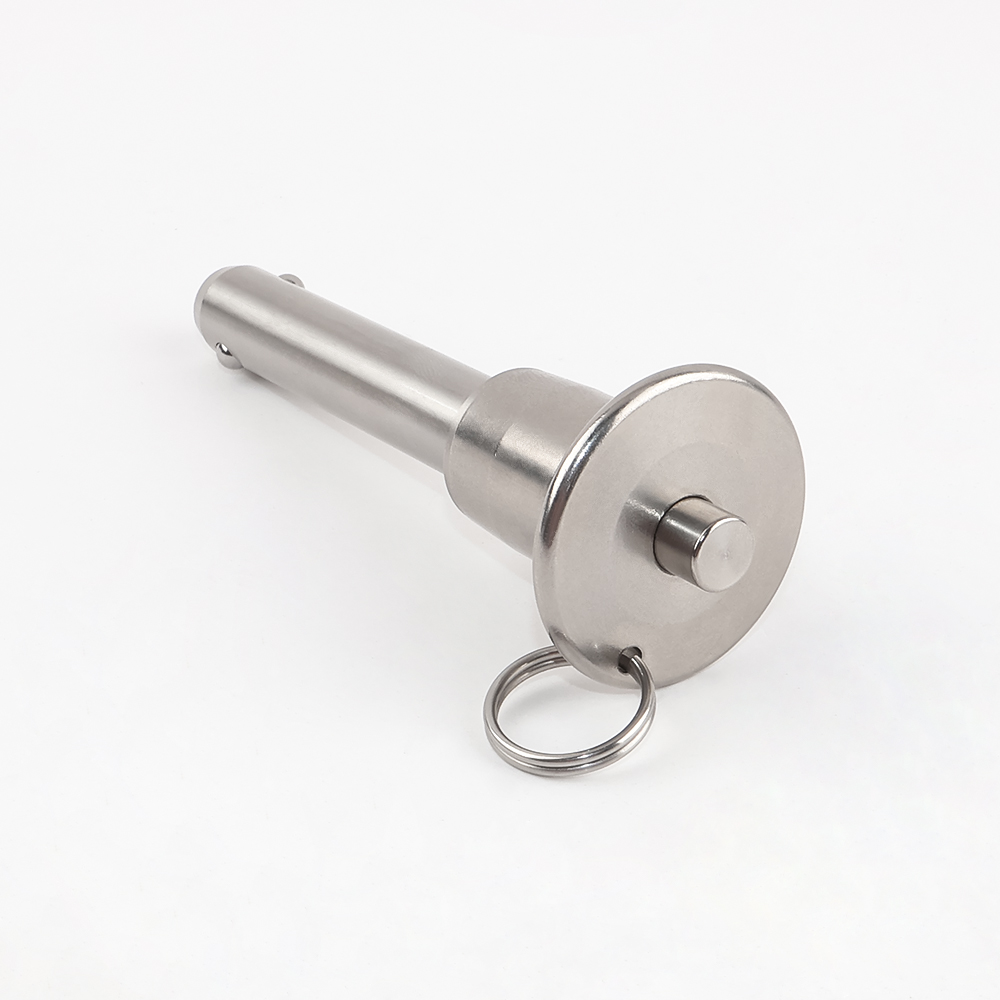

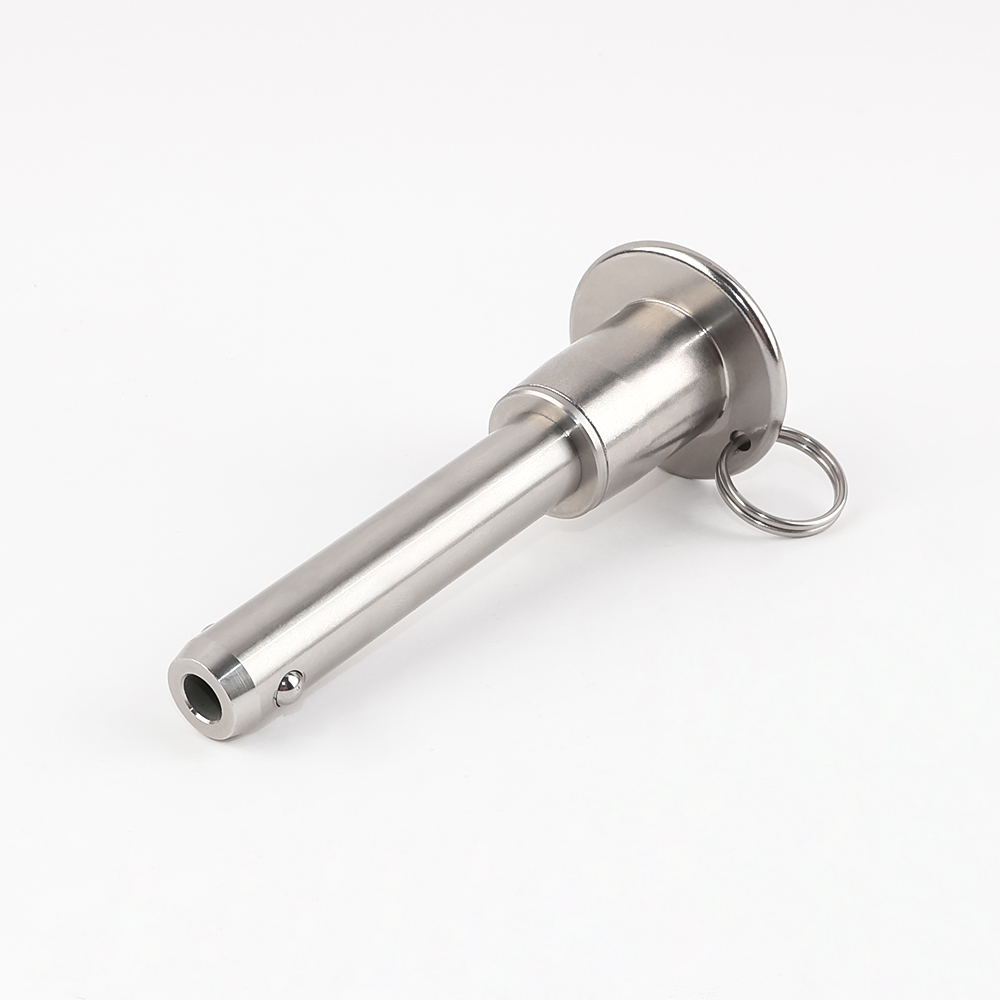

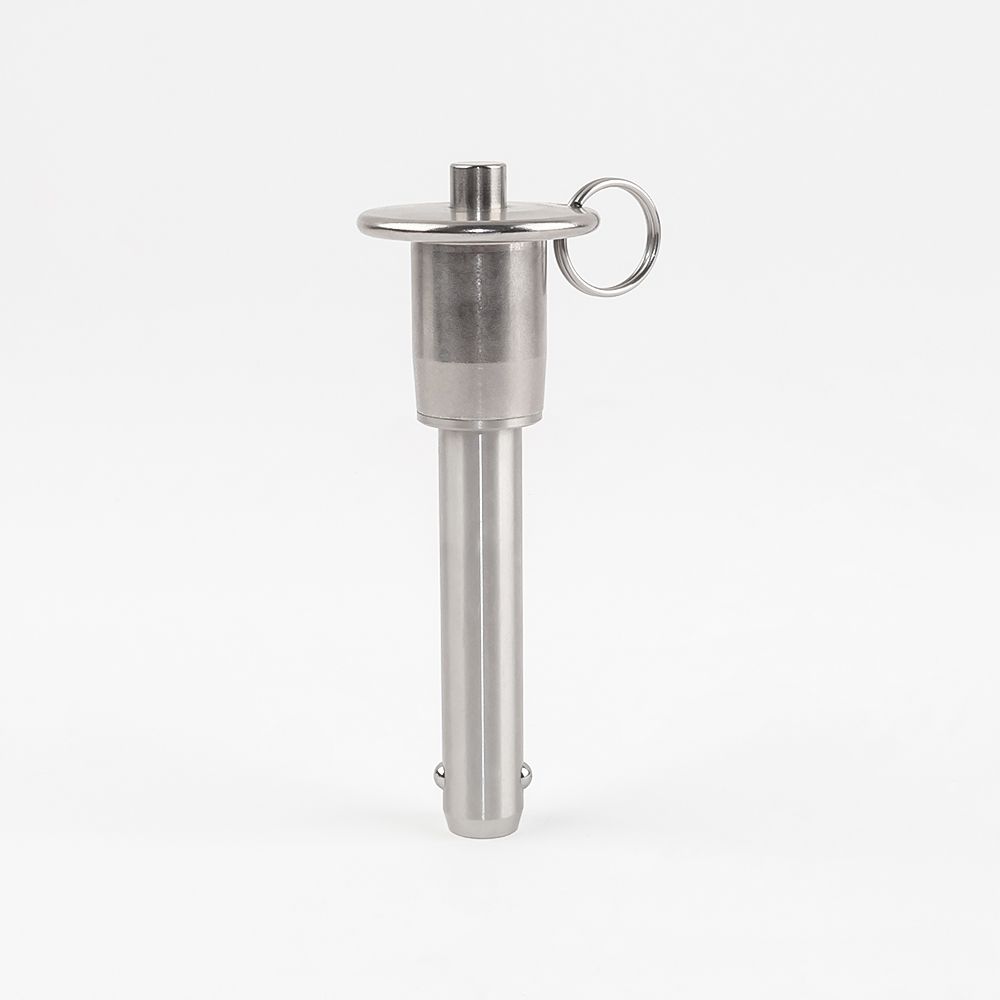

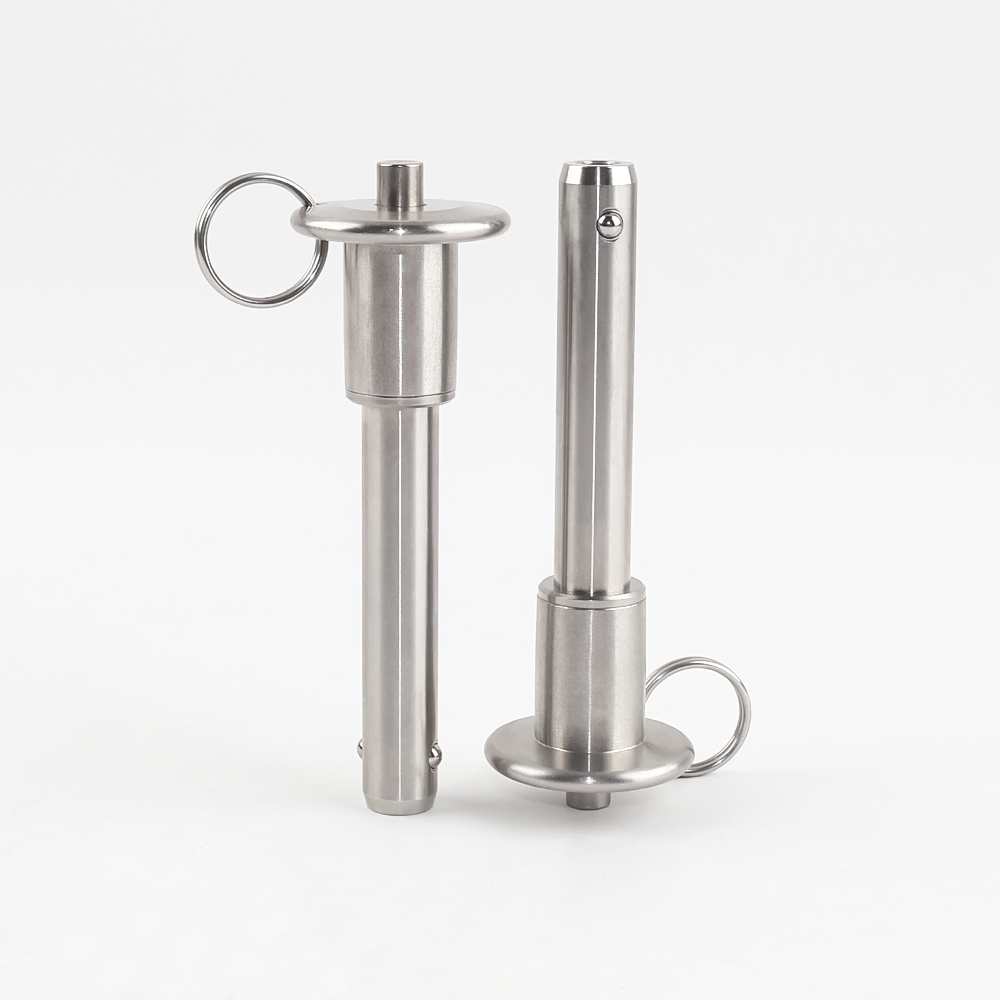

The VCN110 All Stainless Steel Push Button Ball Lock Pin is a high-performance heavy-duty fastening component, engineered for heavy machinery manufacturers, marine engineering firms, construction enterprises, and aerospace equipment builders requiring rapid, secure, and repeatable locking and disassembly. As a premium stainless steel quick release ball lock pin, this unit features a full SUS304 stainless steel construction (with optional SUS316 for corrosive environments), a one-button release mechanism, and an anti-loosening ball lock design that delivers exceptional retention force even in high-vibration, high-impact operating conditions. It supports both metric and imperial sizing standards, ensuring global compatibility for international industrial projects.
Key Features & Industrial Performance Advantages
Full Stainless Steel Construction for Extreme Corrosion & Wear Resistance
The VCN110 All Stainless Steel Push Button Ball Lock Pin is precision-machined from SUS304 austenitic stainless steel as standard, with optional SUS316L stainless steel available for marine and chemical applications. This construction delivers exceptional corrosion resistance, with tensile strength exceeding 700MPa (A2-70 grade), ensuring long-term structural integrity in heavy-duty industrial use. It also offers non-magnetic properties, eliminating interference with sensitive electronic testing equipment.
One-Button Quick Release Mechanism for Efficient Operation
The integrated push-button release system enables tool-free, one-handed installation and removal in seconds, cutting disassembly and reassembly time by up to 80% compared to traditional threaded fasteners. This design drastically improves operational efficiency for equipment maintenance, mold changes, and frequent assembly adjustments.
Anti-Loosening Ball Lock Design for High-Vibration Environments
The precision-engineered ball lock mechanism features a secure, self-locking design that prevents unintentional disengagement caused by vibration, impact, or dynamic load. This makes the push button locking pin ideal for high-speed machinery, heavy construction equipment, and automotive engine components, where fastener loosening poses significant safety and operational risks.
Dual Metric & Imperial Sizing for Global Industrial Compatibility
This pin is available in a full range of metric (5mm to 25mm diameter) and imperial (3/16" to 1" diameter) sizing options, with customizable pin lengths to match diverse application requirements. This dual sizing support simplifies procurement for multinational industrial clients with global production facilities.
Detailed Technical Specifications

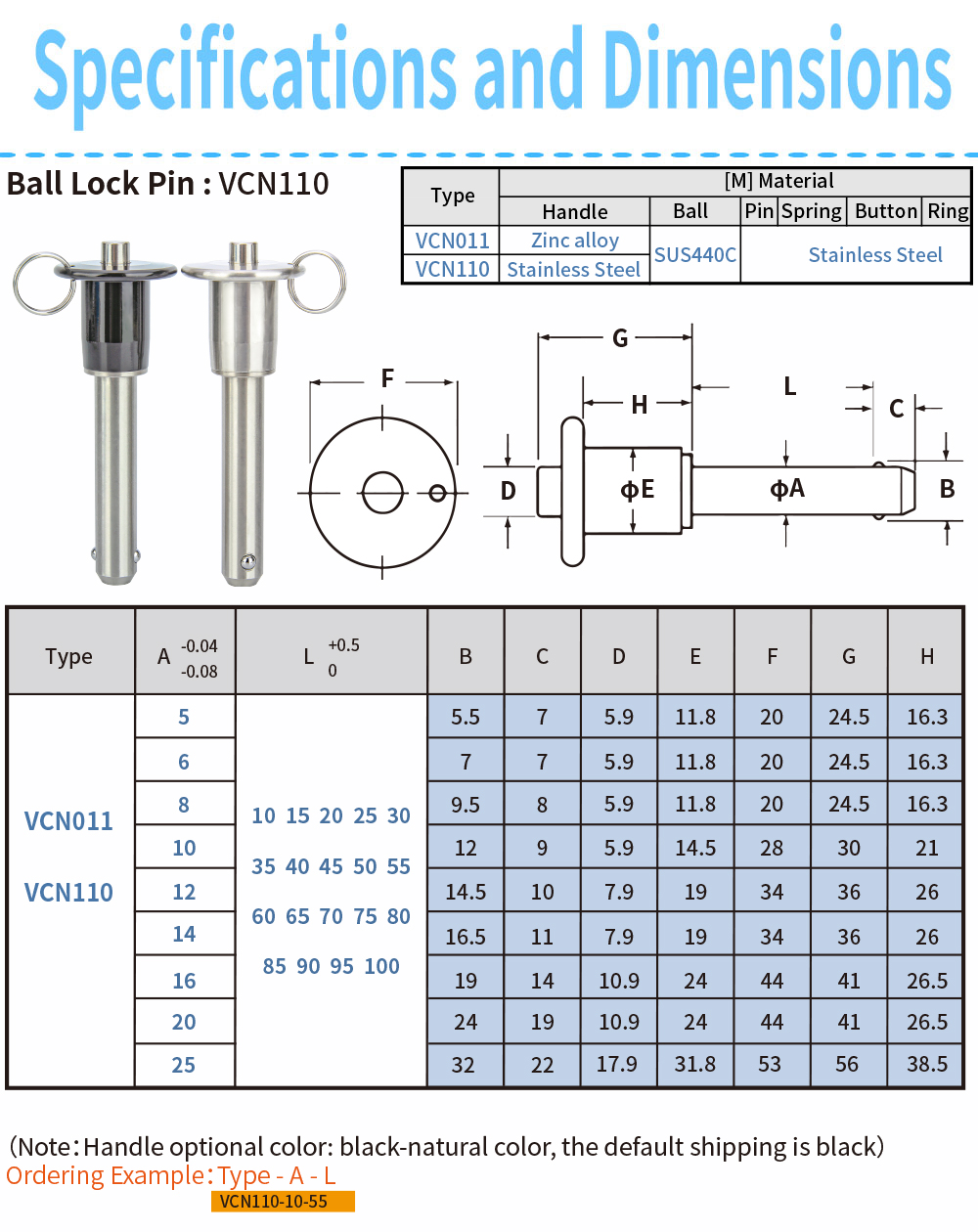

Core Parameter | Specification Details |
|---|---|
Standard Body Material | SUS304 Stainless Steel |
Optional Upgrade Material | SUS316/SUS316L Stainless Steel |
Ball Material | SUS440C Stainless Steel |
Standard Diameter Range | Metric: 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 20mm, 25mm; Imperial: 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1" |
Standard Pin Length Range | 10mm to 100mm (custom lengths available) |
Surface Finish Options | Natural Polished Stainless Steel, Electrophoretic Black Coating |
Operating Temperature Range | -40℃ to +150℃ |
Compliance | ISO 9001, RoHS |
Industrial Applications
The VCN110 All Stainless Steel Push Button Ball Lock Pin is deployed across heavy industrial sectors:
Heavy Machinery & Machine Tooling: Mold fixation, workpiece positioning, jig and fixture quick-change systems, CNC machine accessory locking
Automotive & Marine Engineering: Engine component fastening, marine deck equipment locking, vehicle maintenance panel quick-release, boat rigging hardware
Outdoor Construction & Steel Structure Engineering: Steel structure connection, bridge component fastening, temporary construction equipment locking, outdoor framework alignment
Aerospace & Precision Testing: Ground support equipment fastening, non-magnetic testing fixture locking, aerospace component assembly aids
Customization & OEM/ODM Manufacturing Services
We offer comprehensive OEM/ODM manufacturing support for industrial and engineering partners, including custom pin lengths, non-standard diameters, SUS316L material upgrades, custom surface finishes (including anti-corrosion coatings and color-matched handles), and branded laser marking. Our in-house engineering team provides full design collaboration for application-specific modifications, with all custom products undergoing rigorous load and corrosion testing to meet industry-specific standards.
Ordering, Global Shipping & Warranty
Ordering Example: VCN110-10-55 (Model – Diameter – Pin Length)
Global Shipping: We offer door-to-door international shipping via air, sea, and express carriers, with dedicated logistics support for bulk project orders and expedited shipping for urgent requirements.
MOFlexible minimum order quantities, with sample orders available for material and performance validation.
Warranty: All standard VCN110 All Stainless Steel Push Button Ball Lock Pin units come with an 18-month manufacturing defect warranty, with 24/7 technical support for application engineering and installation guidance.
FAQs
What material option is recommended for saltwater marine applications?
We recommend the SUS316L stainless steel upgrade for marine and saltwater environments, as it contains molybdenum for enhanced resistance to saltwater corrosion and chemical exposure.
Can this lock pin be used in high-vibration industrial machinery?
Yes, the self-locking ball lock design is engineered specifically to prevent loosening in high-vibration environments, making it ideal for heavy machinery, automated production lines, and automotive engine applications.
What handle color options are available?
Standard handles are available in natural stainless steel silver and electrophoretic black, with custom color options available for bulk OEM orders.
