Product Description

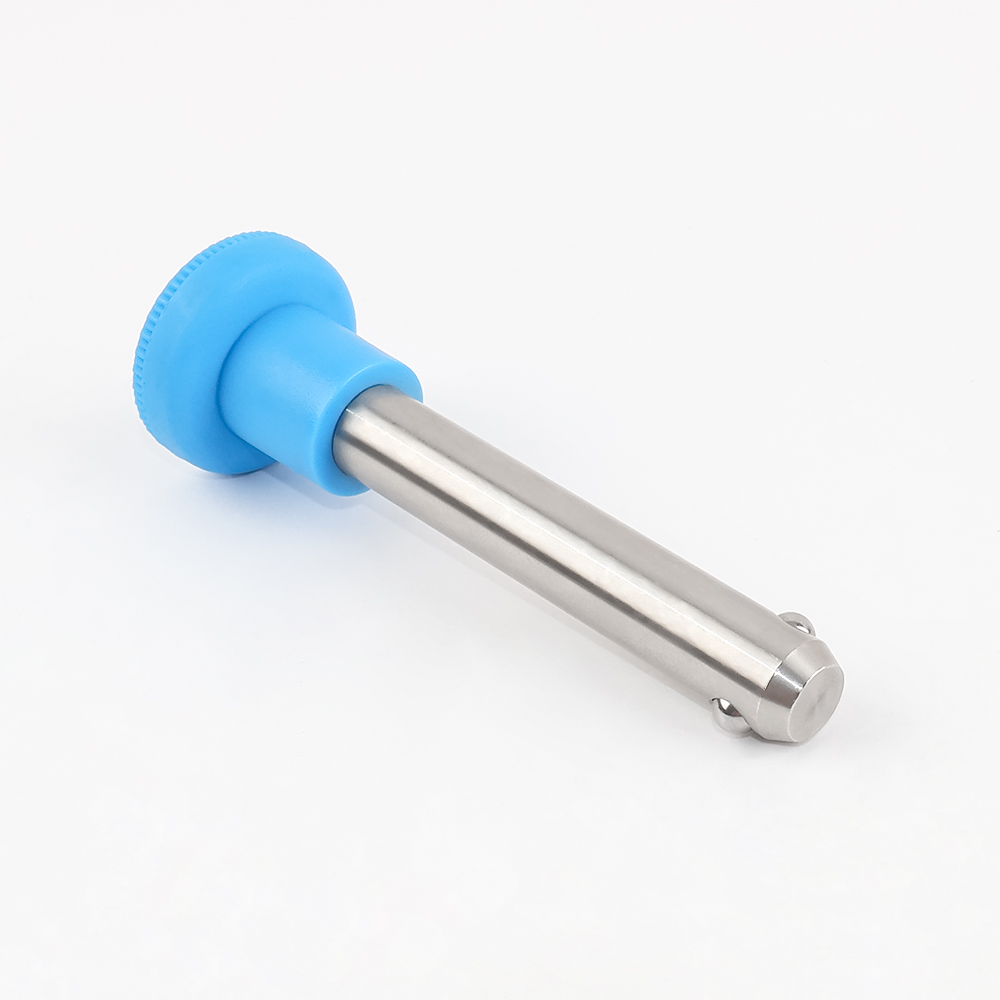

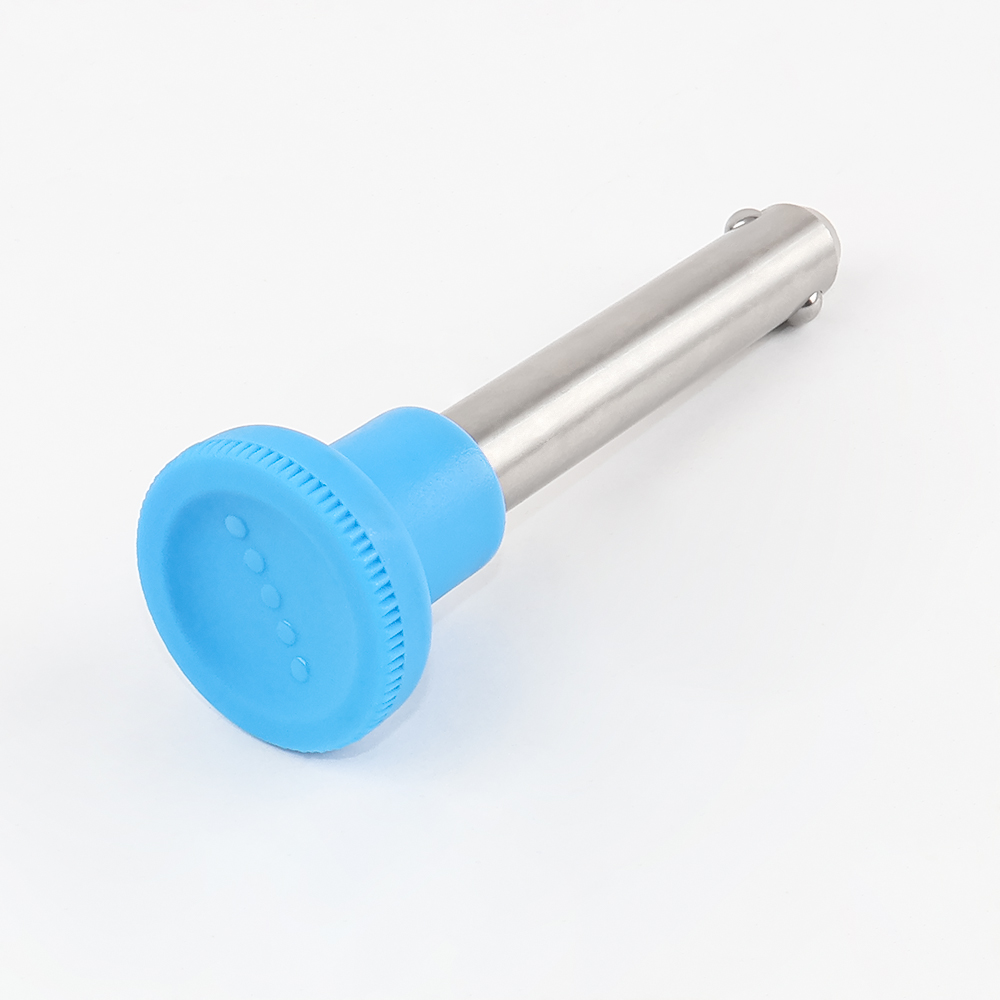

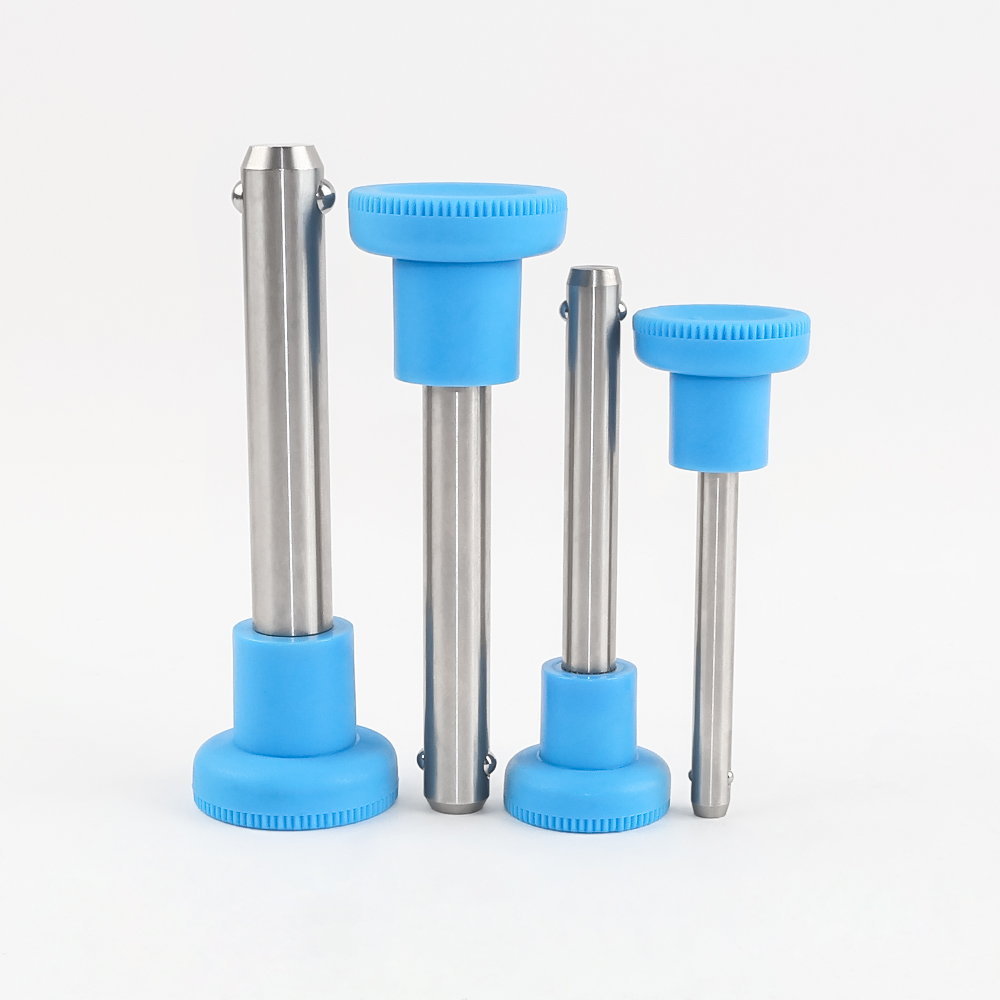

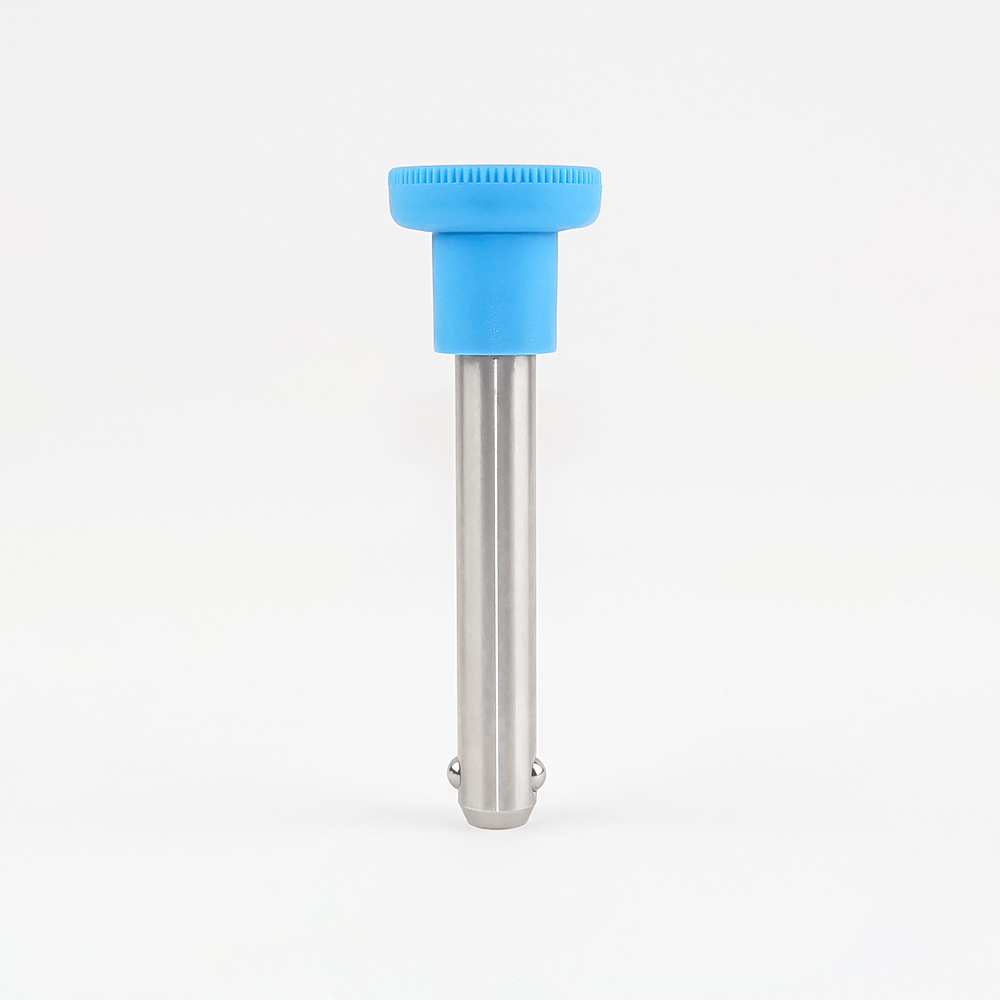

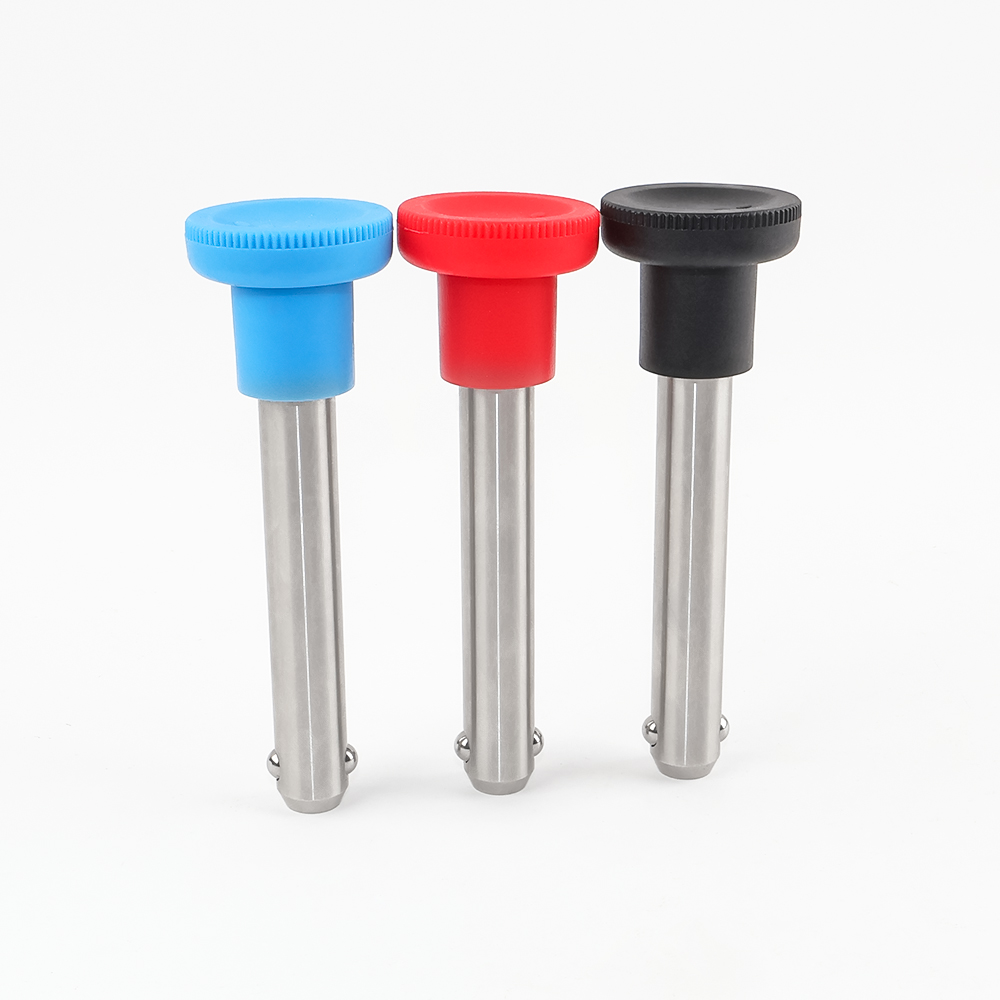

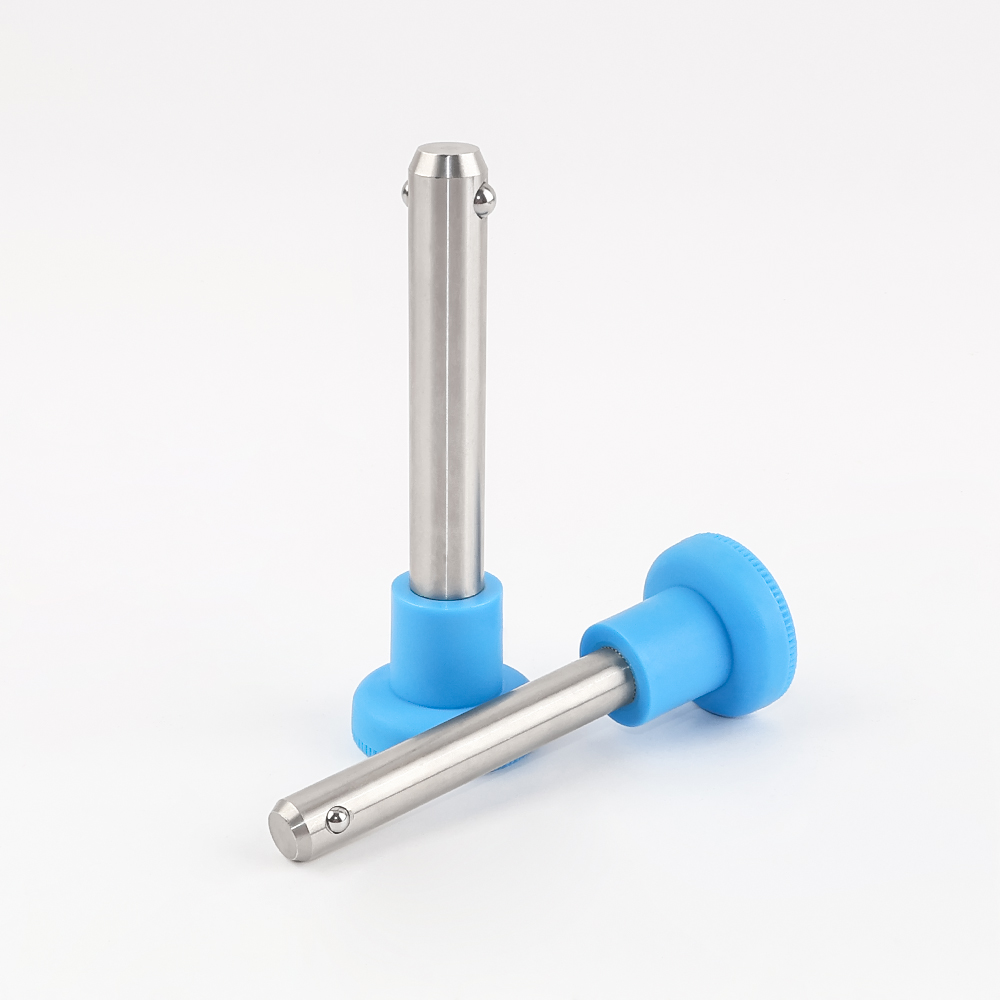

Plastic Handle, Pull-Type Quick-Release Pin Introduction
Product Overview
The plastic handle, pull-type quick-release pin is a mechanical fastener that combines lightweight design with efficient operation, primarily used in scenarios requiring frequent disassembly and repeated positioning. Its core structure consists of a metal pin body and a plastic handle. By pulling the handle, the spring-loaded locking mechanism is activated, enabling rapid fixation and release. These pins maintain high strength while offering operational convenience and corrosion resistance, making them widely applicable in industrial manufacturing, aerospace, electronics, and other fields.
Key Features
Quick Operation
Pull-type design allows one-handed operation: simply pull the plastic handle to lock or release, eliminating the need for additional tools and significantly improving efficiency.
Spring-loaded detent balls or steel balls retract into the pin body during release and automatically lock in place after insertion, ensuring secure fastening.
High Strength & Durability
Pin bodies are typically made of stainless steel -SUS304, with passivation or nickel plating for enhanced shear resistance, wear resistance, and corrosion protection.
Plastic handles use high-performance materials Nylon 6, offering high tensile strength, heat resistance, and UV stability for harsh environments.
Versatile Design
Handle types adapt to diverse installation needs.
Customizable dimensions (common pin diameters: 6mm; lengths: 100mm), materials, and surface finishes.
Safety & Compliance
Meets aerospace standards 、GB standards with optional RoHS and FDA certifications for specialized industries.
Technical Specifications
| Parameter | Details |
|---|---|
| Material | Pin: Stainless steel (SUS304); Handle: Nylon 6 |
| Surface Finish | Original pin |
| Pin Size | Metric sizes, imperial sizes and custom sizes are all accepted |
| Locking Force | Bi-directional shear force range: 16–400 kN (varies by material and diameter) |
| Actuation Type | Single-action (button-driven) or dual-action (push-pull mechanism) |
| Temperature Range | Handle: -40°C to 120°C (material-dependent) |
Applications
Aerospace
Securing cabin panels, equipment doors, and other components requiring frequent maintenance, compliant with NASM standards.
Industrial Manufacturing
Mold positioning, robotic fixtures, and rapid tooling changes in automated production lines.
Electronics & Automotive
Circuit board fixation, automotive dashboard assembly, with insulated and anti-static handles.
Outdoor Equipment
Fitness machines, stage equipment rigging, using weather-resistant materials for humid or UV-exposed environments.
Advantages
By integrating lightweight materials and precision mechanics, the plastic handle, pull-type quick-release pin addresses issues of traditional pins, such as cumbersome operation, heavy weight, and corrosion susceptibility. Its modular design and broad adaptability make it a reliable, high-efficiency fastening solution for modern manufacturing. For customization or detailed specifications, refer to supplier technical documentation.
