Product Overview

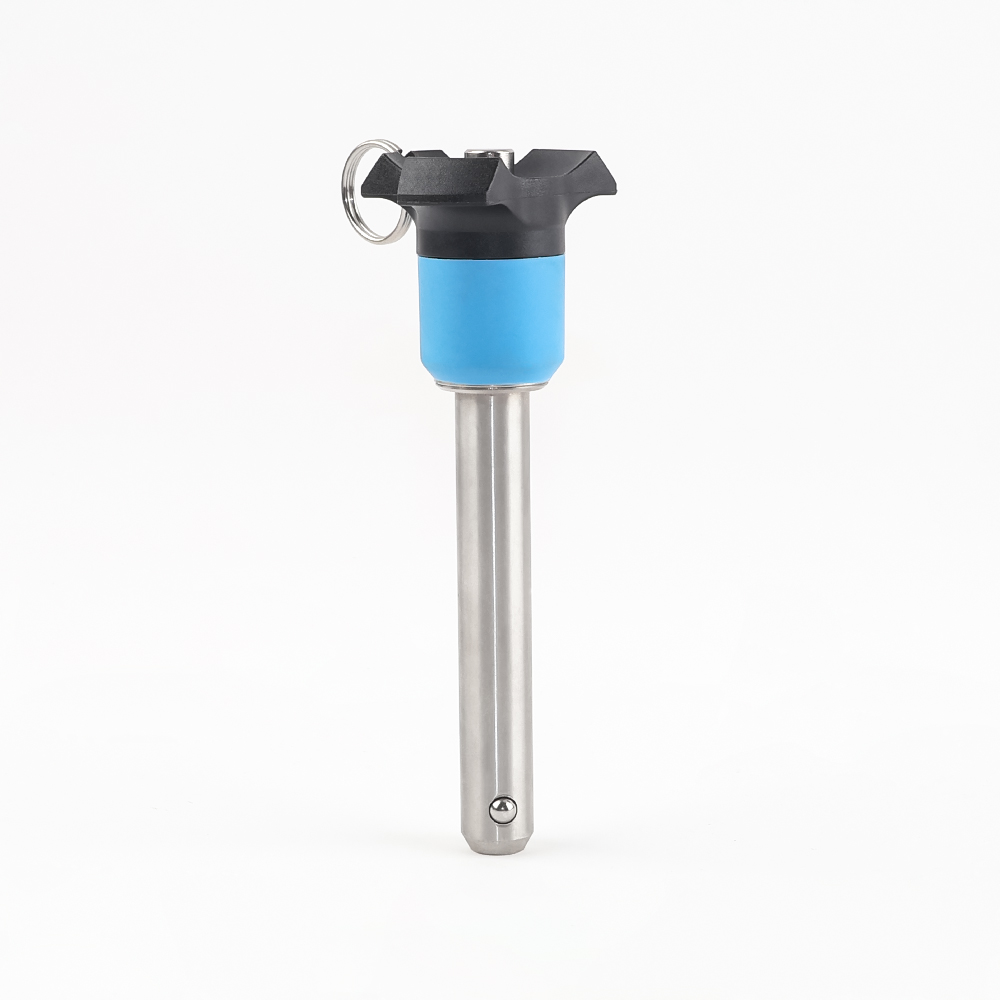

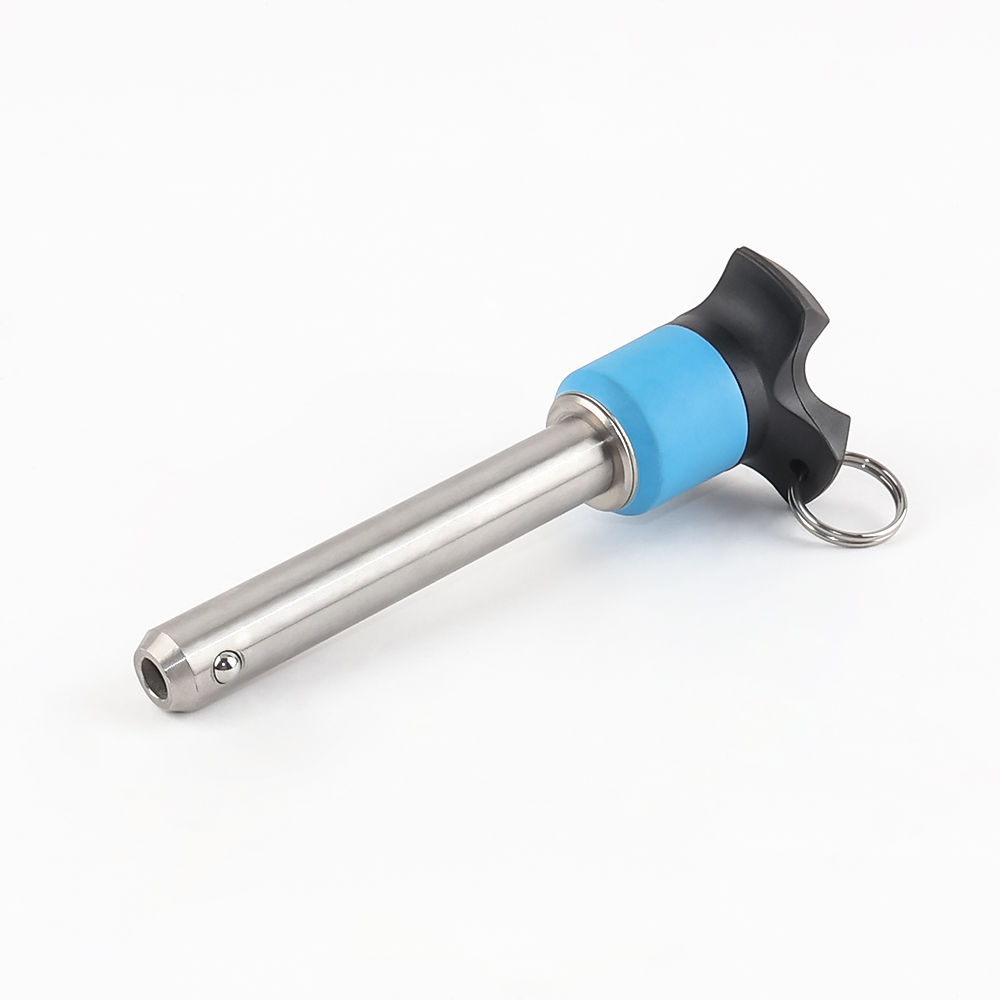

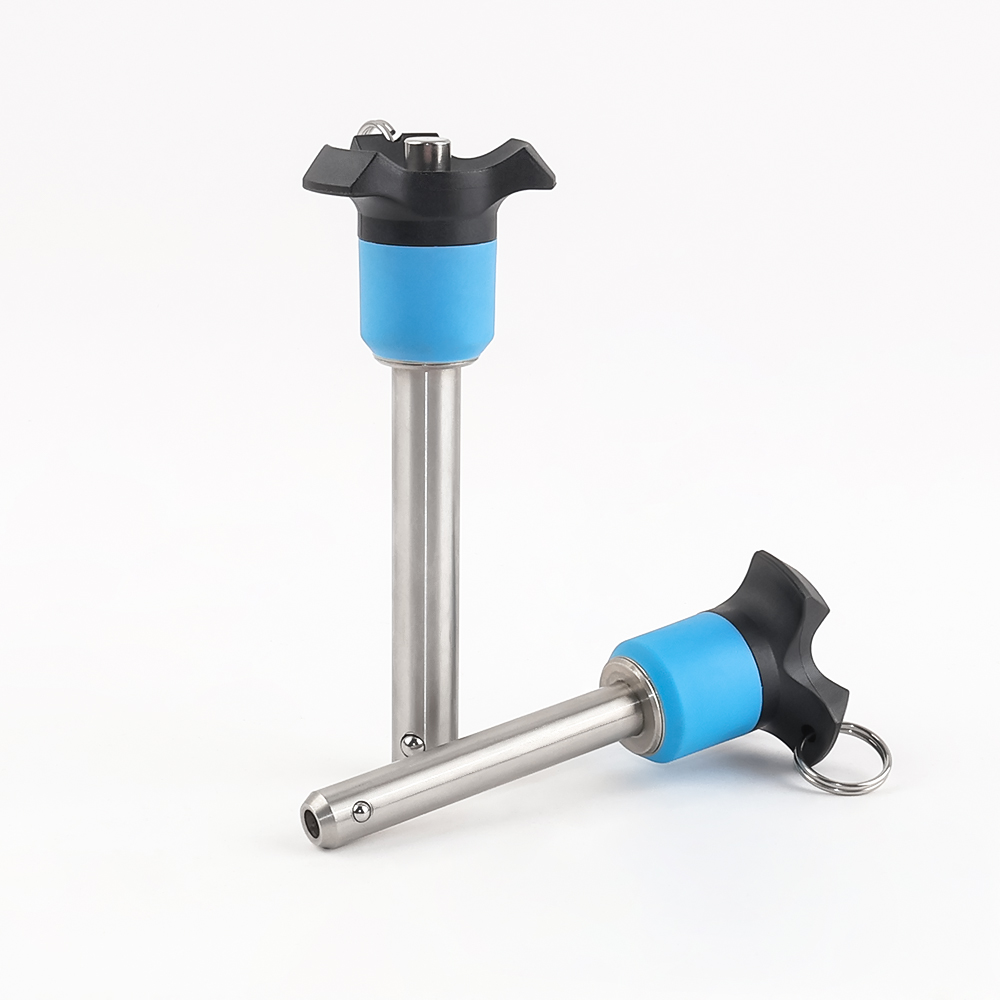

The VCN120 Blue Handle Push Button Safety Ball Lock Pin is a high-efficiency, tool-free quick release fastening solution, designed for professional business clients that require frequent disassembly, rapid locking, and secure positioning in industrial and commercial equipment. Combining an ergonomic engineering-grade nylon handle with a precision-machined stainless steel pin, this ball lock pin delivers one-touch operation, exceptional load-bearing performance, and long-term reliability in high-cycle operating environments. Its patented push-button release mechanism enables single-handed operation, drastically reducing assembly and disassembly time while improving workplace safety and operational efficiency.
Key Features & Industrial Performance Advantages
Instant One-Touch Release Mechanism

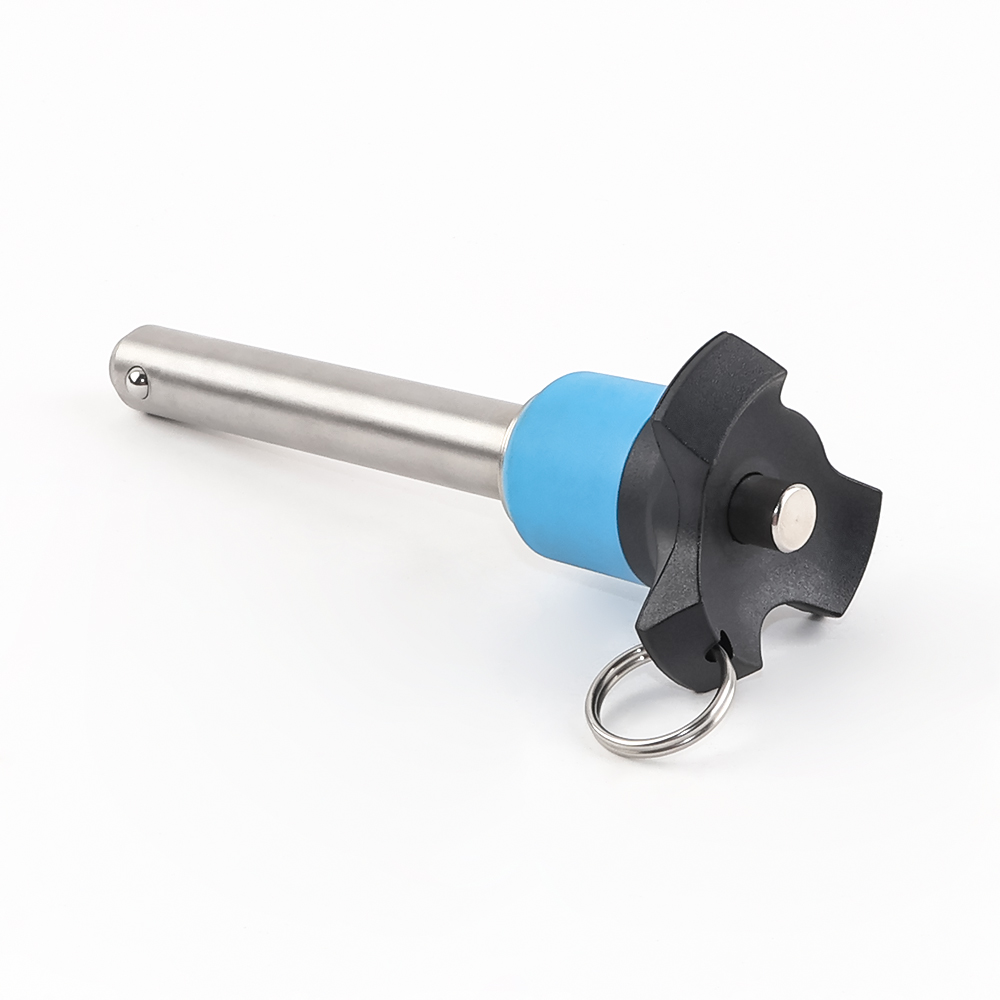

The core innovation of the VCN120 push button ball lock pin is its patented push-button unlocking system, which enables single-handed, tool-free operation for immediate locking or separation. This design eliminates the need for specialized tools during equipment maintenance, mold changes, or component adjustments, cutting downtime and boosting productivity for industrial operations.
High Load Capacity & Secure Anti-Accidental Disengagement
Equipped with a heat-treated stainless steel pin and built-in spring-loaded ball locking mechanism, the safety ball lock pin delivers superior shear resistance and stable load performance. It supports a typical static load capacity of up to 500kg and dynamic load capacity of up to 200kg, while the integrated spring system ensures consistent locking force to prevent accidental disengagement, even in high-vibration industrial settings.
Ergonomic Lightweight Handle & Wide Size Compatibility

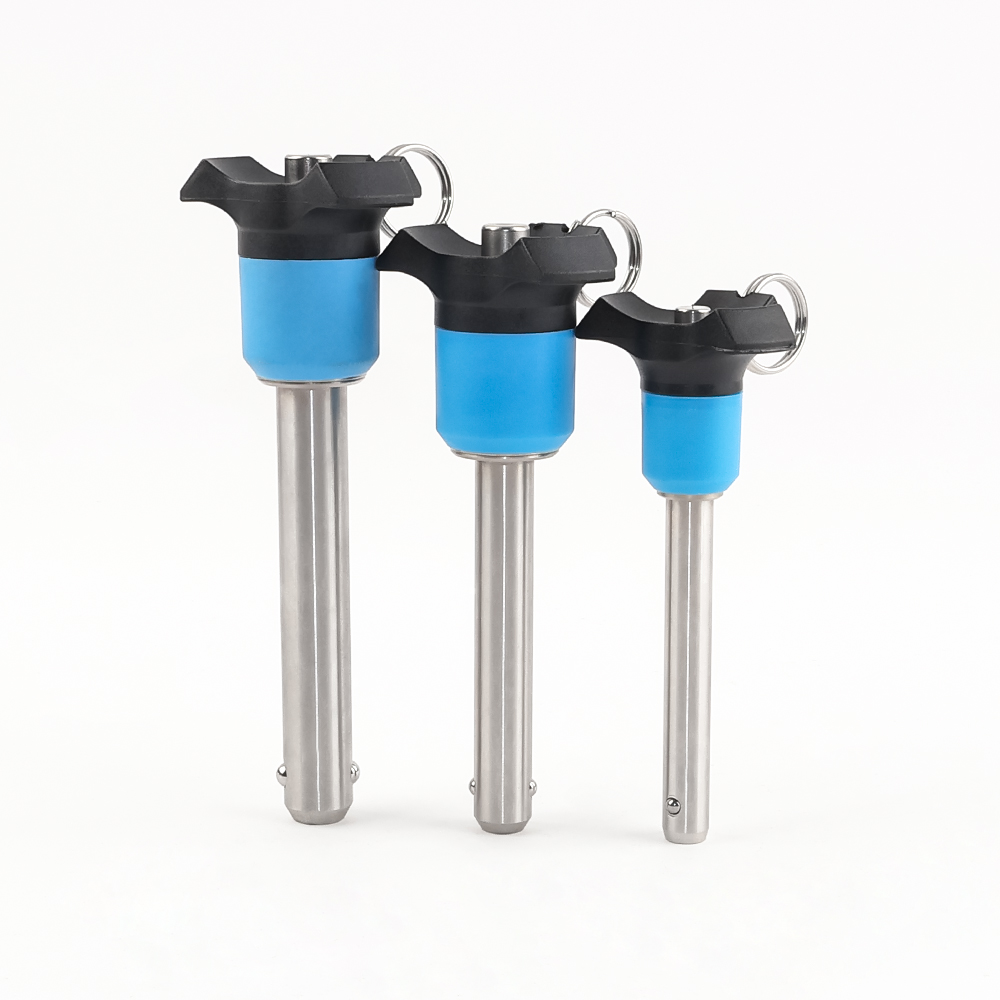

The handle of the quick release ball lock pin is manufactured from high-impact Nylon 6 engineering polymer, offering exceptional impact resistance, reduced overall weight, and a non-slip ergonomic texture for secure grip in harsh operating environments. The pin is available in a comprehensive range of metric and imperial sizes, with diameters from 5mm to 16mm and working lengths from 10mm to 100mm, ensuring compatibility with nearly all standard mounting requirements.
Detailed Technical Specifications
Parameter | Core Specifications |
|---|---|
Product Model | VCN120, VCN120.1 |

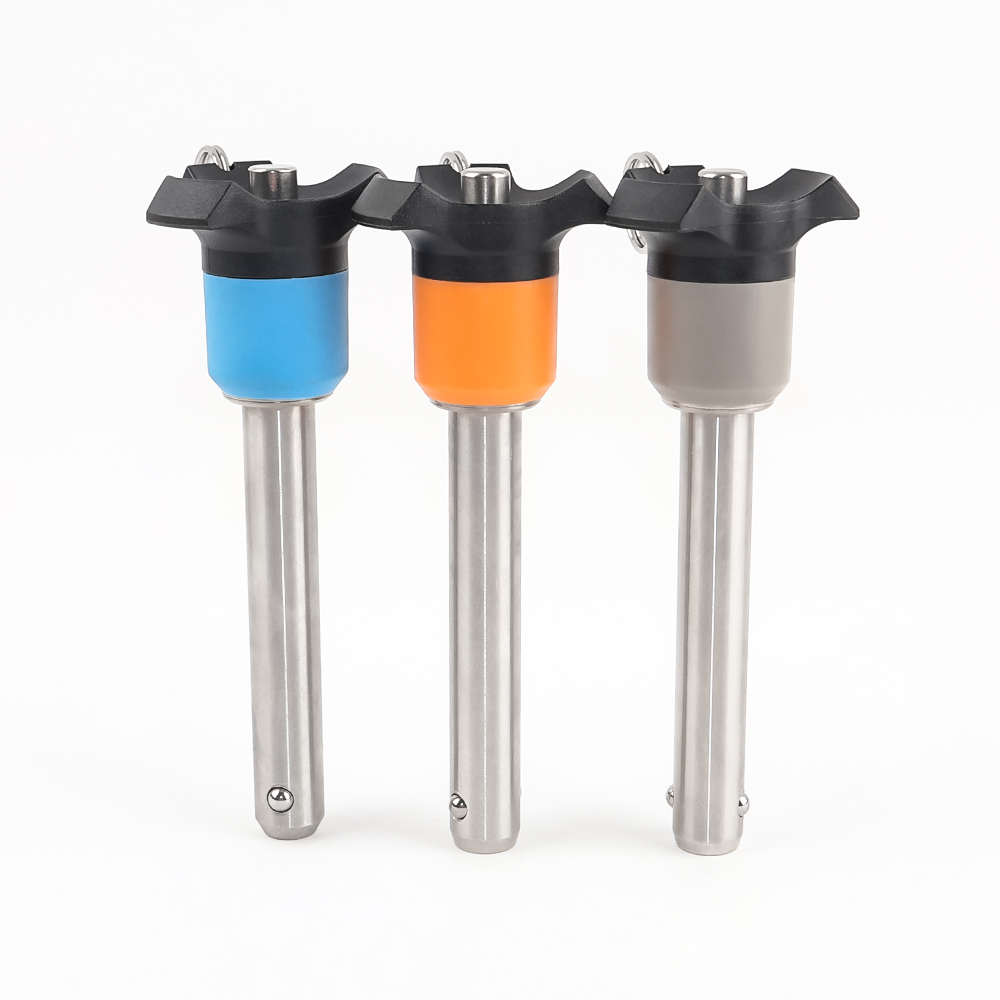

Handle Color Options | Blue, Orange, Gray (Custom Colors Available) |
Pin Material | SUS304 Stainless Steel (SUS440C for Upgraded Models) |
Handle Material | High-Impact Nylon 6 |
Pin Diameter Range | 5mm × 16mm |
Working Length Range | 10mm × 100mm |
Operating Temperature Range | -30°C × +80°C |
Typical Static Load Capacity | 500kg |
Typical Dynamic Load Capacity | 200kg |
Minimum Order Quantity | 1pcs |
Sales Model | Wholesale |
Surface Finish | Original As-Machined Pin |
Industrial Applications
The tool-free push button quick release pin is a versatile fastening solution used by professional manufacturers, equipment builders, and system integrators across a wide range of sectors, including industrial machinery for rapid mold and fixture changes on production lines, automotive and transportation for trailer coupling and vehicle component securing, outdoor recreational equipment for tent and bicycle trailer assembly, medical and rehabilitation devices for detachable stretcher and wheelchair component locking, and fitness equipment for quick height and angle adjustments on modular gym machines.
Customization & OEM/ODM Manufacturing Services
We provide full customization solutions for the VCN120 safety ball lock pin to meet the unique project needs of our professional business clients. Available customizations include tailored pin diameters and working lengths, custom handle colors and branding, specialized surface finishes, material upgrades, and modified functional designs to fit unique application requirements. Our ISO 9001-certified manufacturing facility ensures all custom products meet strict quality and performance standards.
Ordering, Global Shipping & Warranty
We offer flexible ordering options for the blue handle quick release pin, with a minimum order quantity of 1pcs to support both prototype testing and large-volume wholesale orders. We provide reliable global shipping to all major industrial markets, with robust, damage-resistant packaging to ensure products arrive in perfect condition. All VCN120 ball lock pins are manufactured under rigorous ISO 9001 quality control protocols, backed by a comprehensive product warranty and dedicated after-sales support to resolve any issues promptly.
FAQs
What load capacity can the VCN120 Push Button Safety Ball Lock Pin support?
The standard VCN120 ball lock pin delivers a typical static load capacity of up to 500kg and a dynamic load capacity of up to 200kg, with performance varying slightly based on specific model and pin diameter.
What size options are available for this quick release lock pin?
We offer a full range of metric and imperial sizes, with pin diameters from 5mm to 16mm and effective working lengths from 10mm to 100mm. Custom sizes are also available upon request.
What materials are used in the VCN120 blue handle lock pin?
The locking pin uses a high-strength SUS304 stainless steel pin, paired with an impact-resistant Nylon 6 handle for optimal durability, corrosion resistance, and ergonomic performance.
