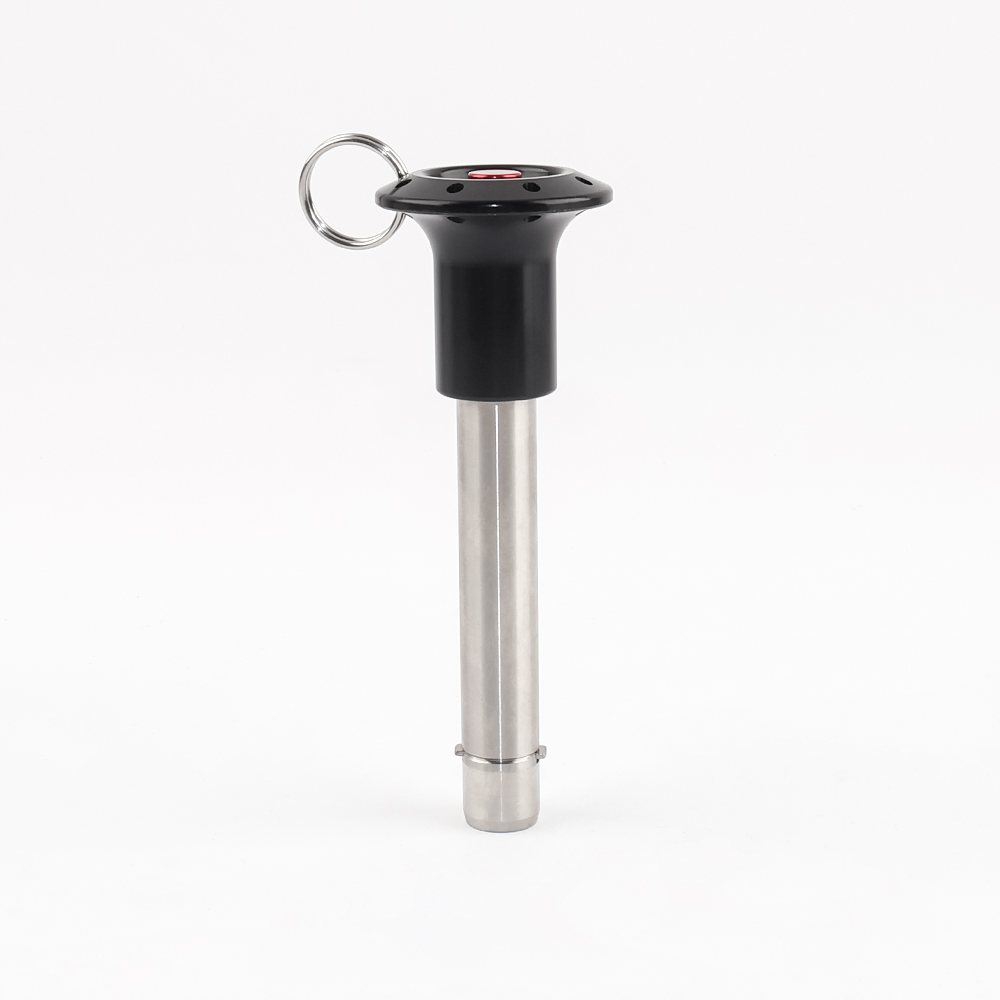

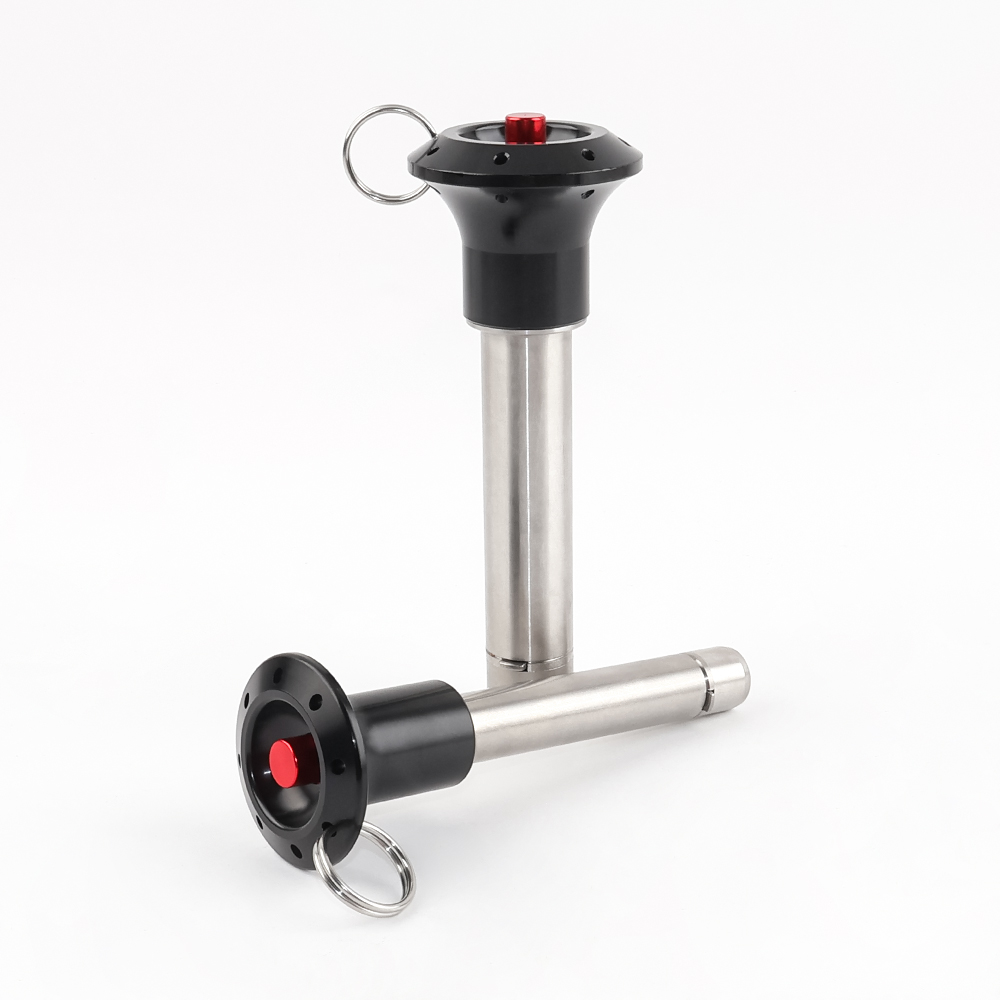

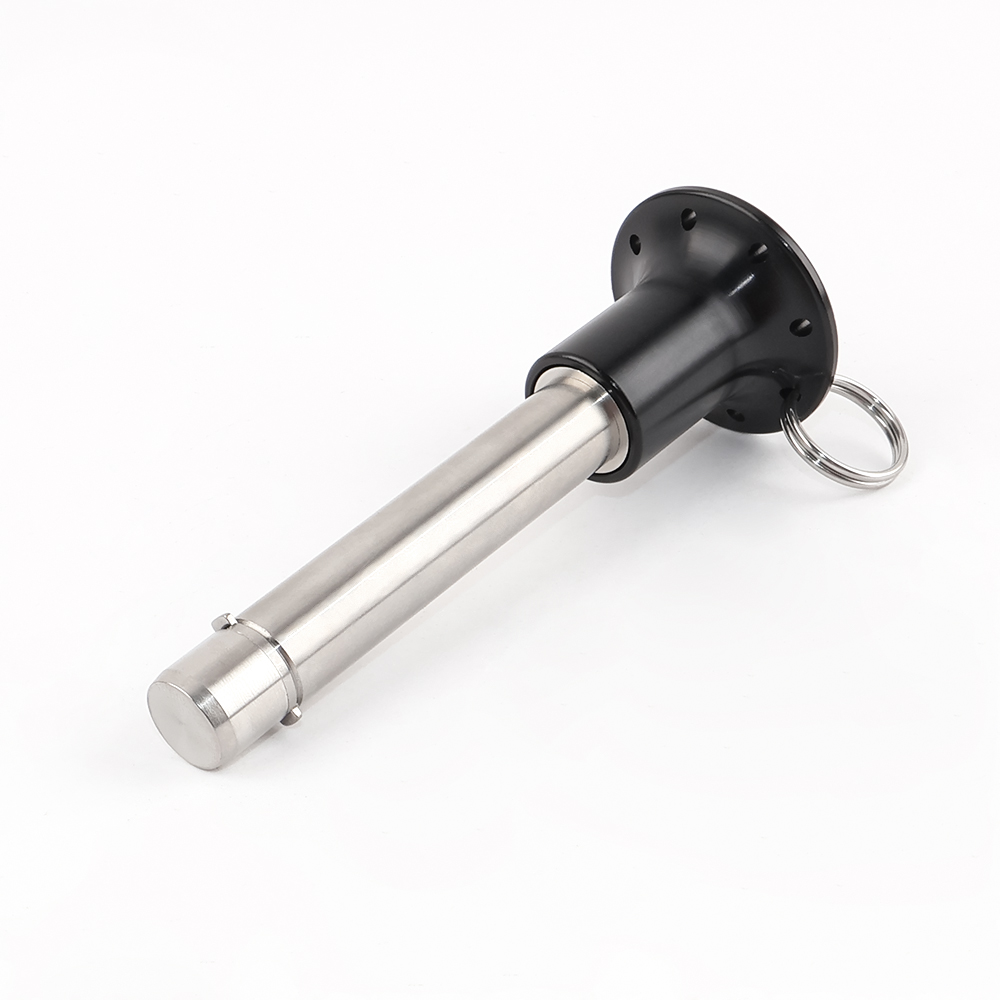

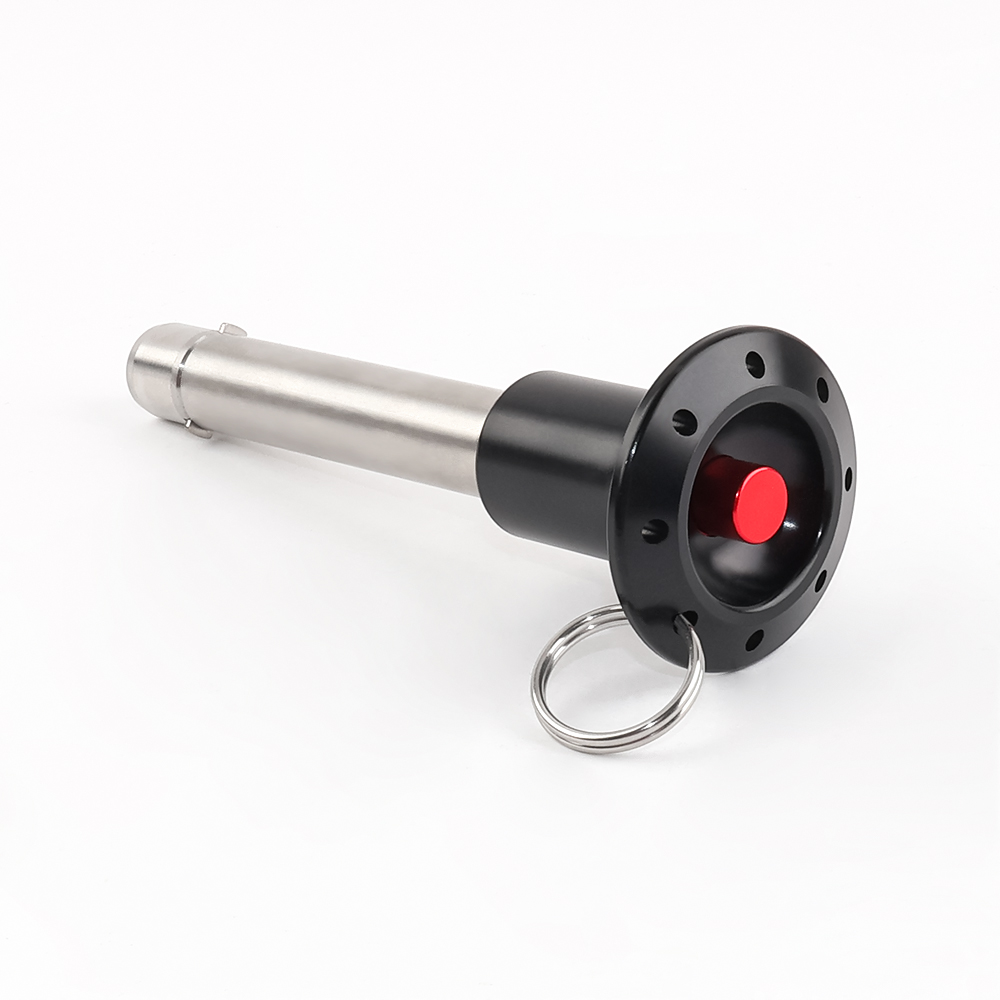

VCN123 Quick Release Pin with Pawl Locking Mechanism

VEICHU VCN123 Quick-Release Safety Locking Pin
— Precision Positioning, Rapid Installation/Removal, High-Reliability Aerospace-Grade Locking Solution

Core Product Advantages

1. High-Strength Material Combination

• Aluminum Alloy Handle: Crafted from lightweight yet durable aluminum alloy, offering corrosion resistance and meeting aerospace demands for weight reduction and longevity.

• SUS304 Stainless Steel Pin Body: Made from Japanese-standard austenitic stainless steel, providing exceptional corrosion resistance and tensile strength (≥520 MPa). Suitable for extreme temperatures (-196°C to 870°C) to ensure long-term stability.

• SUS440C Steel Ball: High-carbon martensitic stainless steel with superior hardness (HRC ≥58) and wear resistance, guaranteeing reliability and durability for the pawl locking mechanism.

2. Anti-Misoperation Design

• Flared Handle: Ergonomically designed to require a specific force angle for unlocking, preventing accidental loosening in high-vibration environments.

• Pawl Locking Mechanism: Precision-machined ratchet teeth and steel balls enable multi-stage locking, maintaining stability under impact or vibration.

3. Rapid Installation/Removal & Compatibility

• One-Touch Release: Tool-free disassembly for efficient maintenance, ideal for equipment requiring frequent access.

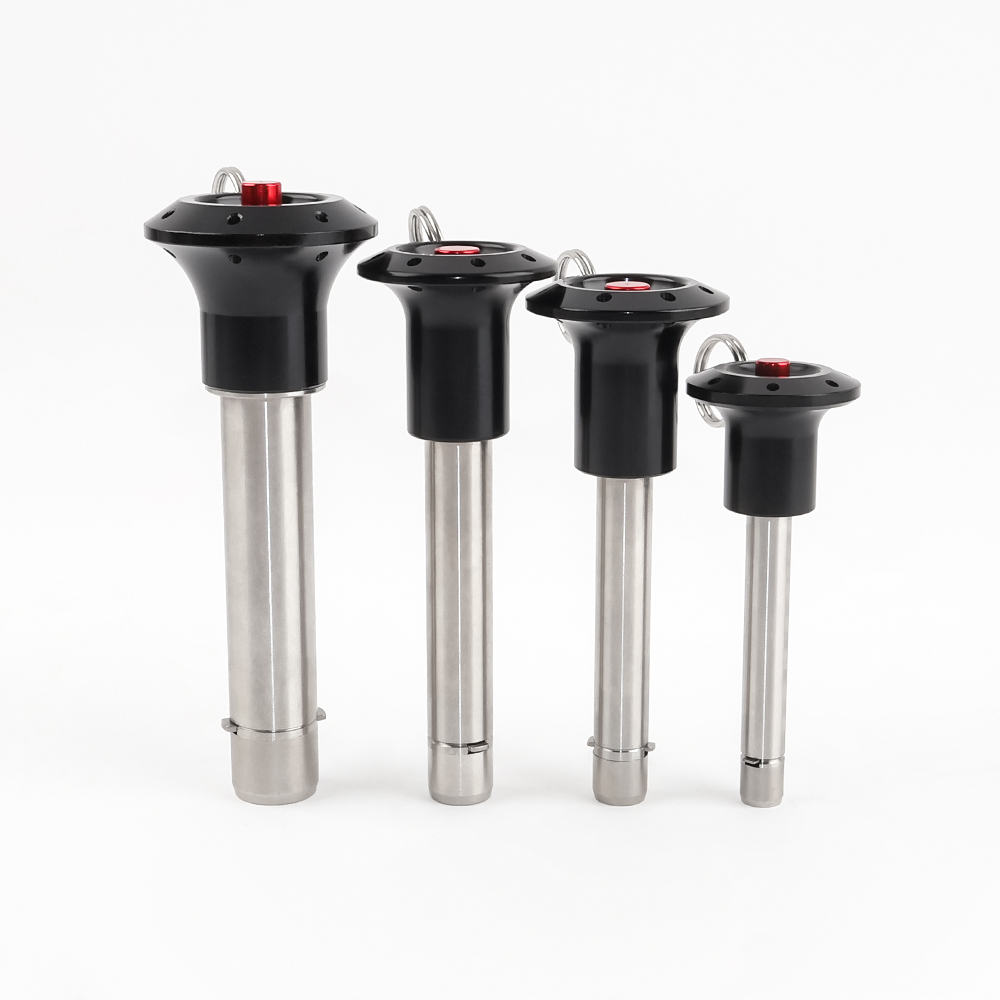

• Dual Metric/Imperial Specifications: Complies with international standards (1" = 25.4 mm precision), adaptable to diverse industrial interfaces.

•

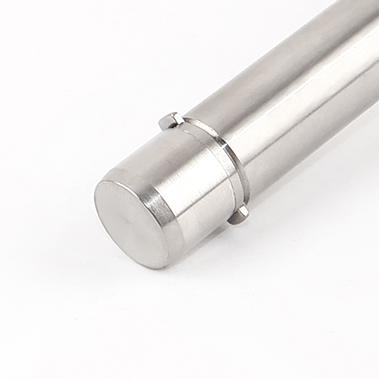

  Pawl Locking Mechanism

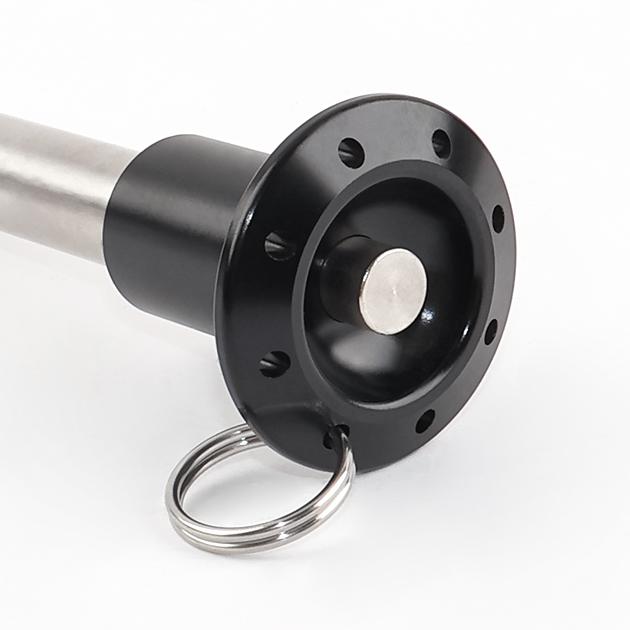

  Flared Handle

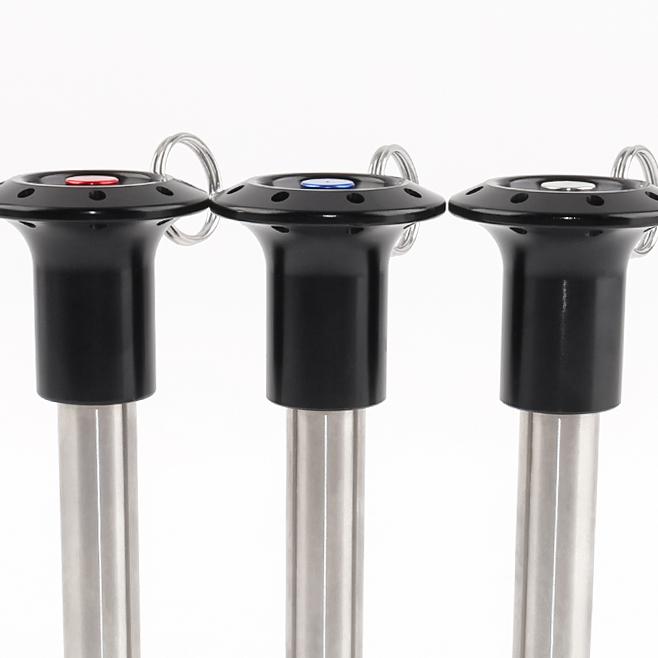

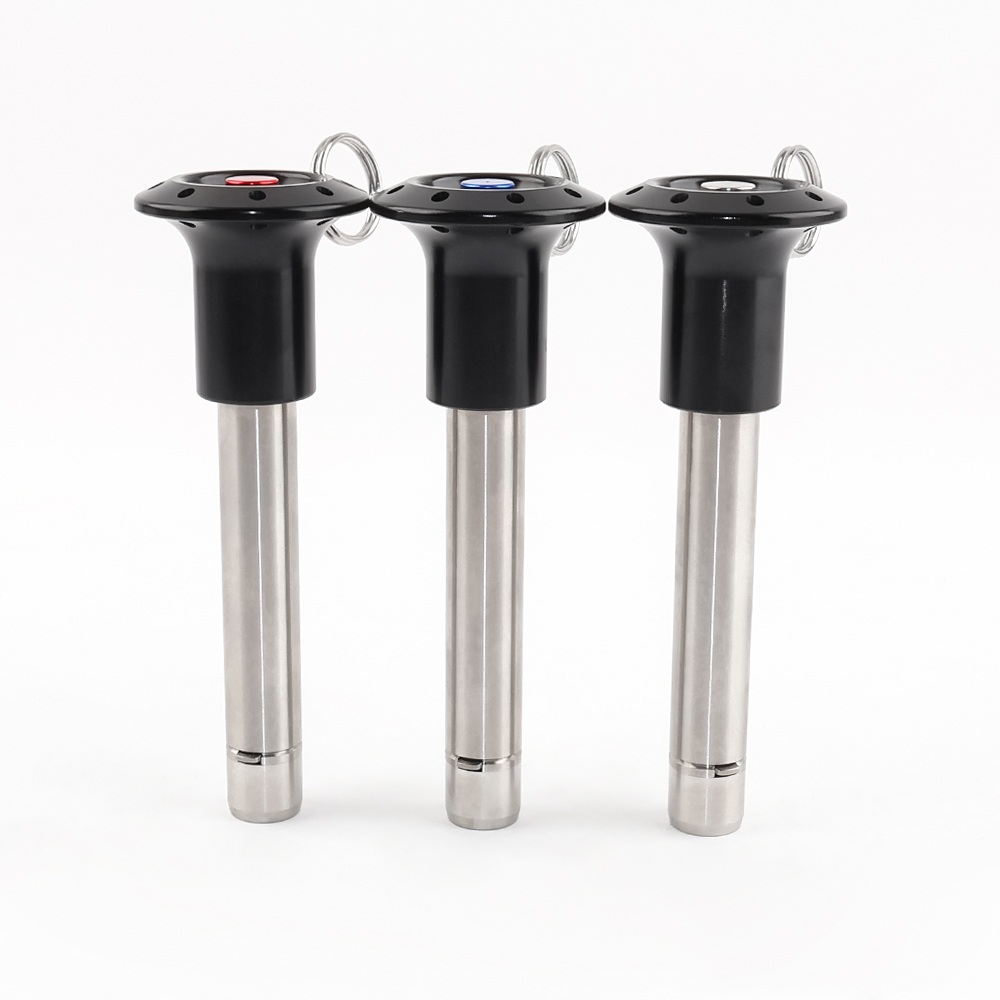

  The button has three color


Typical Application Scenarios

1. Aerospace Industry

• Safety Door Locking: Secures cabin doors and access panels, ensuring stability during flight to prevent unintended openings due to pressure changes or vibrations.

• Equipment Module Connections: Rapidly fastens onboard instruments, fuel pipelines, and more, meeting precision positioning and shock resistance requirements.

2. Industrial Automation & Rail Transit

• High-Speed Rail/Subway Safety Doors: Integrates with control systems for automatic lockdown during power loss and quick release when powered, ensuring passenger safety.

• Robotic Workstations: Locks robotic arm joints or tool heads to prevent accidental movements, supporting high-frequency operations.

3. High-End Equipment Manufacturing

• Precision Instrument Assembly: Ideal for optical devices and medical machinery requiring contamination-free, stable environments. Non-magnetic design avoids electromagnetic interference.

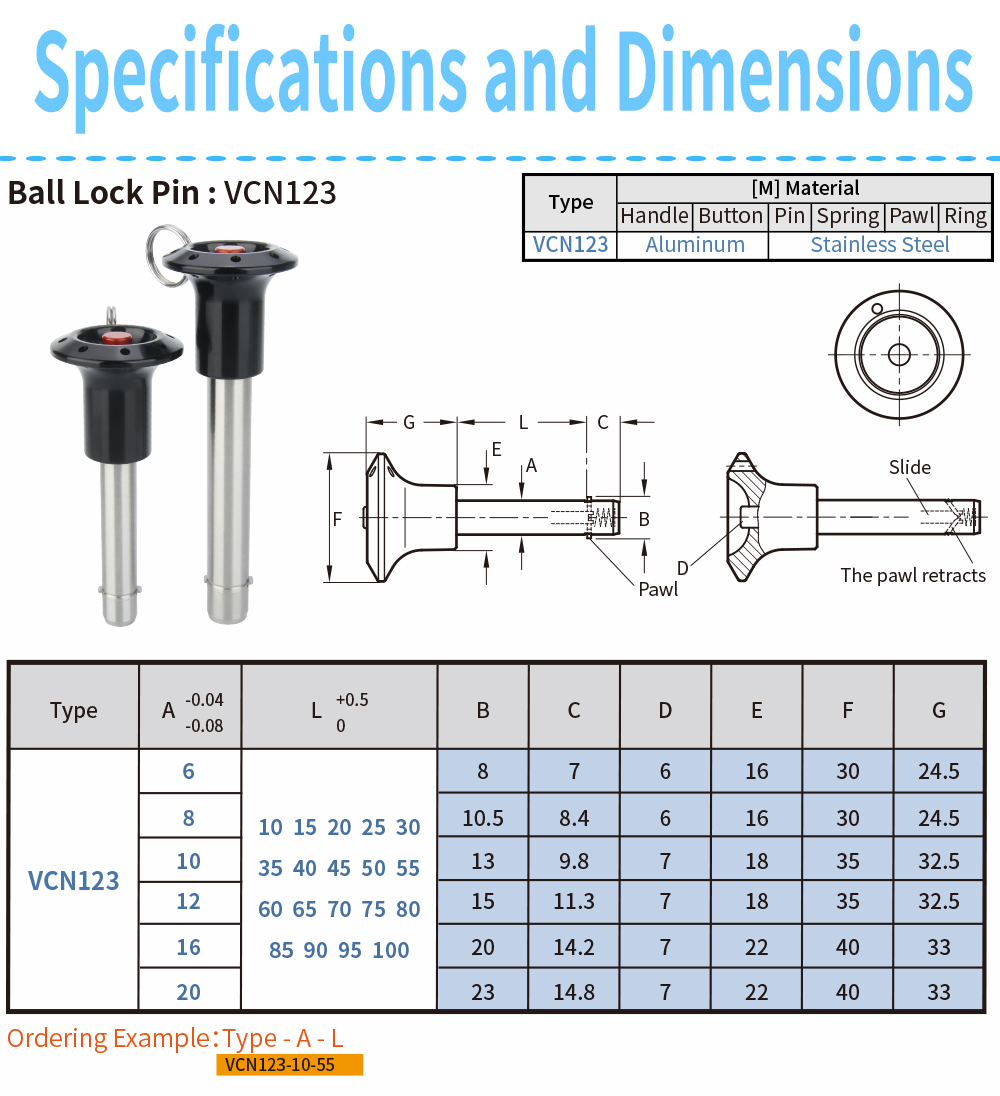

Technical Parameters & Industry Adaptability

The VEICHU VCN123 Locking Pin excels in material performance, innovative design, and cross-industry compatibility, making it the go-to solution for high-security applications. Whether in extreme aerospace environments or routine industrial maintenance, it delivers efficient and reliable locking performance. For technical specifications or customization, contact our engineering team.
