Product Description

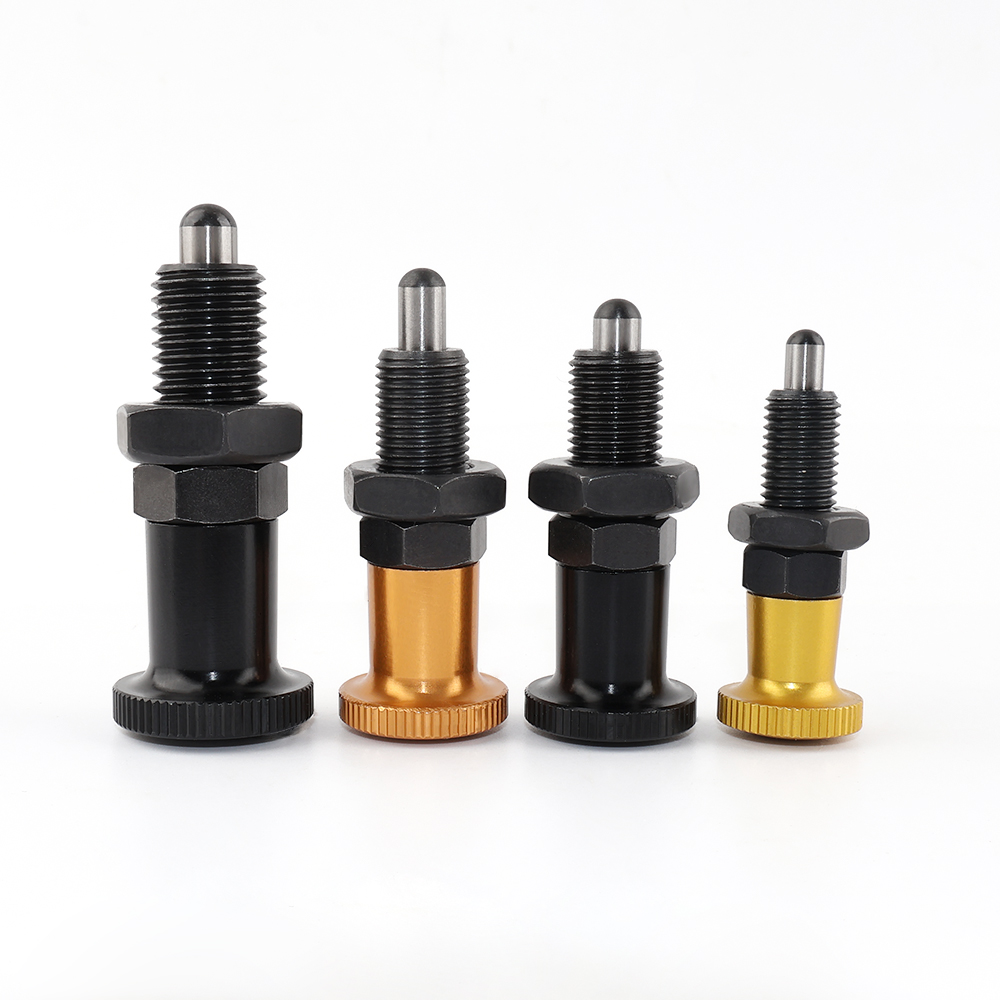

VEICHU VCN210-BK Return Type Indexing Plunger – High-Precision Positioning, Industrial-Grade Reset Solution
Key Features: Precision, Durability, Efficiency
The VCN210-BK Return Type Indexing Plunger is an industrial-grade reset mechanism designed for automation systems, CNC machining, and precision assembly applications. Combining high-accuracy positioning, rapid reset functionality, and long-term reliability, it delivers seamless locking and indexing support for complex mechanical operations. From automated production line station switching to repetitive positioning in precision molds, the VCN210-BB ensures error-free performance, driving productivity and operational efficiency.
Core Advantages
✅ Millisecond-Level Reset, Boosted Efficiency
Optimized spring mechanics and low-friction coating technology enable instant automatic reset after indexing, minimizing equipment downtime—ideal for high-speed cyclic operations.
✅ Micron-Level Positioning Accuracy
Hardened steel plunger head and rigid body structure guarantee repeatable positioning accuracy of ≤±0.01mm, meeting stringent requirements for semiconductor equipment, optical instruments, and other high-precision industries.
✅ Extended Service Life
Core components feature nitrogen surface treatment, improving wear resistance by 50%.
IP67-rated protection against oil, dust, and moisture.
Certified for 1 million cycles, ensuring long-term stability.
✅ Plug-and-Play, Universal Compatibility
Standardized interfaces for quick integration with mainstream indexing tables and rotary stages.
Multiple mounting brackets available for flexible installation in confined spaces.
Technical Specifications
Model: VCN210-BK
Stroke: 3~10mm(customizable)
Max Load Capacity: 500N
Operating Temperature: -20°C to 120°C
Material: High-strength alloy steel (plunger head and housing) / Anodized aluminum (knob)
Reset Mechanism: Built-in spring automatic return
Signal Feedback: Optional magnetic proximity sensor (PNP/NPN output)
Typical Applications
CNC machine tool multi-station switching
Robotic end-effector precise positioning
Indexing table locking for inspection equipment
Fixture positioning in automated assembly lines
Precision machining of 3C electronic components
Why Choose VCN210-BK?
Smart Maintenance Design
Modular structure allows rapid replacement of wear parts, reducing maintenance costs by 40%. Visual wear indicator provides real-time service life monitoring.
Global Compliance Certifications
ISO 9001, RoHS certified, compliant with international industrial safety standards. Export-ready quality assurance.
Worry-Free Service Commitment
12-month warranty with lifetime technical support
Free 3D model downloads and installation tutorials
48-hour expedited shipping for urgent orders
Order Now and Elevate Your Production Efficiency!
Click “Add to Inquiry” for a customized quote, or contact our engineering team to tailor your indexing solution!
Keywords: Indexing plunger, high-precision positioning, automatic reset, industrial durability, CNC machine accessories, automation fixtures
Industries: Machinery manufacturing, automotive components, precision electronics, medical devices, packaging automation
