VCN213 Spring Loaded Indexing Plunger - Compact, Self-Locking Type
Share to:
| Quantity: | |
|---|---|
Product Description
Compact Indexing Plungers
— Precision Positioning, Flexible & Durable, Meeting Diverse Industrial Needs
Product Overview
Compact Indexing Plungers are versatile positioning components designed for industrial machinery, mechanical systems, and precision instruments. Their core function is to enable rapid positioning and secure fixation of equipment parts through precise locking and reset mechanisms, while supporting high-frequency operations. With diverse configurations (colors, materials, thread types, and functions) and exceptional durability, these plungers are widely used in automated production lines, mold tooling, medical devices, and more, making them an ideal choice for enhancing equipment efficiency and stability.
Key Features
1. Diverse Configurations for Multiple Scenarios

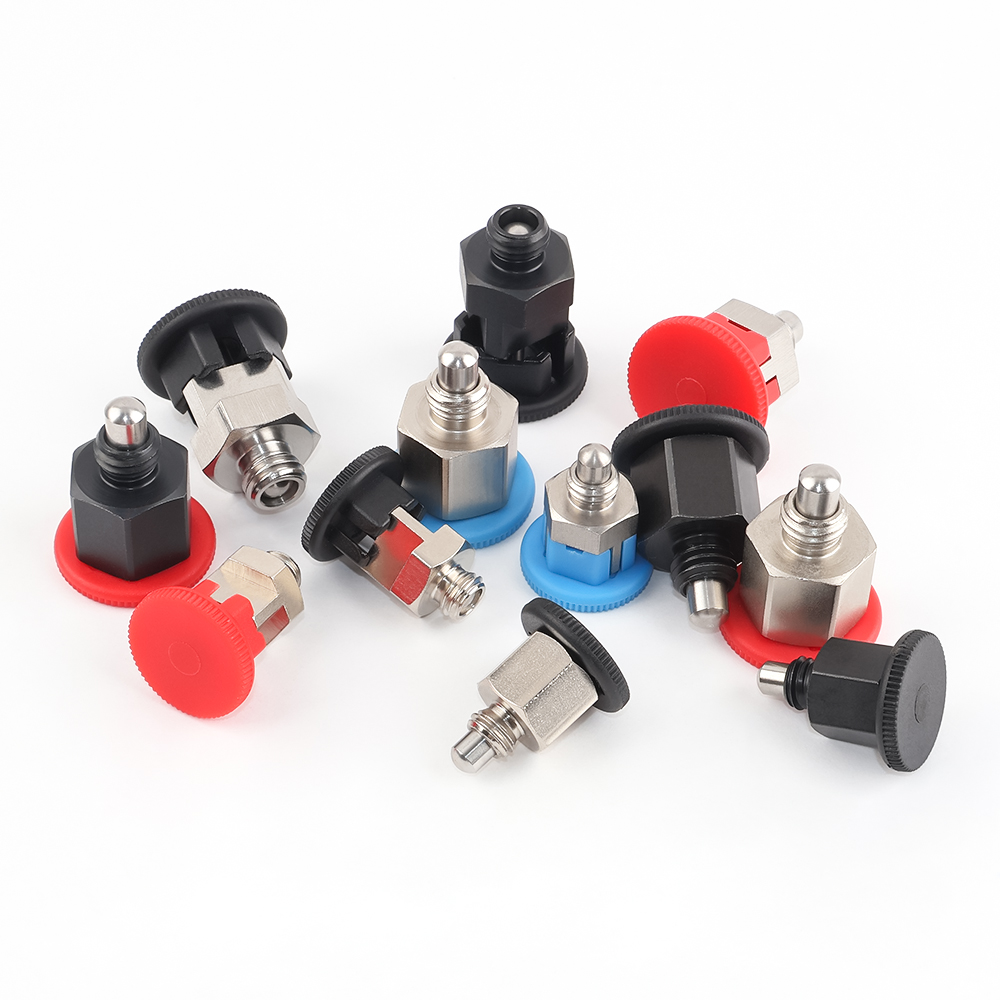

Color Coding: Knobs are available in red, blue, and black for quick visual identification of functions or workstations, improving operational efficiency.
Dual Material Options:
Stainless Steel Body: Corrosion-resistant, ideal for humid, high-cleanliness, or chemical environments (e.g., medical devices, food processing equipment).
Carbon Steel Body: High rigidity and wear resistance, suitable for heavy-duty industrial applications (e.g., stamping molds, heavy machinery).
Knob Material: Made of PA6 (Nylon 6), offering excellent heat resistance (up to 120°C short-term), impact resistance, and self-lubrication for smooth, jam-free operation over extended use.
2. Flexible Functions, Precision Reliability
Self-Locking Type: Utilizes an internal spring and locking mechanism for unidirectional fixation, ensuring stability under vibration or impact. Ideal for long-term positioning (e.g., mold alignment, fixture securing).
Spring-Return Type: Features quick rebound action for automatic reset after pressing, designed for high-frequency adjustments (e.g., indexing tables, inspection tooling).
3. Thread Pitch Options for Global Standards
Metric Fine Thread: Small pitch for tight engagement, ideal for high-precision, low-torque applications (e.g., optical instruments, precision testing equipment).
Metric Coarse Thread: Large pitch for rapid installation and high load-bearing capacity, suited for heavy machinery (e.g., stamping dies, industrial robotic arms).
Typical Applications
1. Machinery Manufacturing & Automation
Indexing Table Positioning: Spring-return plungers enable fast indexing and locking, boosting machining efficiency.
Fixture Quick-Change Systems: Color-coded knobs distinguish workstations, paired with self-locking for secure clamping.
2. Mold & Tooling Equipment
Mold Alignment Pins: Stainless steel plungers ensure precise positioning in injection molds, with corrosion resistance and longevity.
Stamping Die Reset: Carbon steel plungers with coarse threads provide rapid resetting in stamping presses for continuous production stability.
3. Medical & Precision Instruments
Adjustment Knobs: PA6 knobs (black/blue) meet cleanroom requirements, offering contamination-free, ergonomic operation.
Testing Equipment Positioning: Fine-thread plungers enable micro-adjustments in precision instruments to ensure measurement accuracy.
Benefits & Advantages
Modular Design: Customizable colors, materials, and functions to meet industry standards and client needs.
High Compatibility: Metric fine/coarse threads fit most global equipment interfaces, reducing customization costs.
Longevity: PA6 + stainless/carbon steel construction balances lightweight design with fatigue resistance, ensuring over 100,000 cycles.
User-Friendly: Ergonomic knob design allows easy operation even with gloves, enhancing workplace safety.
Conclusion
Compact Indexing Plungers, with their modularity, multi-scenario adaptability, and reliability, have become a benchmark in industrial positioning. Whether for heavy-duty locking or high-frequency precision resetting, flexible configurations deliver optimal performance. Choosing our product means higher efficiency, lower maintenance costs, and extended service life.
Contact us today for tailored solutions and technical support!
Keywords: Indexing plungers, self-locking/spring-return, PA6 knob, stainless/carbon steel, metric thread pitch.
