Description
Product Overview

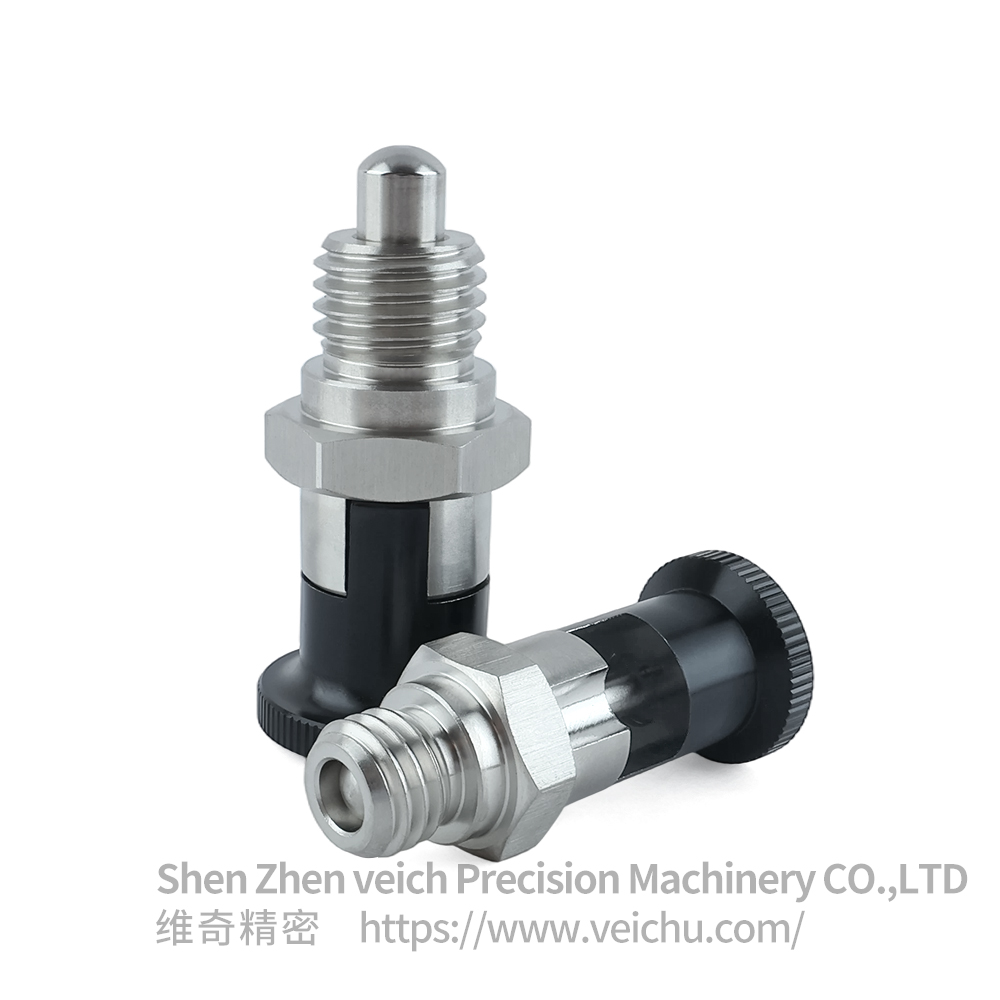

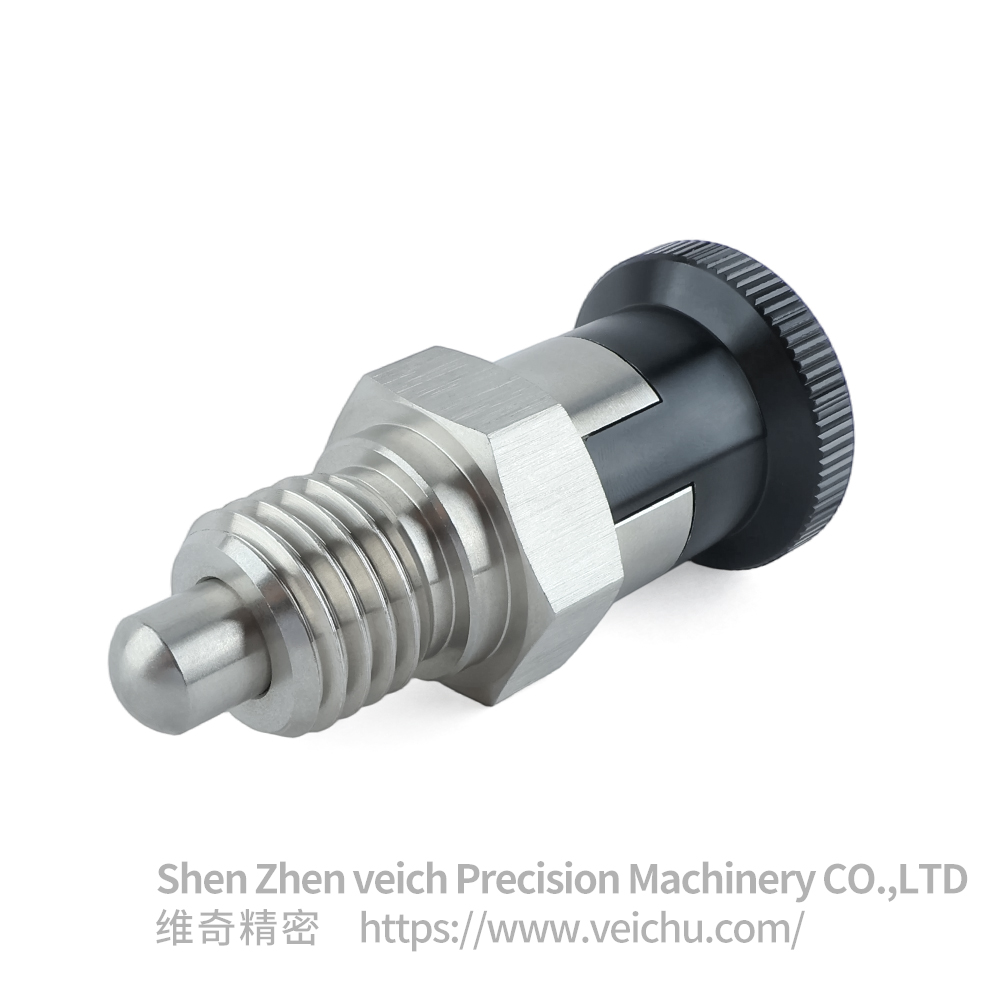

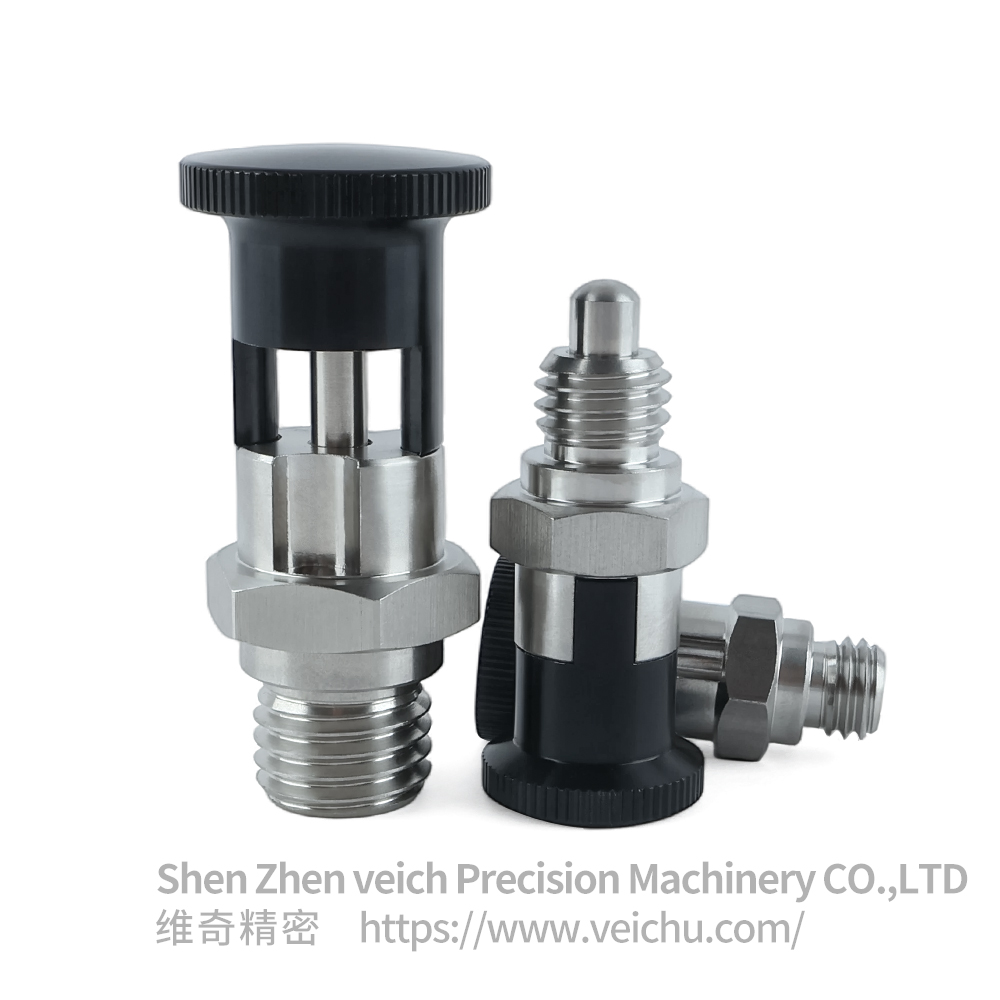

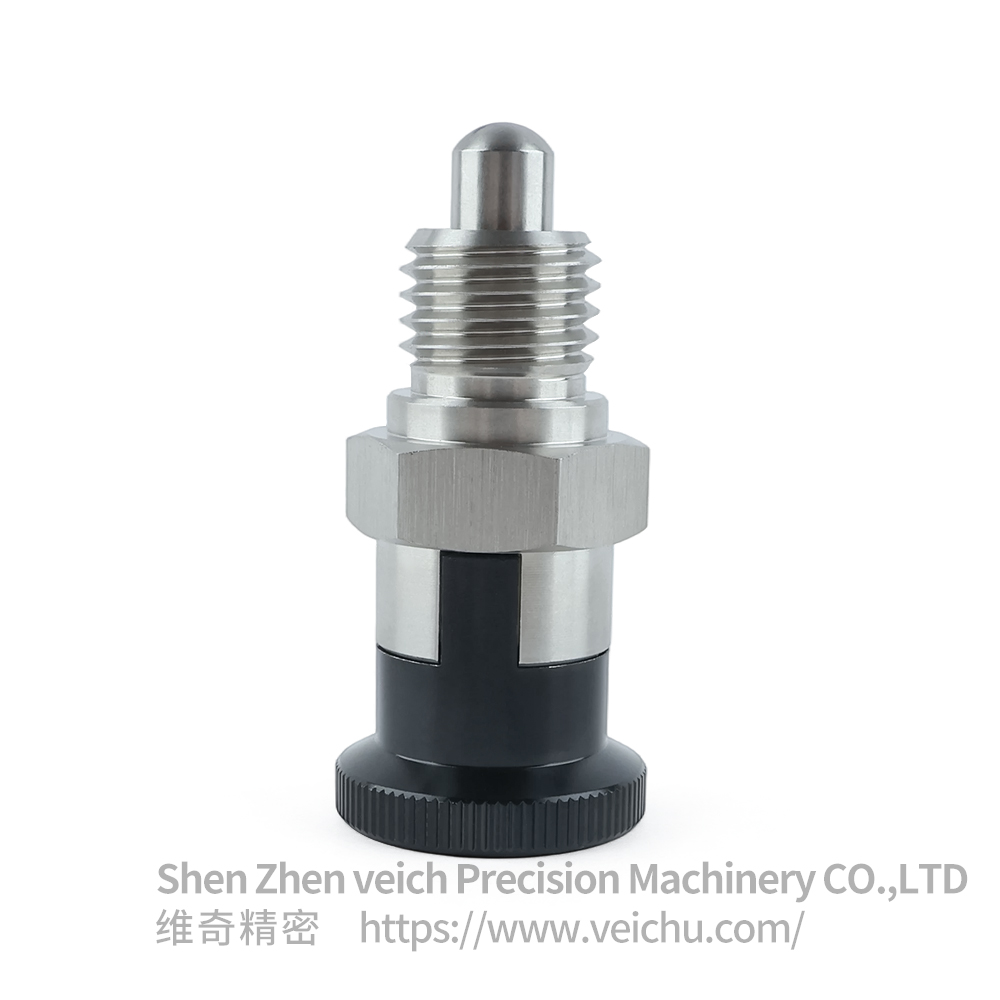

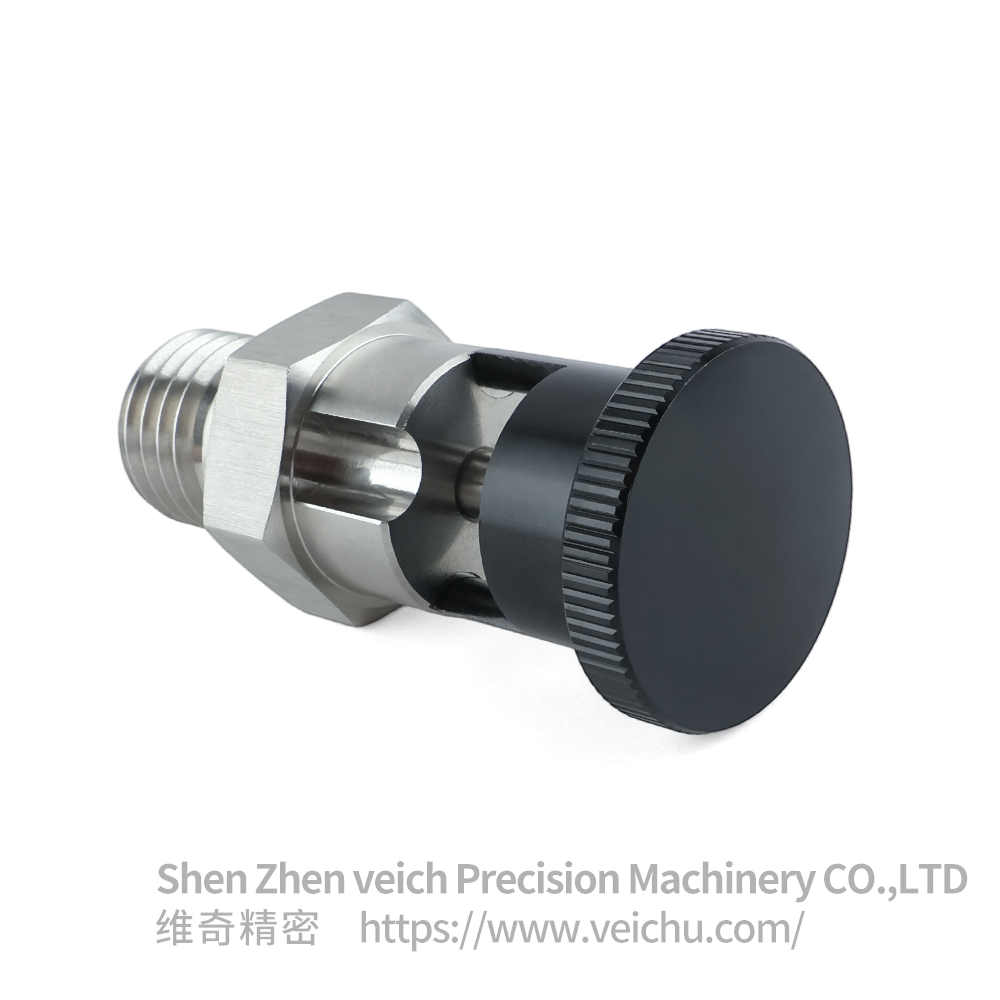

VCN215-CN hand-retractable plungers (also known as knob-type indexing pins, manual indexing pins, or handle-style positioning pins) are industry-leading precision mechanical positioning components, engineered exclusively for industrial enterprise clients, precision machinery manufacturers, and automation solution providers. Built with a premium stainless steel core and durable aluminum knob handle, this series of stainless steel spring-loaded indexing plungers delivers rapid, repeatable, high-accuracy positioning and locking performance for diverse industrial scenarios. Designed for manual pull-and-twist operation, these plungers enable seamless engagement and disengagement of the precision pin from locating holes, streamlining workpiece positioning, clamping, and release workflows in high-demand production environments. Available in standard thread diameters from M10 to M20, the VCN215-CN aluminum knob retractable plungers are compatible with most mainstream industrial fixture and equipment designs.
Key Features & Industrial Performance Advantages
Premium Corrosion-Resistant Material Construction
Every critical load-bearing component of the VCN215-CN stainless steel indexing plungers – including the threaded shell, positioning pin, internal spring, and lock nut – is manufactured from high-grade stainless steel, delivering exceptional corrosion, wear, and rust resistance. The ergonomic handle is crafted from lightweight, high-strength aluminum, ensuring comfortable long-term operation while maintaining structural integrity in harsh industrial settings.
High-Precision Indexing & Stable Locking Mechanism
Equipped with a precision spring-loaded structure and tight-tolerance fit between the plunger pin and positioning holes, these hand-retractable spring plungers achieve a consistent indexing accuracy of ±0.1mm. The integrated indexing locking mechanism delivers stable, vibration-resistant locking performance, eliminating accidental disengagement and ensuring consistent positioning quality across high-volume production runs.
Extended Service Life & Extreme Environmental Adaptability
The hardened contact surfaces and heavy-duty stainless steel construction deliver a service life exceeding 100,000 operation cycles, minimizing replacement frequency and unplanned downtime for industrial operators. The plungers support an operating temperature range of -50°C to 200°C, with optional IP65 protection available, making them suitable for extreme environments including high-temperature, high-humidity, and sterile cleanroom settings.
Detailed Technical Specifications
Core Model | Thread Diameter | Key Material Composition | Standard Dimensional Parameters |
|---|---|---|---|
VCN215-CN | M10 | Stainless Steel (Body, Pin, Spring, Nut); Aluminum (Handle) | Thread Pitch 1.5×1mm, Pin Diameter 5mm, Stroke 5mm |
VCN215-CN | M12 | Stainless Steel (Body, Pin, Spring, Nut); Aluminum (Handle) | Thread Pitch 1.75×1.5mm, Pin Diameter 6mm, Stroke 6mm |
VCN215-CN | M16 | Stainless Steel (Body, Pin, Spring, Nut); Aluminum (Handle) | Thread Pitch 2×1.5mm, Pin Diameter 8mm, Stroke 8mm |
VCN215-CN | M20 | Stainless Steel (Body, Pin, Spring, Nut); Aluminum (Handle) | Thread Pitch 2.5×1.5mm, Pin Diameter 10mm, Stroke 10mm |
Ordering Example: VCN215-CN-M12×1.5 |
Industrial Applications
The VCN215-CN precision indexing plungers are widely adopted across core industrial sectors, with primary use cases including:
Automation Equipment: Indexing positioning for rotary tables, rapid tooling changeovers for robotic arm grippers, and locking for automated assembly line fixtures
Precision Machining Fixtures: Workpiece clamping, angular adjustment, and positioning for machining centers, milling machines, and custom jigs and fixtures
Specialized Outdoor & Marine Machinery: Corrosion-resistant positioning for marine equipment, outdoor instrumentation, and off-highway machinery
Cleanroom & Hygienic Production: Positioning and locking for pharmaceutical manufacturing equipment, food processing lines, and medical device production machinery with frequent sanitization requirements
Customization & OEM/ODM Manufacturing Services
We offer end-to-end customization solutions for industrial enterprise clients and equipment manufacturing partners, tailored to your unique equipment and application requirements. Available customizations include modified plunger diameter, adjusted stroke length, custom thread specifications, alternative handle colors and finishes, and specialized functionality upgrades such as anti-release safety mechanisms. We also provide comprehensive OEM/ODM manufacturing services, including private labeling, custom packaging, and full brand development support, with flexible production runs to meet both low-volume prototype and high-volume mass production needs.
Ordering, Global Shipping & Warranty
We support a minimum order quantity of 1 piece for standard VCN215-CN retractable plungers, with wholesale pricing available for bulk orders. All orders undergo full dimensional and functional quality inspection prior to shipment. We offer multiple global shipping options, including express, air freight, and sea freight, to deliver to manufacturing facilities worldwide. All standard products come with a comprehensive manufacturer warranty against material and workmanship defects, with dedicated after-sales technical support available for all industrial clients.
FAQs
What materials are used for the VCN215-CN hand-retractable plungers?
All critical functional components (threaded body, positioning pin, spring, lock nut) are made of high-grade stainless steel, while the ergonomic handle is manufactured from durable, lightweight aluminum.
What thread sizes are available for this series of indexing plungers?
Standard VCN215-CN plungers are available in M10, M12, M16, and M20 thread diameters, with custom thread specifications available via our customization service.
What maintenance is recommended for high-frequency operation?
For industrial applications with daily high-frequency use, we recommend inspecting spring tension and locking accuracy every 6 months, with replacement of worn components as needed to maintain optimal performance.
