Description
Product Overview

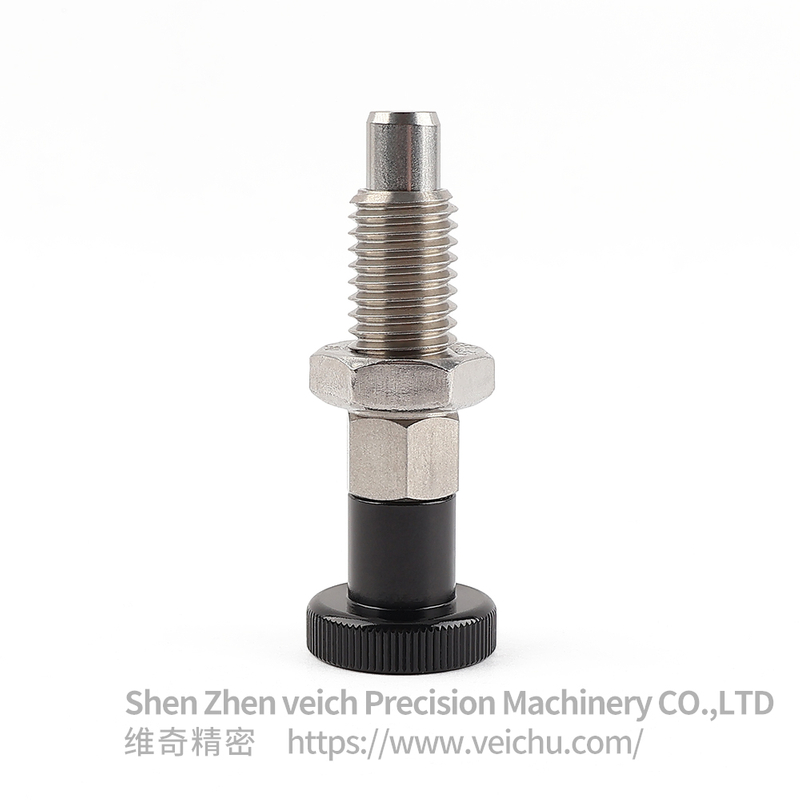

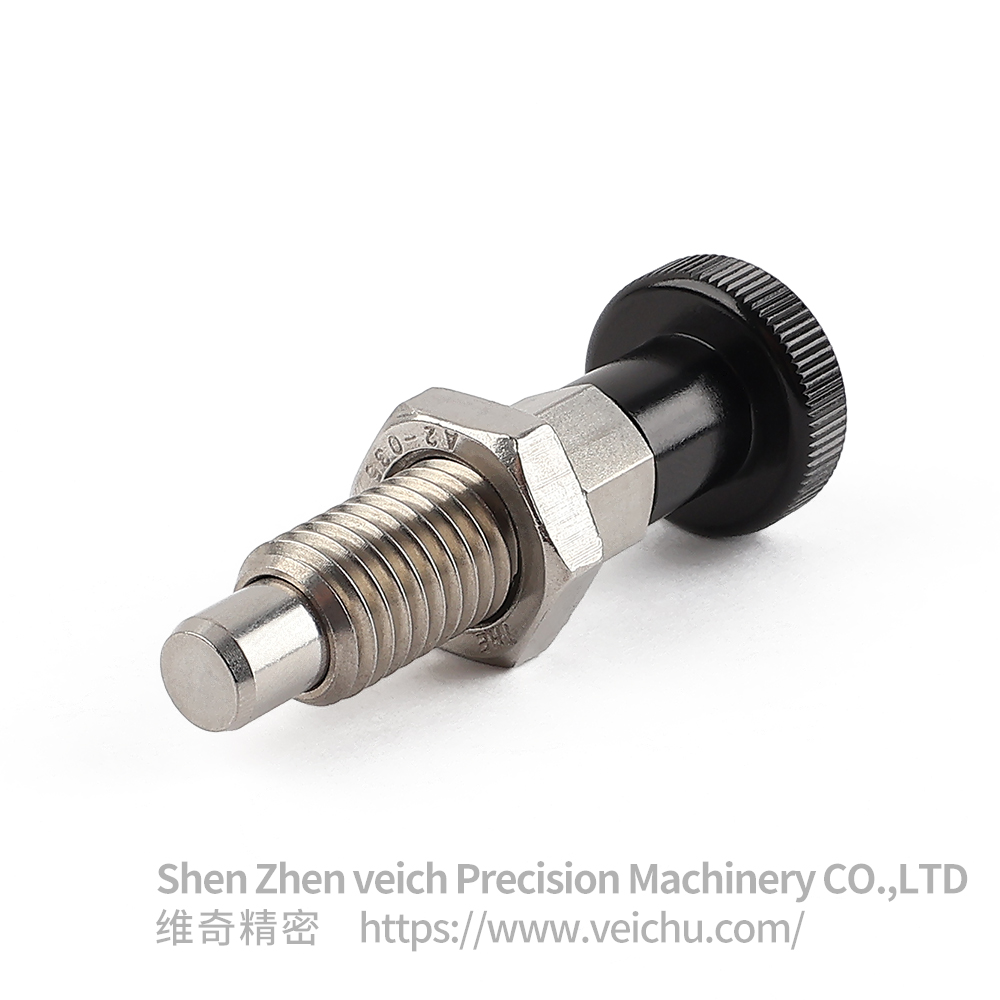

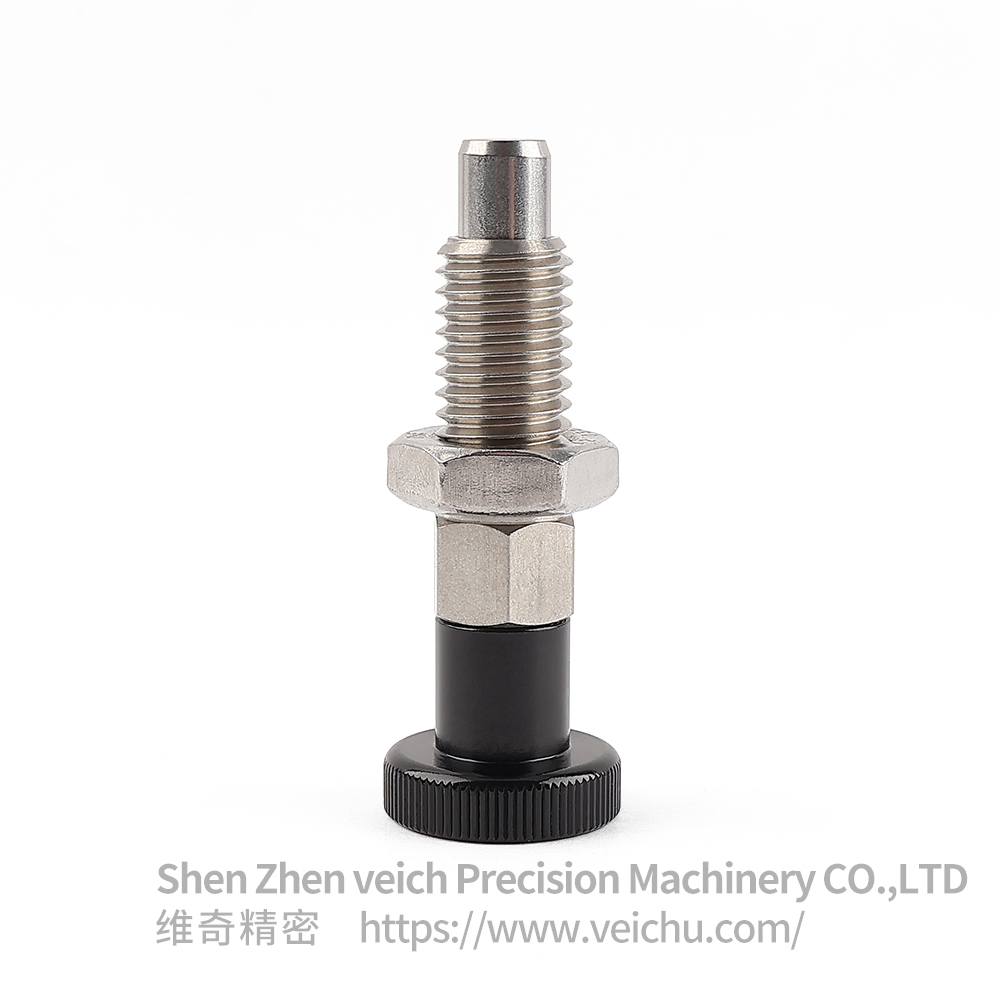

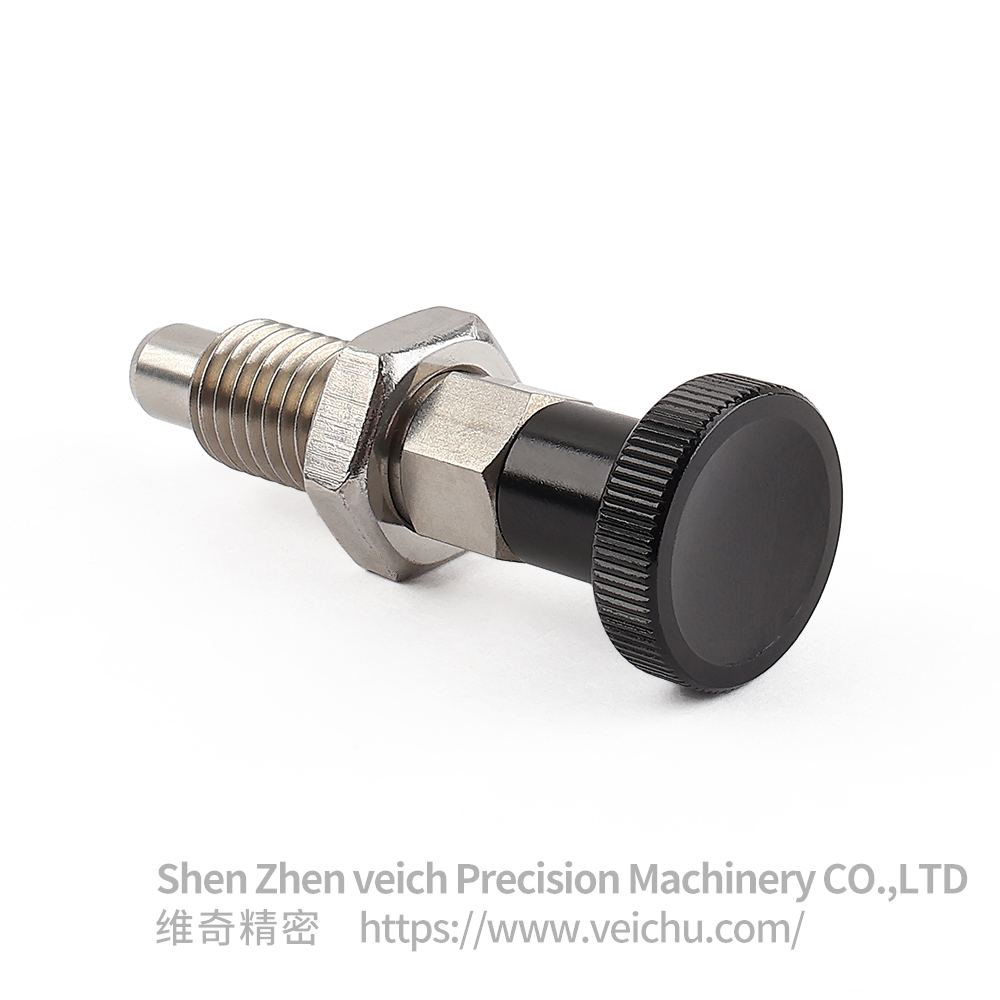

The VCN217-BNK hand retractable indexing plunger is a professional-grade, return-type precision positioning component, purpose-built for industrial applications requiring rapid, repeatable indexing and secure positional locking. Also known as a manual indexing pin or quick-change positioning plunger, this full stainless steel unit features an ergonomic aluminum handle and spring-loaded return design, enabling one-handed operation to engage or disengage the plunger pin from locating holes in seconds. It is the ideal positioning solution for industrial manufacturing enterprises, automation system integrators, and precision machining workshop operators, with standard thread sizes ranging from M6 to M12 to fit universal industrial mounting requirements.
Key Features & Industrial Performance Advantages
One-Touch Manual Operation for Maximized Work Efficiency
Unlike fixed positioning pins that require full removal for adjustment, our return type spring loaded indexing plunger achieves locking and unlocking via a single pull-and-twist motion, cutting setup and changeover time by up to 70% for machining and automation workflows. The integrated return spring automatically retracts the pin when released, eliminating lost components and streamlining high-frequency adjustment operations.
Full Stainless Steel Construction for Extreme Durability & Environmental Adaptability
The VCN217-BNK features a 304 stainless steel threaded body, plunger pin, and internal components, paired with a rugged aluminum handle, delivering exceptional corrosion resistance and mechanical strength. Validated to operate reliably in temperatures ranging from -50°C to 200°C, with optional IP65 sealing for dust and water ingress protection, this corrosion resistant manual indexing plunger is suitable for harsh outdoor, marine, and cleanroom environments alike. It is tested to withstand over 100,000 operating cycles without loss of locking force or indexing accuracy.
Precision Indexing Performance with Built-In Safety Redundancy
This precision locking indexing plunger delivers ±0.1mm repeatable indexing accuracy, meeting the strict demands of automated production lines and inspection gauges. Its precision-machined locking mechanism ensures stable, vibration-resistant locking in high-shock industrial environments, with select configurations featuring an anti-release safety design to prevent accidental unlocking during operation. The modular design supports full customization of pin diameter, stroke length, and indexing features to suit unique application needs.
Detailed Technical Specifications
Model Number | Thread Specification | Pin Diameter (mm) | Body & Pin Material | Handle Material | Total Installed Length (mm) | Operating Temperature Range |
|---|---|---|---|---|---|---|
VCN217-BNK-M6 | M6 × 1.0 | 4 | SUS304 Stainless Steel | Aluminum | 30.5 | -50°C to 200°C |
VCN217-BNK-M8 | M8 × 1.25 | 5 | SUS304 Stainless Steel | Aluminum | 40 | -50°C to 200°C |
VCN217-BNK-M10 | M10 × 1.5 | 6 | SUS304 Stainless Steel | Aluminum | 49 | -50°C to 200°C |
VCN217-BNK-M12 | M12 × 1.75 | 8 | SUS304 Stainless Steel | Aluminum | 59 | -50°C to 200°C |
Industrial Applications
The threaded hand retractable positioning plunger is deployed across a wide range of industrial sectors:
Automation Equipment: Rotary table indexing positioning, quick tool change for robotic arm grippers, and locking for adjustable automation fixtures
Machining & Workholding Fixtures: Workpiece clamping, angular adjustment, and quick setup for CNC machining centers and milling machine fixtures
Specialized Machinery: Corrosion-resistant positioning for marine equipment, outdoor instrumentation, and mining machinery
Clean & Regulated Environments: Sanitary positioning for pharmaceutical and food production lines, with stainless steel construction meeting cleanroom compatibility requirements
 |  |  |
Customization & OEM/ODM Manufacturing Services
We provide end-to-end customization support for specialized equipment manufacturers and custom machinery builders, including tailored plunger pin diameter, stroke length, number of indexing holes, and handle color options (black or gold standard). Our OEM/ODM services cover private label branding, custom laser marking, specialized surface treatments, and application-specific performance modifications, with flexible minimum order quantities to support both prototype development and full-scale mass production.
Ordering, Global Shipping & Warranty
We offer a minimum order quantity of 1 piece for prototype testing and validation, with tiered wholesale pricing for high-volume production orders. We provide global shipping solutions via international express, air freight, and sea freight, with door-to-door delivery available to over 180 countries and regions worldwide. All VCN217-BNK indexing plungers come with a 12-month manufacturer warranty, with complimentary technical support for mounting guidance, application troubleshooting, and custom solution development.
FAQs
What standard thread sizes are available for the VCN217-BNK indexing plunger?
The VCN217-BNK is available in standard metric thread sizes: M6, M8, M10, and M12, with full dimensional details listed in our specification table.
How can I maximize the service life of my hand retractable plunger in high-frequency applications?
Ensure perfect axial alignment between the plunger and your index holes during installation to avoid uneven pin wear, and inspect spring tension and locking accuracy every 6 months for continuous high-frequency use.
Can I get custom branding or handle color modifications for my equipment?
Yes, we offer custom handle color options (black and gold standard), laser marking for brand logos, and custom packaging solutions via our OEM/ODM services for industrial equipment manufacturers.
