VCN218-BS /MBS All Stainless Steel Mini Hand-Retractable Plungers
Share to:
| BS-fine thread: | |
|---|---|
| MBS-coarse thread: | |
| Quantity: | |
Description
Product Overview

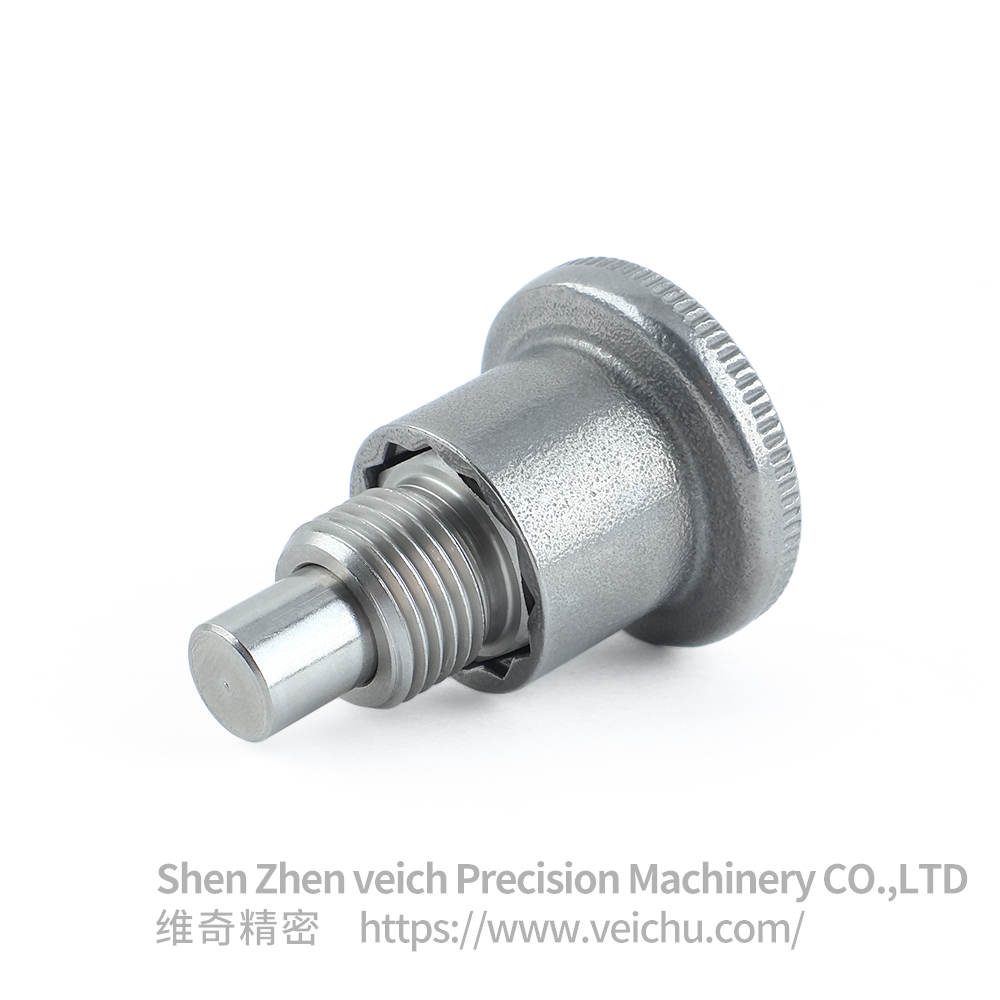

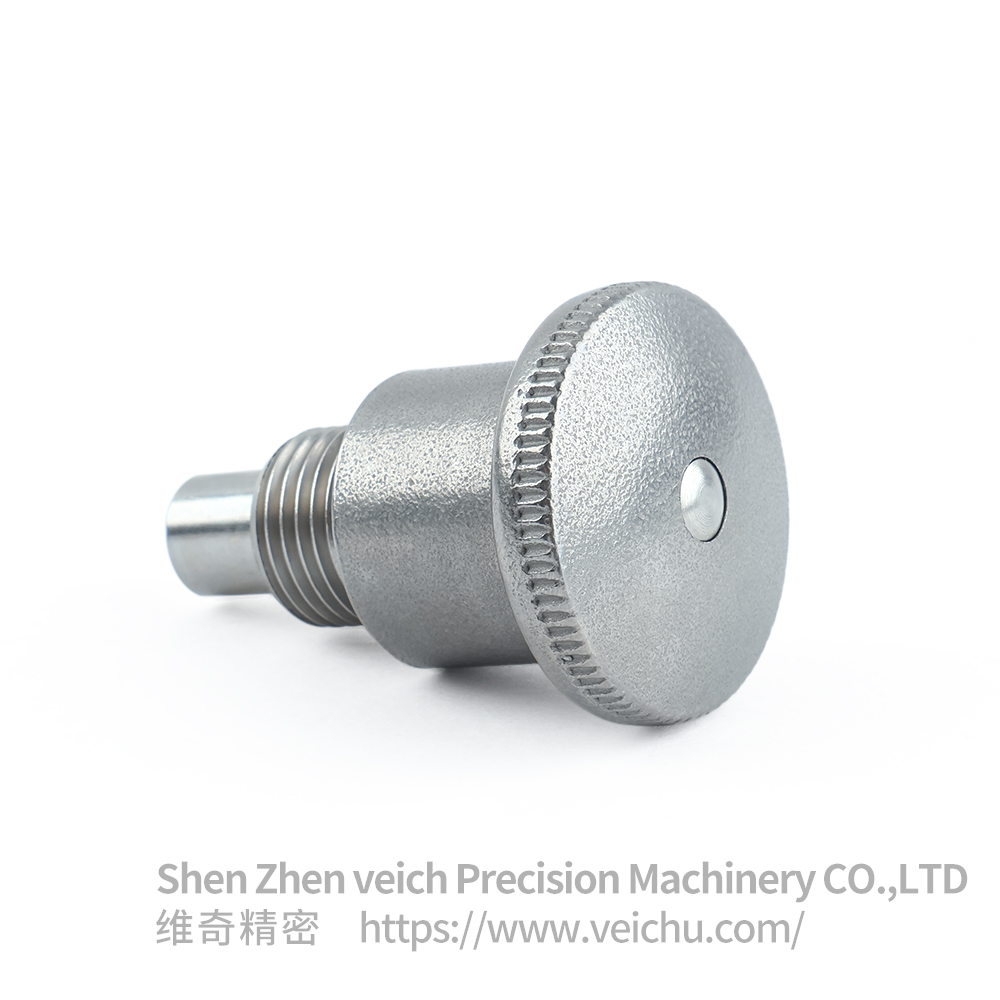

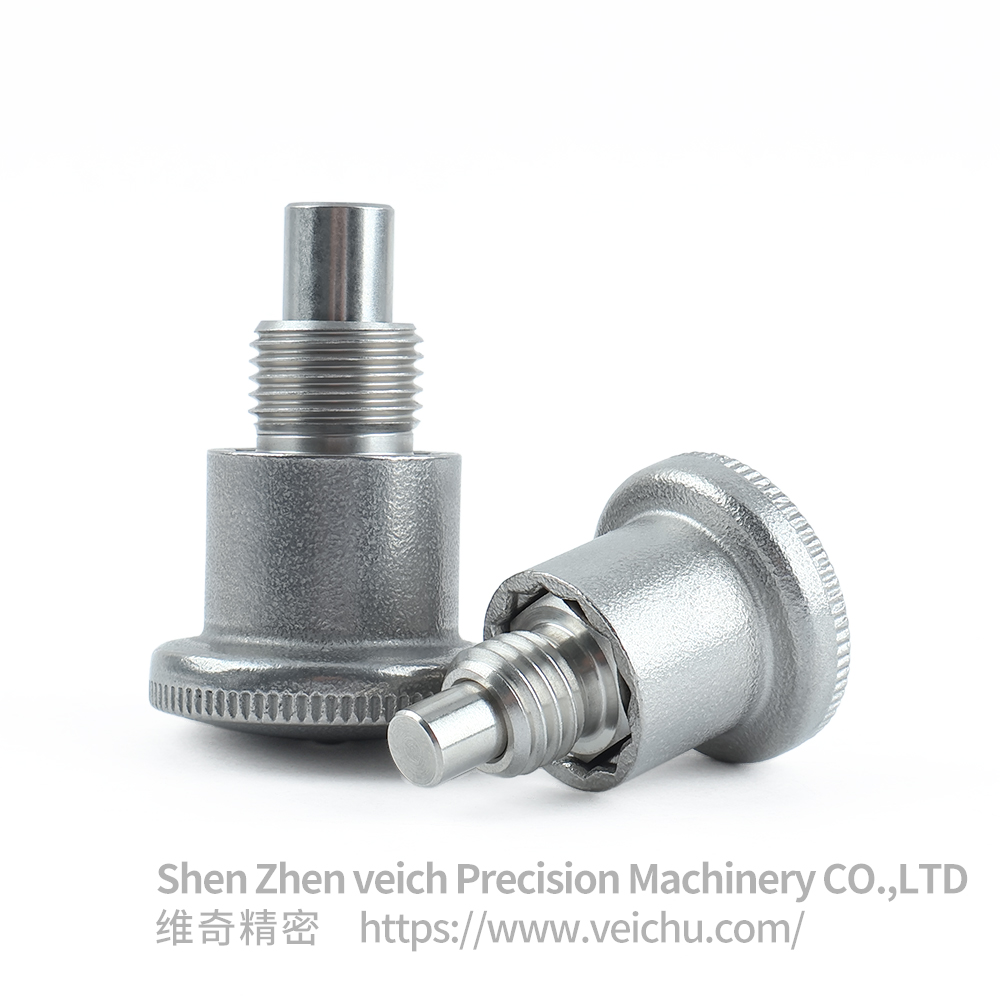

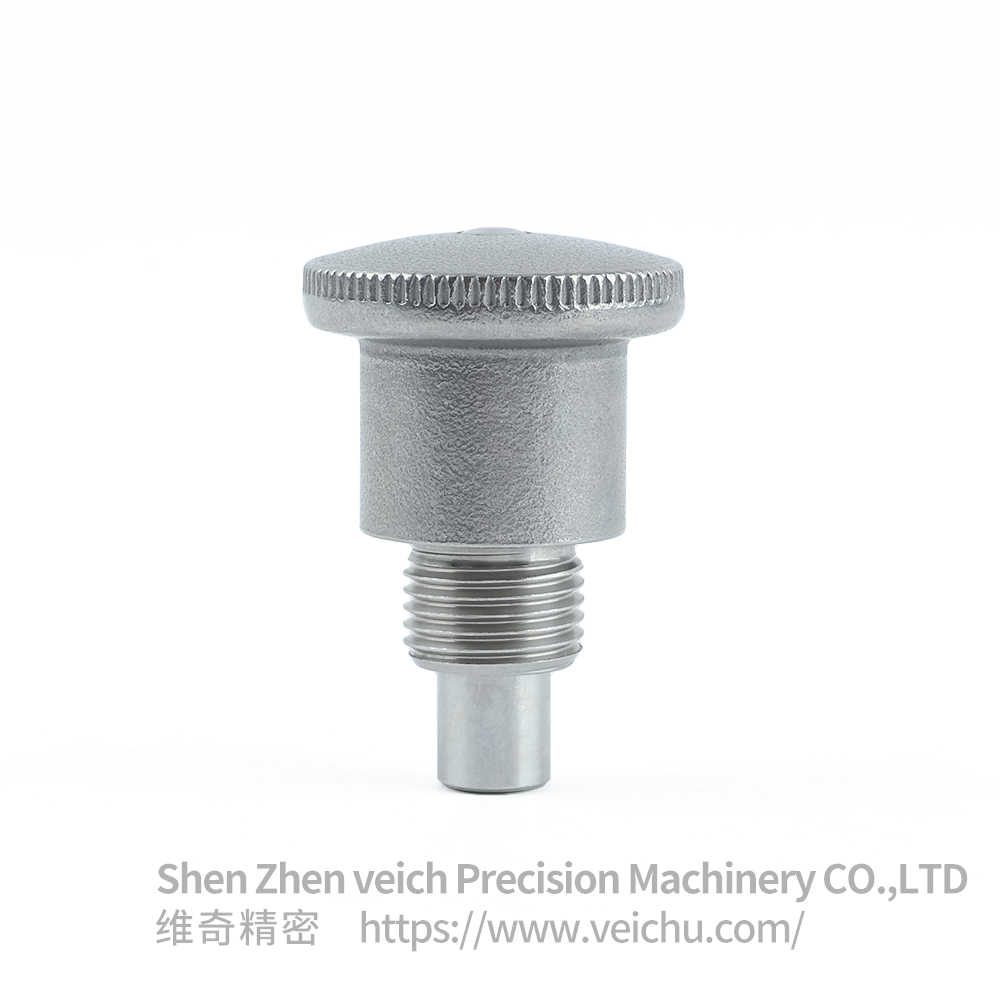

The VCN218-BS/MBS series all stainless steel mini hand-retractable plungers (also named manual indexing pins, quick-release positioning plungers) are professional-grade precision mechanical positioning components, engineered exclusively for industrial manufacturing enterprises, automation solution providers, and precision machinery fabricators. Built with full stainless steel construction, these hand-operated indexing plungers deliver reliable, repeatable positioning and locking performance for applications requiring rapid, precise workpiece alignment and fixture adjustment. The core working principle relies on a smooth pull-and-twist manual operation to engage or disengage the precision-machined pin from locating holes, enabling one-step locking and release for improved operational efficiency in high-demand industrial environments.
Key Features & Industrial Performance Advantages
Full Stainless Steel Construction for Harsh Environment Adaptability
Every core component of the mini hand-retractable plungers – including threaded shell, positioning pin, and operating handle – is manufactured from premium stainless steel, delivering exceptional corrosion resistance, rust protection, and chemical stability. This design makes the plungers suitable for humid, outdoor, or high-cleanliness production environments, with an operating temperature range from -50℃ to 200℃, and optional IP65 protection for dust and water ingress resistance.
Ultra-High Precision Indexing for Consistent Industrial Performance
Featuring a precision spring-loaded structure and tight tolerance fit between the plunger pin and locating holes, the VCN218 series achieves an indexing accuracy of ±0.02mm, ensuring stable locking and repeatable positioning even under continuous high-frequency use. The hardened contact surface extends the service life to over 100,000 operation cycles, minimizing maintenance downtime for industrial production lines.
Ergonomic Hand-Retractable Design for Rapid Operation
The integrated manual handle enables one-handed pull-and-twist operation, completing locking or unlocking in a single motion, which significantly boosts work efficiency for quick tool changes, fixture adjustments, and rotary table indexing. The compact mini design fits into limited installation spaces without compromising operational accessibility.
Standardized Thread Configurations for Universal Compatibility

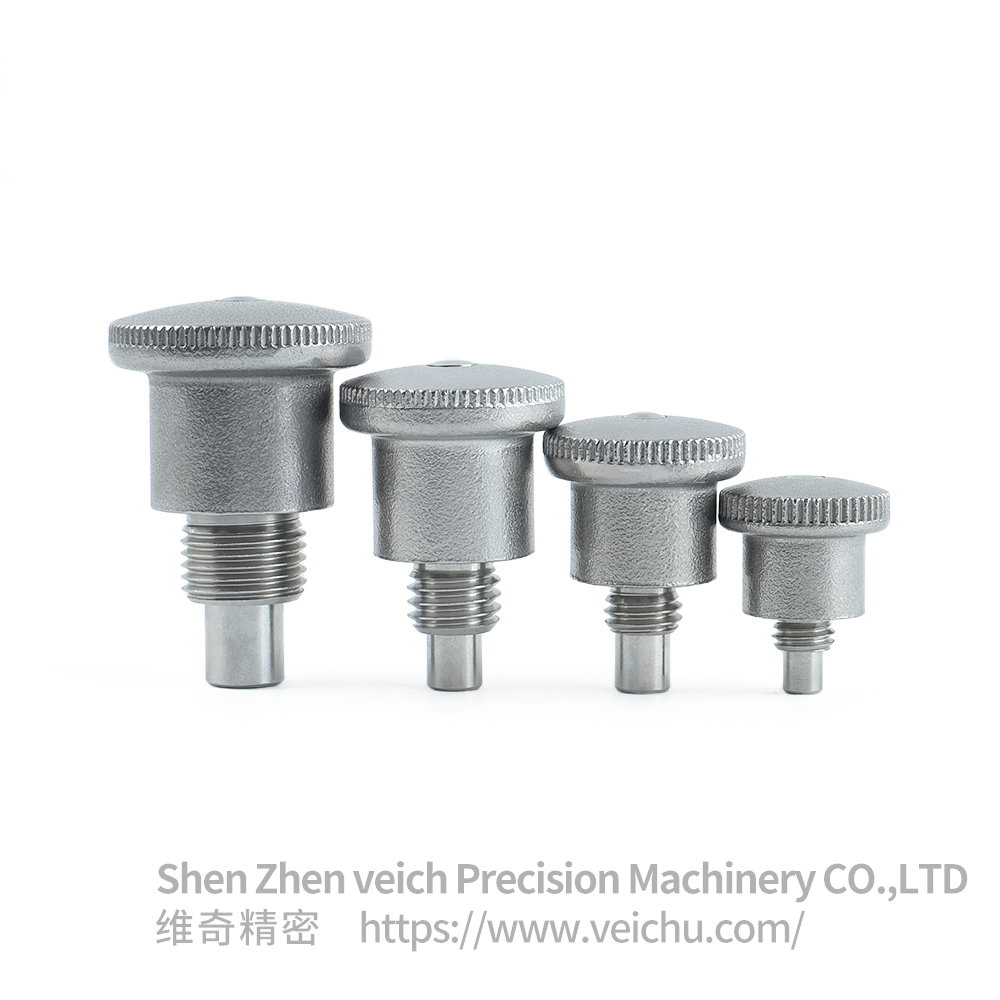

The series offers both fine thread and coarse thread options, with standardized metric sizes including M8×0.75, M8×1, M10×1, M12×1.5, and M16×1.5 for fine thread, and M8×1.25, M10×1.5, M12×1.75, M16×2 for coarse thread, ensuring seamless compatibility with most global industrial equipment interfaces.
Detailed Technical Specifications
Model Series | Thread Category | Standard Thread Sizes | Pin Diameter Range (mm) | Stroke Length Range (mm) | Core Material | Indexing Accuracy |
|---|---|---|---|---|---|---|
VCN218-BS | Fine Thread | M8×0.75 / M8×1 / M10×1 / M12×1.5 / M16×1.5 | 4-10 | 5-10 | Full Stainless Steel | ±0.02mm |
VCN218-MBS | Coarse Thread | M8×1.25 / M10×1.5 / M12×1.75 / M16×2 | 4-10 | 5-10 | Full Stainless Steel | ±0.02mm |
Industrial Applications
The all stainless steel hand-retractable indexing plungers are widely adopted across core industrial sectors:
Automation Equipment: Indexing positioning for rotary tables, quick tool change systems for robotic arm grippers, and locking for automated assembly line fixtures
Precision Machining: Workpiece clamping, angular adjustment, and rapid positioning in machining centers, milling machines, and custom jigs & fixtures
Specialized Machinery: Corrosion-resistant positioning for marine equipment, outdoor instrumentation, and chemical processing machinery
High-Cleanliness Environments: Frequent positioning and adjustment for pharmaceutical production lines, food processing equipment, and cleanroom manufacturing systems
Customization & OEM/ODM Manufacturing Services
We offer comprehensive customization solutions for industrial clients with unique application requirements. Available custom options include modified pin diameter, adjusted stroke length, custom thread specifications, specialized surface treatments, and tailored functional designs. We also provide full OEM/ODM manufacturing support, including private label branding, custom packaging, and batch production aligned with your industry standards and technical drawings, with a minimum order quantity starting at 1 piece for flexible procurement.
Ordering, Global Shipping & Warranty
We support both small-batch and wholesale ordering for the VCN218 series stainless steel mini indexing plungers, with a minimum order quantity of 1 piece to accommodate prototype testing and mass production needs. We provide reliable global shipping services via standard international logistics channels, with expedited shipping options available for urgent orders. All products come with a standard quality warranty, covering material defects and manufacturing faults, with dedicated technical support available for installation and application guidance.
 |  |  |
FAQs
What thread sizes are available for the VCN218 series hand-retractable plungers?
The VCN218-BS (fine thread) series offers M8, M10, M12, M16 metric sizes, while the VCN218-MBS (coarse thread) series covers the same thread diameters with standard coarse pitch options, all compliant with global industrial metric standards.
What is the expected service life of these stainless steel indexing plungers?
With proper installation and regular maintenance, the VCN218 series plungers deliver a service life of over 100,000 operation cycles, even in high-frequency industrial applications.
Can custom plungers be produced for non-standard industrial applications?
Yes, we provide full customization services for non-standard sizes, functions, and branding, with dedicated engineering support to match your specific application requirements.
