VCN218-CN /MCN Red Handle Stainless Steel Self-locking Type Spring Plungers
Share to:
| CN-fine thread: | |
|---|---|
| MCN-coarse thread: | |
| Quantity: | |
Description
Product Overview

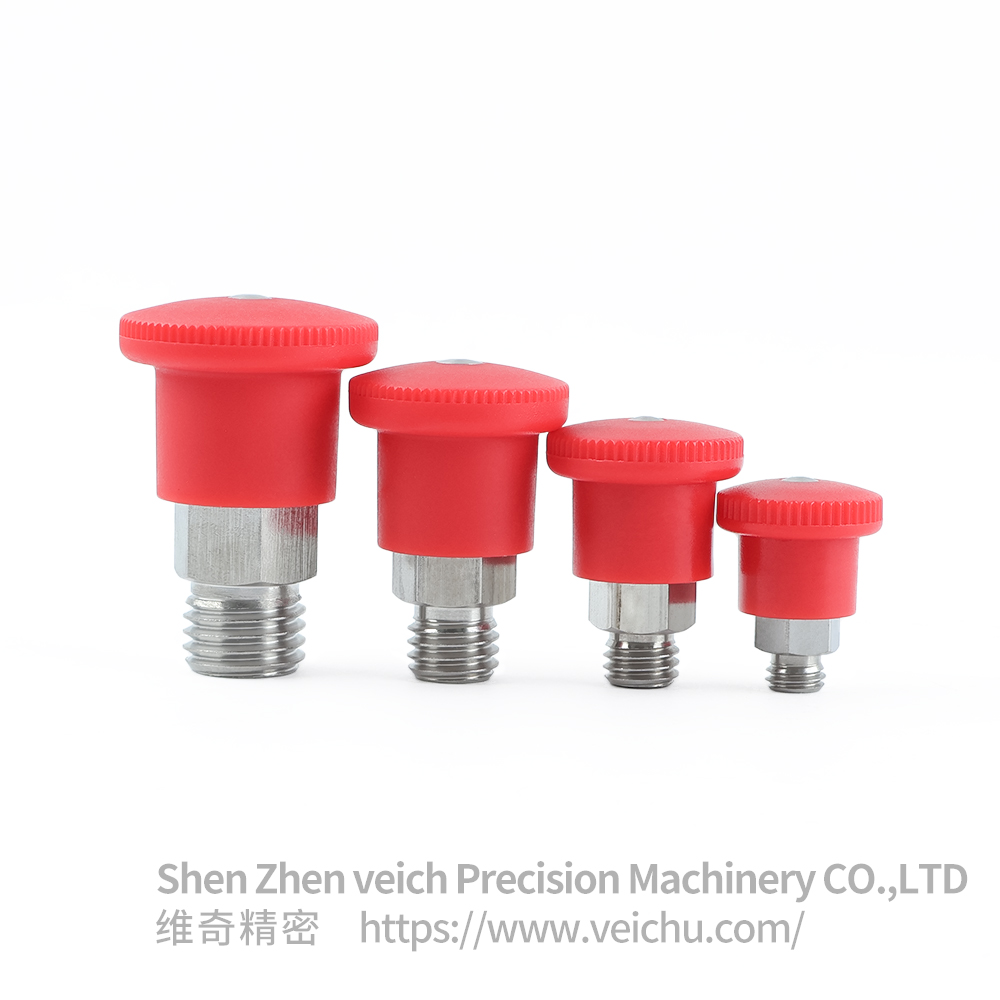

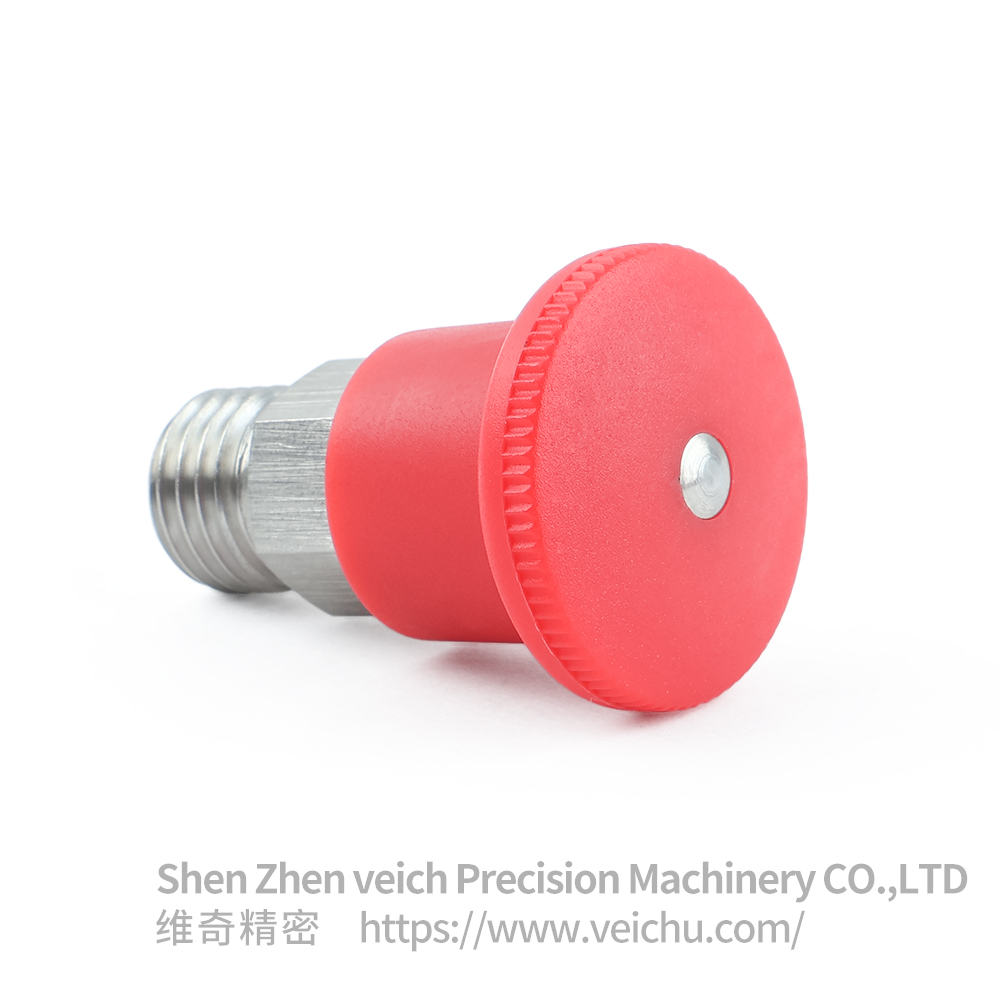

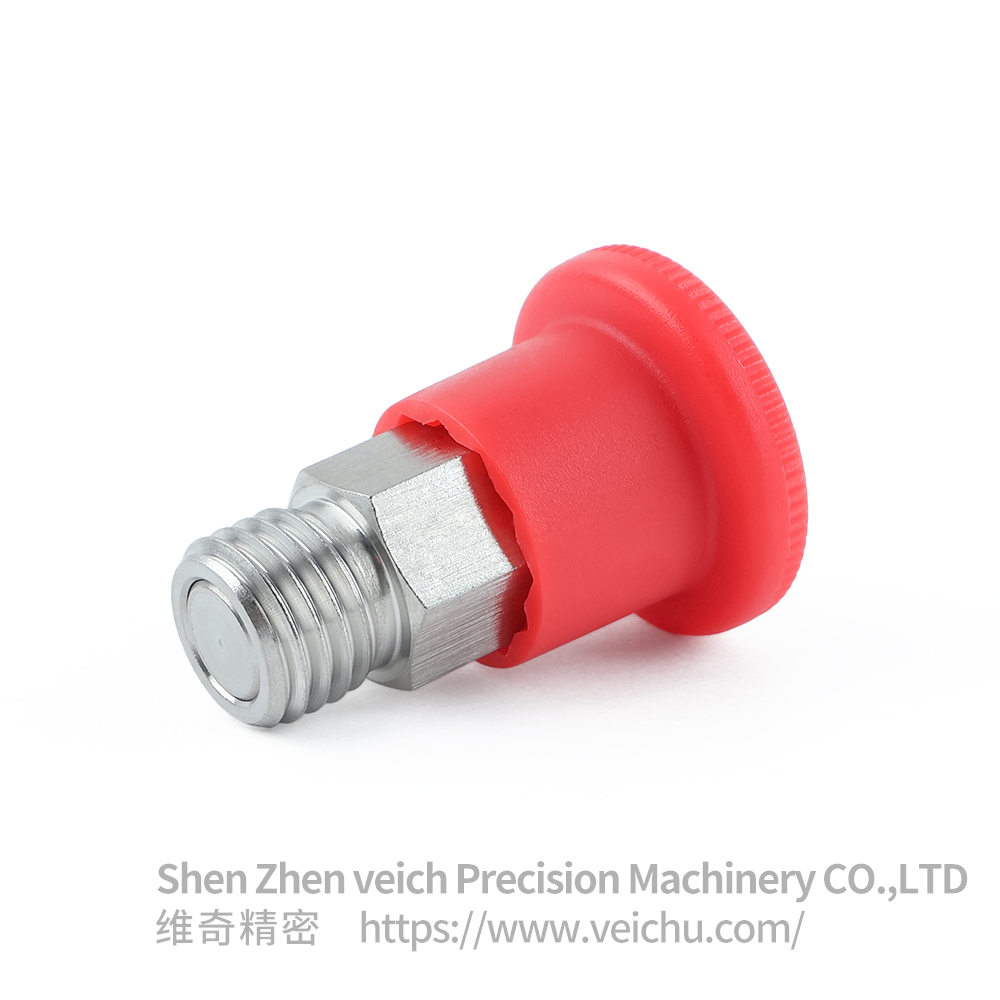

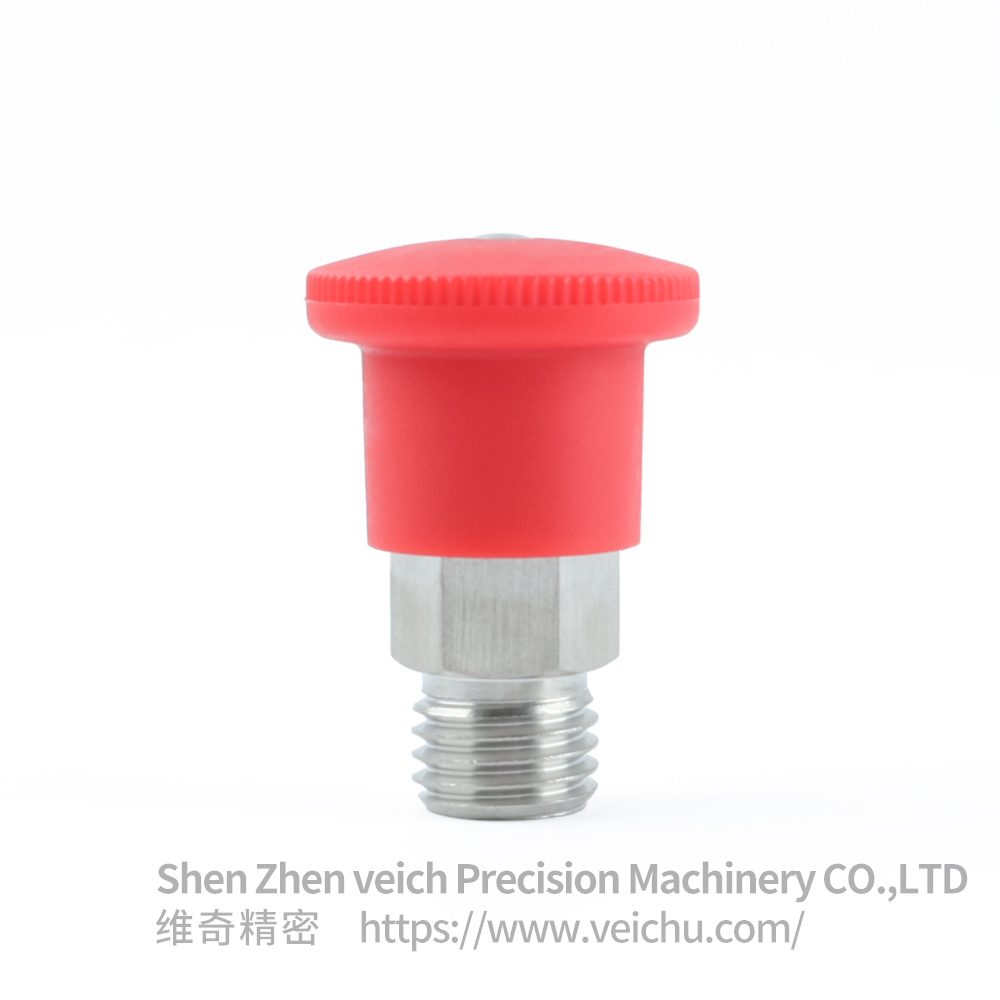

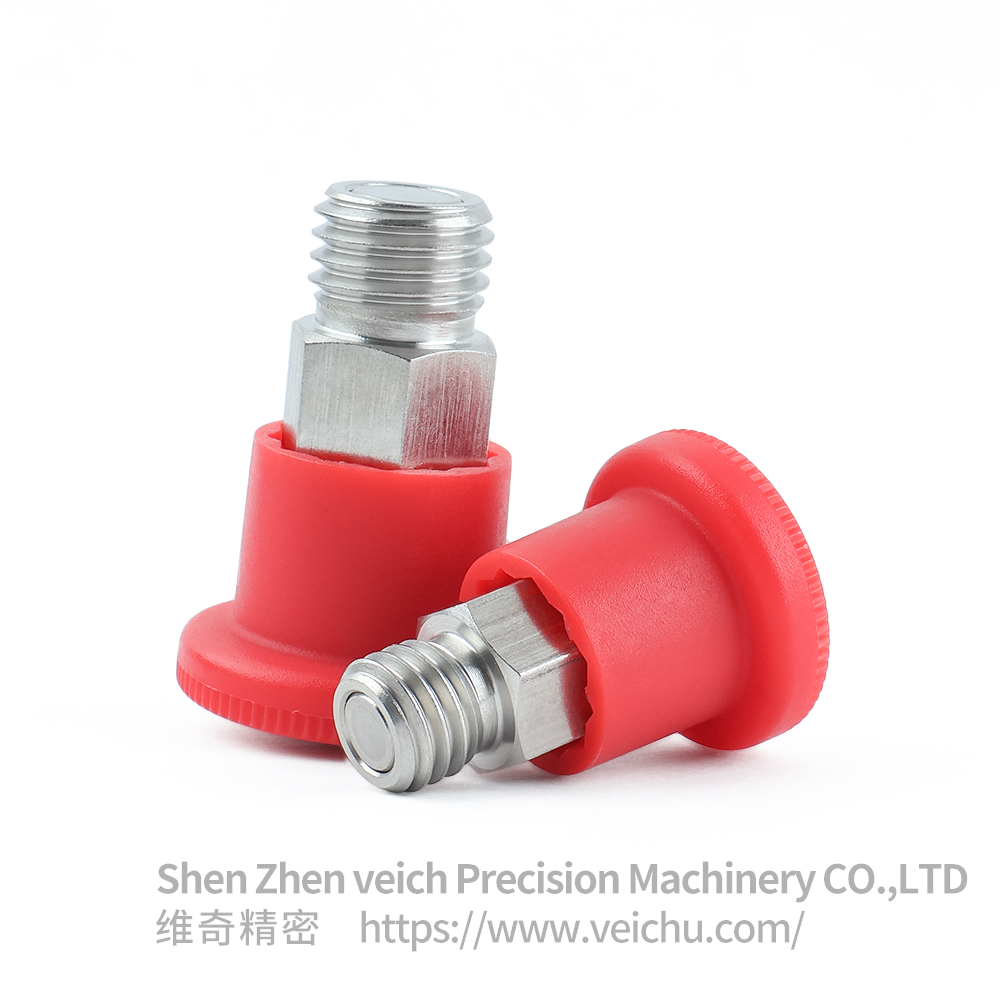

Self-locking spring plungers from VEICH are precision-engineered industrial positioning components, also widely recognized as knob-type indexing pins, manual locking locating pins, and quick-change spring loaded plungers. Designed with an ergonomic red nylon handle and full stainless steel core construction, this series of stainless steel self-locking indexing plungers delivers exceptional locking stability and repeatable positioning accuracy for demanding industrial operations. Available in both fine thread (CN series) and coarse thread (MCN series) configurations, these plungers are tailored for professional industrial purchasers, fixture manufacturers, and automation equipment integrators seeking reliable positional locking solutions.
Key Features & Industrial Performance Advantages
Precision Self-locking Mechanism for Zero Accidental Disengagement
Our red handle self-locking spring plungers integrate an advanced spring-loaded locking structure with precision-machined plunger-to-hole fit, delivering an industry-leading indexing accuracy of up to -0.002mm. The self-locking design ensures stable positional retention even under high vibration, impact, or continuous cyclic operation, eliminating the risk of unexpected unlocking and costly production downtime.
Premium Material Build for Extended Service Life
The threaded shell, locating pin, and internal spring are all manufactured from high-grade stainless steel, while the ergonomic handle is made of durable Nylon 6. This material combination delivers outstanding corrosion resistance, wear tolerance, and a service life exceeding 100,000 operating cycles. The original surface finish maintains dimensional stability in extreme operating temperatures ranging from -50°C to 200°C, with optional IP65 protection available for harsh industrial environments.
Modular Configurations for Flexible Industrial Adaptation
This series of fine and coarse thread indexing plungers offers a wide range of standard sizes, including M8, M10, M12, and M16 thread diameters, with customizable plunger stroke, pin diameter, and knob color options. The one-pull-and-twist operation enables rapid locking and unlocking, cutting positioning time by over 80% compared to traditional fastening components and significantly boosting production line efficiency.
 |  |  |
Detailed Technical Specifications
Model Series | Thread Type | Standard Thread Sizes | Core Material | Handle Material | Standard Knob Color | Key Dimensional Range |
|---|---|---|---|---|---|---|
VCN218-CN | Fine Thread | M8×0.75, M8×1, M10×1, M12×1.5, M16×1.5 | Stainless Steel (Threaded Shell, Pin, Spring) | Nylon 6 | Red (Blue/Black Optional) | Pin Length: 4mm-10mm, Stroke: 5mm-10mm |
VCN218-MCN | Coarse Thread | M8×1.25, M10×1.5, M12×1.75, M16×2 | Stainless Steel (Threaded Shell, Pin, Spring) | Nylon 6 | Red (Blue/Black Optional) | Pin Length: 4mm-10mm, Stroke: 5mm-10mm |
Industrial Applications
Our self-locking stainless steel spring plungers are the ideal positioning solution for a wide range of industrial scenarios, including automation equipment rotary table indexing, robotic arm gripper quick tool change systems, CNC machining center workholding fixtures, marine equipment corrosion-resistant positioning, and pharmaceutical/food production line clean environment operations.
Customization & OEM/ODM Manufacturing Services
We offer comprehensive custom manufacturing services for industrial clients and equipment manufacturers, covering full dimensional customization (thread size, pin length, stroke), appearance customization (knob color, laser marking), functional customization (locking force, spring tension, anti-release safety mechanisms), and full OEM/ODM brand development services. Our in-house engineering team delivers tailored plunger solutions to meet unique application requirements, with flexible production runs for both prototype and mass production needs.
Ordering, Global Shipping & Warranty
We support a minimum order quantity of 1 piece for standard models, with tiered wholesale pricing for bulk orders from manufacturing enterprises and industrial distributors. We offer global shipping via sea, air, and express courier, with flexible delivery terms for international clients. All our industrial self-locking indexing plungers come with a standard manufacturer warranty against material and workmanship defects, with dedicated after-sales technical support for installation and application guidance.
FAQs
What thread types are available for the VCN218 series?
The VCN218 series is available in both fine thread (CN suffix) and coarse thread (MCN suffix) configurations, with standard sizes ranging from M8 to M16 to fit most industrial mounting requirements.
Can I customize the knob color of the plungers?
Yes, the standard knob color is red, with blue and black options available for custom orders, along with custom laser marking for brand identification.
What is the lead time for custom orders?
Standard custom orders have a lead time of 7-15 working days, with expedited production available for urgent project requirements.
