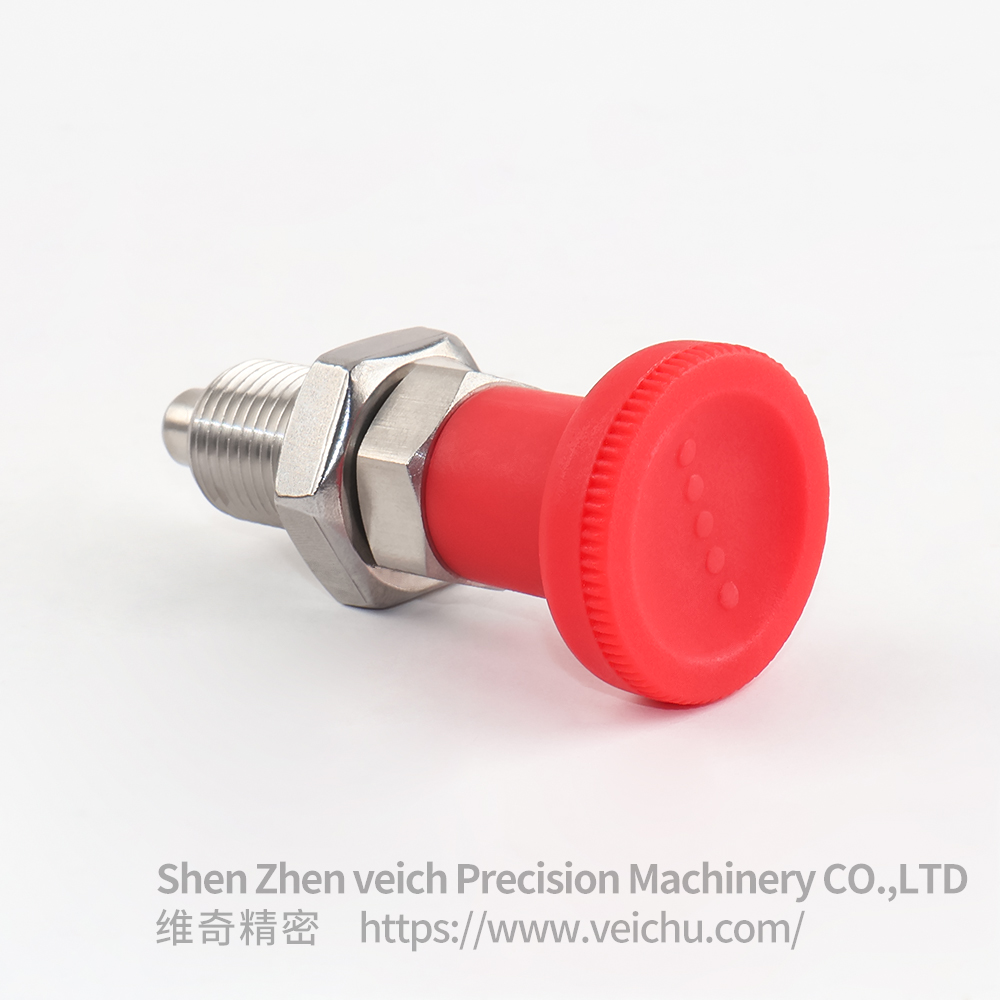

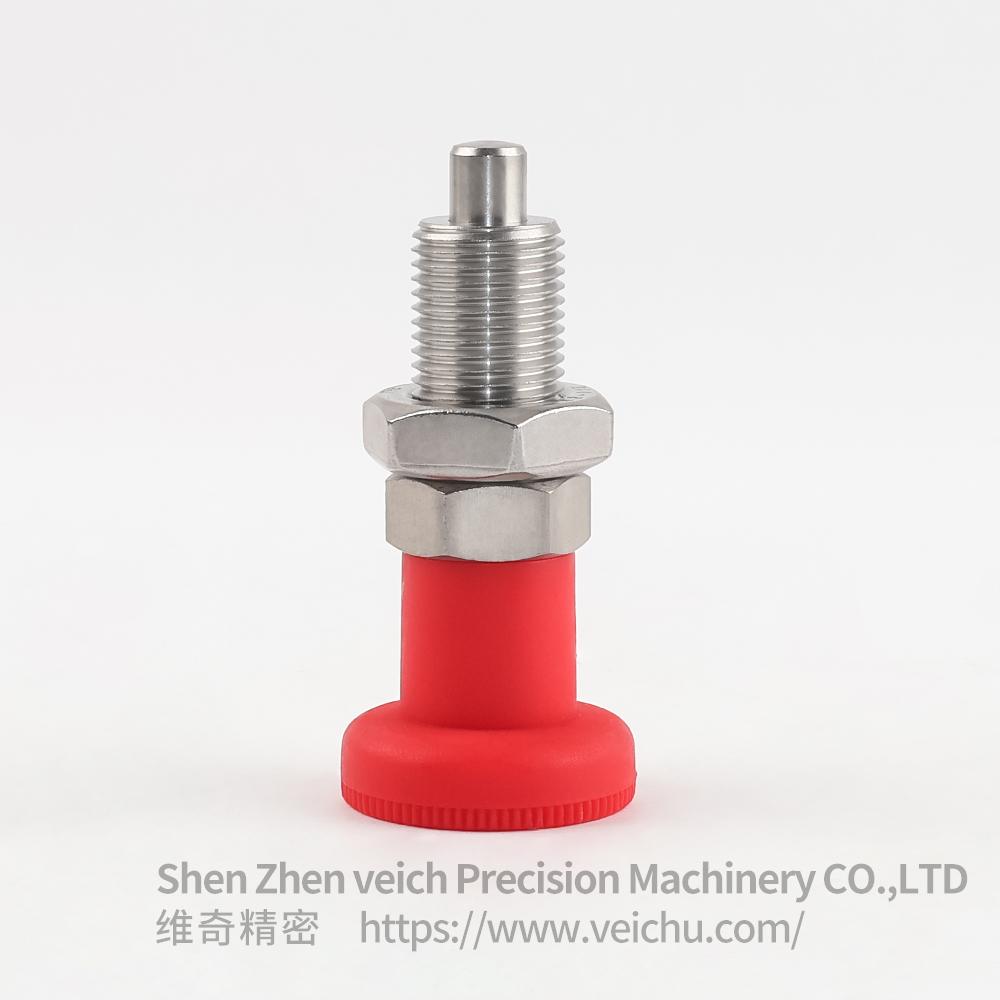

Engineered for seamless, repeatable industrial positioning, our return type hand-retractable indexing plungers (also known as spring loaded retractable locating pins, non lock-out indexing plungers, and quick-release knob plungers) are a high-performance positioning solution from VEICHU. Built with full stainless steel core components and an ergonomic Nylon 6 knob, this VCN220-BNK series delivers consistent automatic return functionality and smooth hand-operated retraction, making it the top choice for industrial equipment manufacturers, precision engineering firms, and industrial component distributors requiring reliable, high-cycle positioning components. Available in a wide range of metric thread sizes, these plungers are optimized for rapid, tool-free operation in diverse industrial environments.
Key Features & Industrial Performance Advantages
Automatic Return Mechanism for Continuous High-cycle Operations
The core design of our return type spring loaded plungers features a precision-calibrated automatic return structure, which retracts smoothly via manual knob operation and automatically resets to the working position when released, eliminating the need for manual repositioning. This design delivers an indexing accuracy of ±0.1mm, ensuring consistent positional repeatability even in high-frequency operating environments with over 100,000 cycles, drastically reducing operator fatigue and improving production line throughput.
Full Stainless Steel Construction for Harsh Environment Compatibility

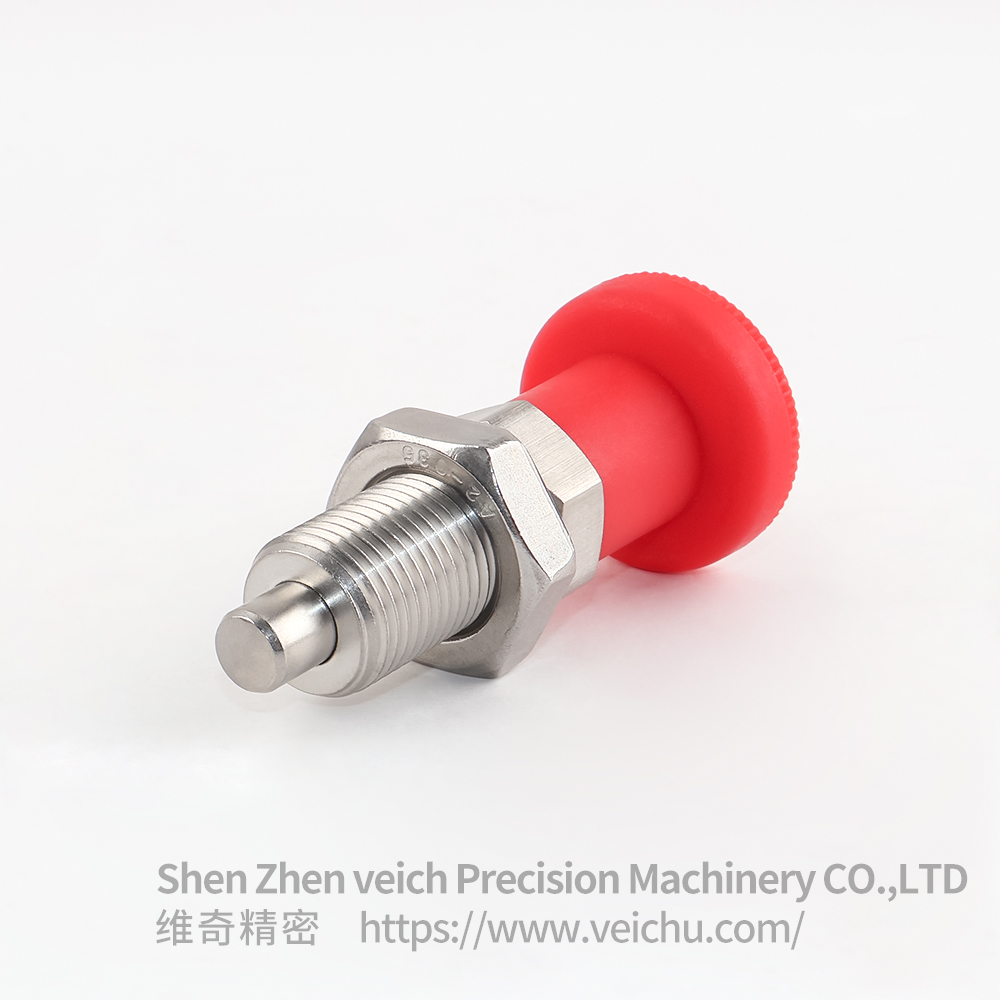

The threaded shell, locating pin, internal spring, and lock nut are all manufactured from high-grade stainless steel, paired with an impact-resistant Nylon 6 handle. This all-stainless steel wetted parts design delivers exceptional corrosion resistance, rust prevention, and wear tolerance, making it suitable for humid, high-temperature, sterile, or chemically exposed environments. The plungers maintain stable performance in operating temperatures ranging from -50°C to 200°C, with optional IP65 sealing available for dust and water ingress protection.
Ergonomic & Versatile Design for Universal Industrial Fit

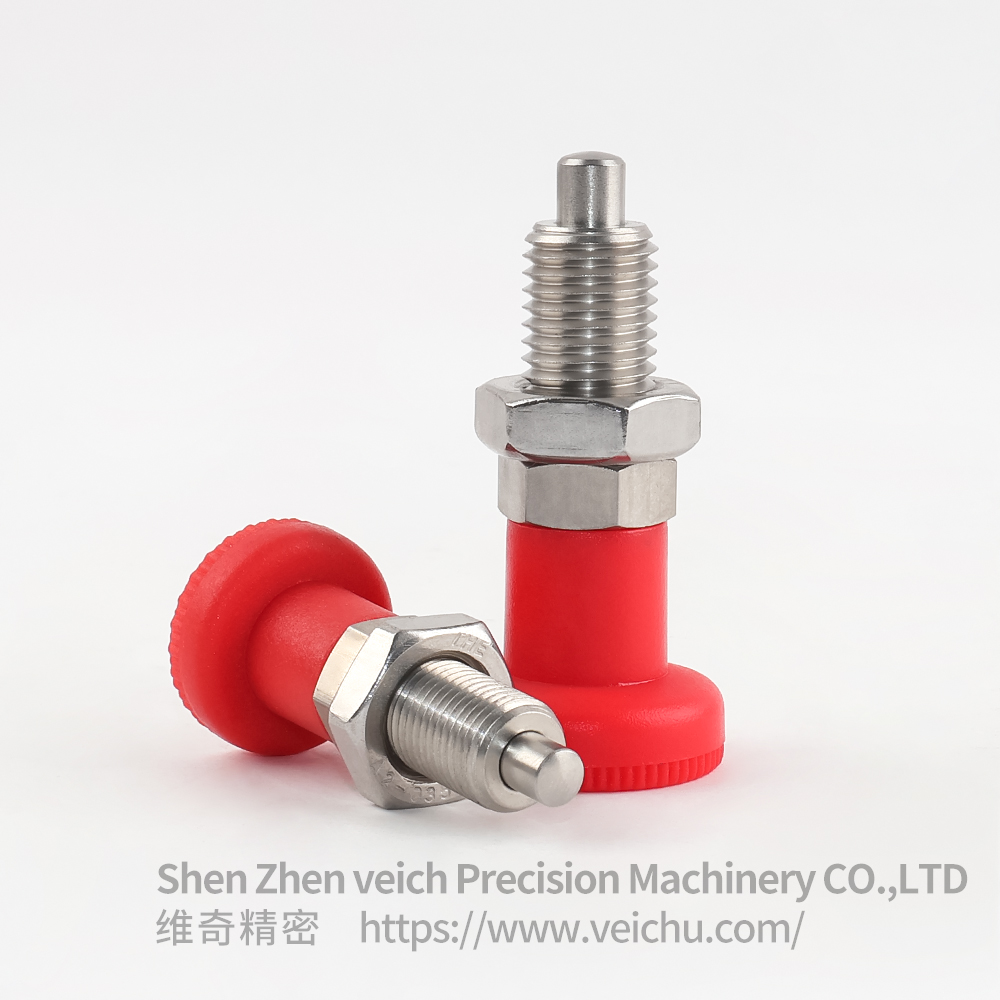

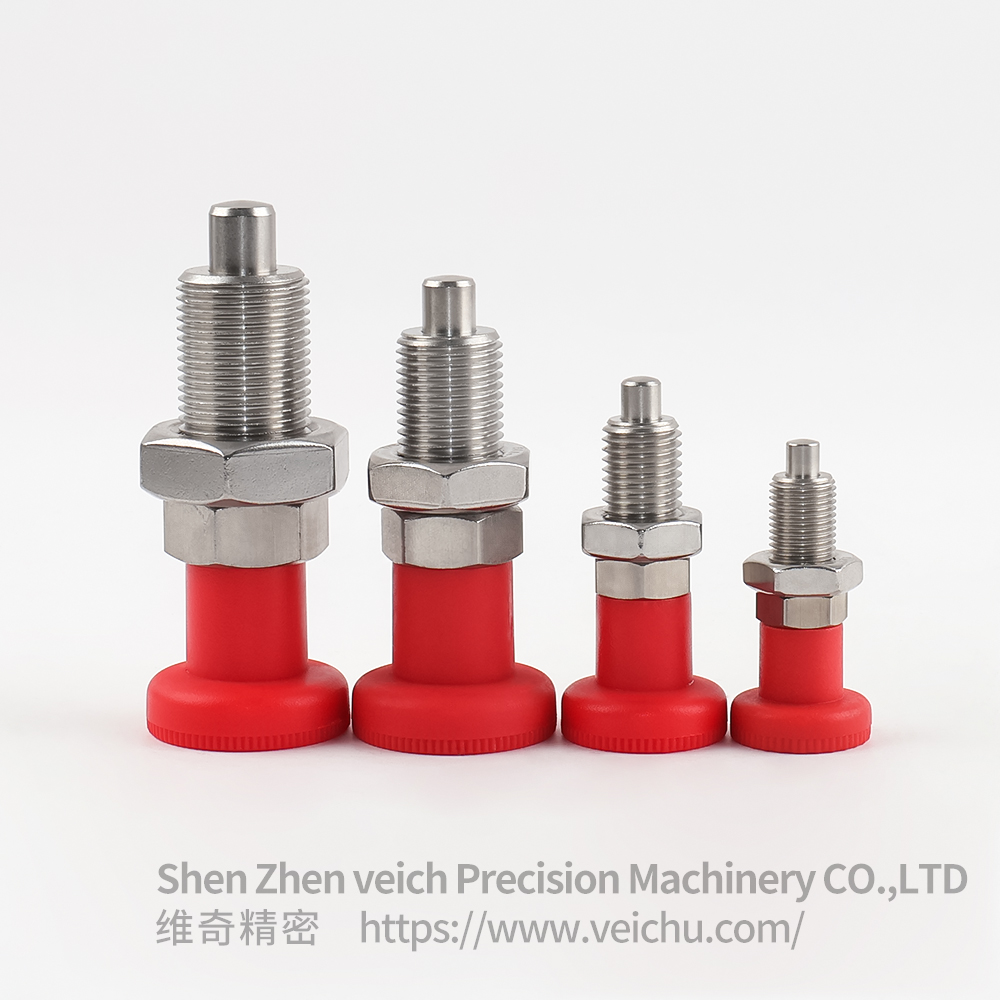

Our hand-retractable stainless steel indexing plungers are available in standard thread sizes from M10 to M24, with a compact, space-saving mounting design that fits most standard industrial fixture and equipment mounting holes. The ergonomic knob is available in black, blue, and red color options, with a one-hand pull-and-release operation that enables full retraction and reset in under 1 second, far outperforming traditional threaded fasteners in rapid changeover applications.
Detailed Technical Specifications

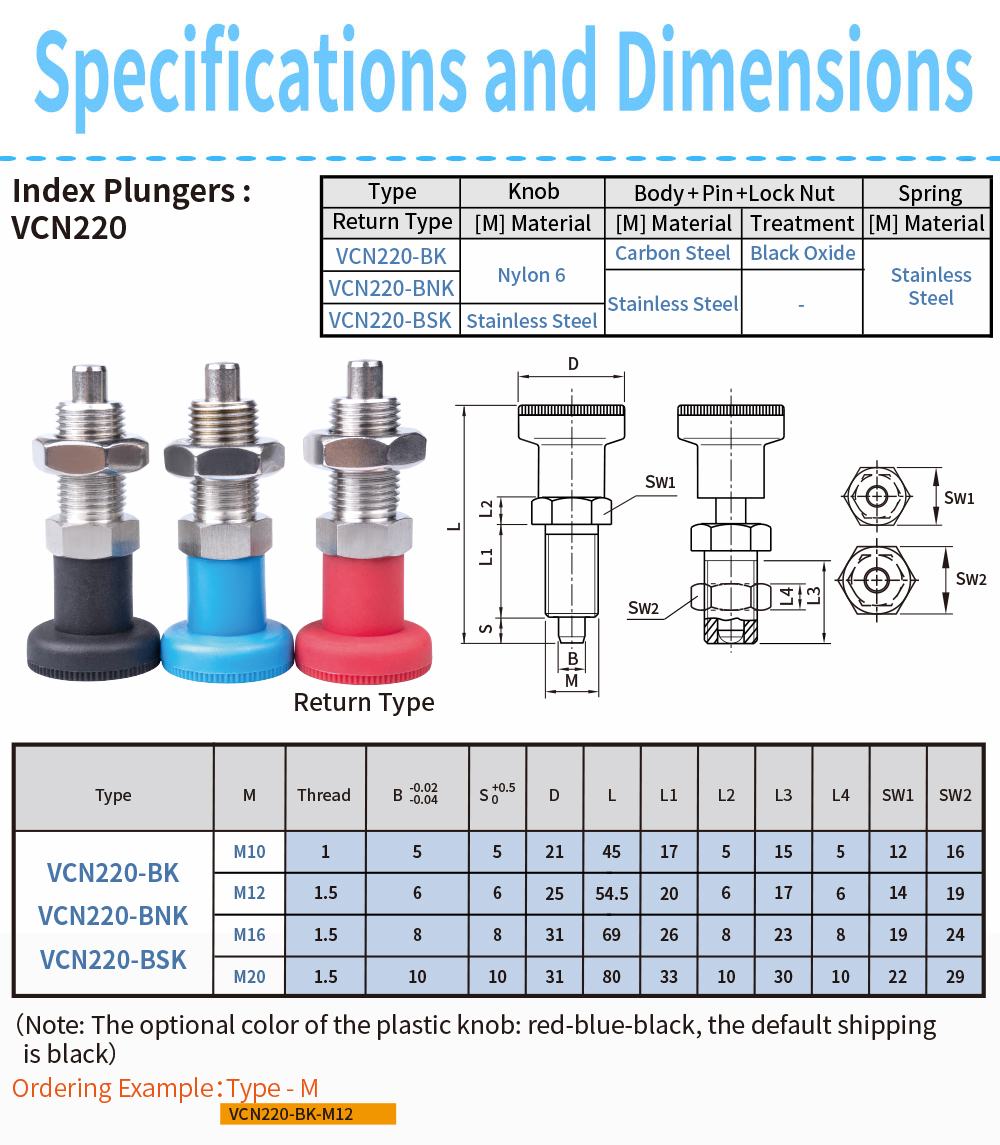

Model Series | Standard Thread Sizes | Core Component Material | Handle Material | Standard Knob Color | Key Dimensional Range |
|---|---|---|---|---|---|
VCN220-BK | M10×1, M12×1.5, M16×1.5, M20×1.5 | Carbon Steel (Body, Pin, Lock Nut) | Nylon 6 | Black (Blue/Red Optional) | Pin Length: 5mm-10mm, Total Length: 45mm-80mm |
VCN220-BNK | M10×1, M12×1.5, M16×1.5, M20×1.5 | Stainless Steel (Body, Pin, Lock Nut, Spring) | Nylon 6 | Black (Blue/Red Optional) | Pin Length: 5mm-10mm, Total Length: 45mm-80mm |
VCN220-BSK | M10×1, M12×1.5, M16×1.5, M20×1.5 | Full Stainless Steel Construction | Nylon 6 | Black (Blue/Red Optional) | Pin Length: 5mm-10mm, Total Length: 45mm-80mm |
Industrial Applications
Our return type hand-retractable spring plungers are widely used across diverse industrial sectors, including automated production line conveyor positioning, precision machining fixture workpiece locating, medical device manufacturing sterilizable positioning, food processing machinery component alignment, packaging line quick mold change systems, and outdoor telecommunications equipment corrosion-resistant locating.
Customization & OEM/ODM Manufacturing Services
We provide end-to-end custom manufacturing solutions for industrial equipment manufacturers and engineering firms, including full dimensional customization (thread size, pin diameter, stroke length, overall dimensions), functional customization (spring tension, return force, sealing performance), appearance customization (knob color, laser marking, surface finish), and complete OEM/ODM private label services. Our in-house R&D and production team develops fully customized plunger solutions to meet unique application specifications, with flexible production volumes to support both prototype development and large-scale mass production.
Ordering, Global Shipping & Warranty
Standard models have a minimum order quantity of 1 piece, with tiered wholesale pricing available for bulk orders from industrial distributors and manufacturing enterprises. We provide global shipping solutions via international express, air freight, and sea freight, with flexible Incoterms options to suit international client requirements. All our industrial retractable indexing plungers come with a standard manufacturer warranty against material and manufacturing defects, with dedicated technical support available for installation guidance and application troubleshooting.
FAQs
What material options are available for the VCN220 series?
The VCN220 series offers three core material configurations: carbon steel (BK), stainless steel core (BNK), and full stainless steel construction (BSK), to suit different environmental and budget requirements.
What thread sizes are available for the VCN220-BNK series?
The standard thread sizes for the VCN220-BNK series range from M10 to M20, with M24 sizes available via custom order to meet larger mounting requirements.
Can I get custom laser marking on the plunger knobs?
Yes, we offer custom laser marking services for brand logos, part numbers, and specification details on both standard and custom plunger orders.
