Description
Product Overview

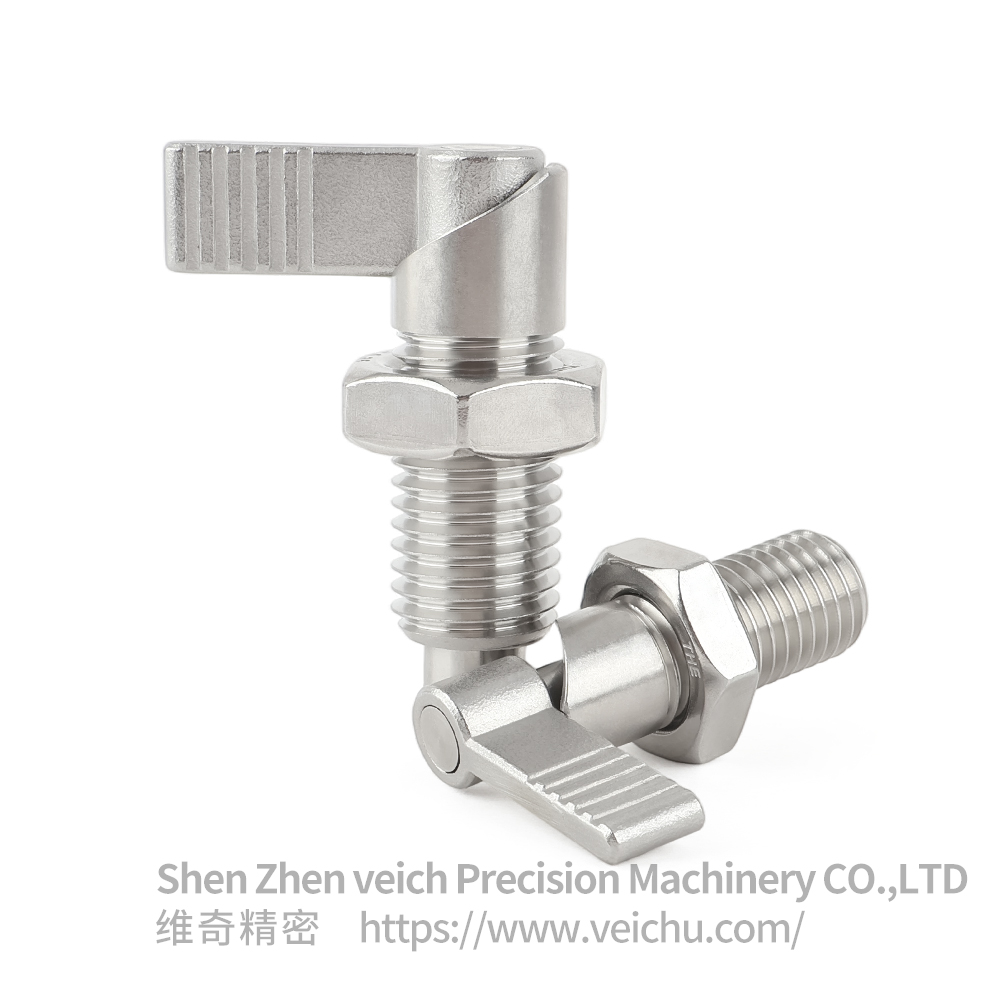

The VCN226-ANK L-Type Stainless Steel Retractable Spring Plunger is a high-performance, ergonomic mechanical locking component engineered for professional industrial manufacturing clients and precision engineering teams. As a premium precision indexing plunger with an optimized L-shaped handle design, this product integrates seamless manual operation with ultra-precise positioning functionality, solving complex station locking and alignment challenges in modern production environments. Manufactured from full stainless steel for exceptional durability and corrosion resistance, this threaded spring locating pin supports single-side, tool-free installation, making it an indispensable foundational part for high-efficiency production lines and precision machining setups.
Key Features & Industrial Performance Advantages
Ergonomic L-Handle for Tool-Free Rapid Operation
The optimized L-shaped handle of our spring loaded indexing plunger follows strict ergonomic principles, delivering a non-slip, comfortable grip for operators. It enables quick push-pull engagement and disengagement without additional tools, even in narrow or confined workspaces, drastically reducing setup time and improving overall production efficiency.
Ultra-Precise Positioning with High Repeatability
Precision-machined pin shafts ensure a zero-tolerance fit with locating holes, delivering consistent positioning accuracy with every use. This L-handle index plunger offers ultra-high repeatability, eliminating machining deviations and ensuring uniform product quality across high-volume, continuous production runs.
Heavy-Duty Full Stainless Steel Construction
Full stainless steel construction for the body, pin, and internal components delivers exceptional wear resistance, corrosion resistance, and extended service life. Unlike carbon steel alternatives, this stainless steel spring loaded plunger performs reliably in humid, dusty, or mildly corrosive industrial environments without rust or performance degradation.
Secure Anti-Vibration Locking Design
The integrated spring-loaded mechanism provides stable holding force in both locked and non-locked positions, preventing accidental dislodgement caused by equipment vibration or gravity. This ensures absolute stability during high-speed machining or automated operation, greatly enhancing on-site workplace safety.
Detailed Technical Specifications
Core Parameter | VCN226-ANK Specification Details |
|---|---|
Product Type | L-Type Stainless Steel Retractable Spring Plunger |
Standard Thread Sizes | M10×1.5, M12×1.75, M16×2.0, M20×2.5 |
Main Body Material | 304 Stainless Steel |
Internal Spring Material | Stainless Steel |
Pin Diameter Range | 4mm to 12mm |
Overall Body Length Range | 37.6mm to 69mm |
Hex Size (SW) | 16mm to 29mm |
Rest Position Type | Without Lever Cap |
Surface Finish | As-machined Stainless Steel |
Industrial Applications
This industrial indexing spring plunger is widely used in scenarios requiring frequent station changes and precise alignment, including:
CNC machining jigs and fixtures for rapid workpiece repositioning and multi-station machining
Stamping and injection mold industry for accurate plate positioning and secure locking
Rotary index tables and automated machinery for station locking and precision alignment
Robotic welding cells and welding fixtures for quick fixture changeovers and positioning
Pallet changers and tool changers in high-precision CNC machine tools
Customization & OEM/ODM Manufacturing Services
We offer comprehensive customization solutions for professional engineering and manufacturing teams, including tailored thread sizes, pin lengths, body dimensions, surface treatments, and material upgrades. Our OEM/ODM services support custom branding, laser marking, and functional modifications to fit unique application requirements, with full compliance to ISO 9001 quality standards throughout the production process.
Ordering, Global Shipping & Warranty
We support a minimum order quantity of 1 piece for standard models, with a standardized ordering format: Type - Thread Size - Pin Diameter (e.g., VCN226-ANK-M16×1.5-8). We offer reliable global shipping services via trusted international logistics partners, covering all major industrial regions worldwide. All products come with a 12-month manufacturer warranty, with full pre-shipment quality inspection to ensure 100% compliance with specified technical specifications.
FAQs
What thread sizes are available for the L-Type Stainless Steel Retractable Spring Plunger?
We offer standard thread sizes including M10, M12, M16, and M20, with both fine and coarse thread options available for custom batch orders.
Can this indexing plunger be used in high-vibration industrial environments?
Yes, the integrated spring-loaded retaining mechanism provides stable holding force to prevent accidental disengagement, making it fully suitable for high-vibration machining and automated equipment applications.
Do you offer custom modifications for non-standard applications?
Yes, we provide full end-to-end customization services for dimensions, materials, and functionality to meet unique industrial application requirements.
What is the minimum order quantity for this product?
Our minimum order quantity is 1 piece for standard models, with no lower limit for custom batch orders.
