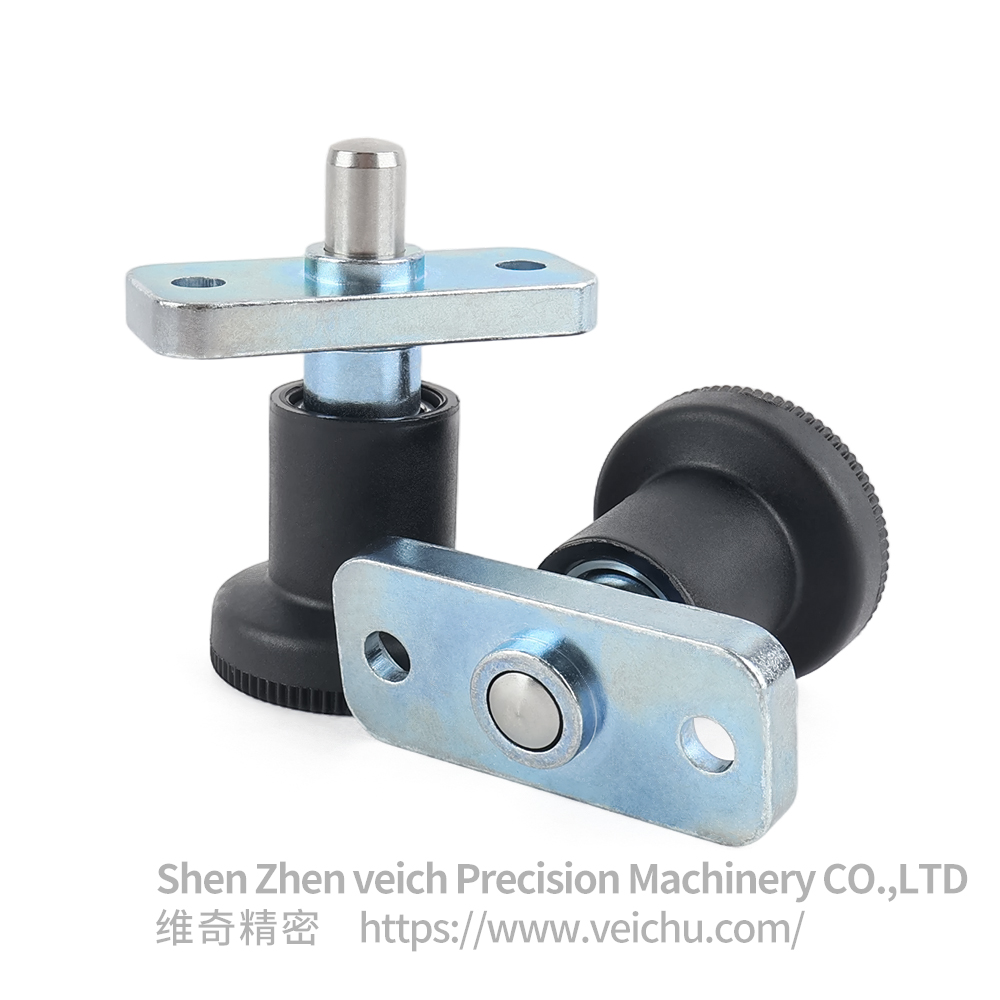

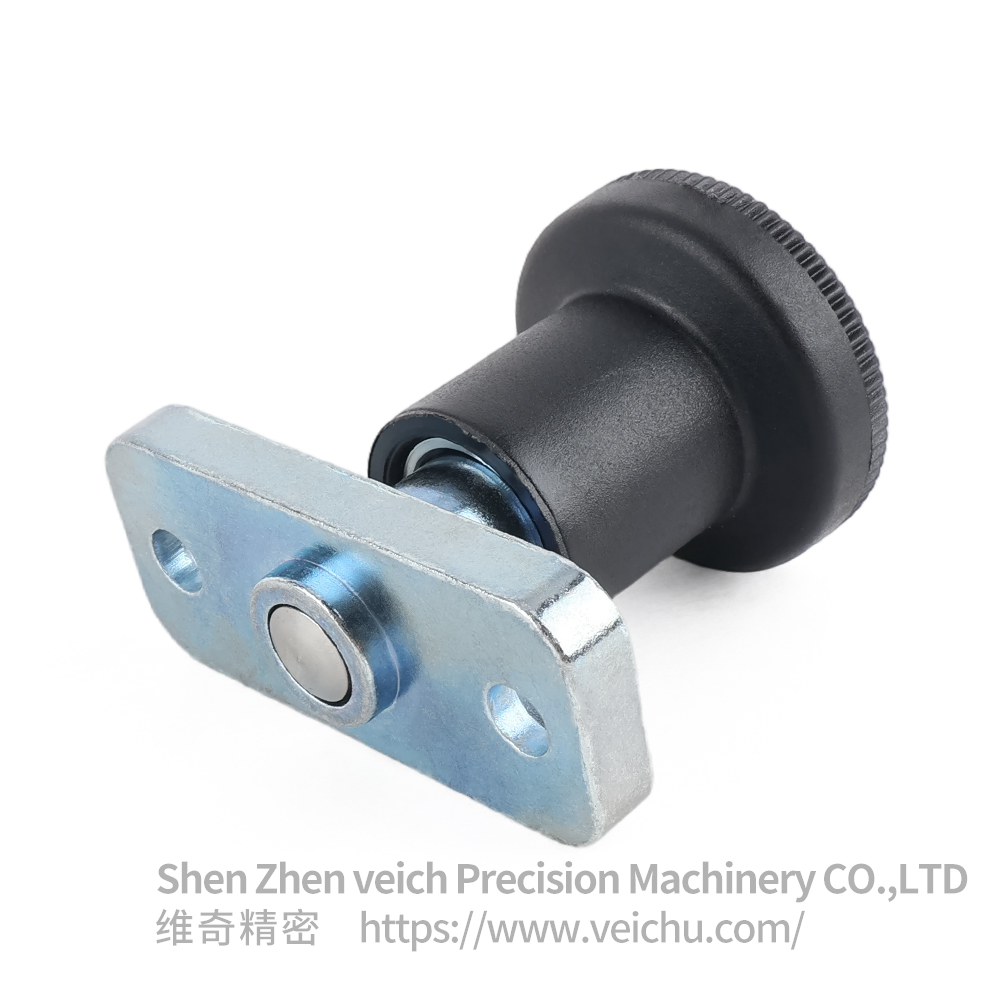

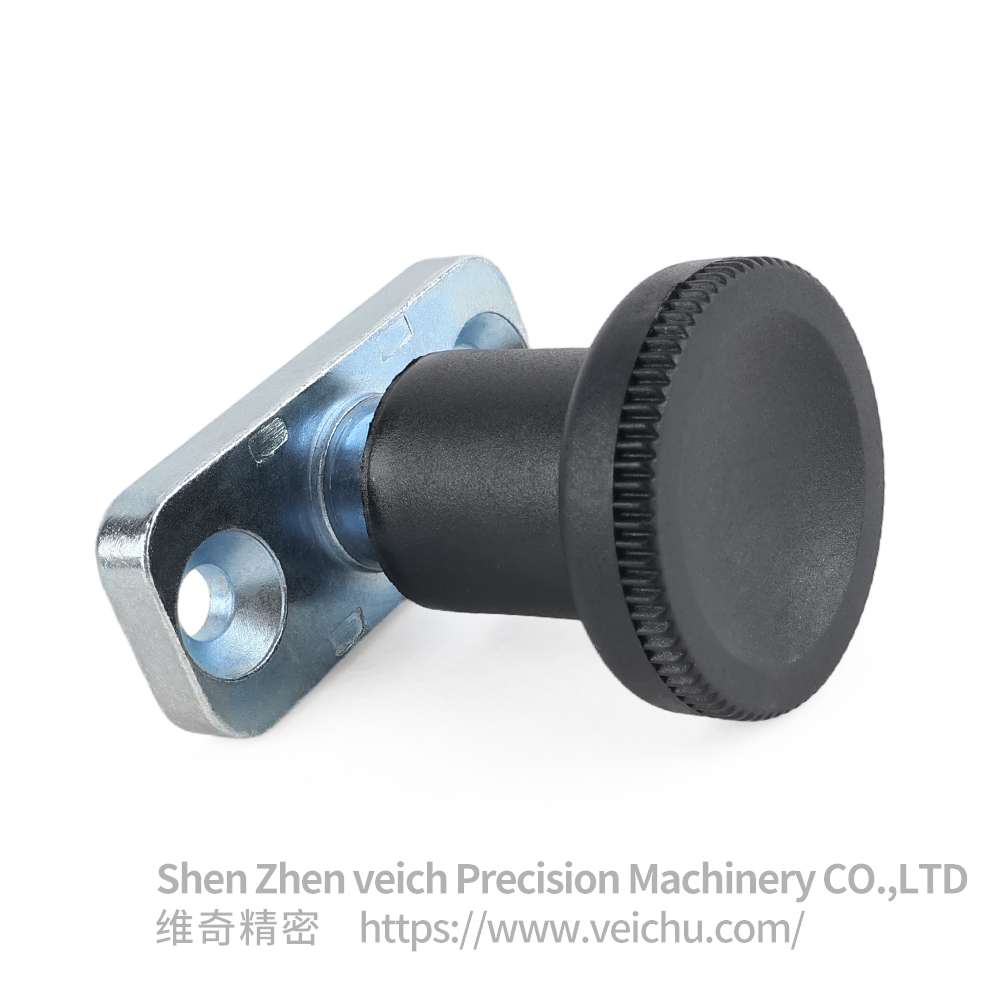

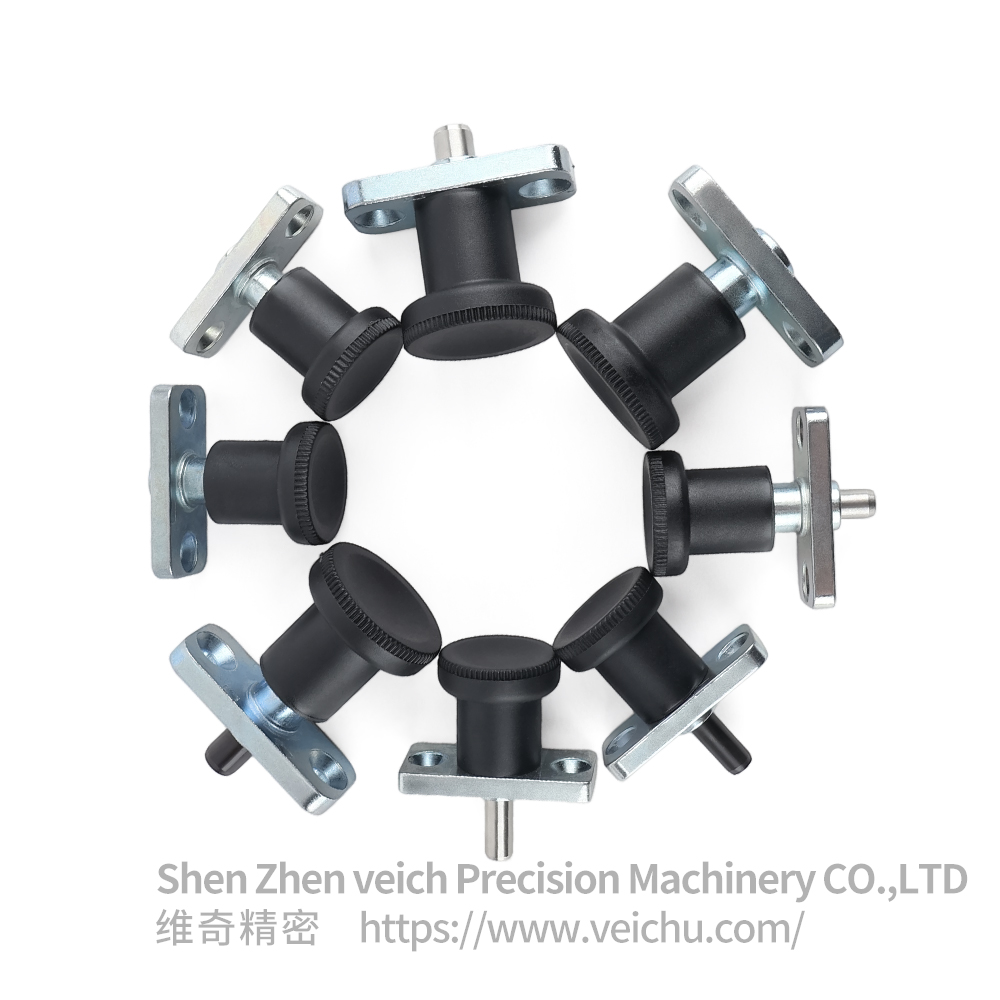

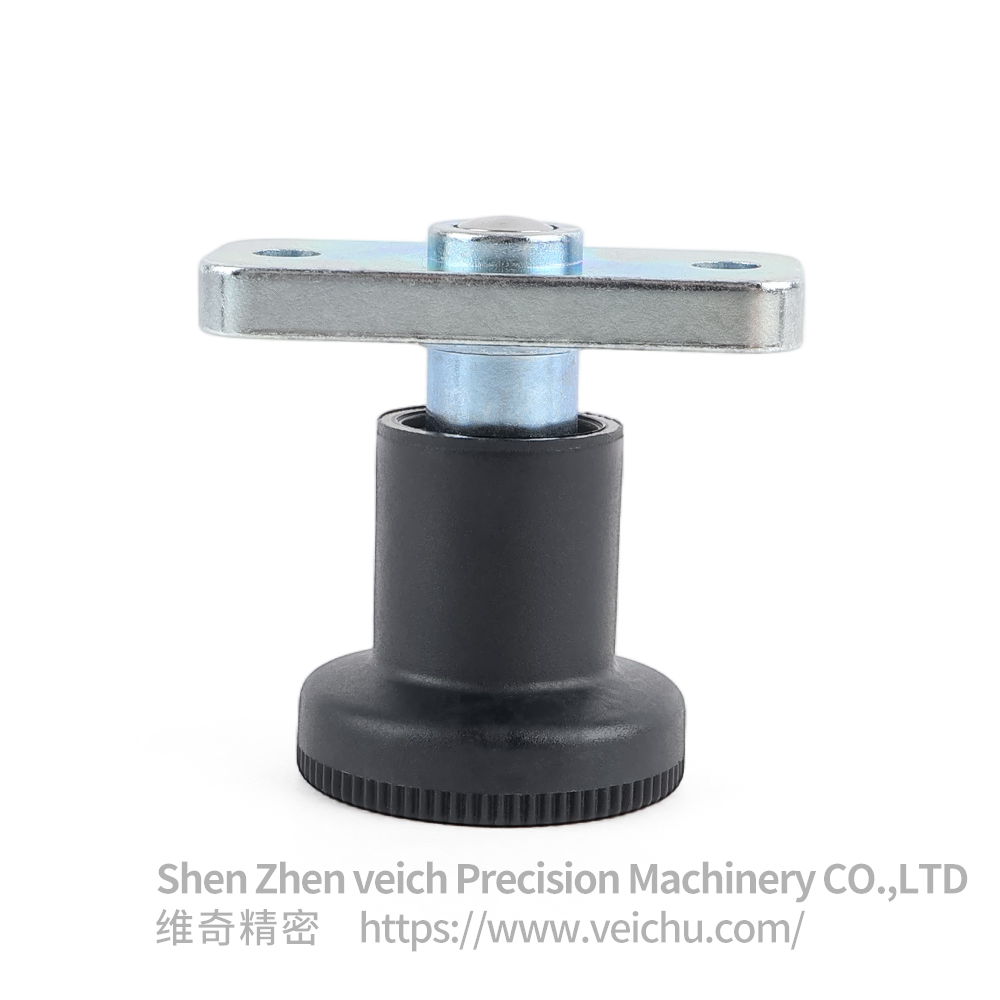

VCN232-CN Rest position Stainless Steel Spring Loaded Plunger with Flange
Share to:
| Diameter: | |
|---|---|
| Quantity: | |
Product Description
Flange Mount Indexing Plunger Product Introduction
●Product Introduction
This flange mount indexing plunger is a spring-loaded positioning and locking component designed for quick, tool-free operation. It features a knurled black knob for easy grip, a zinc-plated steel flange base for secure mounting, and a precision metal plunger. Pulling the knob retracts the plunger, while releasing it allows the spring to automatically reset and lock into position, making it ideal for repetitive positioning tasks in machinery and equipment.
●Structural Features
Ergonomic Operation: The knurled black knob provides a non-slip grip, enabling one-handed pull-and-release operation for fast locking and unlocking, even in high-frequency use scenarios.
Stable Flange Mounting: The zinc-plated steel flange with two mounting holes ensures rigid, anti-rotation installation, preventing wobble during operation and maintaining consistent positioning accuracy.
Durable Construction: The body is made of robust black-coated material (typically reinforced plastic or steel), while the plunger is precision-machined from hardened steel, offering excellent wear resistance and long service life.
Flexible Options: Available with different plunger lengths and tip styles (standard or short), and the zinc-plated flange provides basic corrosion resistance for general industrial environments.
Safe Spring Return: The built-in spring mechanism ensures reliable automatic reset, eliminating accidental disengagement and enhancing operational safety.
●Typical Applications
Industrial Machinery: Positioning of conveyor systems, packaging machinery, and printing equipment for quick station changes.
Tooling & Fixtures: Quick locking of jigs, fixtures, and workholding devices in CNC machines and assembly lines.
Material Handling: Height/position adjustment for mobile workstations, adjustable shelves, and logistics trolleys.
Specialized Equipment: Position locking for medical devices, laboratory instruments, and adjustable mechanical arms.
Automation & Robotics: Temporary positioning of robotic end-effectors and modular automation components.
