Product Description
Aluminum Knurled Knob Introduction
●Product Introduction

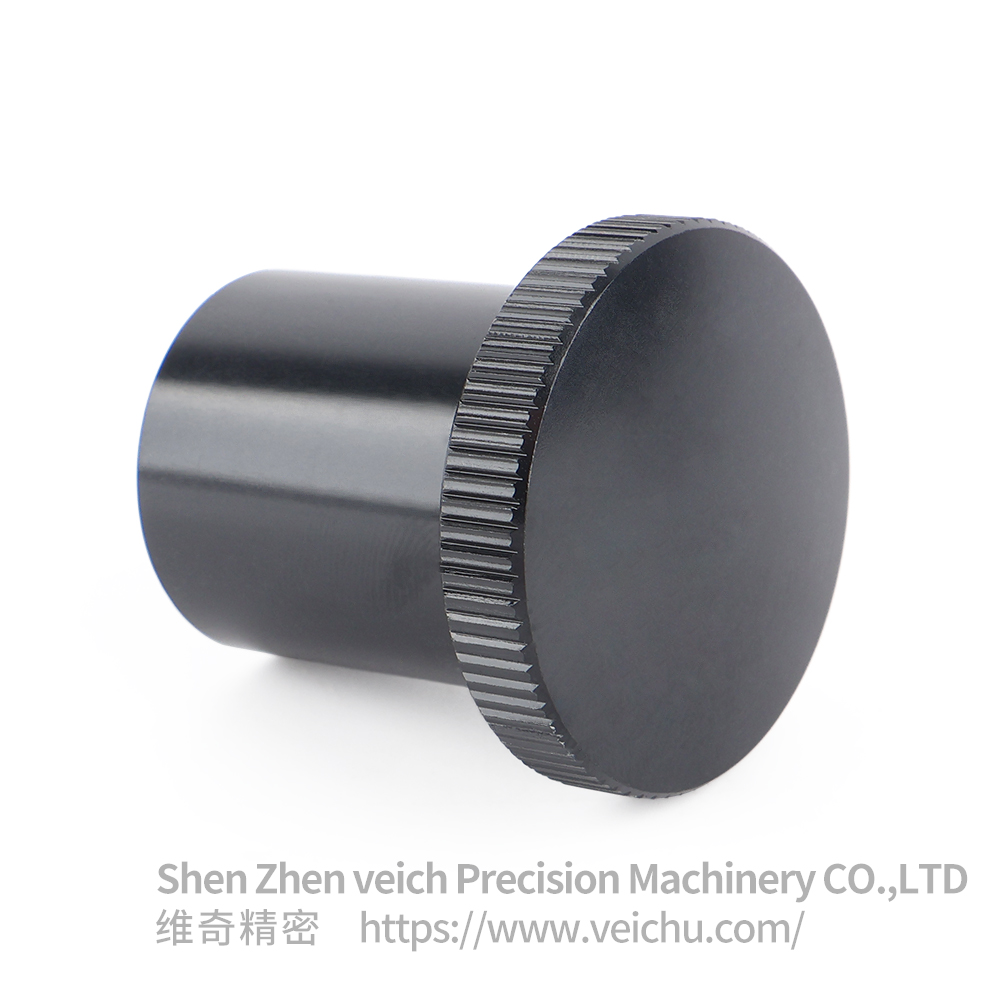

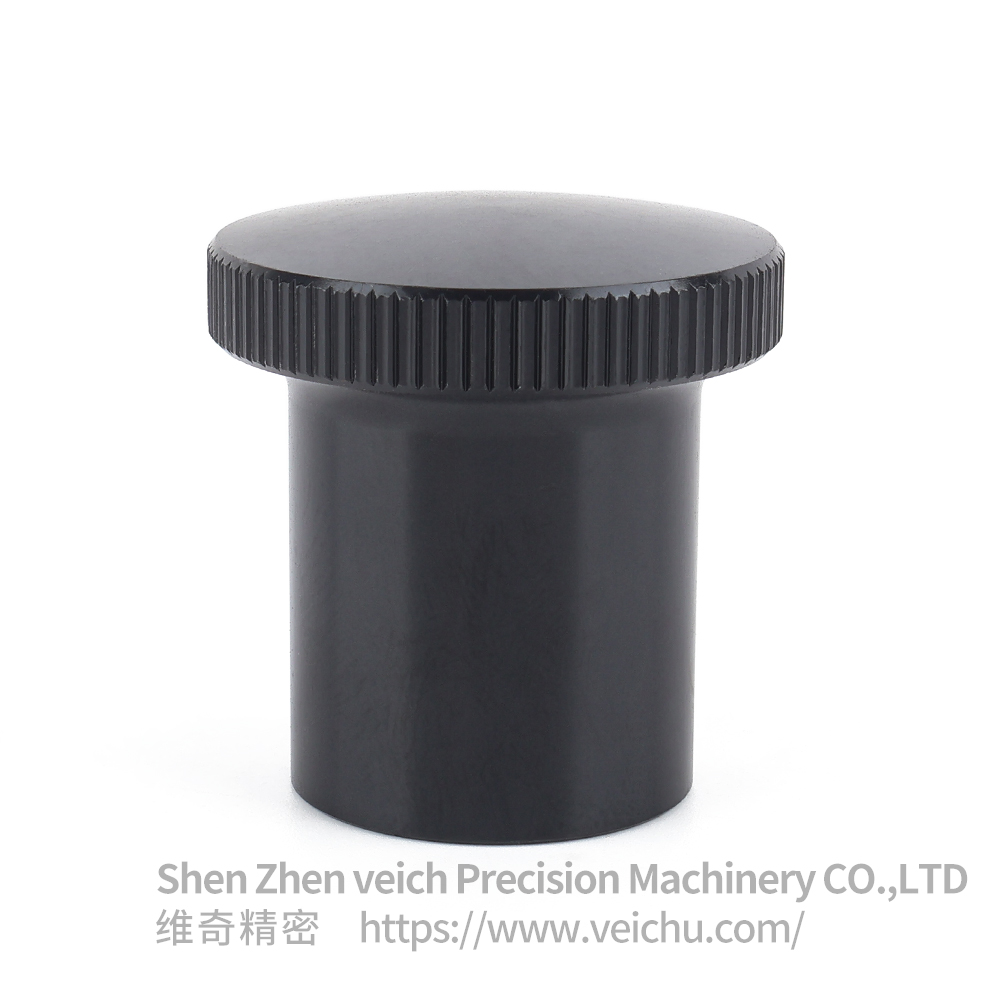

VCN245.1 Knob is a dedicated handle matching index plungers, precisely machined from aluminum alloy with black electrophoretic surface treatment. Equipped with standard internal thread, it can be assembled and replaced for various knob plungers and indexing plungers. Knurled outer surface increases friction, acting as the operating part for manual index plungers to control pin extension and retraction.
●Structural Features
Lightweight Aluminum AlloyLight weight reduces overall load of index plungers, with reliable structural strength to resist breakage and deformation.
Electrophoretic Anti-corrosion FinishBlack electrophoresis coating forms compact protective layer, wear-resistant, rust-proof and oil-resistant for general workshop environments.

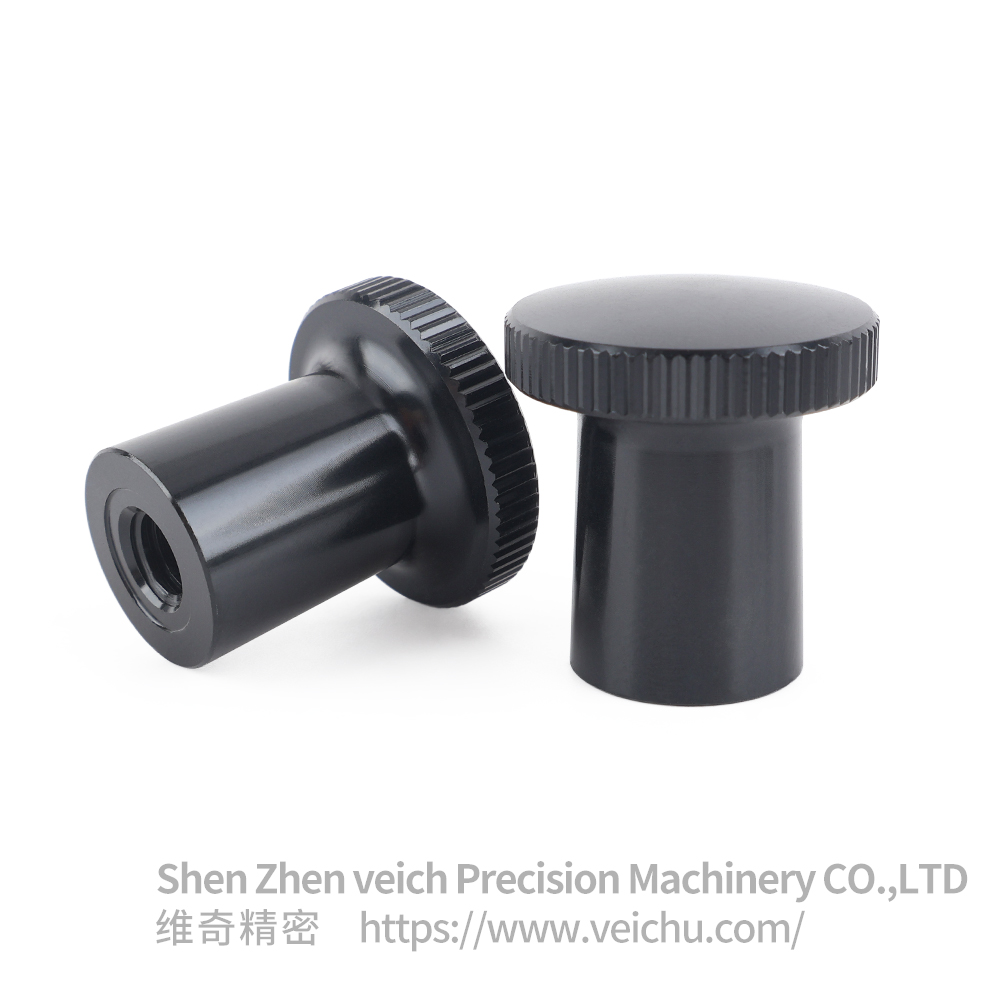

Anti-slip Knurled Outer RimVertical knurling design improves grip, prevents slipping during pulling operation and brings comfortable handling experience.

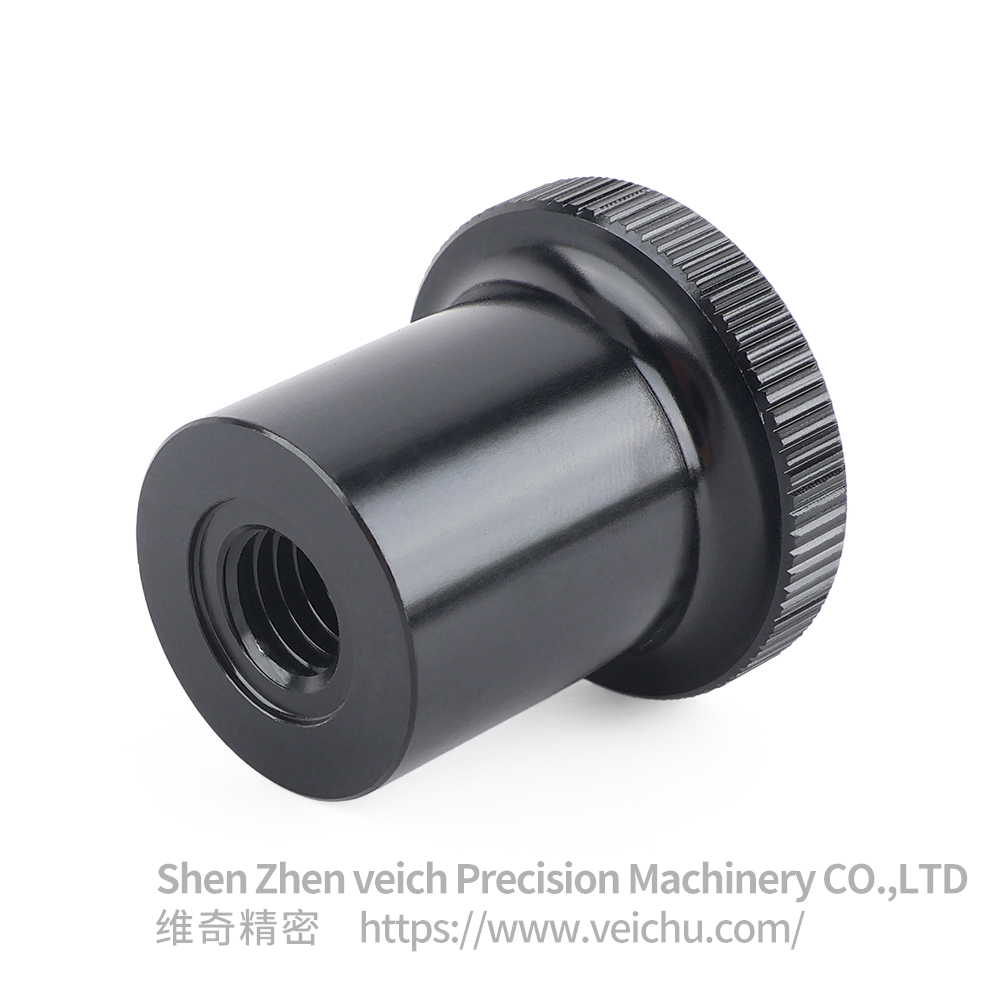

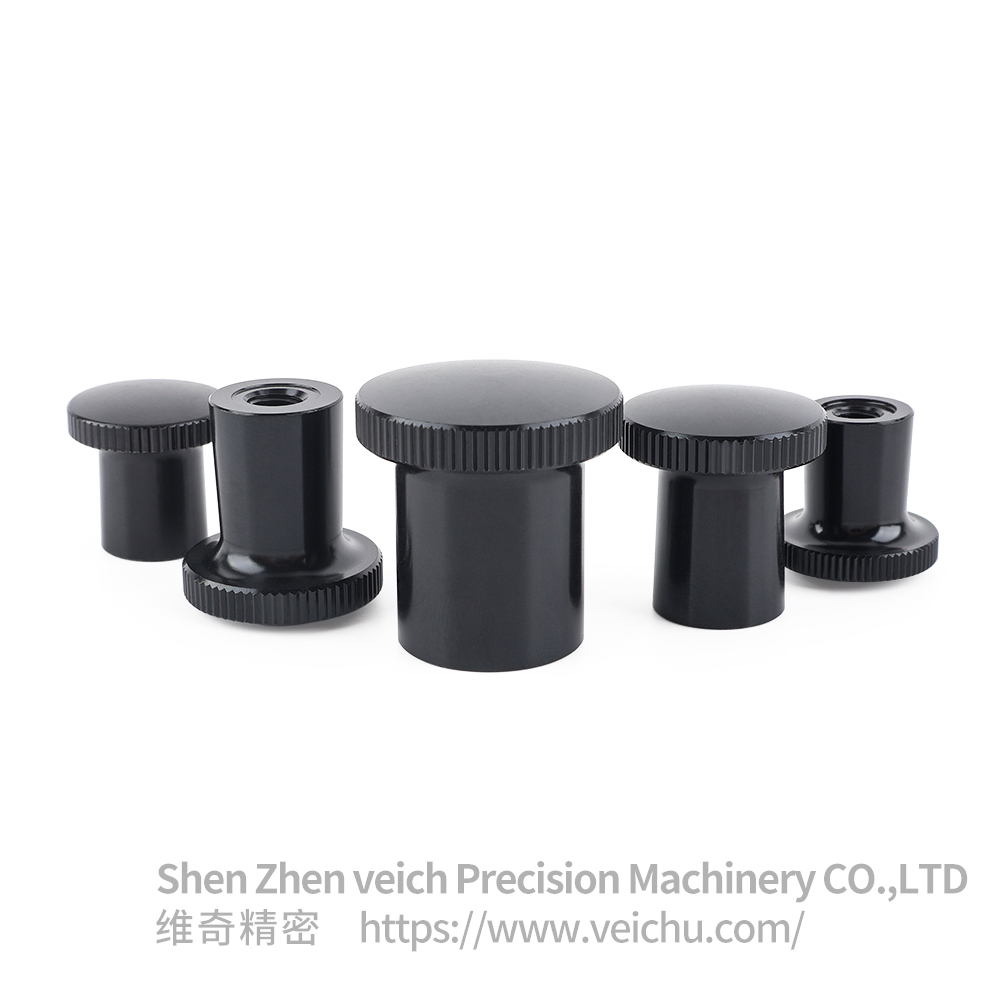

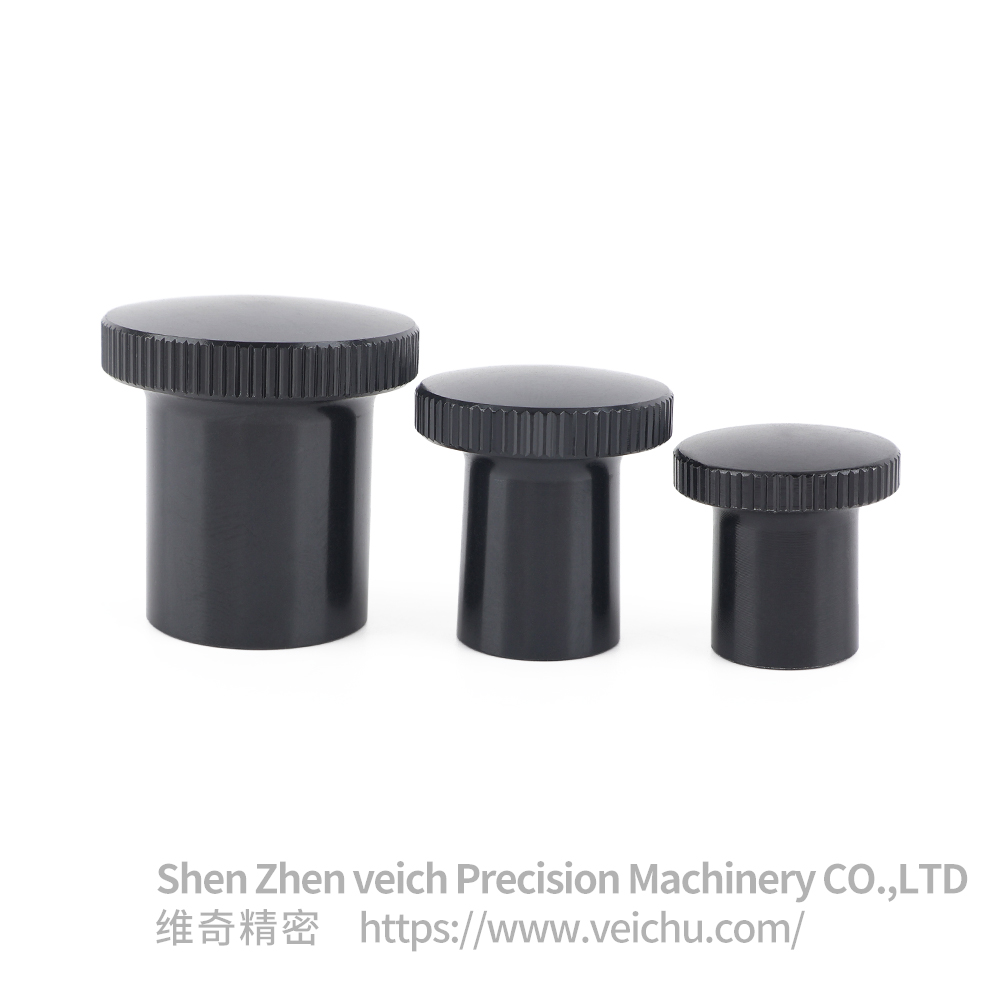

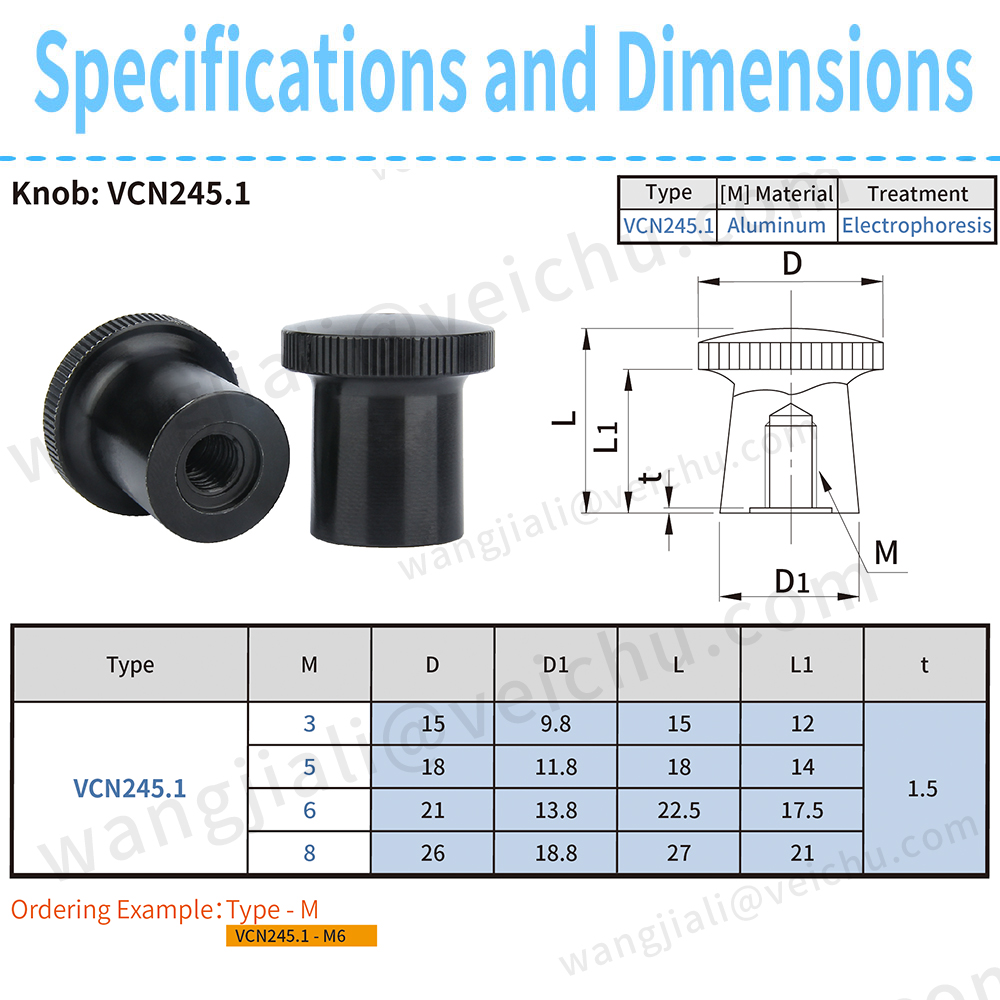

Multiple Thread Sizes AvailableInternal thread options: M3/M5/M6/M8, compatible with various index plunger models for wide versatility.
Interchangeable Standard Spare PartStandard dimensions for direct replacement of original knobs, convenient for maintenance of old index plungers.
●Typical Applications
Replacement Parts for Index PlungersSupporting handle for knob plungers and small indexing plungers.
Positioning Components for Tooling FixturesOperating knob for index plungers on welding jigs, assembly fixtures and inspection gauges.
Positioning Mechanism of Automation EquipmentHandle for station locating pins and module locking plungers on production lines.
Modification & Maintenance of MachineryReplacement spare part when original knobs wear out or break down.
Locking Mechanism for Molds & Turnover EquipmentSupporting knob for limit pins of simple molds and positioning plungers of storage racks.
