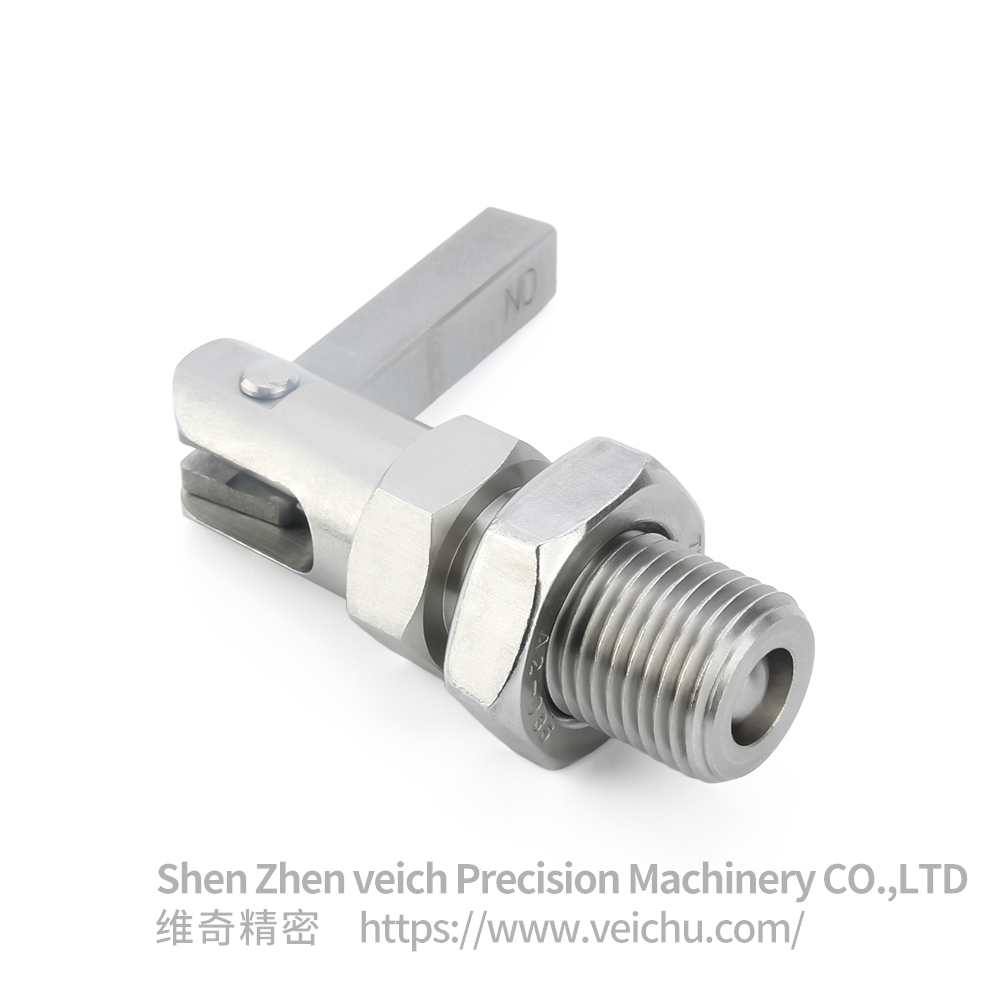

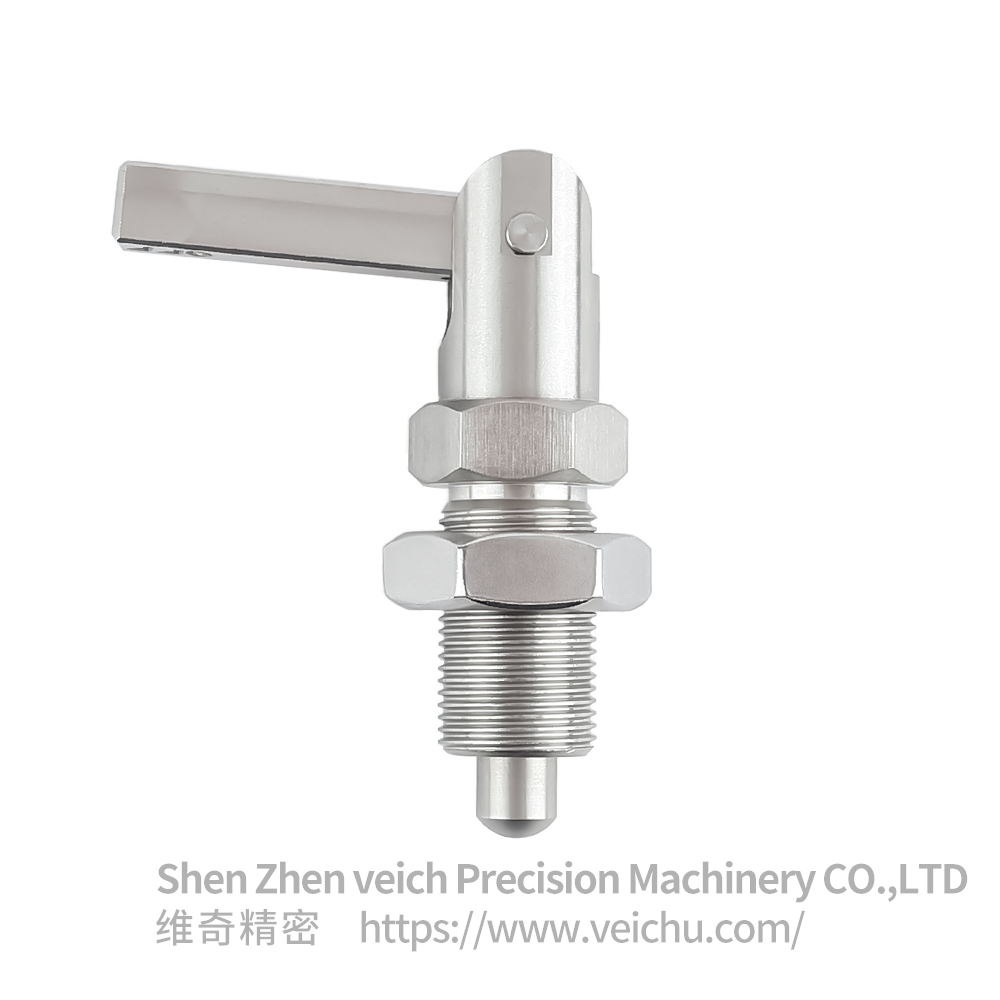

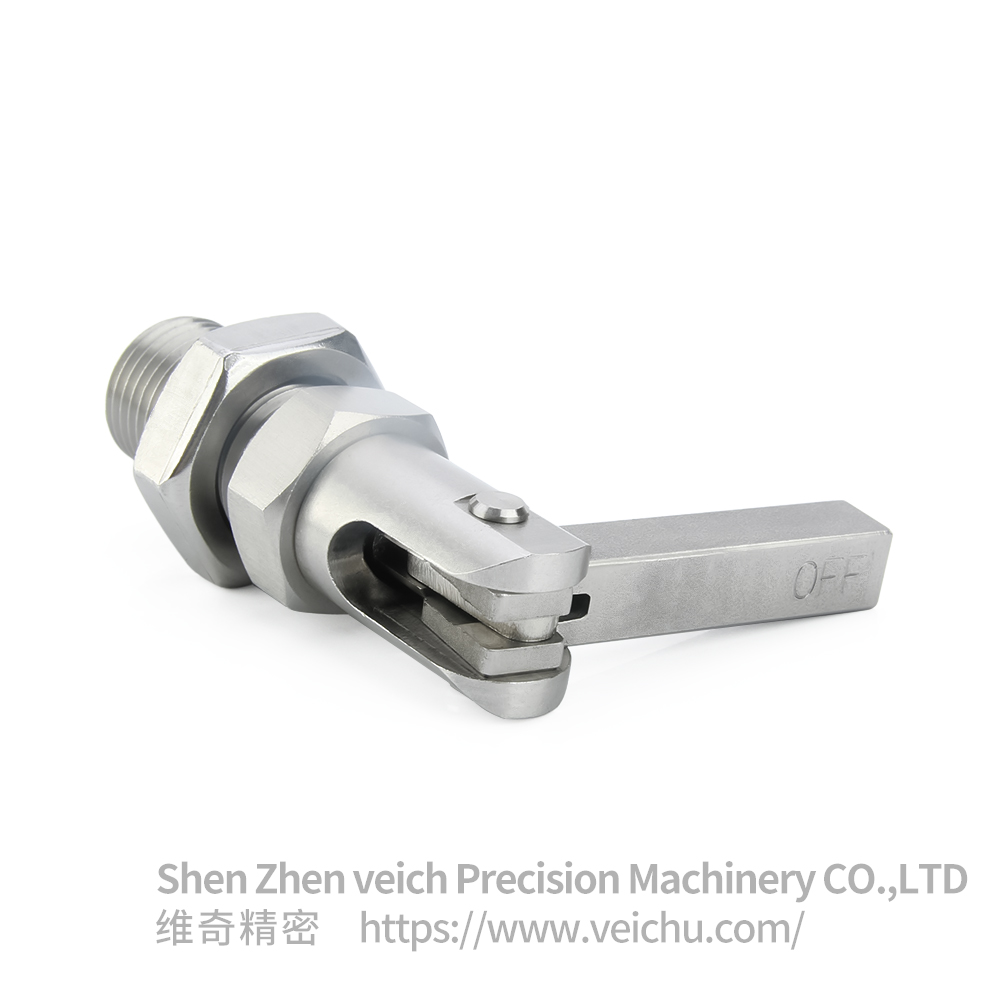

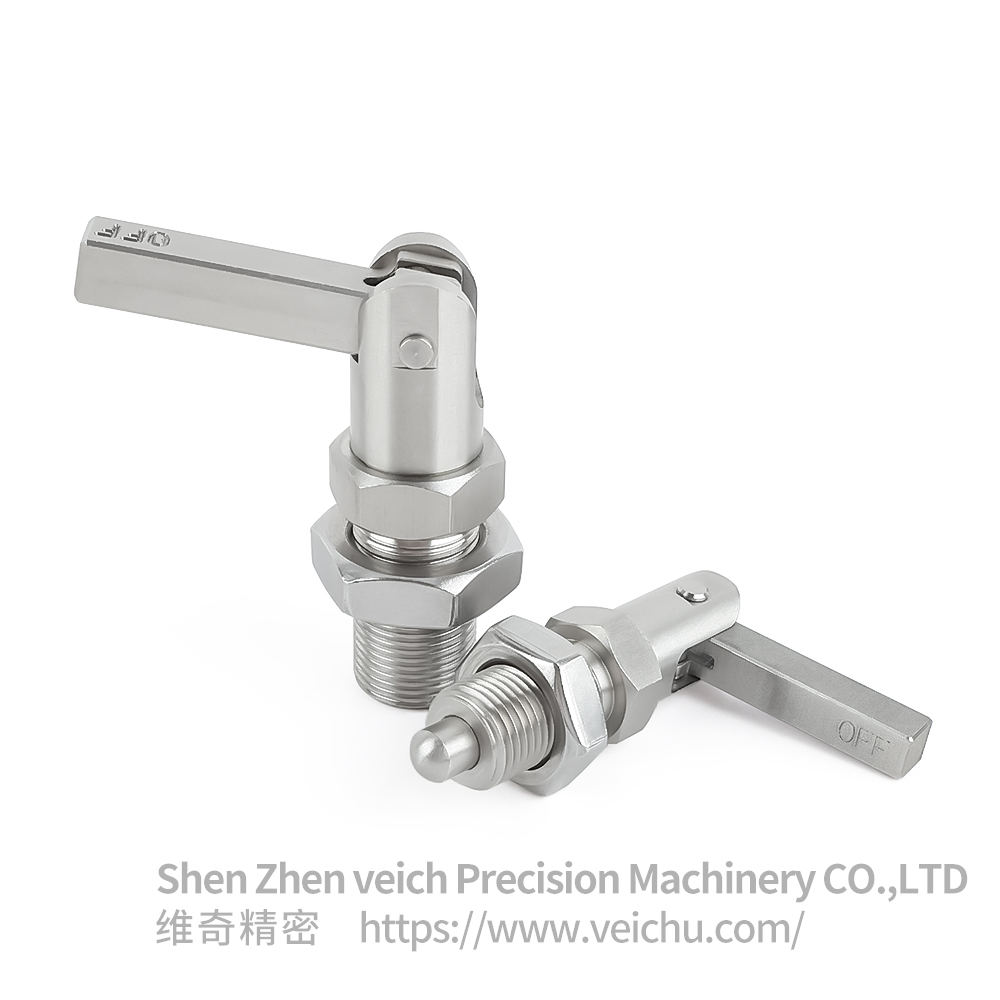

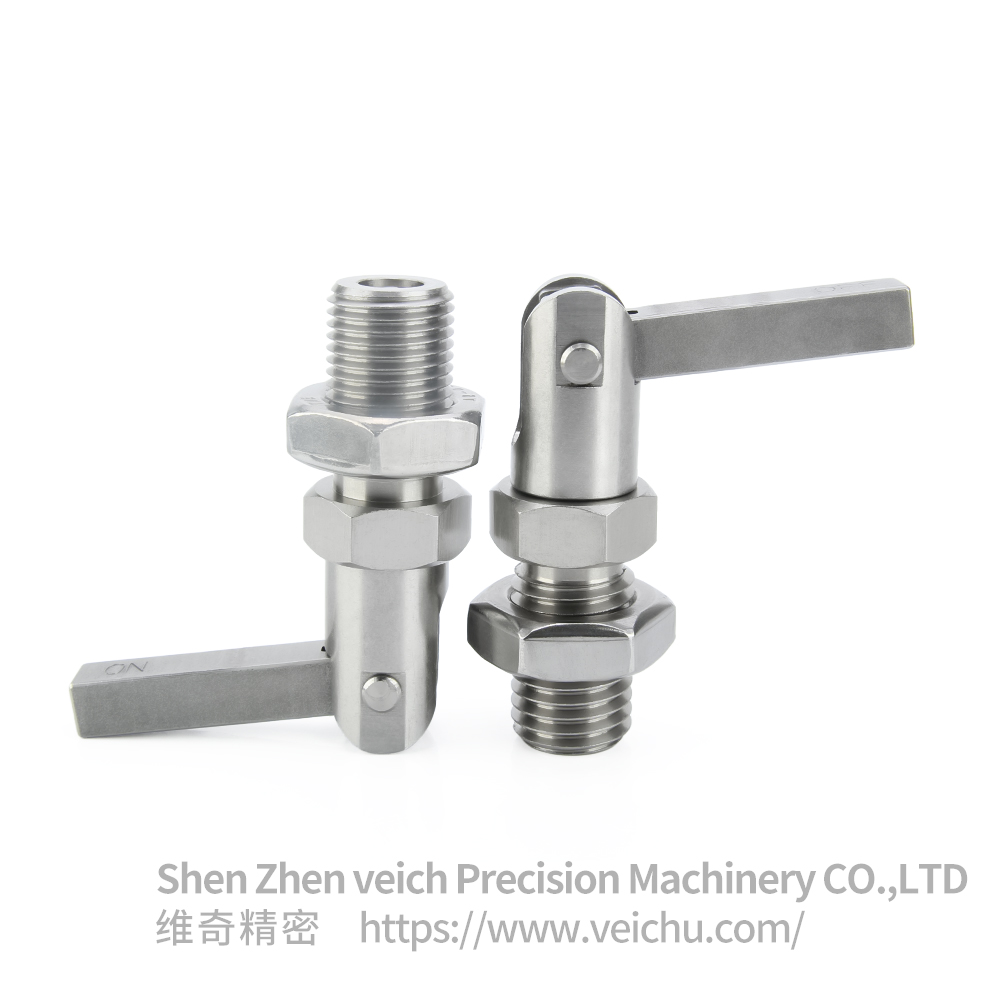

VCN248-CNK/MCNK Stainless Steel L-handle Threaded Indexing Plunger
Share to:

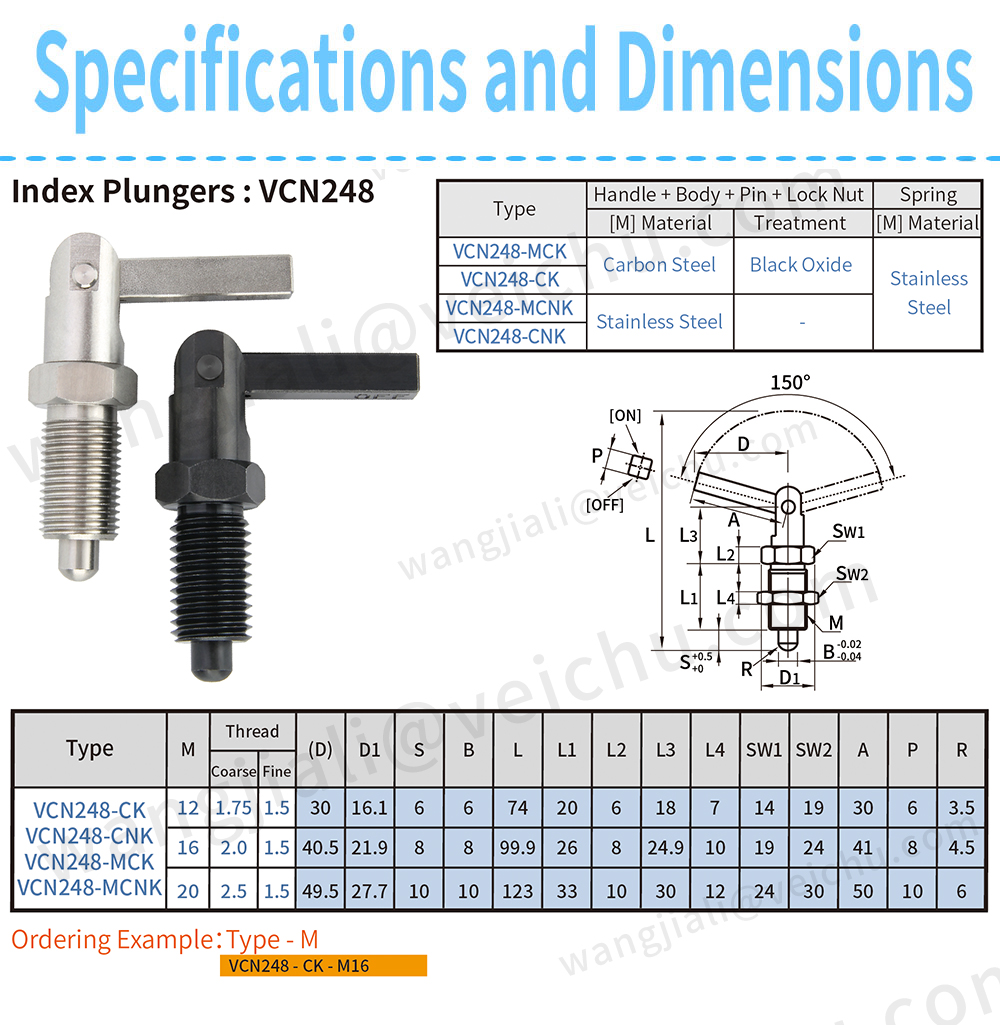

| Diameter of Body: | |
|---|---|
| Quantity: | |
Product Description
Weldable L-Handle Spring Index Plunger Introduction
●Product Introduction
L-handle threaded indexing plunger is available in two material options: stainless steel and carbon steel, precisely machined by CNC equipment. It adopts external thread structure plus side L-shaped lever handle, which is a standard manual positioning & locking fastener. Toggle the L-shaped handle to extend or retract the internal locating pin. The external thread together with lock nut realizes firm installation, which can be screwed directly into machine frames and fixture plates without complicated auxiliary fittings, widely applied for quick positioning in tooling jigs and automated equipment.
●Structural Features
Tool-free Manual Operation: The side L-type lever handle allows users to retract or extend the locating pin by hand simply, realizing fast locking and unlocking of workpieces to improve working efficiency.
Adjustable Threaded Locking Structure: The external thread cooperates with hexagonal lock nut to adjust installation depth arbitrarily. Tightening the nut can fix the plunger firmly to avoid displacement and loosening during operation.

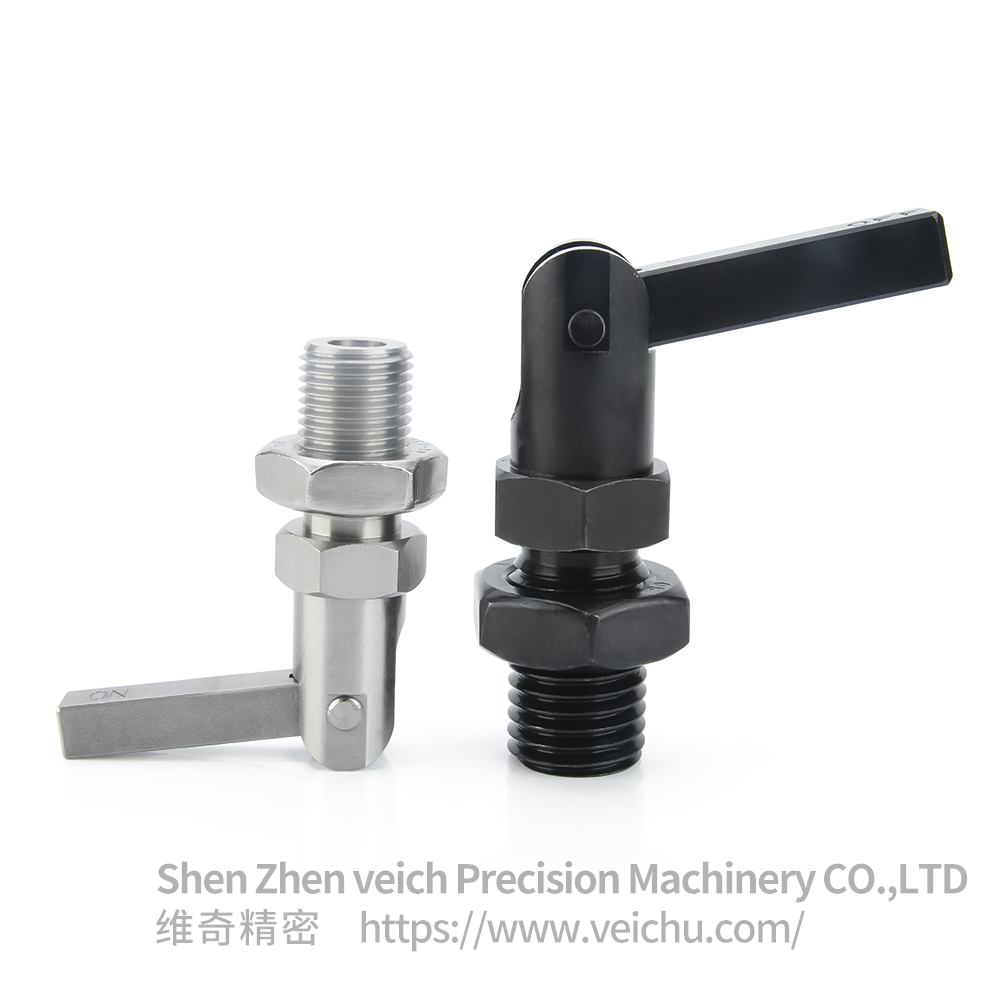

Two material choices for differentiated applications:
Stainless Steel: Superior rust resistance, anti-corrosion, wear resistance and fatigue resistance. Stable performance under frequent reciprocating plugging; no jamming or deformation in humid, oily or slightly corrosive scenarios.
Carbon Steel: High structural rigidity and mechanical strength with competitive price. Ideal for high-intensity positioning in dry indoor environments to cut procurement cost.
High Repeat Positioning Accuracy: The locating pin features high coaxiality and stable movement stroke with tiny fitting clearance, ensuring stable and accurate repeated positioning for toolings.
Compact Size & Space-saving Design: Miniature overall structure takes up little installation space, suitable for assembly inside narrow stations and compact mechanical structures.
●Typical Applications
Tooling & Fixtures
Positioning and locking workpieces on welding jigs, assembly fixtures and inspection gauges; quick unlocking for loading and unloading parts before and after machining.
Automation Production Lines
Positioning of adjustable baffles, modular equipment assembly, locking of safety protective doors and connection positioning of split machine frames.
Machine Tools & Simple Molds
Limiting stopper fixing for machine tools, parting surface positioning of simple molds, angle locking of flip brackets.
Logistics & Storage Turnover Equipment
Layer positioning of turnover racks, fixation of detachable partitions and adjustable baffles on workbenches.
Scenario Classification by Material
Stainless steel type: Humid workshops, coastal environment, water contact working condition, occasions with weak acid & alkali corrosion;
Carbon steel type: Ordinary dry indoor production workshops, standard machine processing workshops, general mechanical assembly environments.
