Description
Product Overview
The VCN250-BNK Return Type Indexing Hand-Retractable Plunger is a high-precision mechanical positioning component purpose-built for industrial purchasers requiring accurate, repeatable indexing and rapid locking operations in automated and manual manufacturing workflows. This premium spring loaded indexing plunger features an ergonomic T-type handle, a reliable spring-loaded return mechanism, and full stainless steel internal construction, enabling single-handed operation to retract or reset the plunger into positioning holes for instant workpiece indexing or secure locking. Designed to solve core challenges such as low positioning accuracy, frequent component failure in high-cycle operations, and poor adaptability to harsh environments, this reset type indexing plunger is an indispensable positioning solution for enterprise manufacturing clients across precision-driven sectors.
Key Features & Industrial Performance Advantages
Ergonomic T-Handle & Single-Action Rapid Operation
This hand-retractable indexing plunger is engineered with an ergonomic T-handle made from high-strength Nylon6, enabling comfortable, non-slip grip and single-handed pull-and-twist operation for instant locking or release. This intuitive design cuts indexing and tool changeover time significantly, streamlining production workflows and reducing operator fatigue in high-frequency use cases.
High-Precision Indexing & Stable Locking Performance
Featuring a precision-machined plunger and spring-loaded locking structure, this T-handle precision indexing plunger delivers exceptional indexing accuracy of ±0.1mm, ensuring repeatable, consistent positioning even after tens of thousands of operation cycles. Select models include an anti-release safety mechanism to prevent accidental disengagement, enhancing operational safety and reducing the risk of production errors.
Corrosion-Resistant & Long-Lasting Construction
The threaded shell, plunger pin, spring, and lock nut are all manufactured from high-grade stainless steel, delivering excellent corrosion, wear, and rust resistance for use in humid, high-temperature, or sterile clean environments. With hardened contact surfaces, the plunger offers a service life exceeding 100,000 operation cycles, with an operating temperature range of -50°C to 200°C and optional IP65 protection for dust and water ingress resistance.

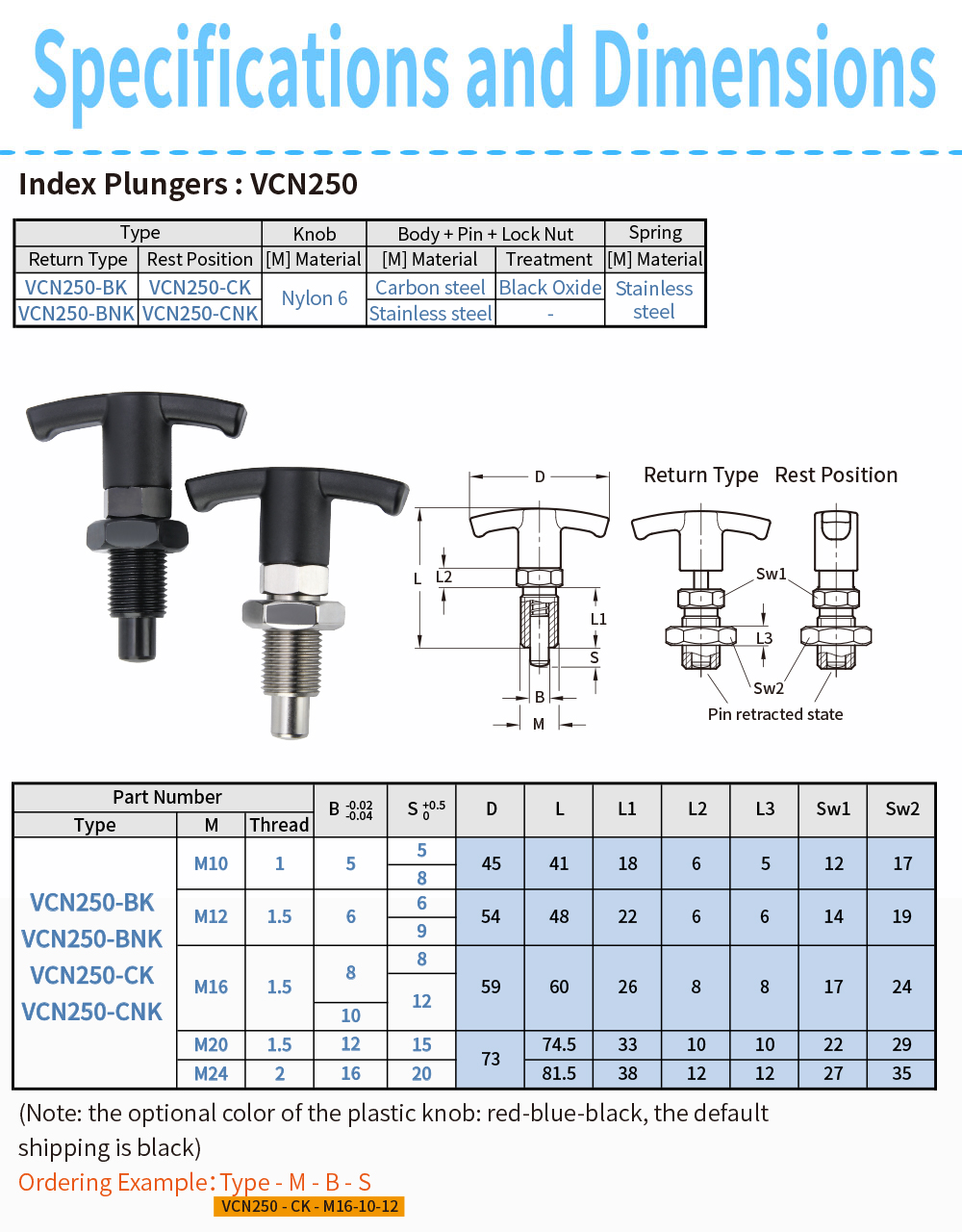

Detailed Technical Specifications
Parameter | Core Details |
|---|---|
Core Model | VCN250-BNK Return Type Indexing Hand-Retractable Plunger |
Primary Materials | Threaded Shell, Plunger, Spring, Lock Nut: Stainless Steel; Handle: Nylon6 |
Handle Color Options | Black, Blue, Red |
Standard Thread Sizes | M10, M12, M16, M20, M24 |
Indexing Accuracy | ±0.1mm |
Minimum Service Life | Over 100,000 operation cycles |
Operating Temperature Range | -50°C to 200°C |
Optional Protection Grade | IP65 (dust and water resistant) |
Surface Finish | Original precision finish on plunger pin |
Industrial Applications
This stainless steel hand-retractable spring plunger is ideal for a wide range of precision industrial applications, including:
Automation & Intelligent Manufacturing Equipment: Rotary table indexing positioning, robotic arm gripper tool changes, and automated production line fixture alignment, supporting high-speed, repeatable operation in smart factory settings.
CNC Machining & Workholding Fixtures: Workpiece clamping, angular adjustment, and quick tooling changeovers in machining centers, milling machines, and custom fabrication setups, delivering consistent positioning accuracy for precision machining.
Marine & Outdoor Industrial Instruments: Corrosion-resistant positioning for marine equipment, outdoor monitoring instruments, and off-highway machinery, withstanding harsh weather and saltwater exposure.
Pharmaceutical & Food Processing: Frequent indexing and positioning in clean production lines, with stainless steel construction that meets strict hygiene standards for sterile and washdown environments.
Customization & OEM/ODM Manufacturing Services
We provide comprehensive customization and full OEM/ODM manufacturing support for enterprise manufacturing clients and commercial purchasers. Available customizations include tailored plunger diameter, stroke length, number of indexing holes, handle color, and thread specifications, with full support for custom drawings and sample prototypes. We also offer private labeling, custom packaging, and brand development services to align with your business branding requirements, with a flexible minimum order quantity of just 1pcs for both standard and custom models.
Ordering, Global Shipping & Warranty
All standard thread sizes of the VCN250-BNK return type indexing plunger are kept in in-house stock, with standard orders shipped within 48 hours of confirmation, and expedited shipping available for time-sensitive project requirements. We provide global shipping services to over 80 countries worldwide, with full end-to-end tracking and dedicated logistics support for bulk enterprise orders. All products come with a comprehensive manufacturer warranty against material and workmanship defects, with a specialized technical support team to assist with installation, operation, and after-sales inquiries for business clients.
FAQs
What thread sizes are available for the VCN250-BNK indexing plunger?
We offer standard metric thread sizes including M10, M12, M16, M20, and M24, with custom thread specifications available upon request for bespoke applications.
What is the indexing accuracy of this return type indexing plunger?
This precision plunger delivers a standard indexing accuracy of ±0.1mm, ensuring consistent, repeatable positioning for high-precision manufacturing and automation workflows.
Can this hand-retractable plunger be used in humid or high-temperature environments?
Yes, the full stainless steel internal construction enables reliable operation in humid, corrosive, and high-temperature environments, with an operating temperature range of -50°C to 200°C, and optional IP65 protection for dust and water resistance.
