Product Description

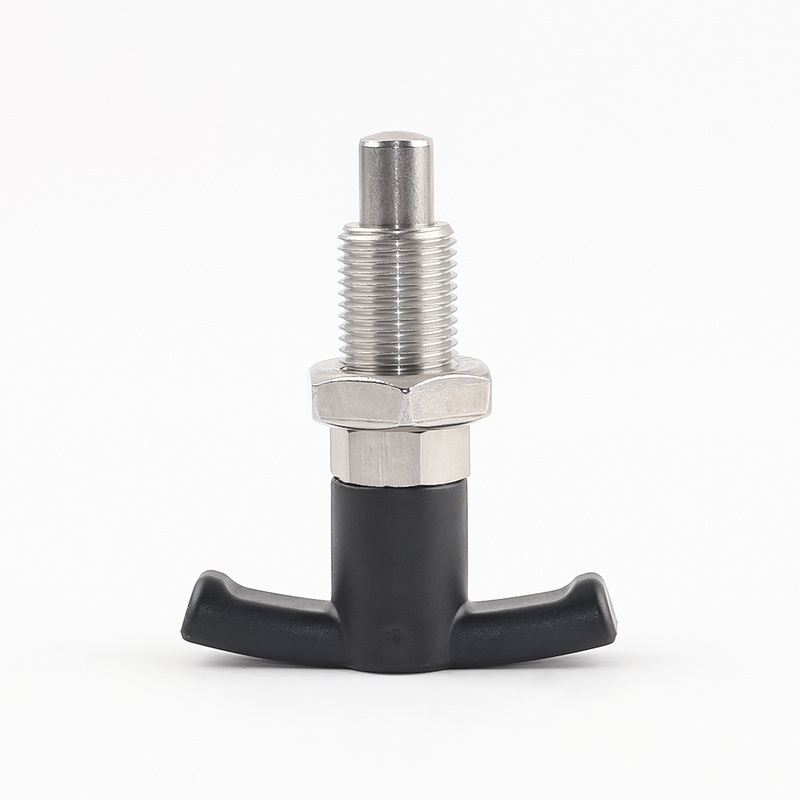

T-Type Handle Reset Stainless Steel Indexing Plunger Introduction
●Product Introduction
The T-type handle reset stainless steel indexing plunger is a high-precision mechanical positioning device designed for rapid locking, indexing, and reset operations. Its core function is to enable precise insertion or retraction of the plunger into/from positioning holes via manual operation of the T-handle, achieving workpiece indexing or quick release.
●Structural Features
T-Handle Design: Ergonomically shaped for comfortable grip and effortless operation, allowing single-handed reset.
Indexing Locking Mechanism: Incorporates a spring-loaded structure and precision fit between the plunger and positioning holes, ensuring stable locking with indexing accuracy up to ±0.1mm.
Stainless Steel Construction: Resists corrosion and wear, suitable for humid, high-temperature, or sterile environments (e.g., food processing, medical equipment).
Modular Configuration: Customizable plunger diameter , stroke length, and number of indexing holes to meet diverse equipment needs.
Safety Redundancy: Select models include anti-release safety mechanisms to prevent accidental unlocking.
●Typical Applications
Automation Equipment: Indexing positioning for rotary tables, rapid tooling changes in robotic arm grippers.
Workholding Fixtures: Workpiece clamping and angular adjustment in machining centers and milling machines.
Specialized Machinery: Corrosion-resistant positioning in marine equipment or outdoor instruments.
Clean Environments: Frequent sanitation processes in pharmaceutical or food production lines.
●Technical Advantages
Rapid Operation: Locking/unlocking achieved with a single pull-and-twist motion, boosting efficiency.
Durability: Stainless steel body combined with hardened contact surfaces ensures a service life exceeding 100,000 cycles.
Environmental Adaptability: Operating temperature range of -50°C to 200°C, with optional IP65 protection.
●Usage Notes
1.Ensure alignment between index holes and plunger axis during installation to avoid uneven wear.
2.For high-frequency use, inspect spring tension and locking accuracy every 6 months.
Renowned for reliability and versatility, this product serves as an ideal positioning solution for precision machinery, automated production lines, and specialized equipment industries.
