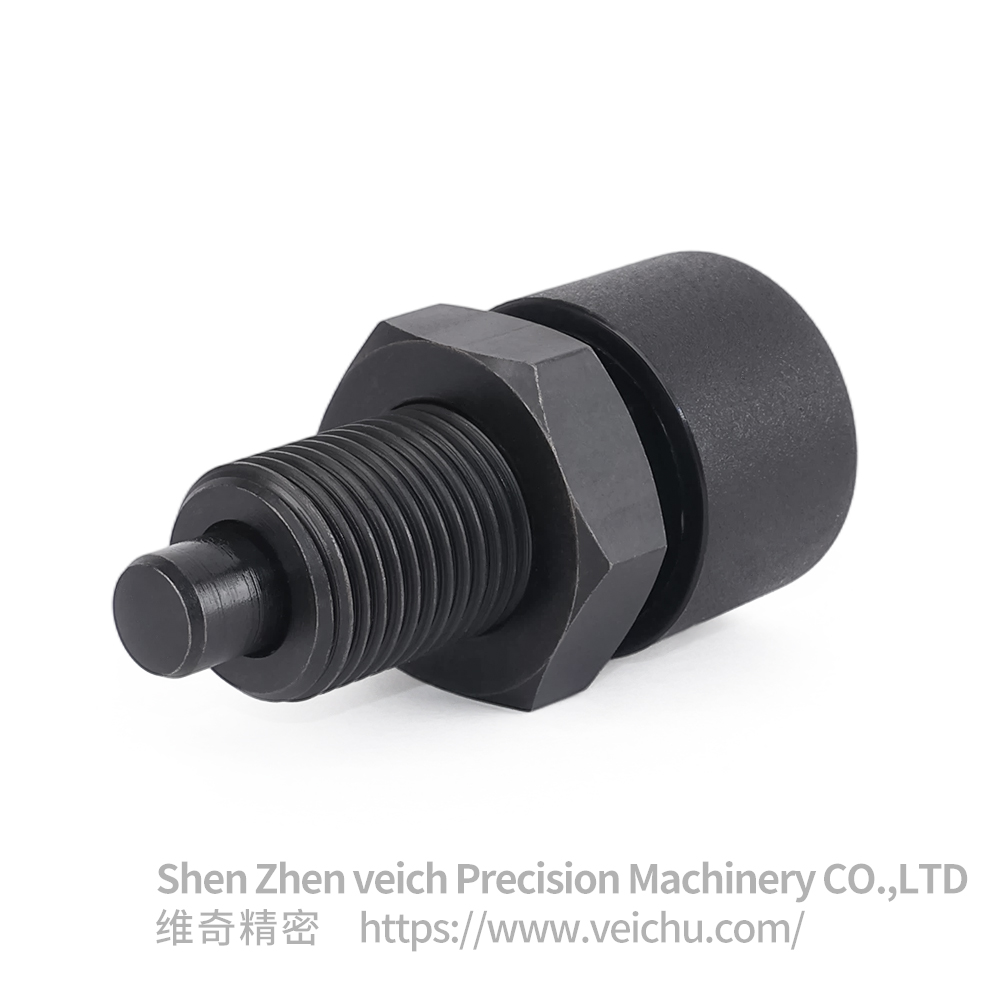

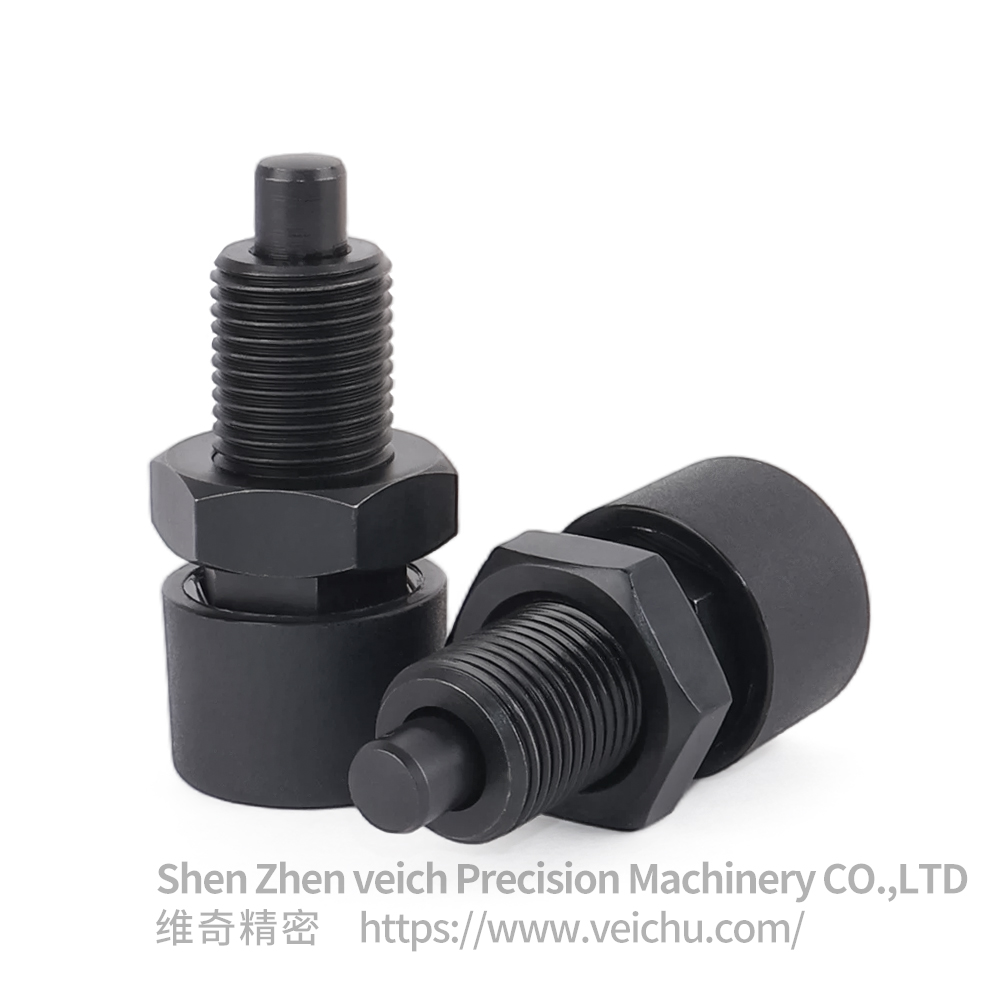

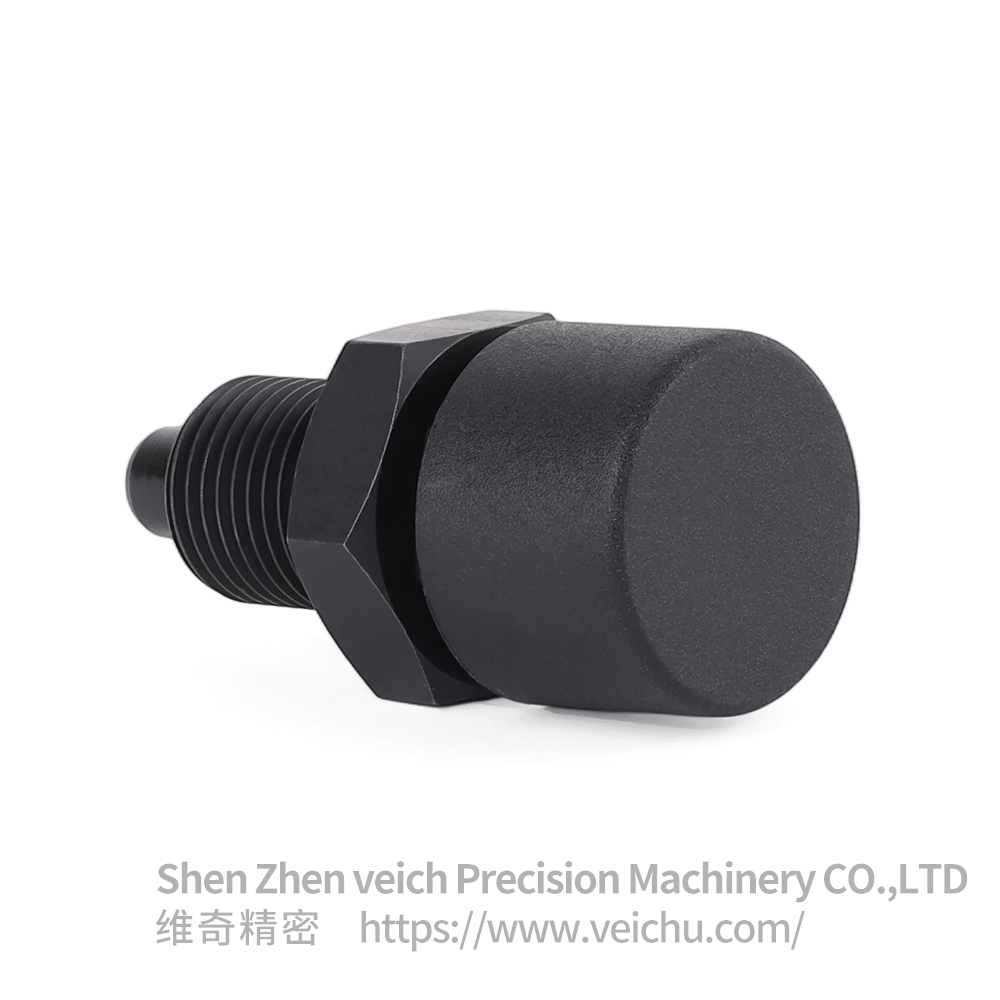

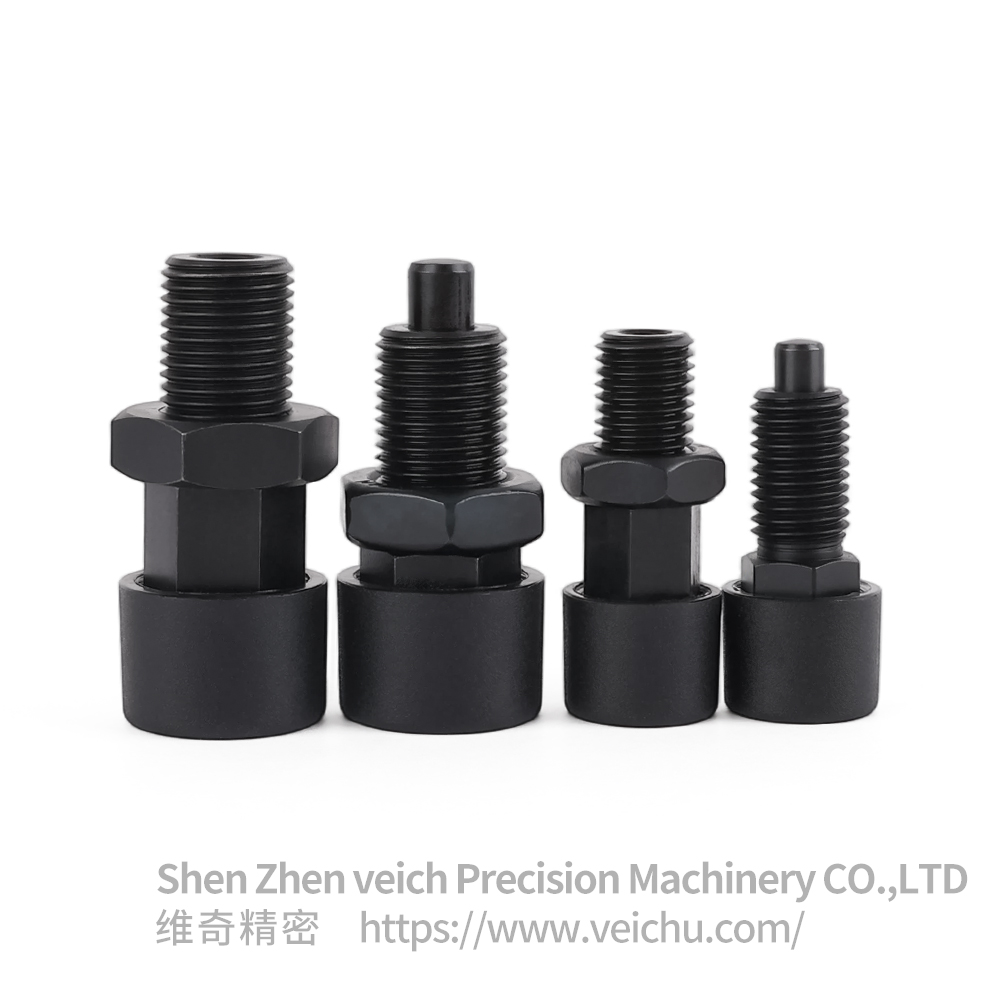

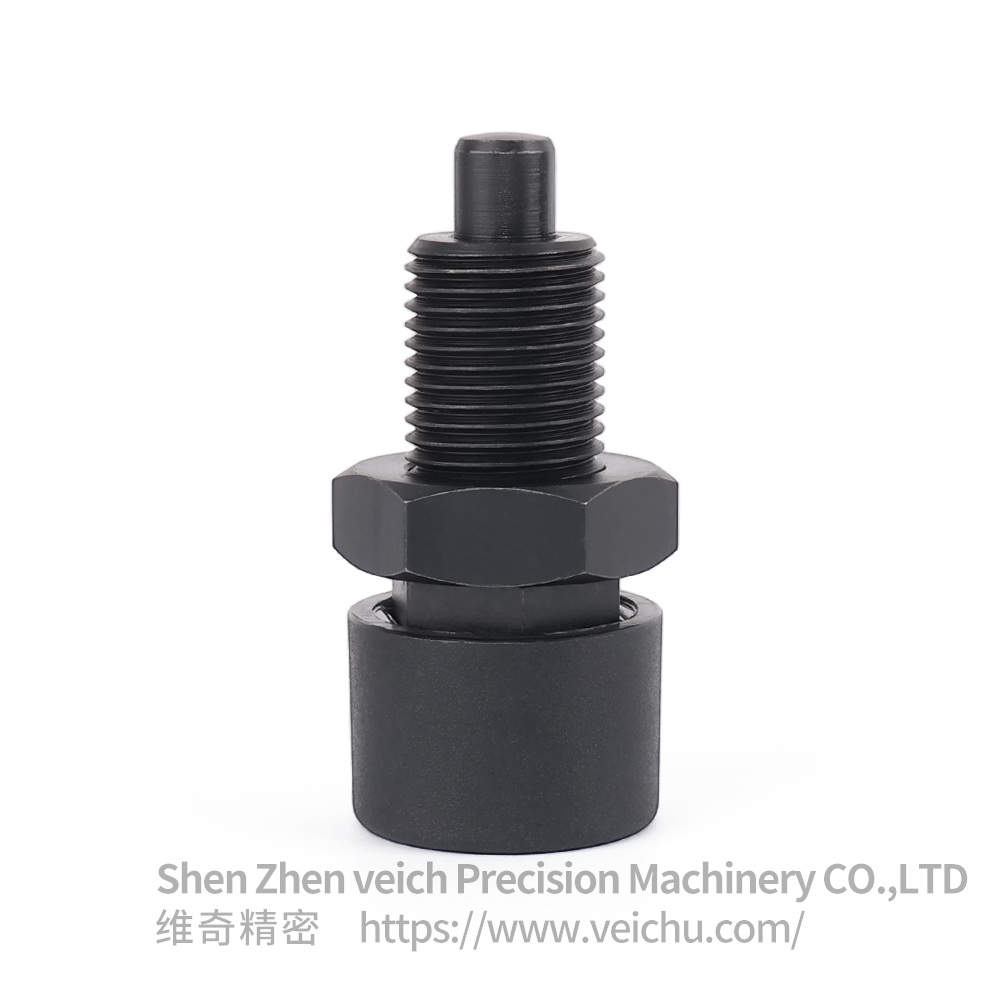

VCN251-CK Carbon Steel Nylon6 Knob Rest Position Type Button Index Plunger with Nut
Share to:
| Diameter of thread: | |
|---|---|
| Quantity: | |
Product Description
Button Index Plunger Product Introduction
●Product Introduction
Button index plungers (also known as spring locating pins & knob plungers) are standardized precision positioning fasteners. The main body is available in two material options: stainless steel and carbon steel.
●Stainless steel version: Excellent rust and corrosion resistance, suitable for humid and slightly acidic/alkali working environments.
●Carbon steel version: With black oxide finish, featuring high wear resistance, structural strength and cost-effectiveness.
Two types of button handles are optional: stainless steel metal buttons and non-slip nylon buttons. The assembly consists of external threaded studs, adjustable hex lock nuts, built-in compression springs, locating pins and anti-scratch buffer sleeves. Equipped with complete thread specifications, the mounting thickness can be freely adjusted via lock nuts. The retractable locating pin is controlled by one-touch pressing, featuring compact structure and easy installation & removal, widely adopted for precise indexing and limiting in machinery equipment.
●Structural Features
● One-Touch Retractable Indexing & Positioning
Press the top button to compress the internal spring and retract the locating pin to release the limit; release the button, and the spring rebounds automatically to extend the pin into the locating hole, realizing rapid indexing, clamping and locking without extra tightening tools.
● Adjustable Mounting Thickness
Dual hex lock nuts allow flexible adjustment of mounting gaps for equipment plates and tooling fixtures, compatible with panels of various thicknesses for broad installation adaptability.
●Typical Applications
●Automated Tooling & Fixtures Quick-change tooling, welding jigs and processing fixtures for rapid indexing and clamping during rotary processing and mass production, greatly improving workpiece replacement efficiency.
●Machine Tools & Processing Equipment Milling machines, drill presses and CNC machining centers, used for worktable rotary limiting and baffle adjustment locking.
●Conveying & Assembly Lines Station baffles, lifting platform positioning and turnover fixture locking on production lines for fast station switching.
●Mould & Sheet Metal Fabrication Stamping dies, bending tooling and sheet metal positioning jigs for slide limiting and workpiece indexing fixation.
●Food & Packaging Machinery Stainless steel variants for packaging and food processing equipment, meeting rust-proof requirements for clean production environments.
●Light-Duty Precision Testing EquipmentTesting benches and small operation tables; nylon-handle models deliver silent operation without surface damage for precise fine-tuning positioning.
●Warehouse & Logistics Equipment Lifting racks, turnover tooling and trolley limiters; carbon steel variants provide stable load bearing and long service life.
