VCN256-ANK Weldable L-Handle Stainless Steel Spring Index Plunger
Share to:
| Diameter of Body: | |
|---|---|
| Quantity: | |
Product Description
Weldable L-Handle Spring Index Plunger Introduction
●Product Introduction
This is a weldable 180° flip L-handle spring index plunger (spring latch pin). It is integrally machined from high carbon steel; the hexagonal main body is finished with black oxide for rust resistance and hardening treatment, while the locating pin and operating handle are galvanized for anti-corrosion and wear & impact resistance. Designed for direct welding mounting, it eliminates the need for additional threaded base machining.

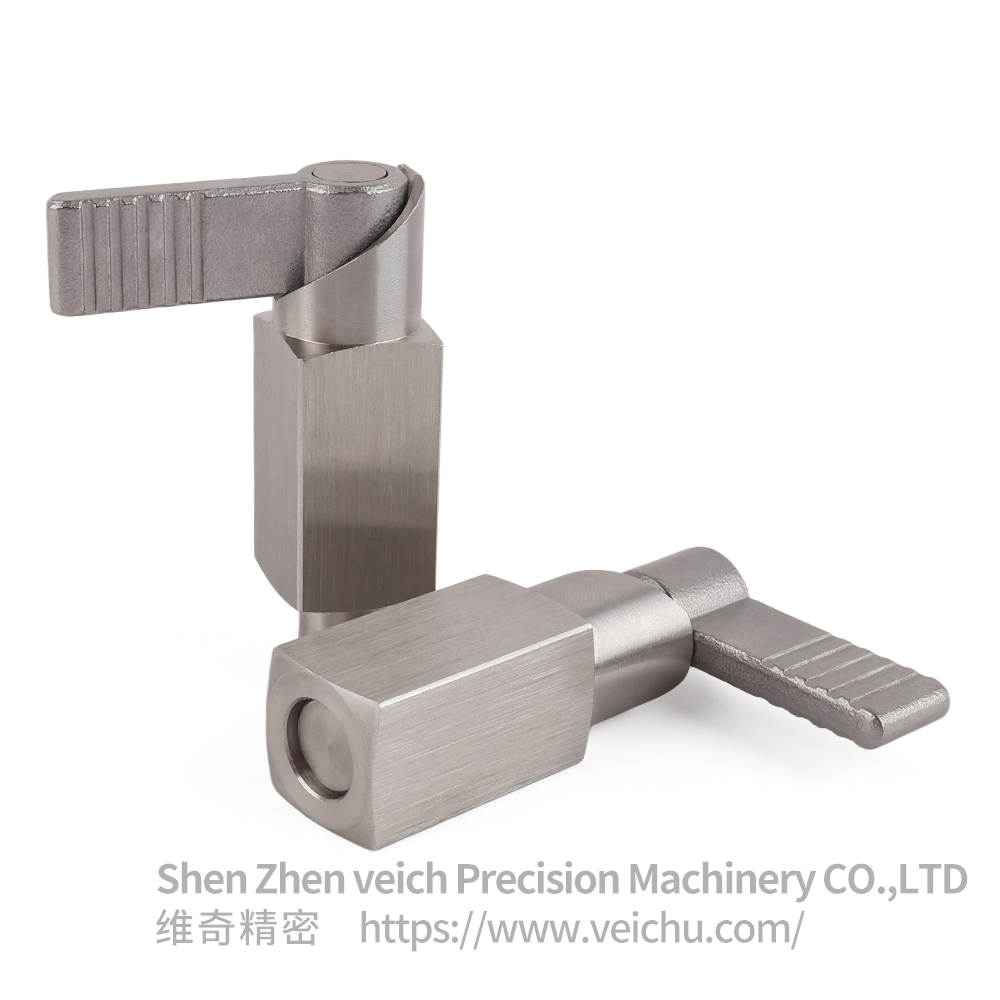

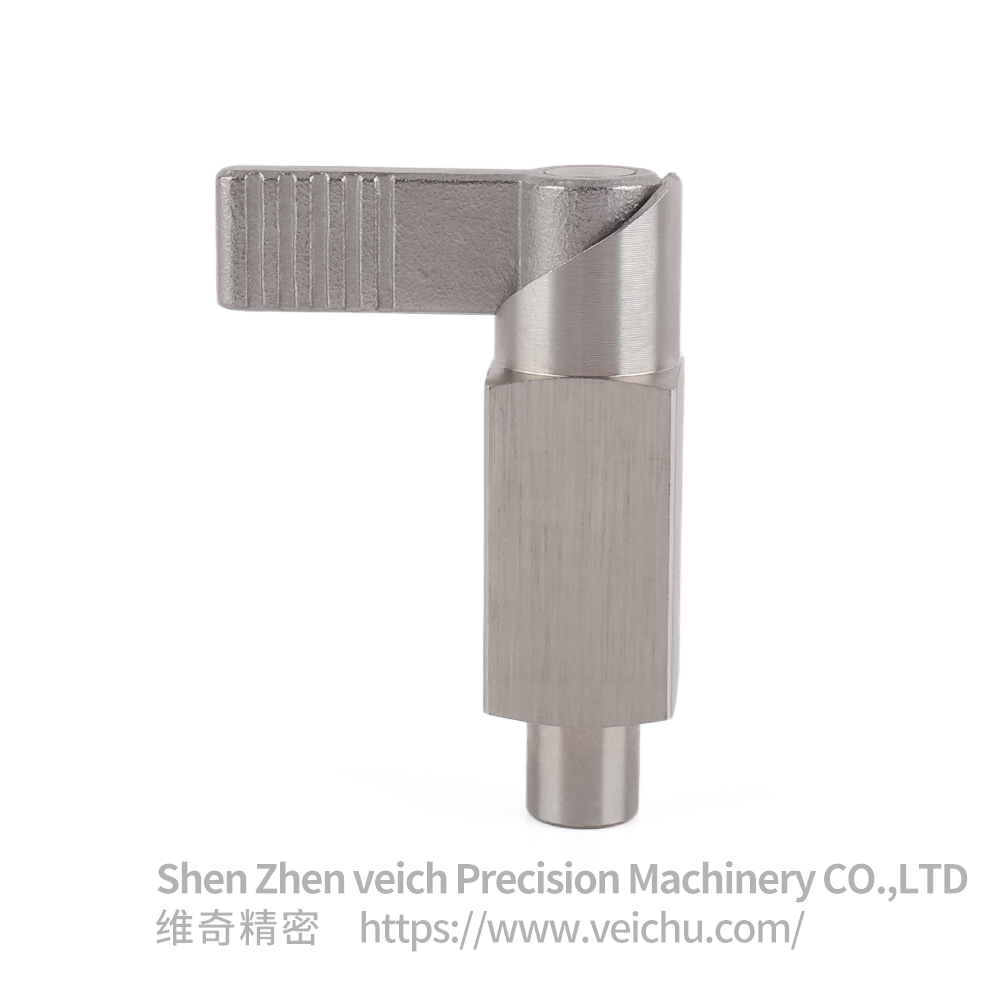

● Structural Design: Integrated hexagonal weld base that can be fully welded onto tooling, frames and fixture plates. The L-shaped anti-slip knurled side handle retracts and extends the pin shaft with a 180° rotation. No protruding knob, saving installation space.
● Material & Processing: Quenched and tempered pin shaft with built-in heavy-duty compression spring for stable fatigue-resistant rebound. Black oxide coated barrel withstands welding high temperature and oil contamination; galvanized handle prevents oxidation for long-term workshop service.
● Installation Advantage: Large flat hexagonal welding surfaces ensure firm, vibration-proof welding fixation. It replaces conventional threaded mounting, tapping and nut locking procedures, ideal for heavy-load equipment with continuous vibration.
●Structural Features

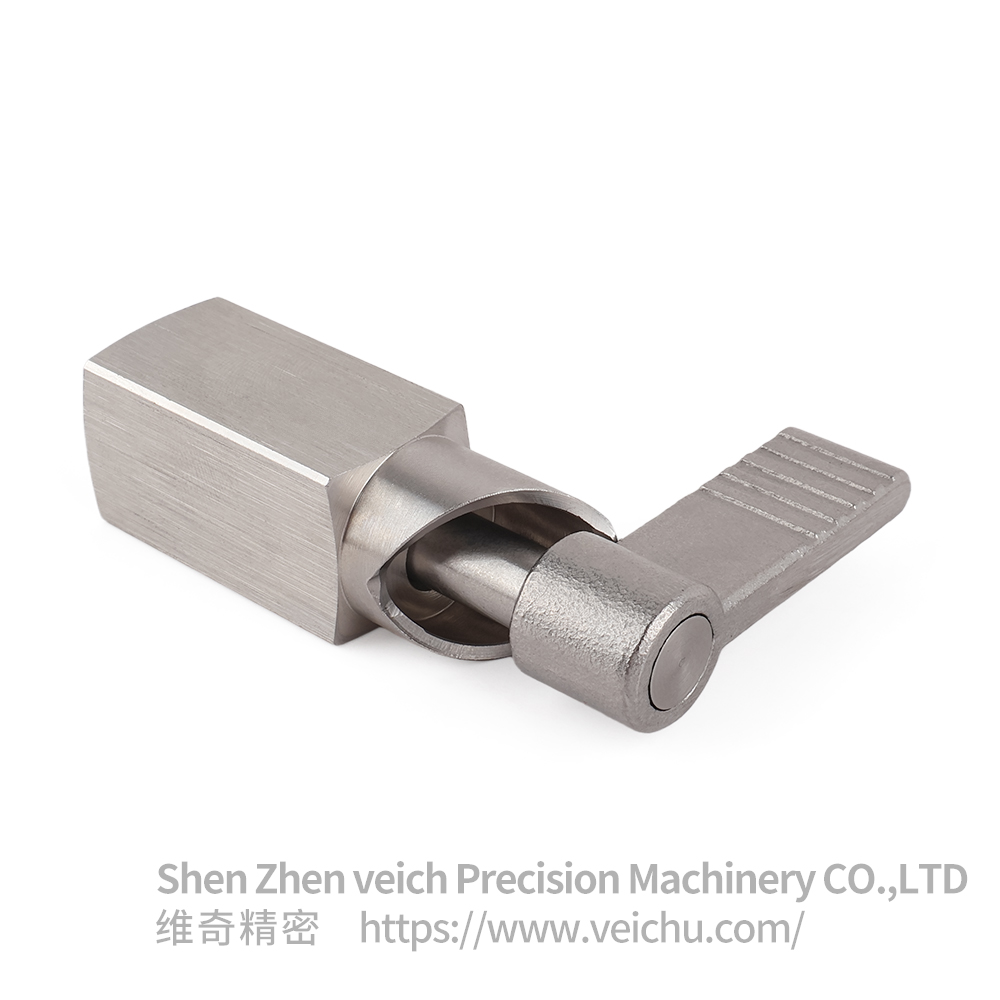

Rapid Positioning & Locking: Flip the L-handle downward, the built-in spring ejects the pin shaft to precisely insert into locating holes for zero-play indexing and secure clamping of workpieces and fixtures.

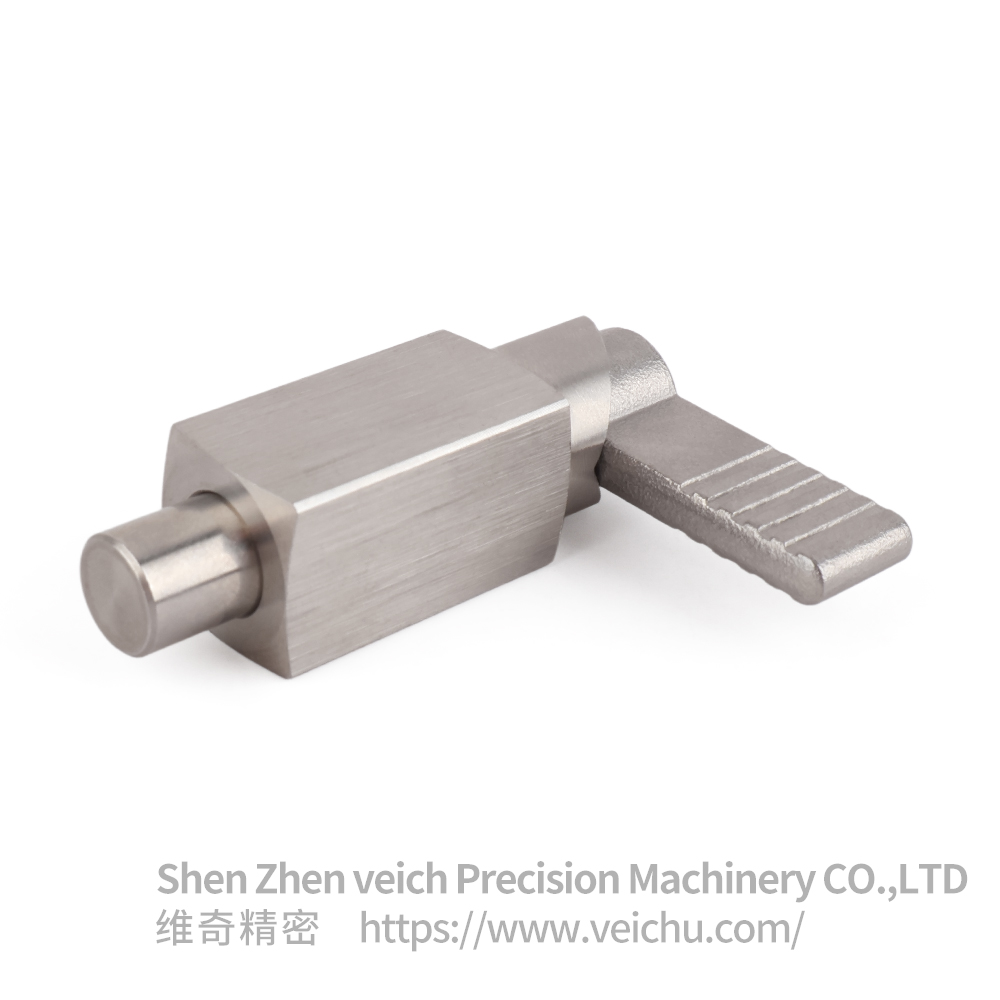

One-step Unlocking & Release: Rotate the handle 180° backward to retract the pin automatically, enabling tool-free quick disassembly of workpieces with no jamming.
Weld-in Place Mounting: Flat hexagonal barrel walls serve as welding pads, compatible with arc welding and gas welding onto metal frames and welding jigs. The assembly retains rigidity without deformation under welding heat.
Vibration-resistant Anti-loose Locking: Preloaded internal spring structure prevents accidental pin retraction under equipment vibration, maintaining consistent clamping to avoid workpiece shifting.
Compact Space-saving Layout: Side bent handle without protruding knobs, perfectly suited for narrow fixtures and compact welding jigs.
●Typical Applications
Welding Fixtures & Tooling:
Frame welding benches, sheet metal positioning jigs, stainless steel tube welding fixtures. Weld directly onto fixture base plates for fast positioning and multi-point indexing of sheet metal parts.
Automated Equipment Frames:
Assembly line welding frames, positioners and turnover welding tables. Weld-mounted on equipment frames for rapid module switching and station indexing locking.
Automotive Component Welding:
Vehicle frames, chassis parts and electric bike welding jigs. Replaces standard threaded index plungers to withstand welding heat and frequent heavy-duty cycling.
Mold & Quick-change Tooling:
Bending dies, welding auxiliary molds and quick-change brackets. Welded onto mold bases for fast station positioning and locking.
Heavy-duty Assembly Equipment:
Construction machinery part welding benches and small structural steel jigs. Integrated welded base delivers superior load capacity for repeated positioning of large workpieces.
