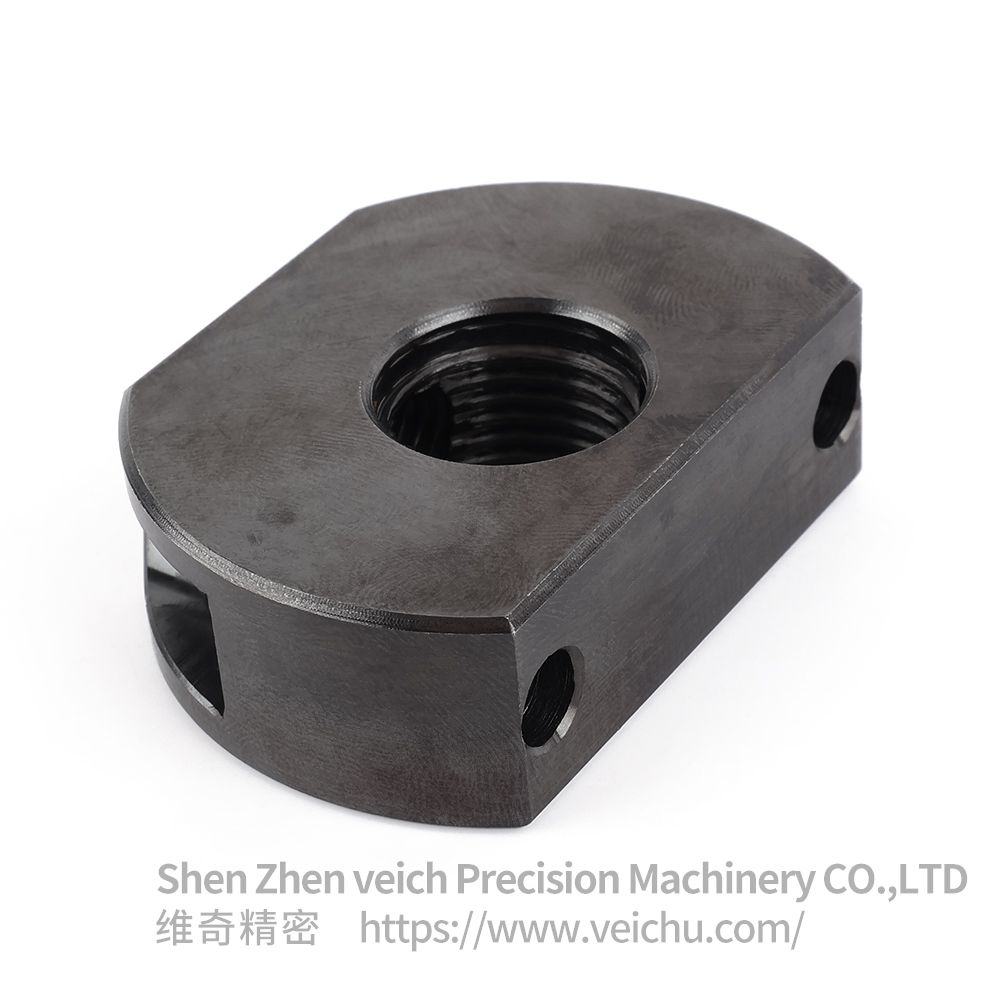

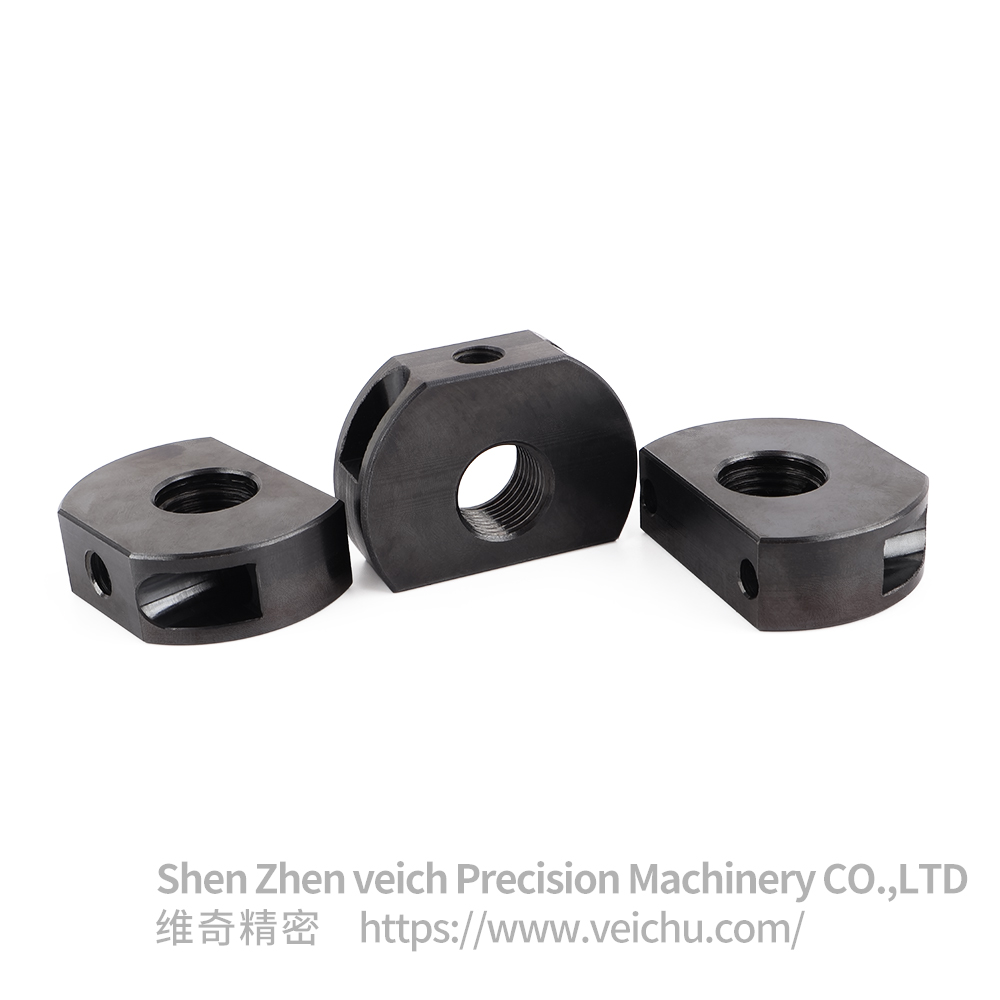

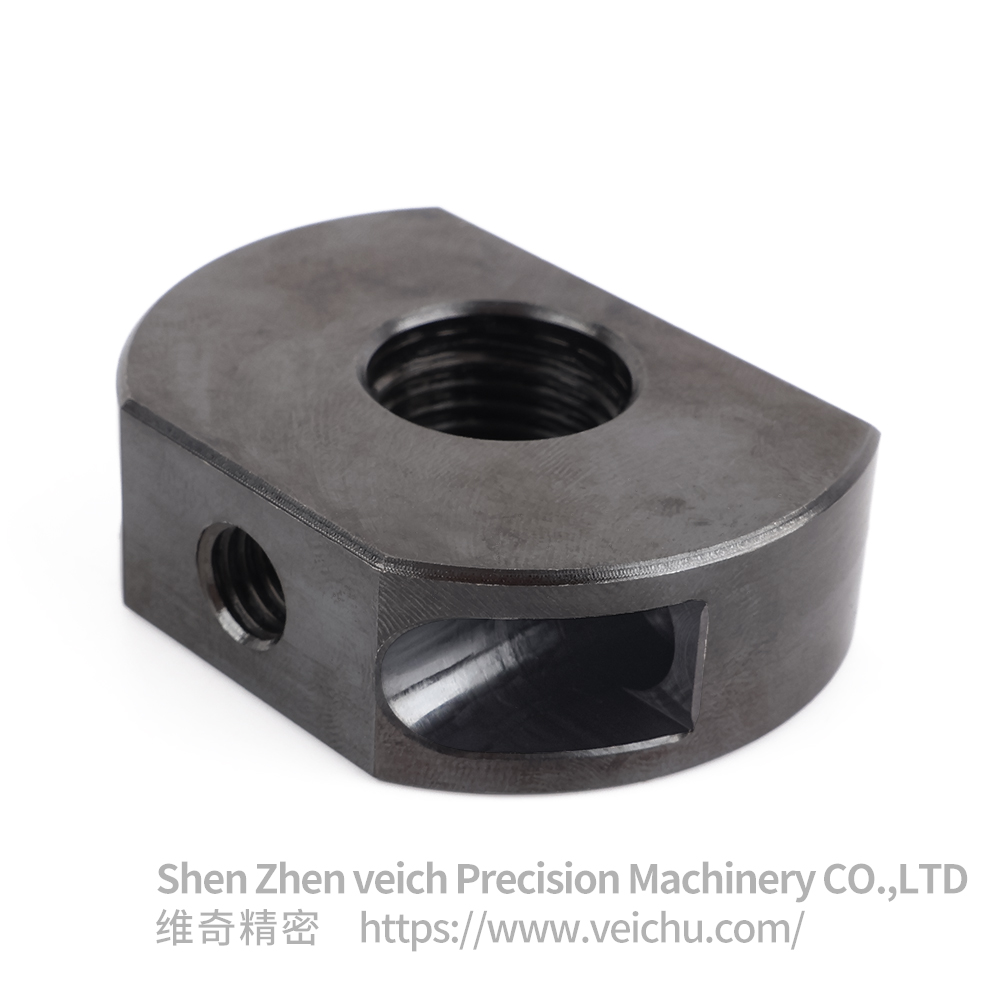

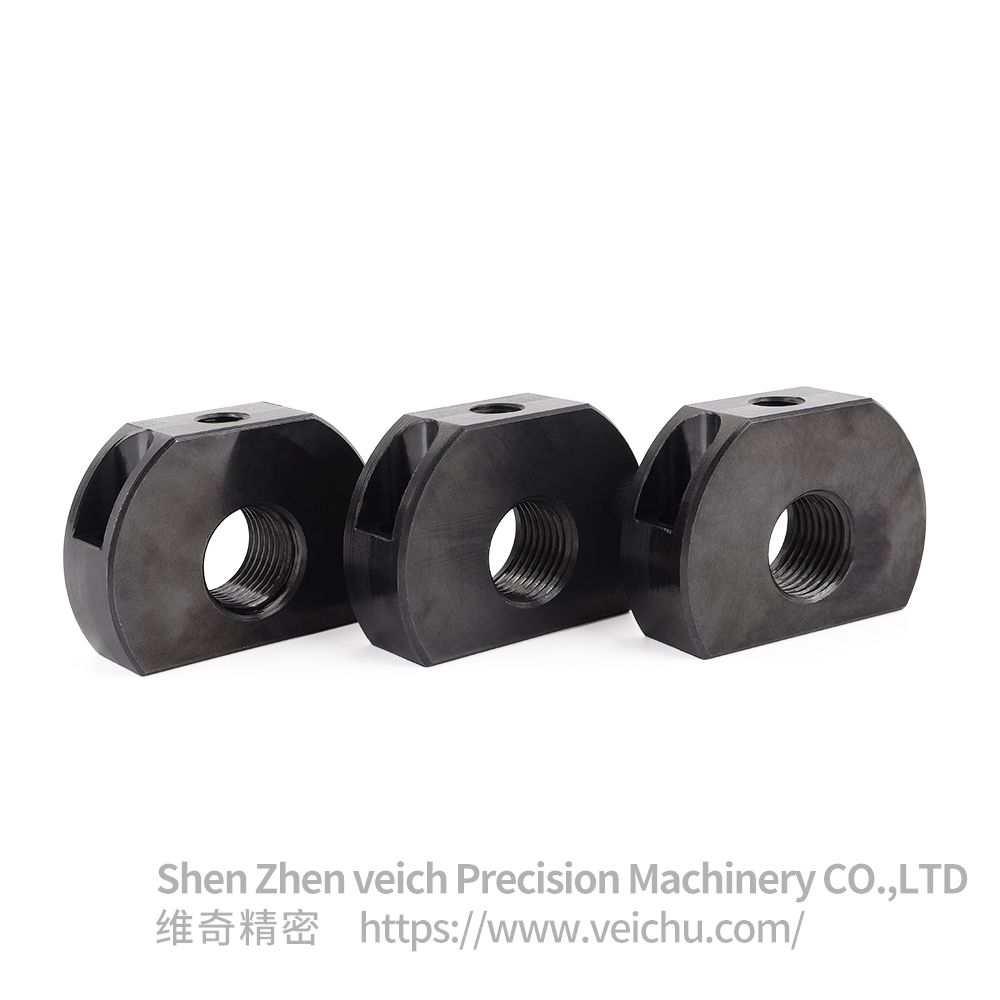

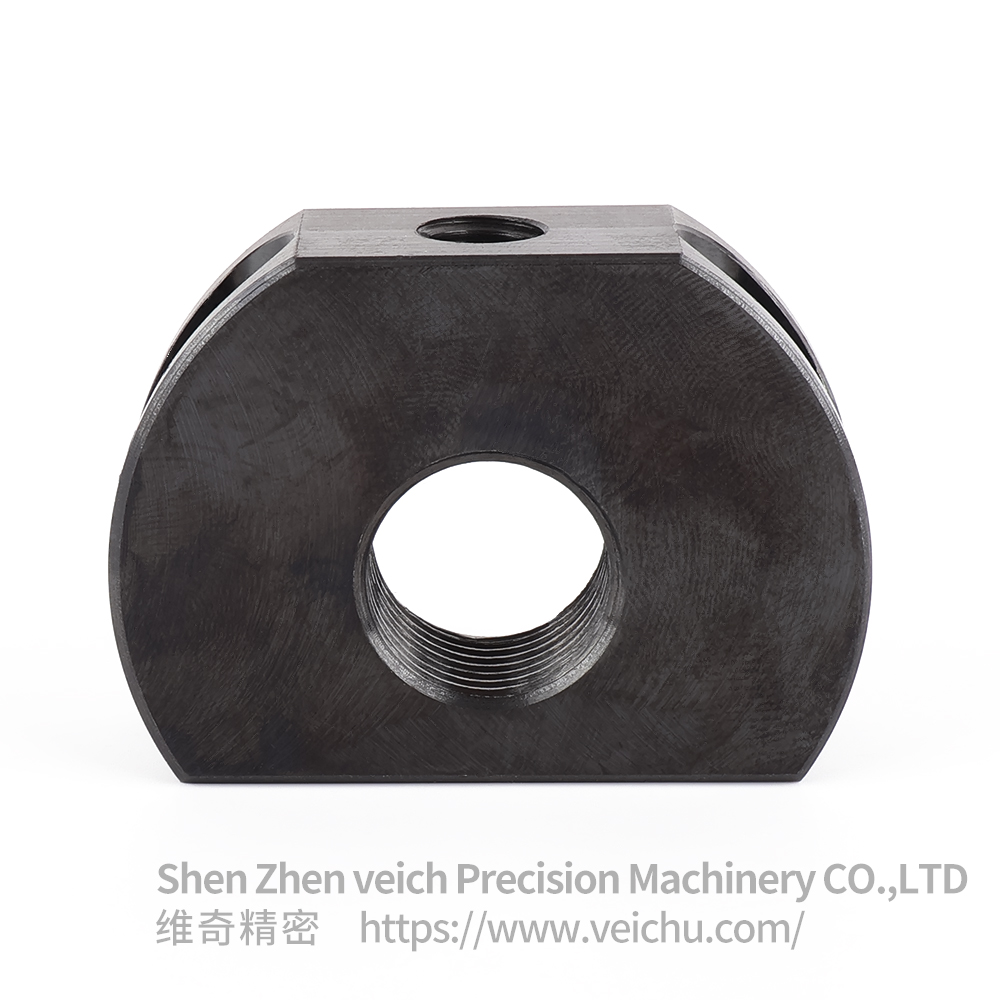

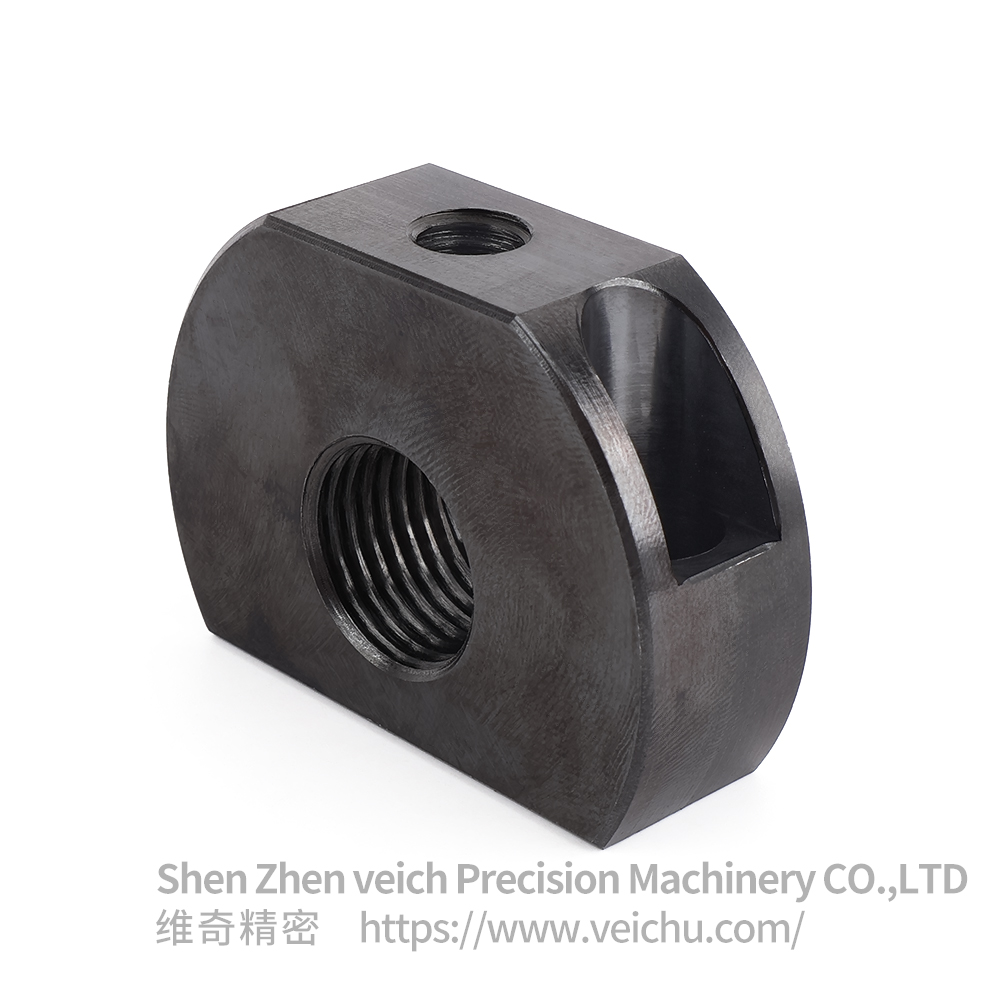

VCN257-A Carbon Steel Index Plunger Fixture Index Pin Mounting Base
Share to:
| Size: | |
|---|---|
| Quantity: | |
Product Description
Carbon Steel Index Plunger Mounting Fixture Introduction
●Product Introduction
This fixture is integrally precision CNC machined from high-quality carbon steel with black oxide anti-rust hardening finish, a dedicated base fitting for index plungers (locating pins). It adopts a composite structure of semicircle and square, with a standard large internal threaded hole in the center to perfectly match the thread of index plungers. Two symmetric counterbore mounting holes are arranged on the surface, and limit slots are reserved on the side. With tight dimensional tolerance, integrated solid structure and high rigidity, it is specially matched for indexing & positioning structures of automation equipment.
●Structural Features
Durable Wear-resistant Material
Carbon steel base with blackening treatment provides excellent rust-proof, impact and abrasion resistance, resisting long-term frequent plugging wear better than aluminum bases.
High Precision Integrated Machining
One-piece milling ensures high coaxiality of central thread, eliminating plunger wobble after assembly. Symmetric counterbores fit mounting planes tightly to guarantee stable repeated indexing accuracy.
Adjustable Limit Structure
Side slots cooperate with stop screws to limit plunger ejection stroke, adjustable for different locking force and indexing travel requirements.
Easy & Universal Installation
Standard inner thread fits spring index plungers & knob index plungers directly. Two mounting holes fasten on fixture plates, slides or machine frames without extra adapters, easy to assemble and maintain.
High Load-bearing Rigidity
Solid carbon steel resists deformation under heavy impact and clamping load, ideal for heavy-duty tooling and machine indexing stations.
●Typical Applications
Automated Tooling & Jigs: Multi-station rotary fixtures, stamping indexing molds for fast station switching & precise locking.
Machining Equipment: Index tables for milling & drilling machines, for fixed positioning during multi-angle workpiece processing.
Conveying & Sorting Lines: Rotary separating mechanisms, turntable indexing locking for production sorting equipment.
Testing & Assembly Machines: Precision part inspection jigs, rotational assembly stations for consistent dimensional accuracy.
Medical & Precision Hardware Assembly Benches: Low-clearance stable positioning for small precision component assembling.
