Product Overview

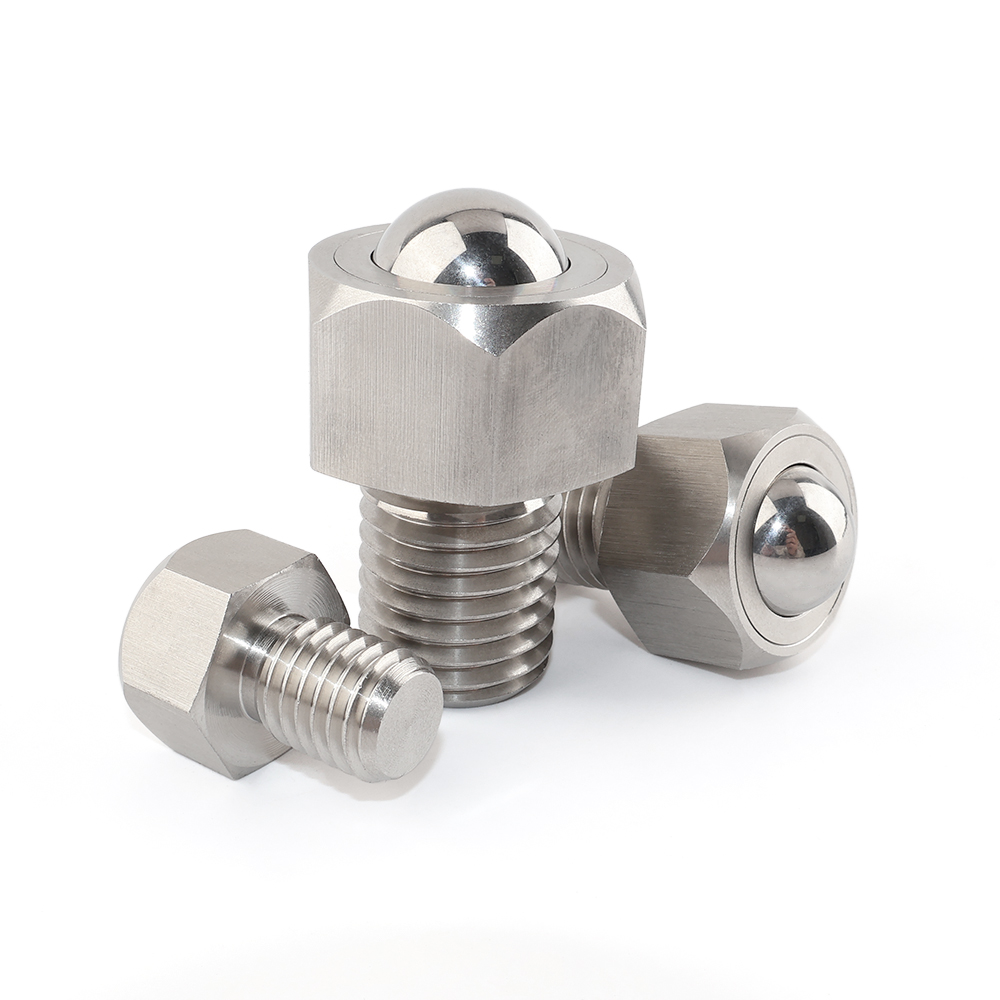

The VCN312 Stainless Steel Ball Bearing Rollers are precision-engineered motion control components, designed to deliver smooth, low-friction linear and omni-directional movement for heavy-load industrial applications. Featuring a robust threaded stainless steel body, precision-hardened SUS440C main and sub balls, and an adjustable threaded rod design, these ball transfer rollers enable precise height and angle tuning, making them the ideal motion solution for material handling system integrators, packaging equipment manufacturers, and industrial automation builders requiring reliable, adjustable load support.
Key Features & Industrial Performance Advantages
High-Hardness SUS440C Ball Construction for Extreme Durability
The core load-bearing components of the VCN312 threaded rod ball transfer units use precision-polished G10 grade SUS440C stainless steel balls, heat-treated to a hardness of HRC 58-62. This delivers exceptional wear resistance, minimal rolling friction, and long service life, even under continuous cyclic operation in high-volume industrial settings.
Adjustable Threaded Rod Design for Precision Alignment
The integrated metric threaded rod enables micro height adjustments within a ±0.5mm range, allowing perfect alignment of rollers across conveyor systems and machinery frames. This eliminates misalignment issues, reduces uneven wear, and ensures consistent load distribution across all installed units.
Corrosion-Resistant Body & High Load Capacity for Harsh Operations
The roller body is manufactured from high-grade stainless steel, delivering excellent rust and chemical corrosion resistance. Engineered for heavy-load performance, the VCN312 heavy load ball bearing rollers deliver a maximum static load capacity of 800N and dynamic load capacity of 412N, providing reliable support for heavy workpieces and equipment.
Detailed Technical Specifications
Thread Diameter | Thread Length (L) | Body Height (H) | Main Ball Diameter (d) | Hex Size (S) | Static Allowable Load | Dynamic Allowable Load |
|---|---|---|---|---|---|---|
M5 | 6mm | 5mm | 4mm | 8mm | 12N | 6N |
M6 | 8mm | 6mm | 4.76mm | 10mm | 14N | 7N |
M8 | 10mm | 7mm | 5.56mm | 13mm | 41N | 27N |
M10 | 12mm | 10mm | 8.73mm | 17mm | 55N | 34N |
M12 | 15mm | 11mm | 10.32mm | 19mm | 62N | 55N |
M16 | 20mm | 15mm | 15.87mm | 24mm | 343N | 69N |
M20 | 25mm | 18mm | 19.05mm | 30mm | 412N | 82N |
Ordering Example: VCN312-M12 | ||||||
Industrial Applications
These SUS440C ball transfer rollers are widely used in robotic assembly arms, automated guided vehicles (AGVs), and precision motion platforms for smooth omni-directional movement. They are ideal for packaging lines, sorting systems, and warehouse material handling equipment, reducing manual handling effort and improving transfer efficiency. They also provide reliable load support for CNC machines, hydraulic presses, and high-stress aerospace and automotive component assembly lines, with temperature stability and corrosion resistance for demanding production environments.
Customization & OEM/ODM Manufacturing Services
We offer end-to-end customization services for the VCN312 industrial conveyor ball rollers, including custom thread sizes, specialized material options (AISI 304/316 stainless steel), tailored surface treatments, and full OEM/ODM brand development. All custom products are manufactured in compliance with ISO 9001 and ISO 14001 standards, with full support for prototype development and large-volume branded production runs.
Ordering, Global Shipping & Warranty
We accept orders with a minimum order quantity of 1 piece, supporting both prototype sample orders and bulk industrial production purchases. We provide reliable global shipping to all major industrial markets, with expedited shipping options available for time-sensitive project requirements. All VCN312 ball bearing rollers are backed by a comprehensive product warranty, with full after-sales technical support and engineering consultation for custom integration projects.
FAQs
What material are the load-bearing balls of the VCN312 ball rollers made of?
Both main and sub load-bearing balls are manufactured from SUS440C stainless steel, heat-treated to HRC 58-62 for exceptional hardness, wear resistance, and corrosion protection.
What is the operating temperature range for these ball rollers?
The VCN312 series has an operating temperature range of -40℃ to 150℃, suitable for both extreme cold and high-temperature industrial environments.
What is the maximum dynamic load capacity of the standard models?
The largest M20 standard model delivers a maximum dynamic load capacity of 82N, with custom heavy-load configurations available upon request.
Do you offer non-standard thread sizes for custom machinery integration?
Yes, we provide full OEM/ODM customization services, including non-standard thread dimensions, custom body lengths, and specialized material options for unique integration needs.
