Product Description

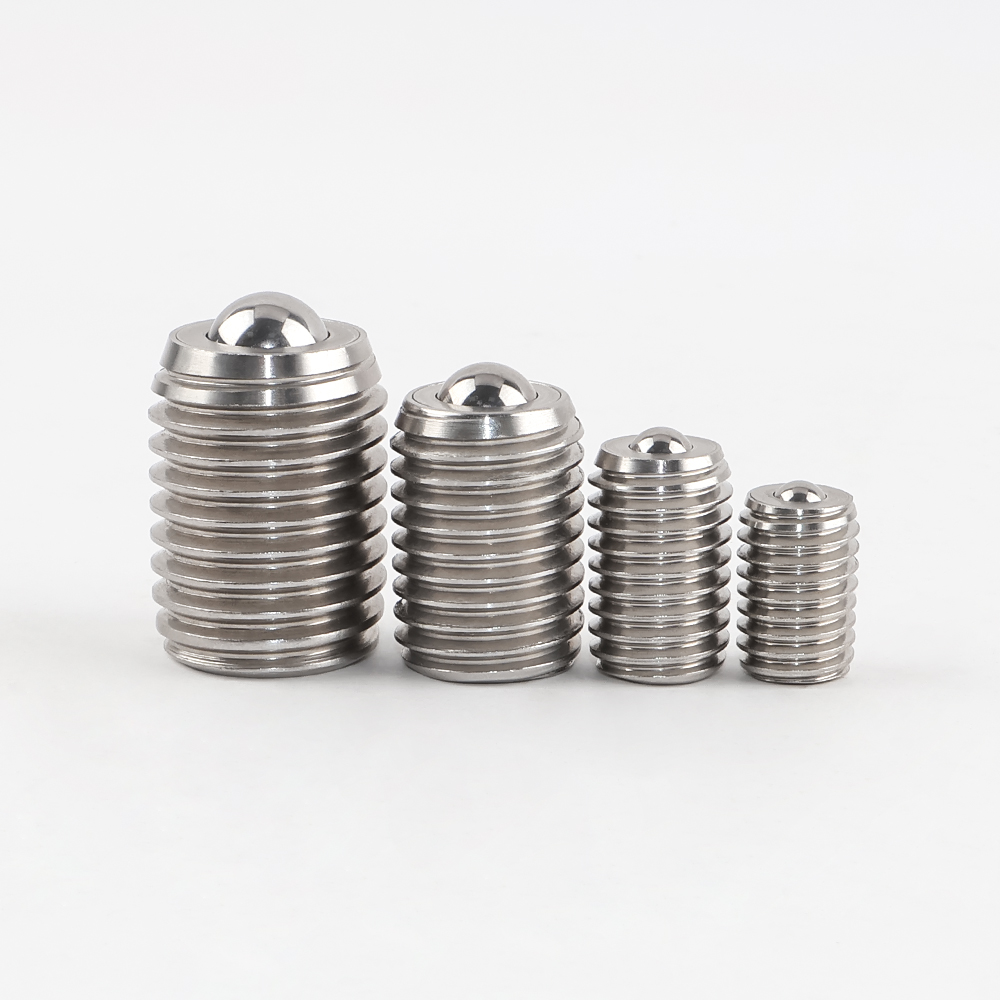

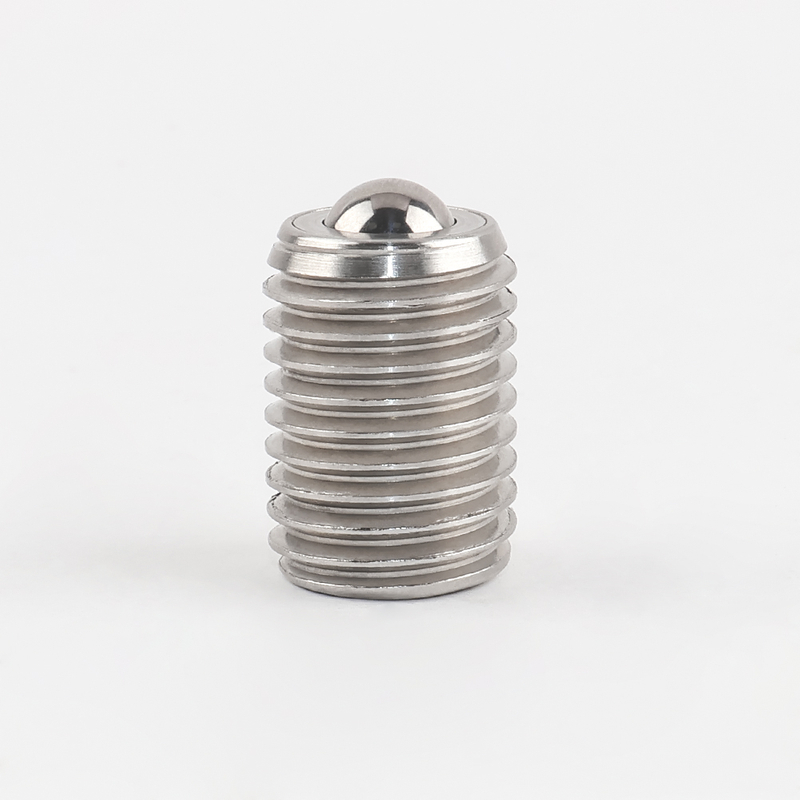

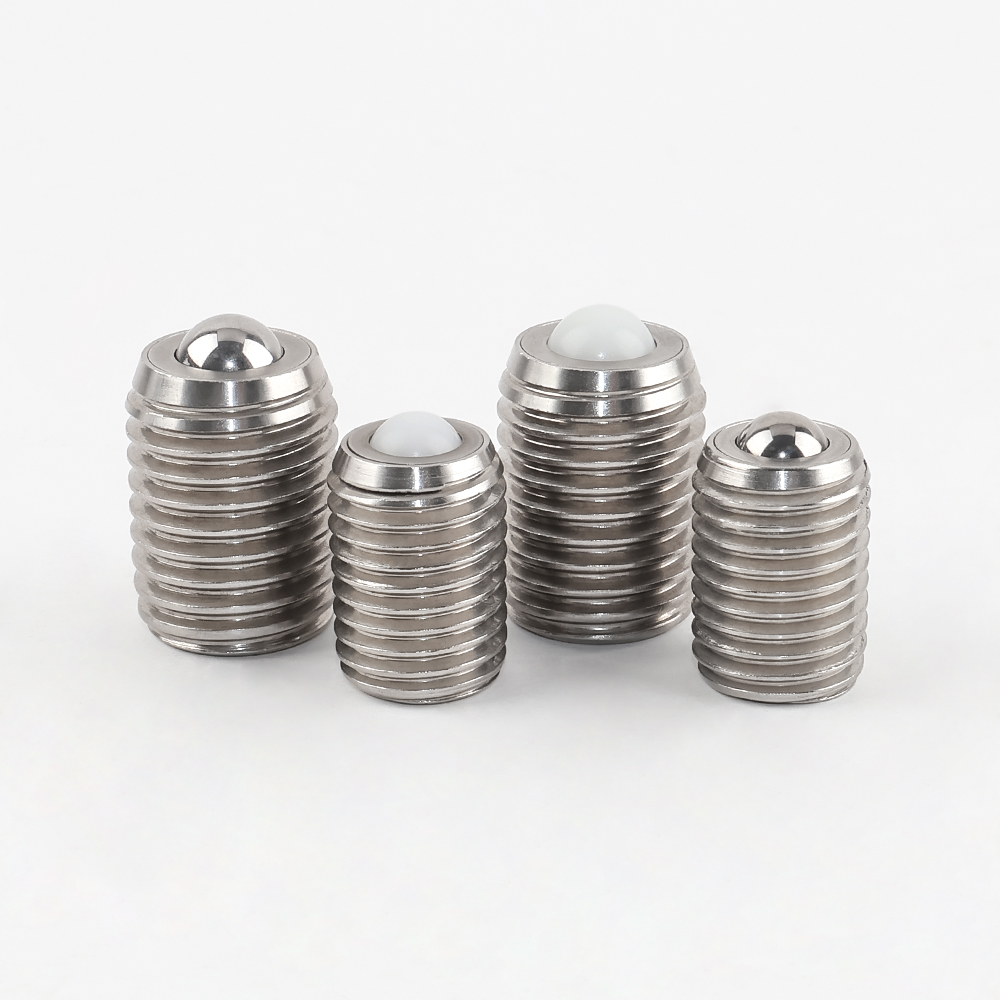

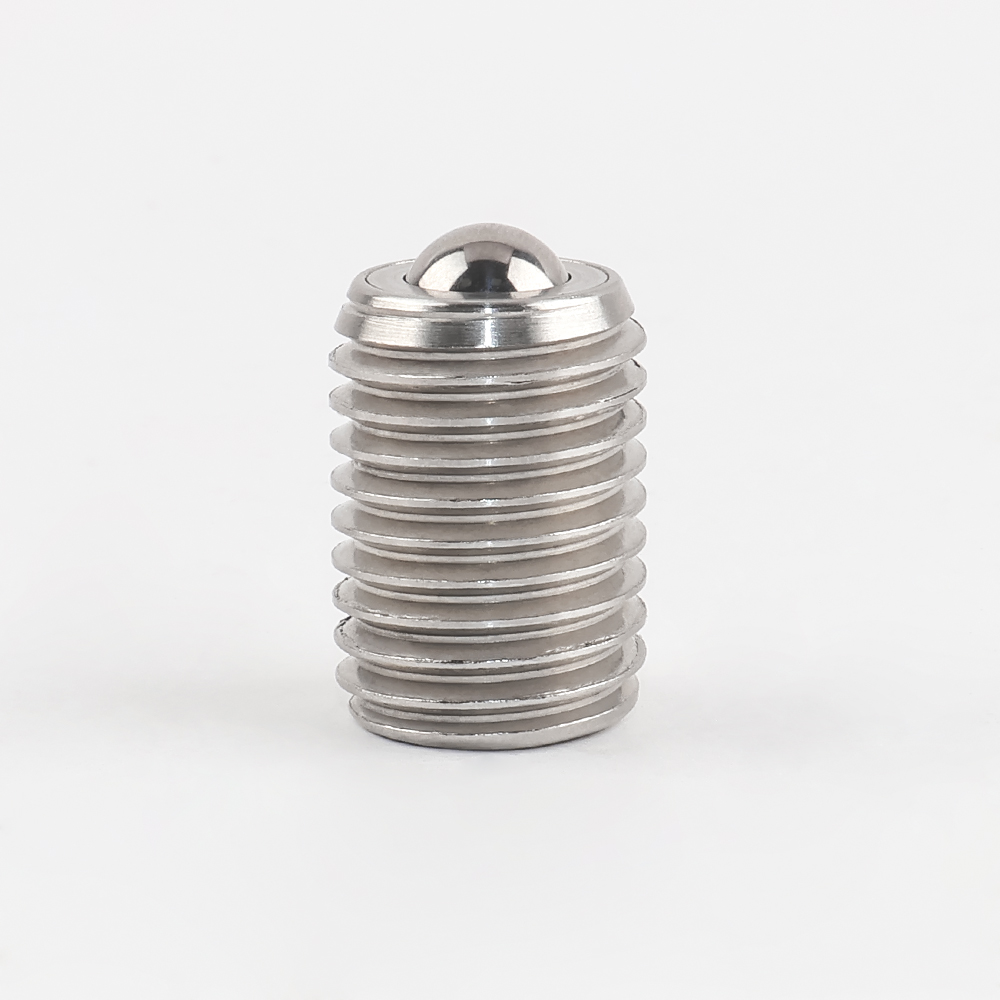

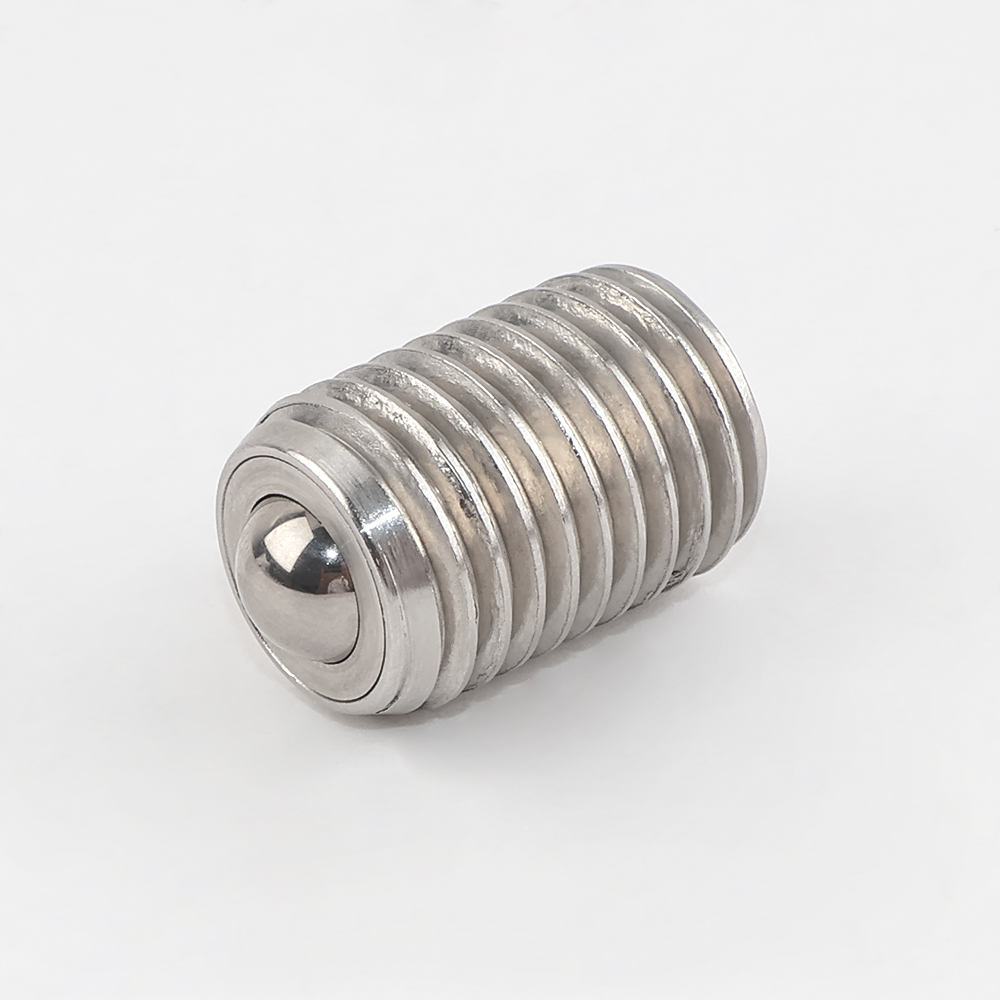

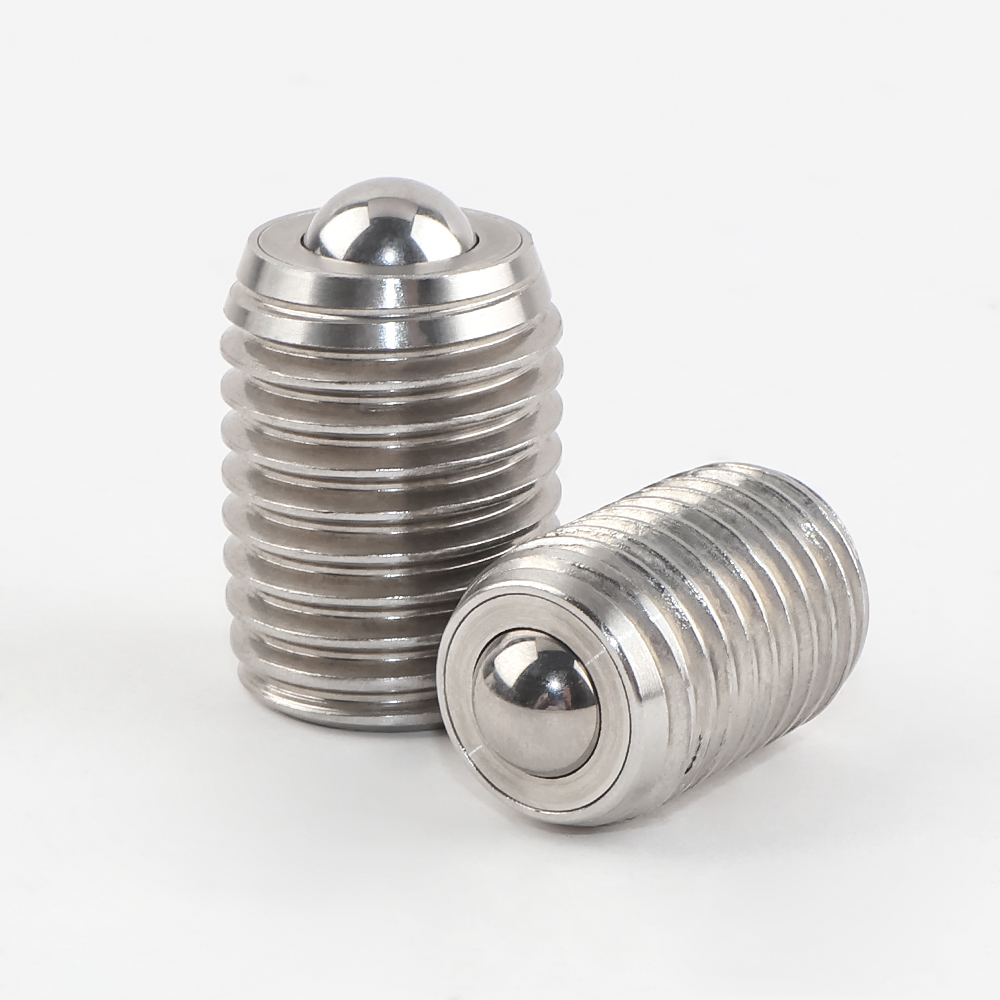

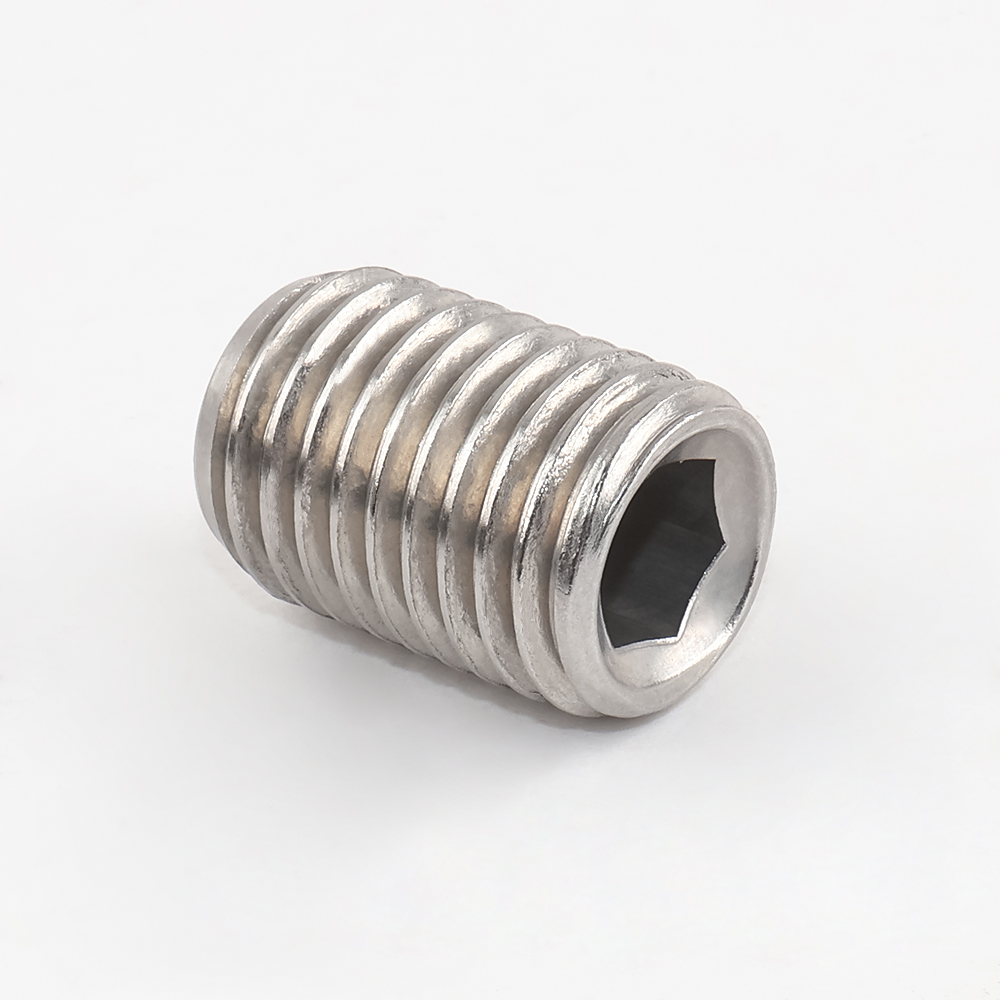

Threaded Universal Ball Introduction
●Product Overview
The Threaded Universal Ball is a highly efficient multi-directional rolling component designed for scenarios requiring flexible steering and low-friction movement. Its core structure consists of a precision-machined spherical rolling element and an integrated threaded interface, allowing seamless integration into equipment or conveying systems to enable 360° unrestricted rotation. Widely used in automation equipment, material handling, heavy machinery, and other fields, this product significantly enhances mobility efficiency while reducing energy consumption.
●Key Features
Multi-Directional Movement
The spherical design supports omnidirectional rolling, adapting to complex path requirements and eliminating steering dead zones found in traditional wheel systems.High Load Capacity
Constructed from high-strength alloy steel or engineering plastics, with a static load capacity ranging from 2N to 62N (depending on the model).Threaded Easy Installation
Standard threaded interfaces enable quick embedding into base plates or frames, ensuring strong compatibility and low maintenance costs.Wear and Corrosion Resistance
Surface treatments such as chrome plating, nitriding, or anti-corrosion coatings make it suitable for harsh environments .Low-Noise and Low Resistance
Precision bearing structures combined with grease lubrication achieve a friction coefficient as low as 0.01, ensuring smooth and quiet operation.

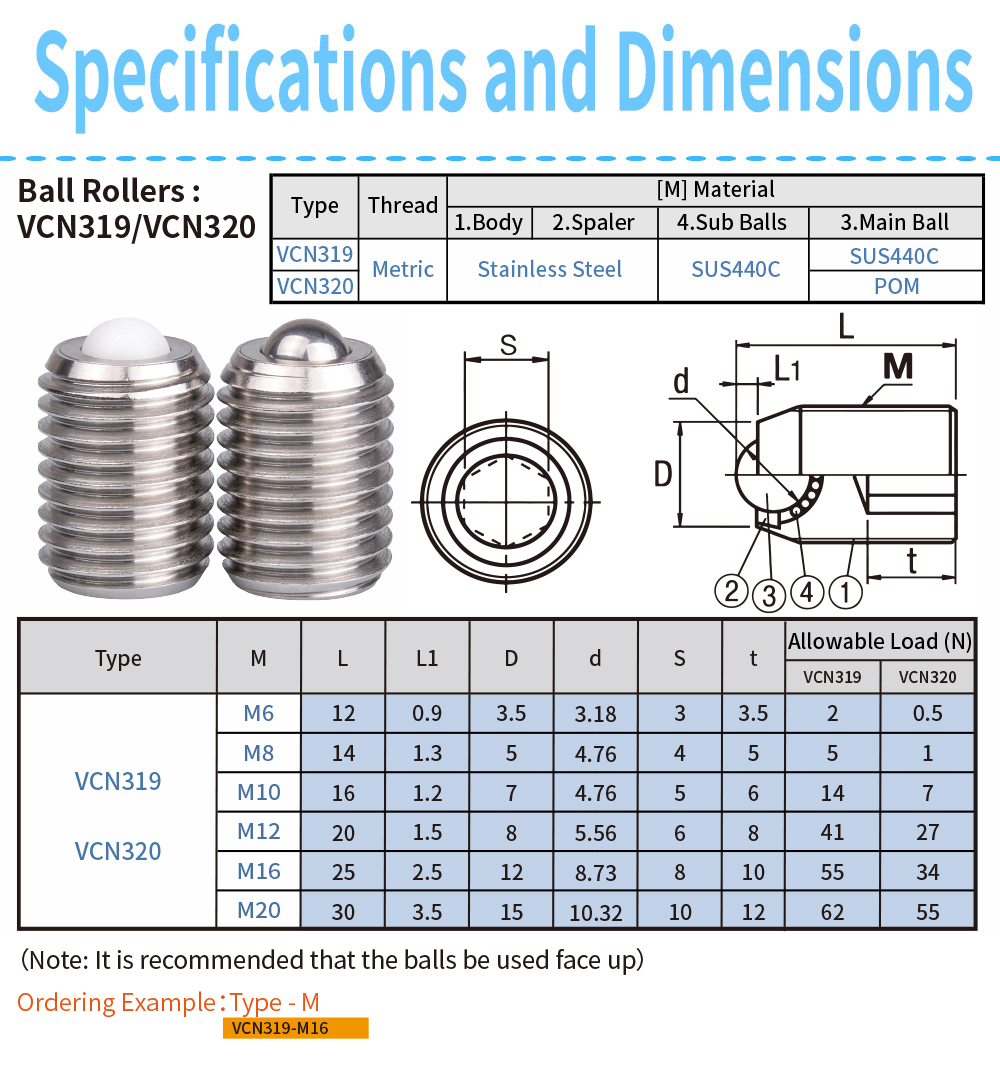

●Technical Specifications
| Parameter | Range/Details |
|---|---|
| Ball Material | Body: Stainless Steel304 Ball: SS440C |
| Thread Specification | M6-M20 (can customizable) |
| Load Capacity | Static Load: 2N–62N; Dynamic Load: Reduced proportionally |
| Operating Temperature | -30°C to +120°C (high-temperature models up to 200°C) |
| Protection Rating | IP54/IP65 (dustproof and waterproof options) |
●Application Scenarios
Industrial Automation
Steering modules for conveyor systems (e.g., assembly lines, packaging lines).
Flexible support for robotic chassis or end-effectors.
Logistics and Warehousing
Multi-directional components for heavy-duty shelf transfer carts or AGV trolleys.
Auxiliary rolling units in sorting system rails.
Heavy Machinery
Precision positioning for machining tables or mold transfer platforms.
Low-resistance mobile bases for large-scale equipment.
Special Environments
Food and pharmaceutical industries (stainless steel/nylon materials compliant with hygienic standards).
Outdoor engineering equipment (anti-rust and corrosion-resistant designs)

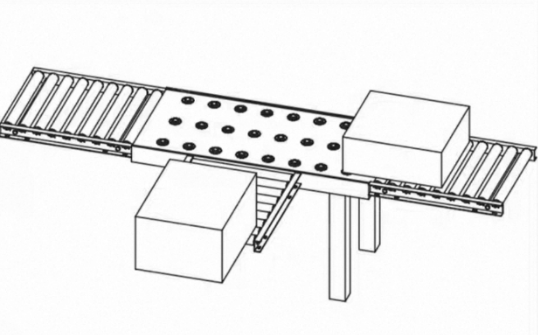

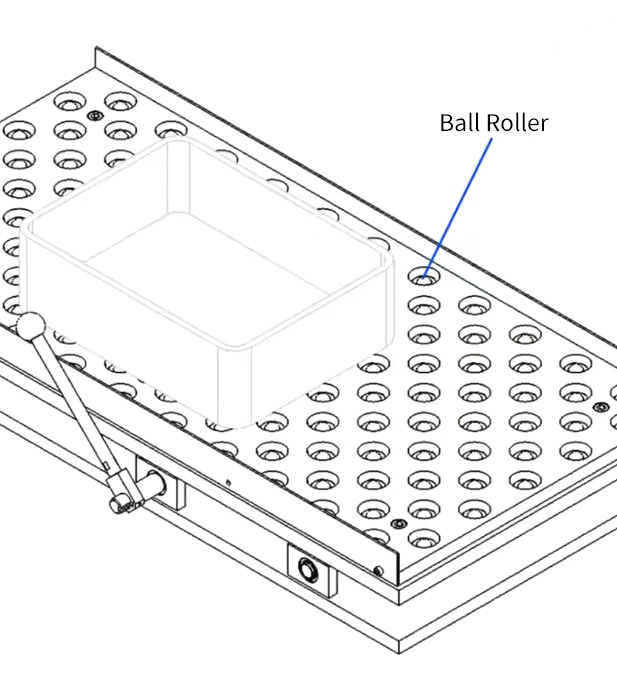

Application case
We can design a special customized solution for you based on your actual usage scenarios. Welcome to consult.
