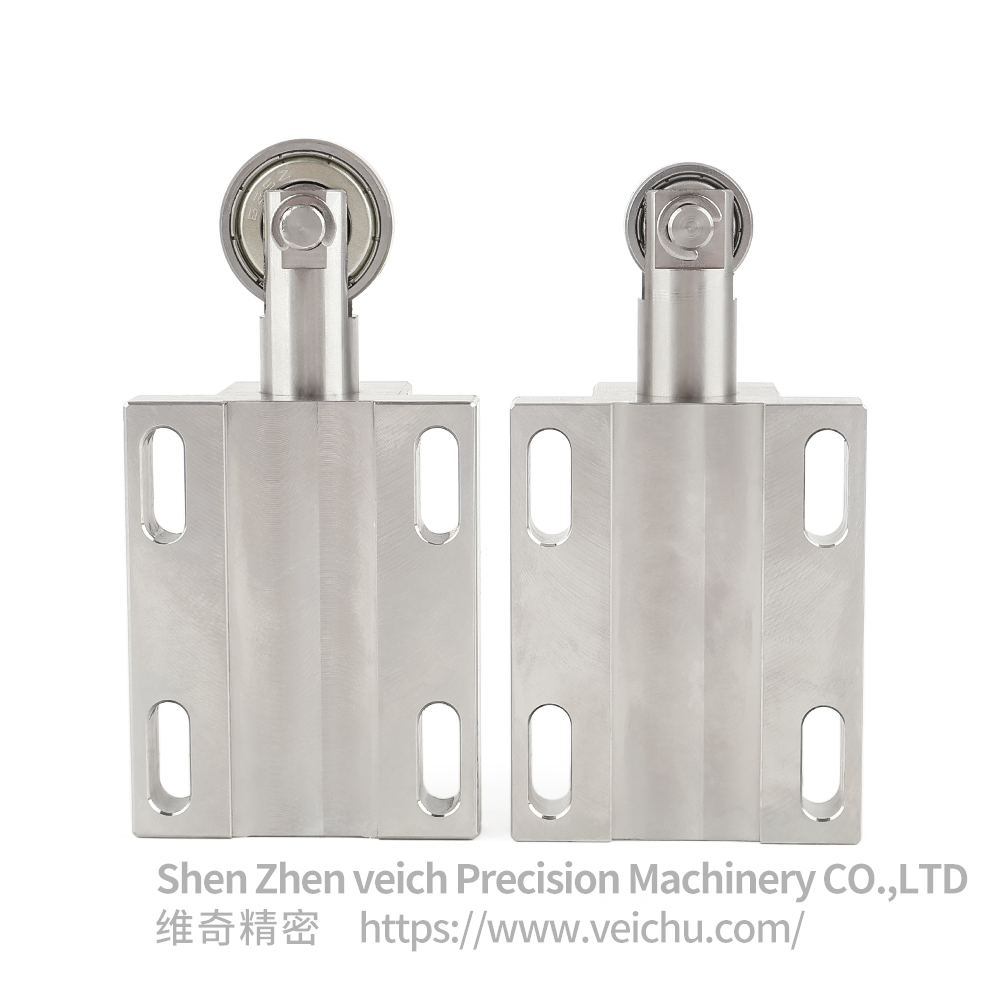

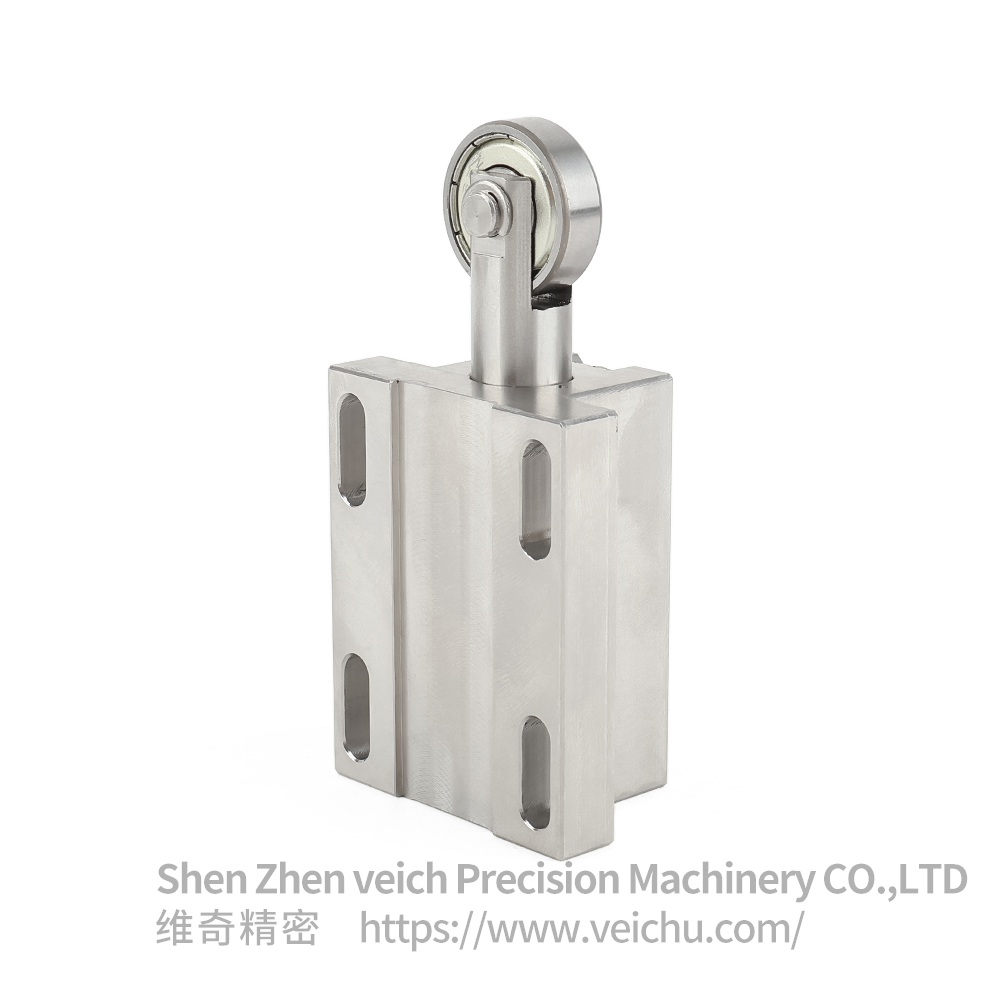

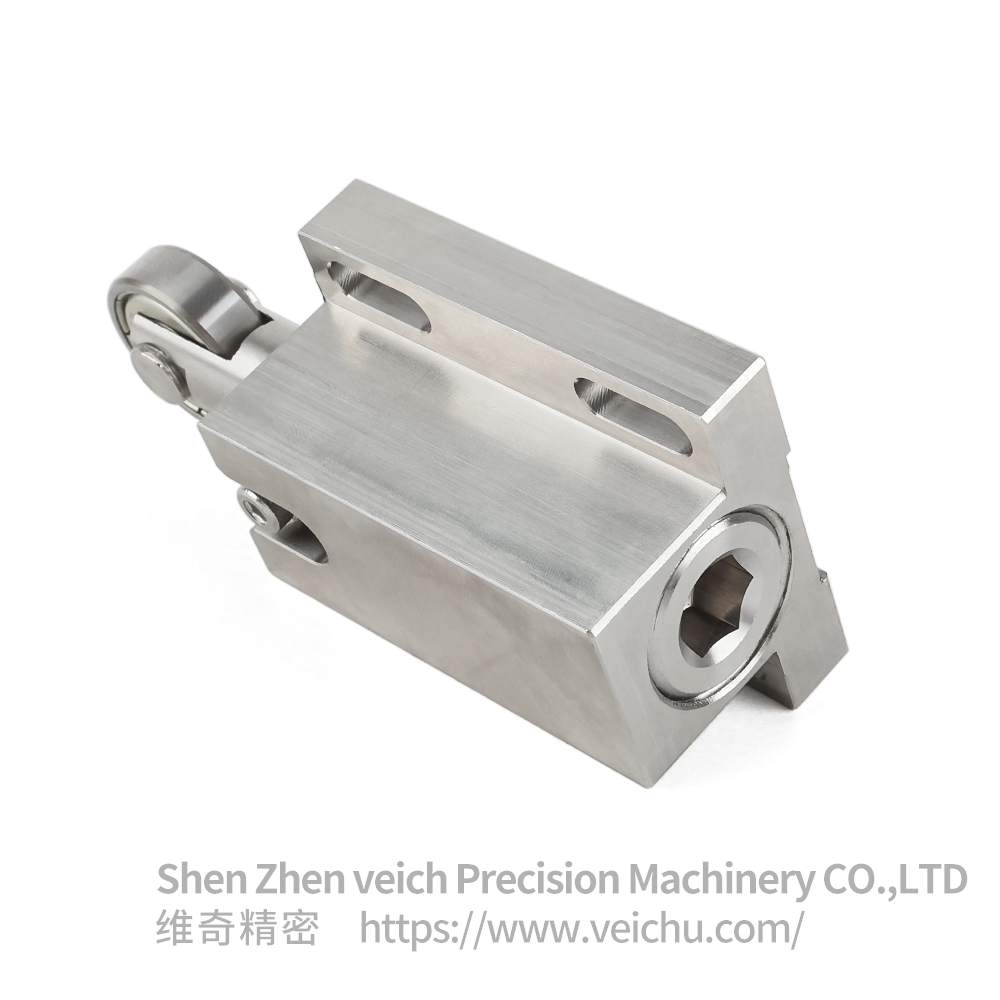

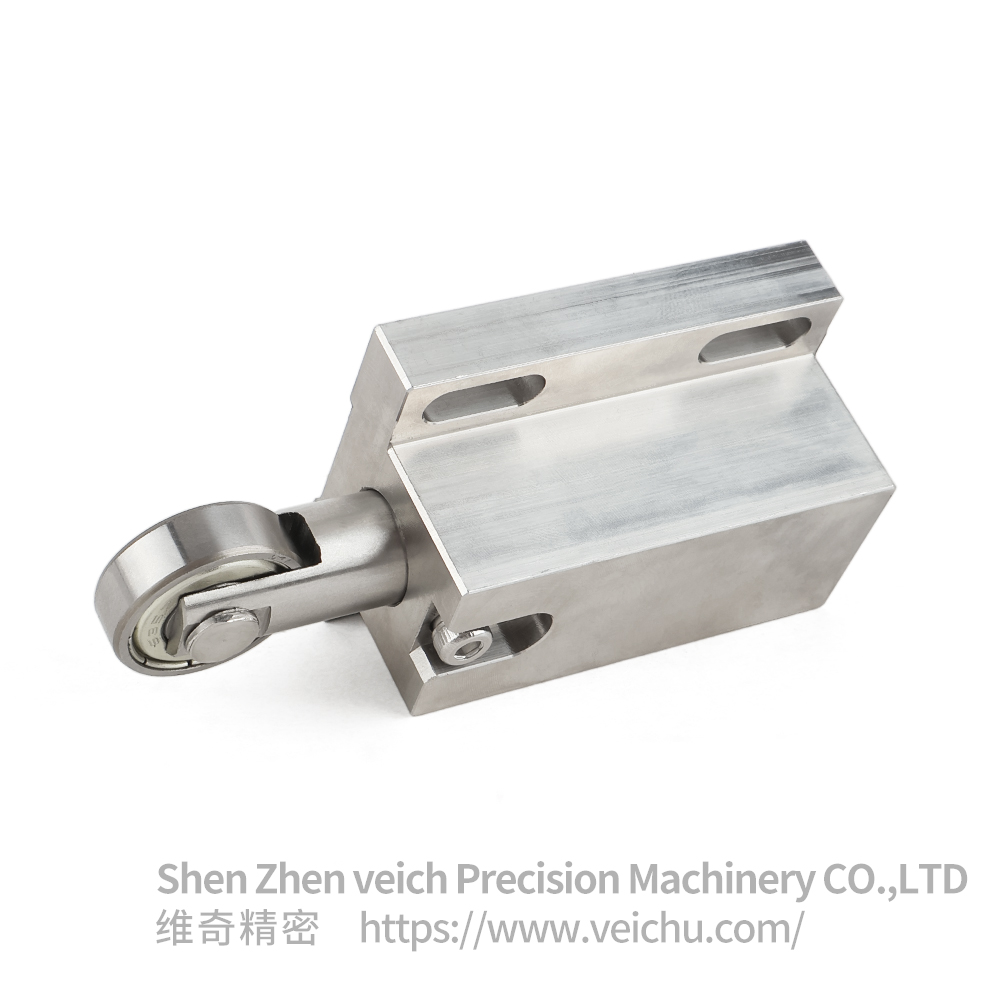

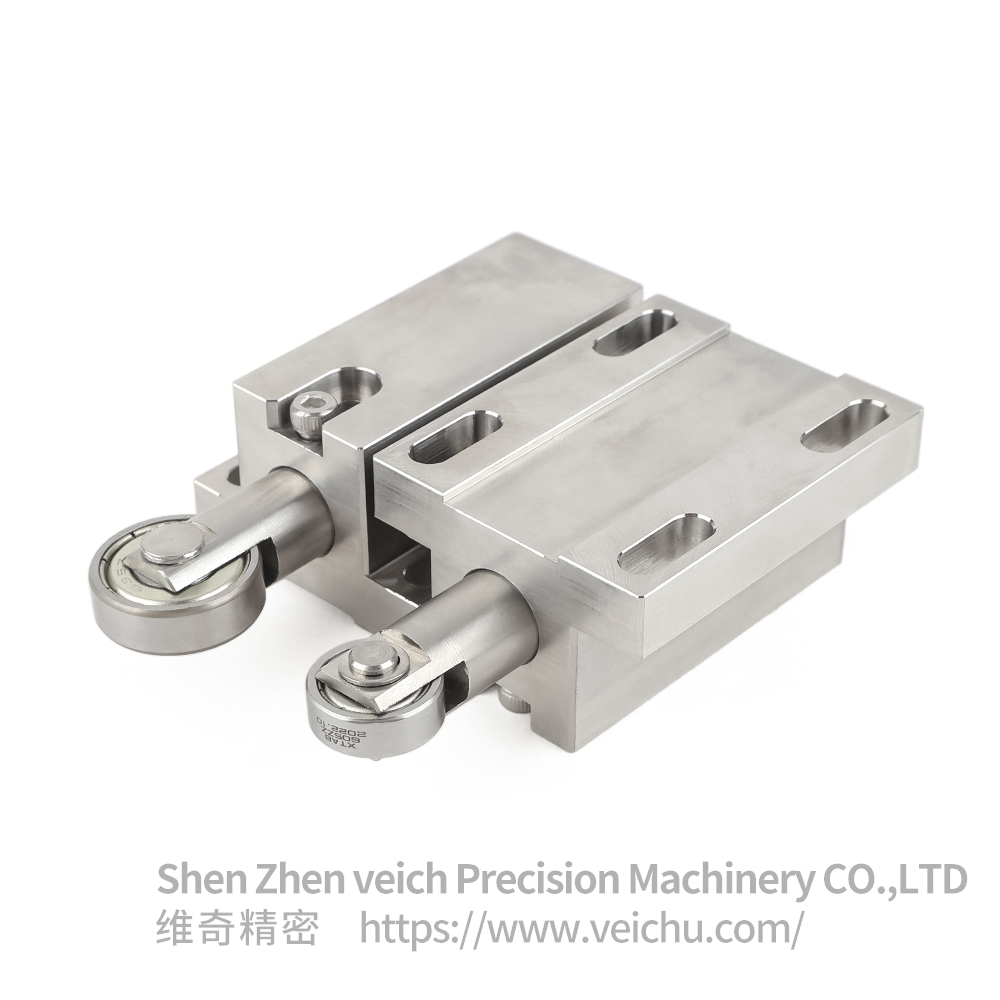

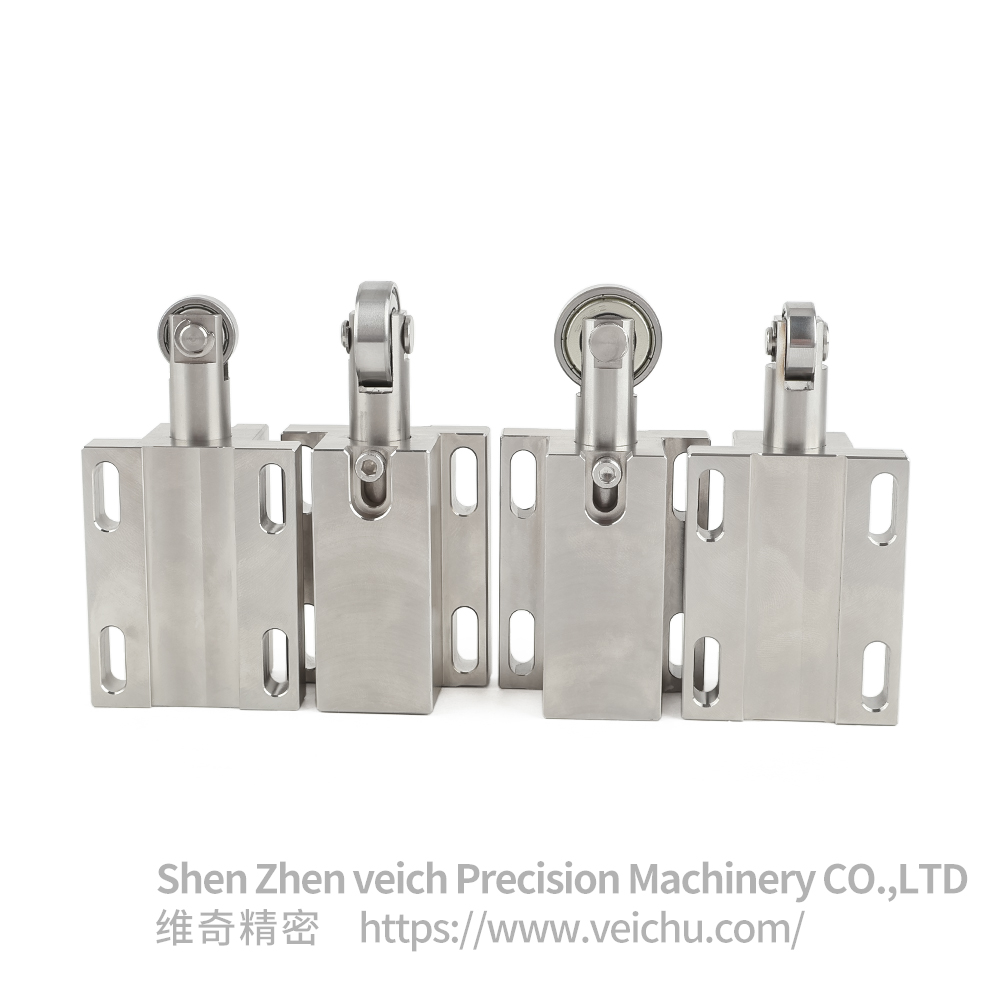

VCN329-TL/TH Stainless Steel Side Mount Flange Bracket Type Roller Plunger
Share to:
| Diameter of Bearing : | |
|---|---|
| Quantity: | |
Product Description
Flange - Mounted Roller Plunger with Bearing
●Product Overview
The flange - mounted roller plunger with bearing is a mechanical component that integrates a flange mounting structure, a bearing - equipped roller assembly and a plunger structure. Made of high - quality metal materials, it boasts excellent structural stability and durability. Its distinctive flange bracket design enables convenient installation and fixation. The combination of the bearing - supported roller and plunger allows for precise positioning, buffering, or triggering functions, making it widely applicable in automation equipment, tooling fixtures, and other fields.
●Key Features
Precise Positioning:
The collaboration between the bearing - mounted roller and plunger can achieve accurate position limitation during mechanical movement, ensuring that equipment components stop precisely at the designated position.
Buffering and Shock Absorption:
When the plunger comes into contact with a workpiece or component, the impact force can be effectively buffered by the rolling characteristics of the bearing - assisted roller and the structural design of the plunger, reducing vibration and wear during equipment operation.
●Technical Specifications
| Parameter Category | Specific Parameter | Description / Typical Range |
|---|---|---|
| Roller Dimensions | Roller Diameter (D) | 14mm/19mm |
| Spring Performance | Spring Force | 3N-10.4N |
| Materials & Bearing | Material | SUJ2 |
●Application Scenarios
1.Automated Production Line:
In the position control of workpieces on the assembly line and the travel control of conveying equipment, it can accurately control the stop position of the workpiece to ensure the smooth progress of processes such as assembly and inspection. For example, in the electronic component assembly line, it is used to limit the position of the component tray, facilitating the manipulator to grab and assemble, with the bearing - based roller ensuring smooth and accurate movement.
2.Tooling Fixture:
In machine tool fixtures, it realizes fast positioning and clamping of workpieces, improving processing accuracy and efficiency. For example, on the fixture of a CNC lathe, the workpiece is positioned by a bearing - equipped roller plunger to ensure the consistency of each clamping, and the bearing reduces friction during positioning adjustment.
We can design a special customized solution for you based on your actual usage scenarios. Welcome to consult.
