Product Description
Universal Ball Introduction
●Product Overview

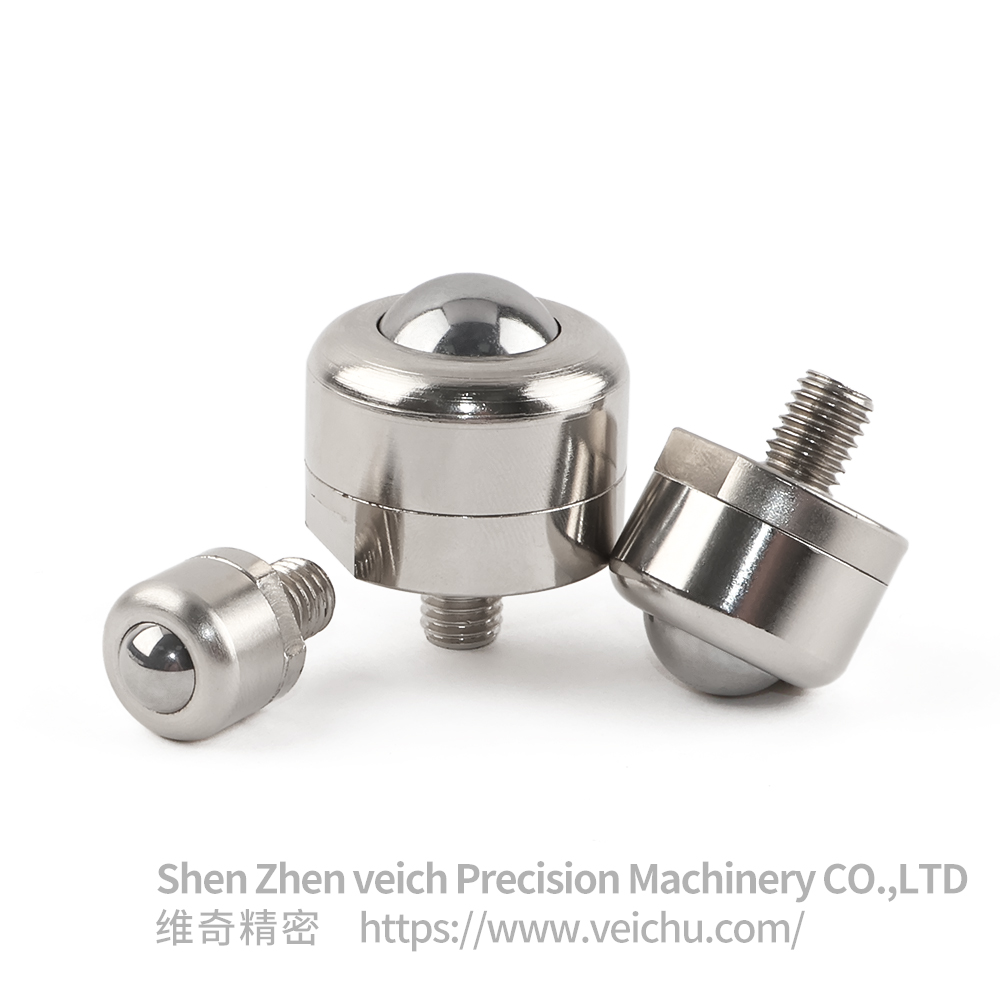

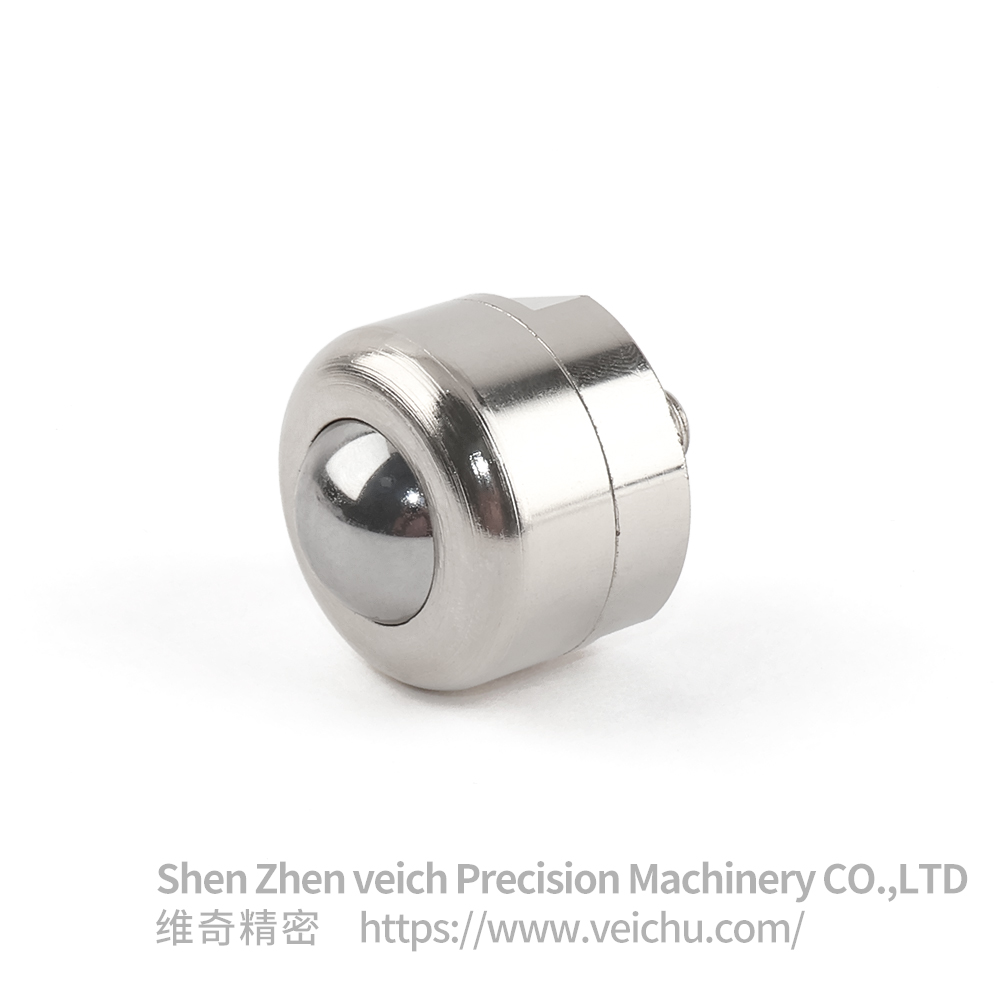

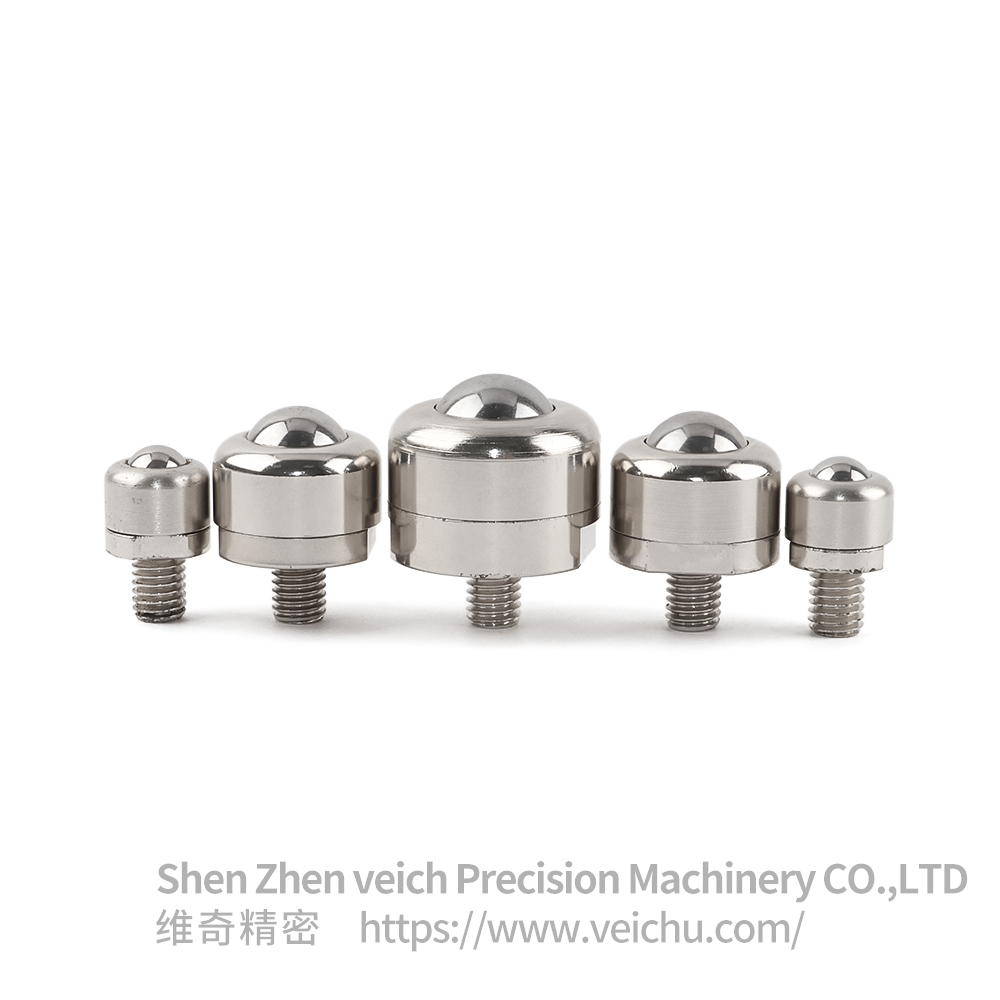

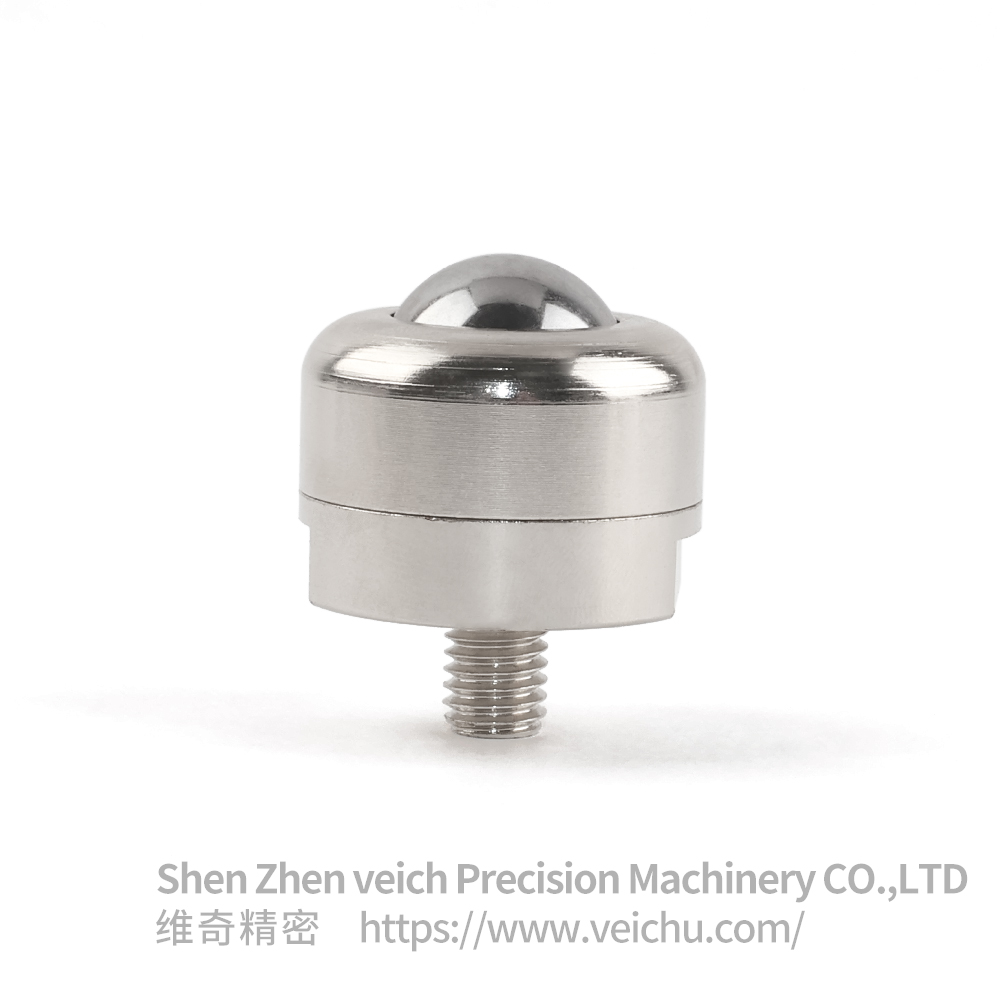

The Ball Transfer with Threaded Stud is a high-performance, easy-to-install component for material handling and equipment support. Its core consists of a precision steel ball housed within a robust bearing socket, enabling omnidirectional (swivel) rolling movement. The defining feature is its integrated threaded stud base, providing an exceptionally convenient and secure mounting solution.
●Key Features
●Omnidirectional Rolling
The top-mounted steel ball offers low-resistance rolling in any direction, facilitating effortless load movement and steering.
●Integrated Threaded Stud Mounting

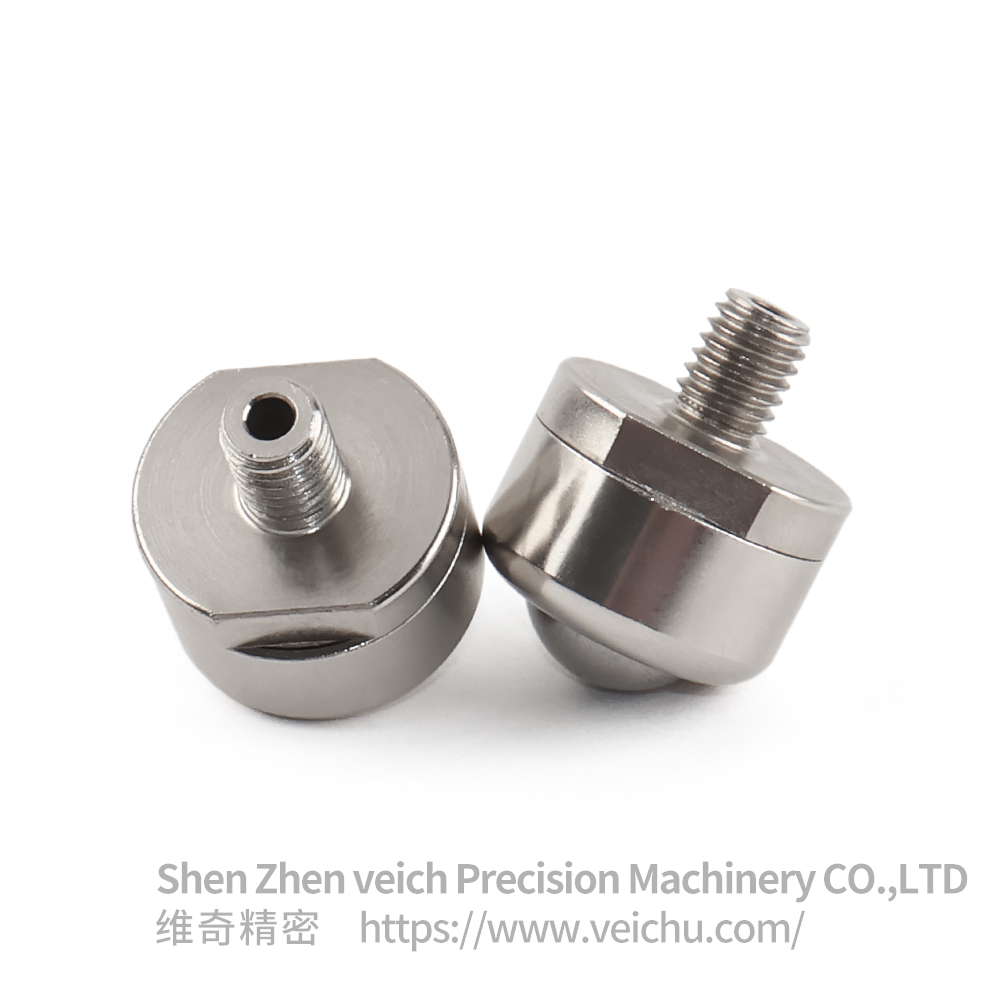

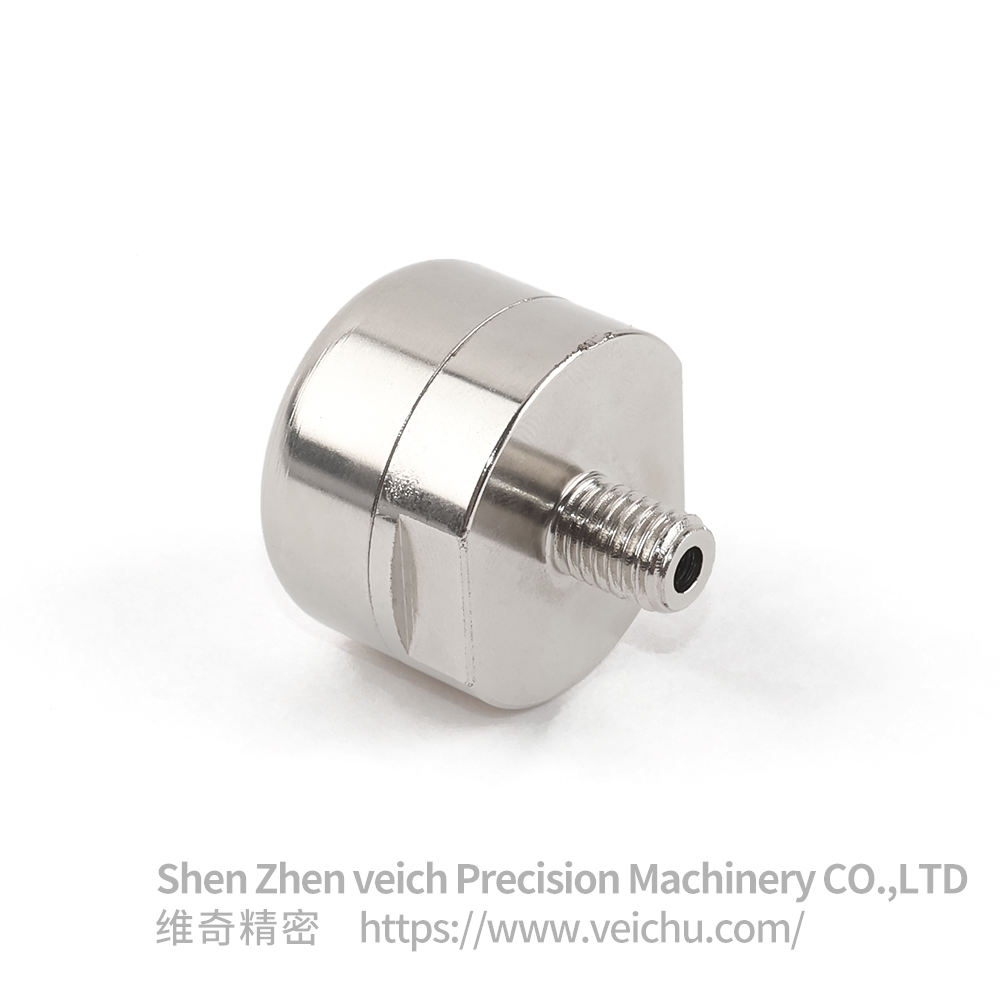

The bottom stud design simplifies installation. It can be quickly and securely fastened directly into a pre-drilled threaded hole or using a nut, eliminating the need for additional mounting plates or complex fixtures.
●High Load Capacity
Constructed from high-quality steel, it provides a sturdy structure capable of supporting heavy equipment or workpieces.
●Low Friction & Wear Resistance
Precision engineering between the ball and socket, often combined with hardened surfaces or lubrication, ensures smooth operation and long-lasting durability.
●Maintenance-Free Design
Compact and typically sealed or pre-lubricated, it requires minimal to no maintenance under most operating conditions.
●Wide Application
Ideal for situations demanding easy installation and flexible movement, such as sliding bases for heavy machinery, material conveying systems, worktable positioning, and fine-adjustment support for tooling fixtures.

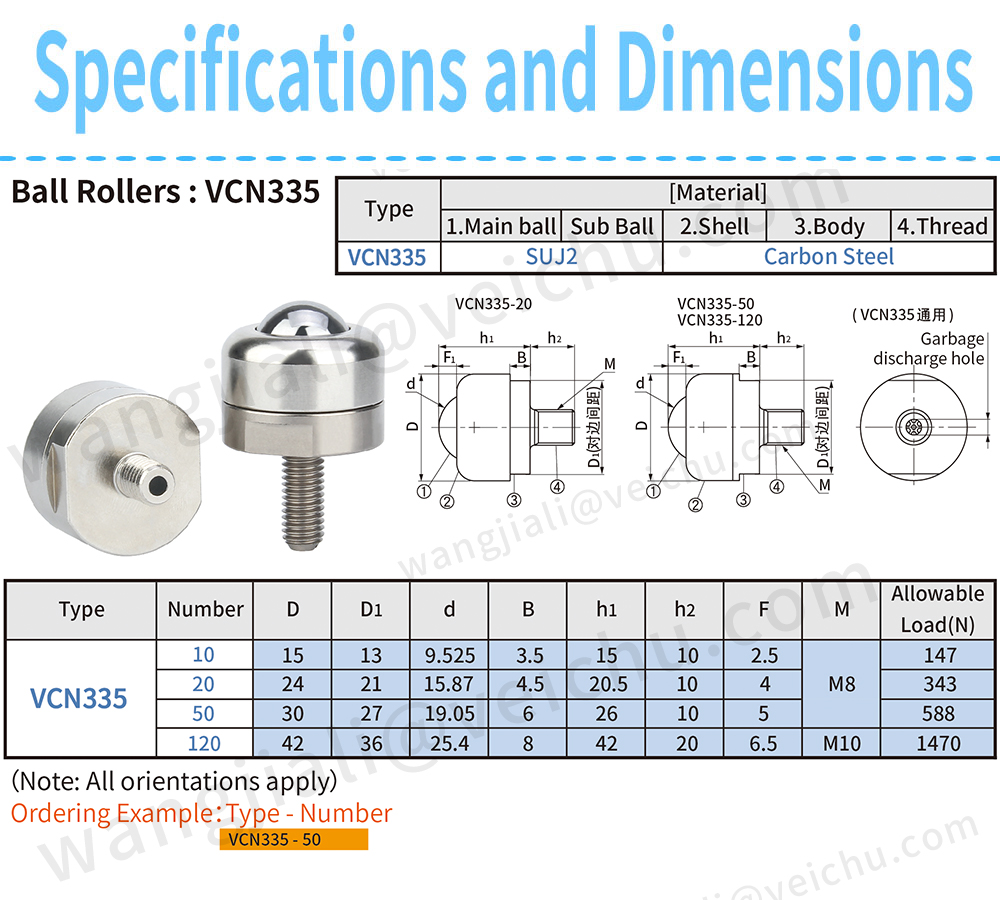

●Technical Specifications
| Parameter | Range/Details |
|---|---|
| Ball Material | Body: Carbon Steel Ball: SUJ2 |
| Thread Specification | 15/24/30/42 (can customizable) |
| Load Capacity | Static Load: 147N–1470N; Dynamic Load: Reduced proportionally |
| Operating Temperature | -30°C to +120°C (high-temperature models up to 200°C) |
| Protection Rating | IP54/IP65 (dustproof and waterproof options) |
●Application Scenarios
Industrial Automation
Steering modules for conveyor systems (e.g., assembly lines, packaging lines).
Flexible support for robotic chassis or end-effectors.
Logistics and Warehousing
Multi-directional components for heavy-duty shelf transfer carts or AGV trolleys.
Auxiliary rolling units in sorting system rails.
Heavy Machinery
Precision positioning for machining tables or mold transfer platforms.
Low-resistance mobile bases for large-scale equipment.
Special Environments
Food and pharmaceutical industries (stainless steel/nylon materials compliant with hygienic standards).
Outdoor engineering equipment (anti-rust and corrosion-resistant designs)
Application case
We can design a special customized solution for you based on your actual usage scenarios. Welcome to consult.
