VCN336 Carbon Steel Conveyor Ball Rollers with Flange
Share to:
| Number: | |
|---|---|
| Quantity: | |
Product Description

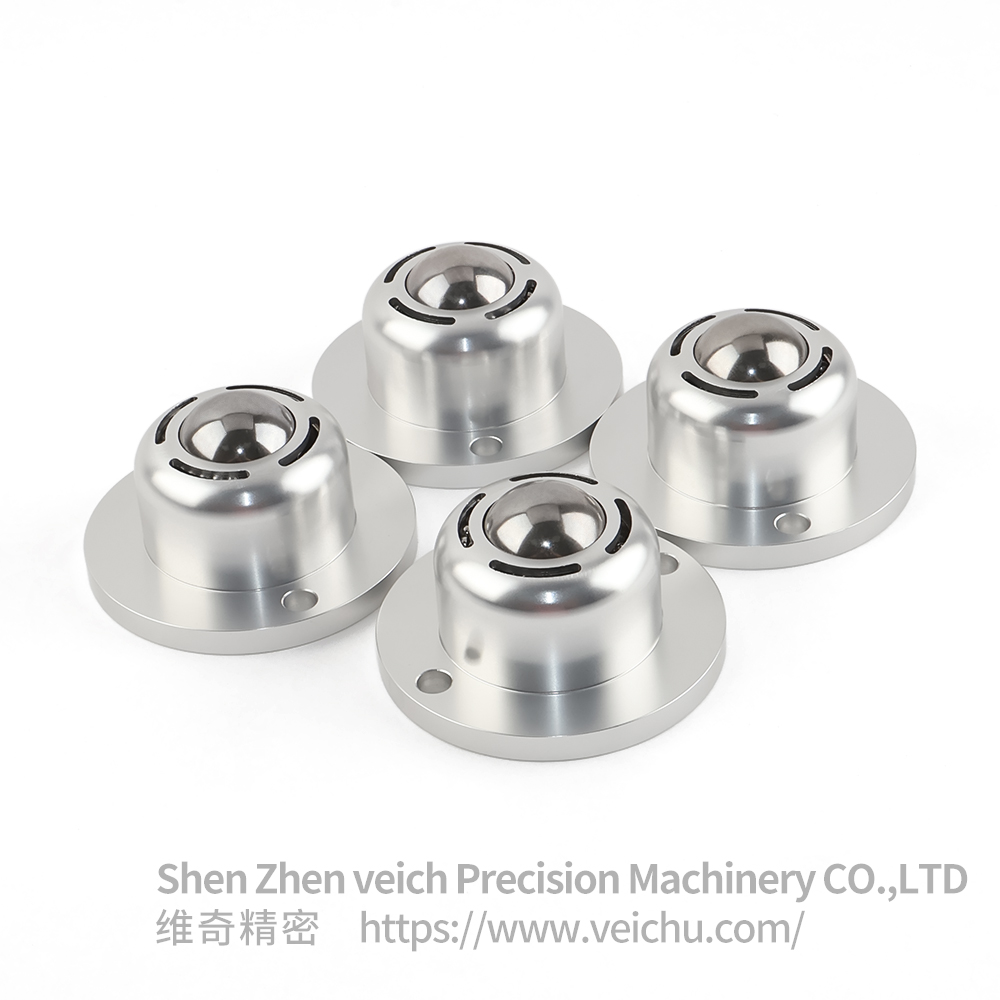

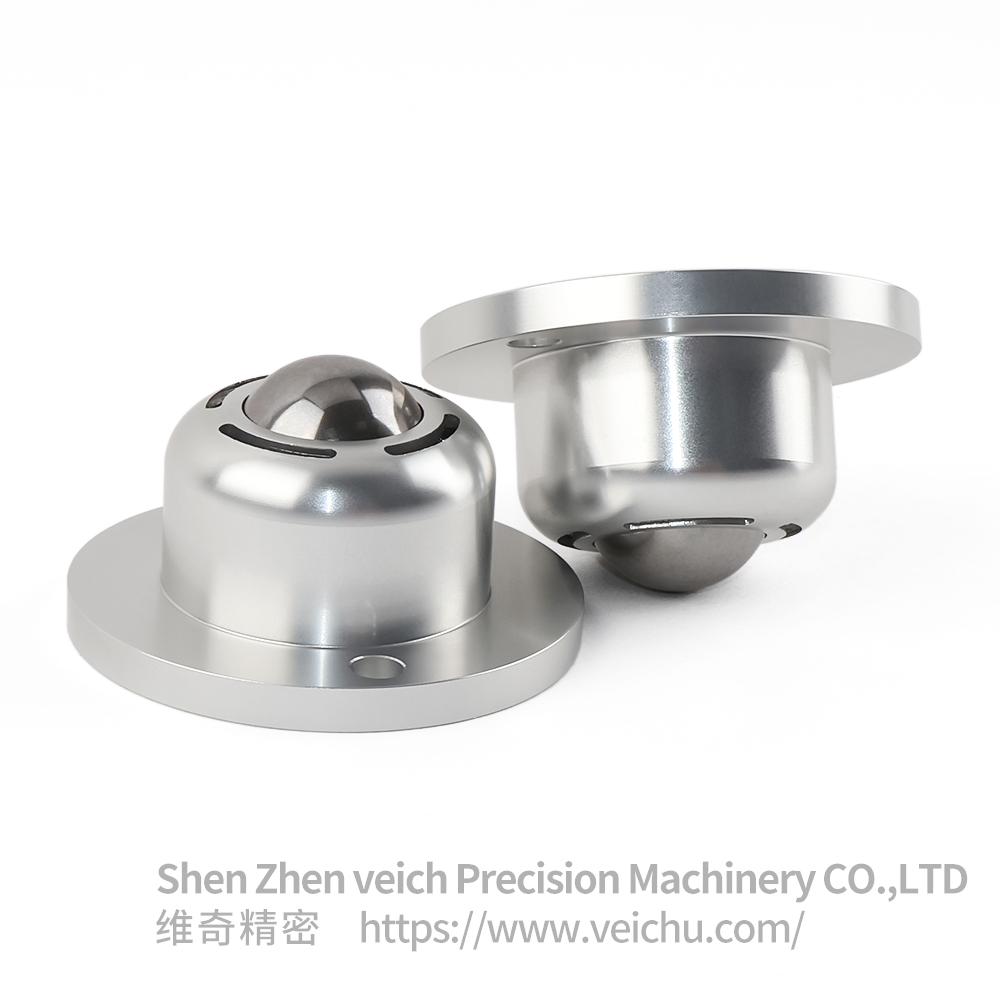

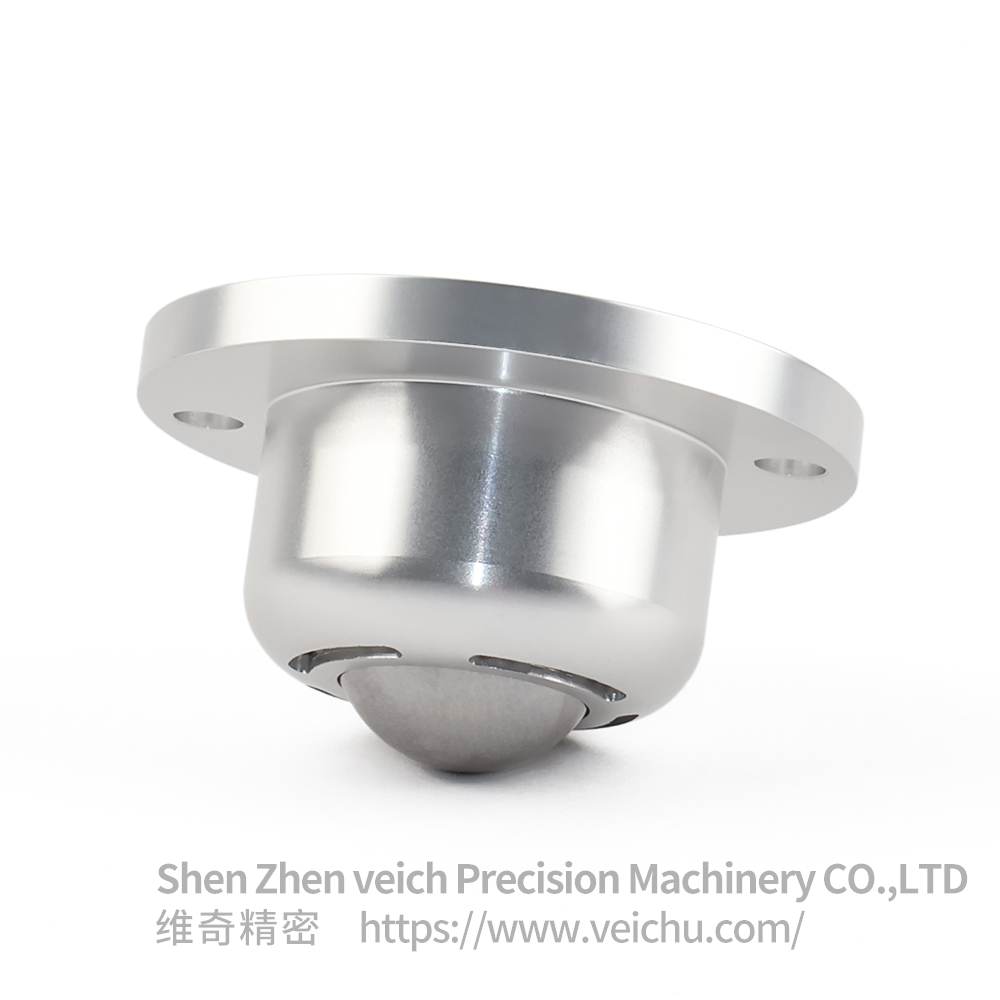

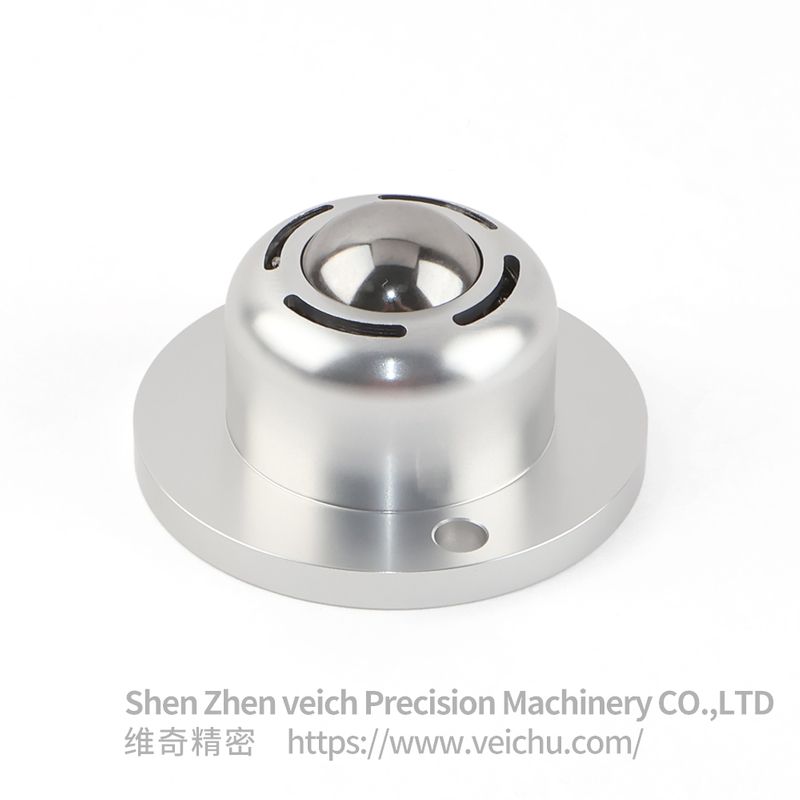

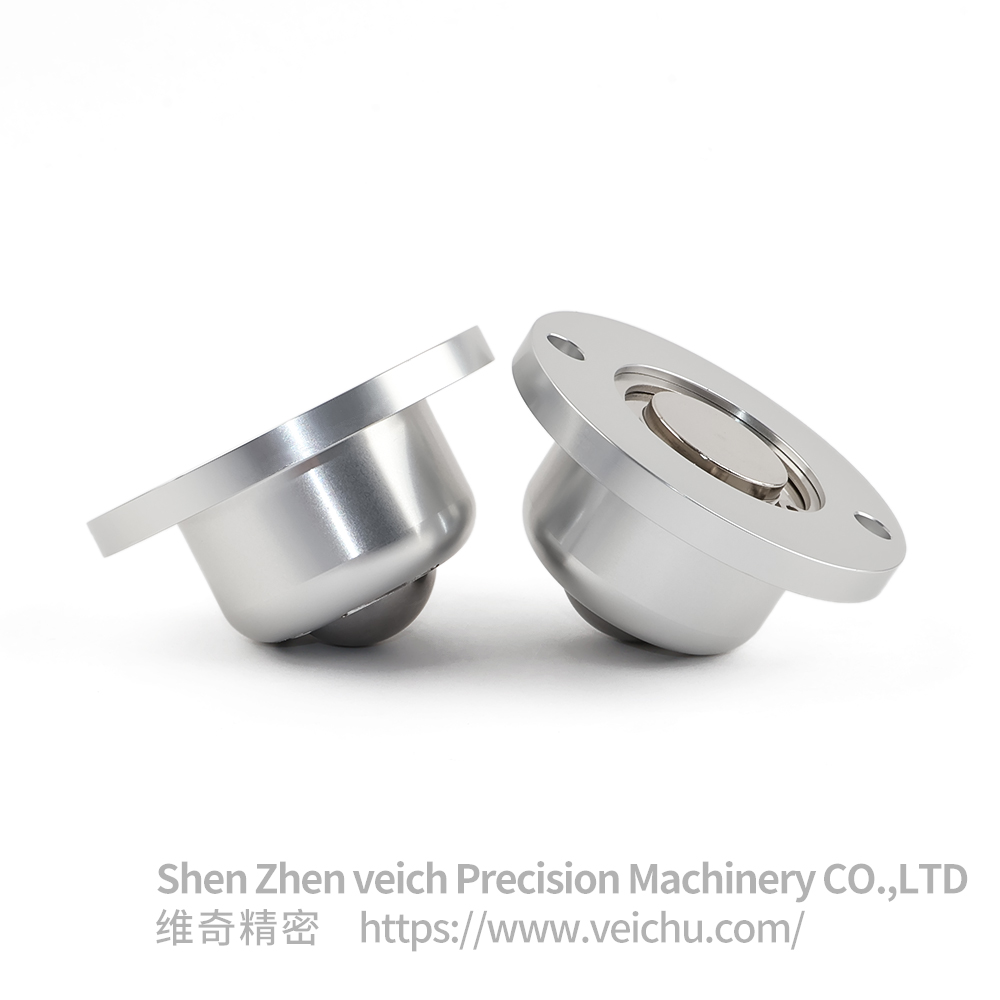

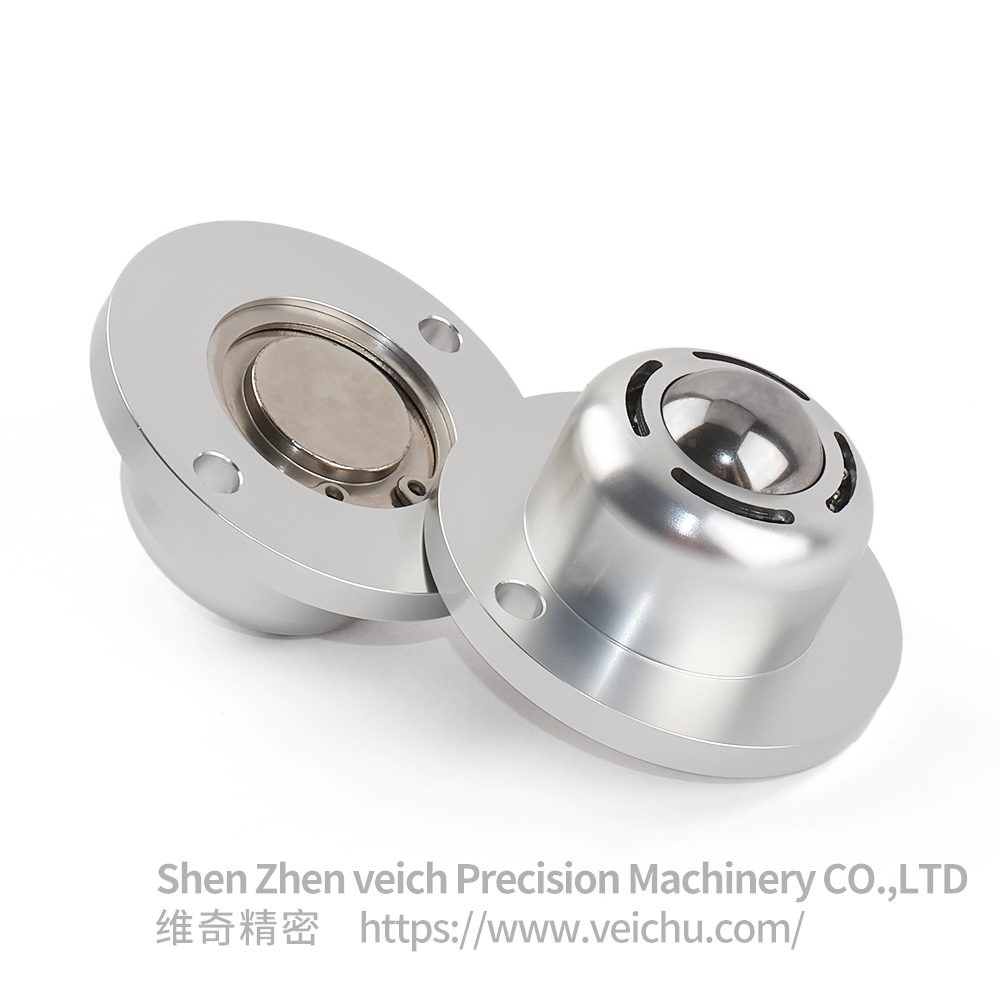

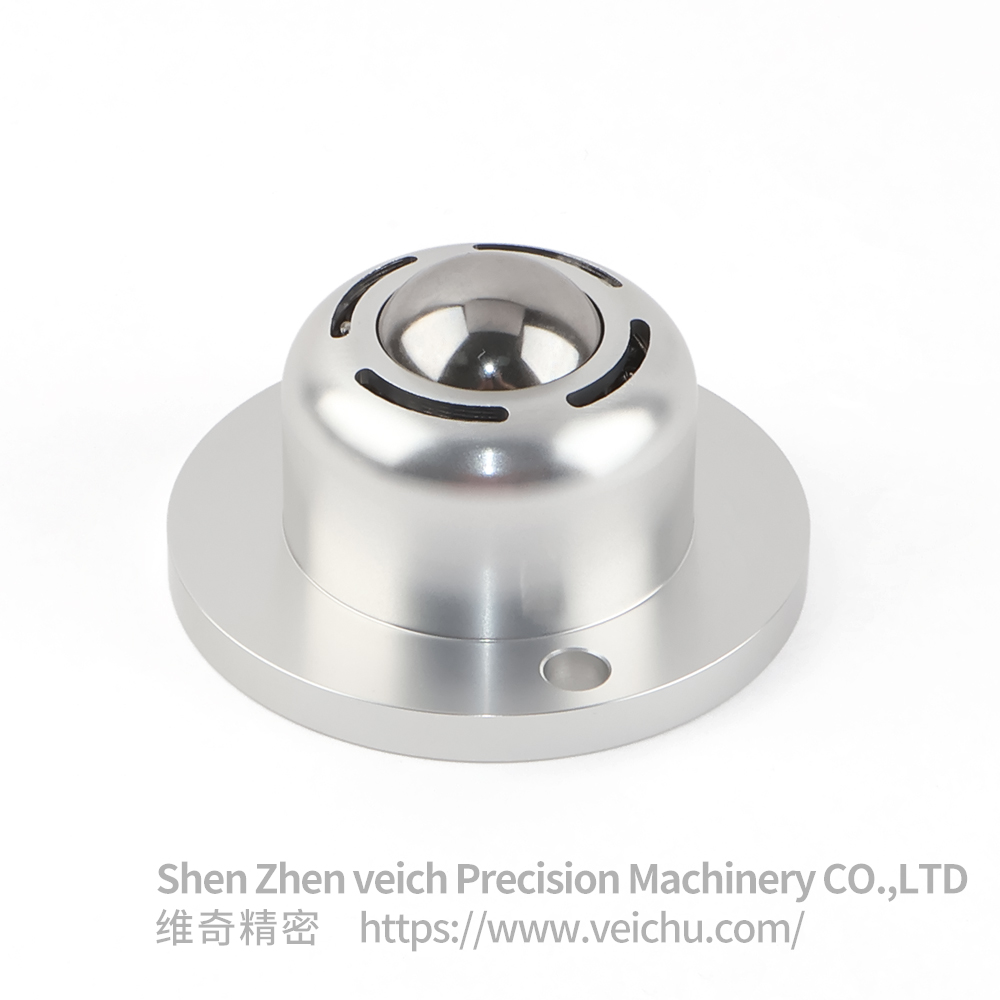

Flange-Mounted Ball Transfer Unit
●Product Overview
The Flange-Mounted Ball Transfer Unit is a critical component for material handling and equipment support. Its structure features a main ball atop a flanged base, enabling omnidirectional smooth movement of loads while significantly reducing manual handling effort. Load capacity can be flexibly adapted by adjusting distribution density or selecting specifications.
●Key Features
◆Omnidirectional Movement
The main ball allows 360° low-resistance rolling for linear, curved, or complex-path conveying systems. Requires only 2%-5% of load weight to initiate/maintain motion.
◆High Load Capacity
Wide Load Range: Supports 5kg to 4,000kg loads across electronics, chemical, machinery, and other industries.
◆Secure Flange Mounting
Bolt holes on the flanged base enable direct fixation to equipment surfaces without additional brackets, ensuring impact-resistant stability.
◆Specialized Protection
Self-Cleaning: Certain models include drainage/debris discharge holes to expel dust and moisture, preventing rotation failure.
◆Environmental Adaptability
Operating temperature range: -30°C to +70°C. Life-time lubrication reduces maintenance needs.

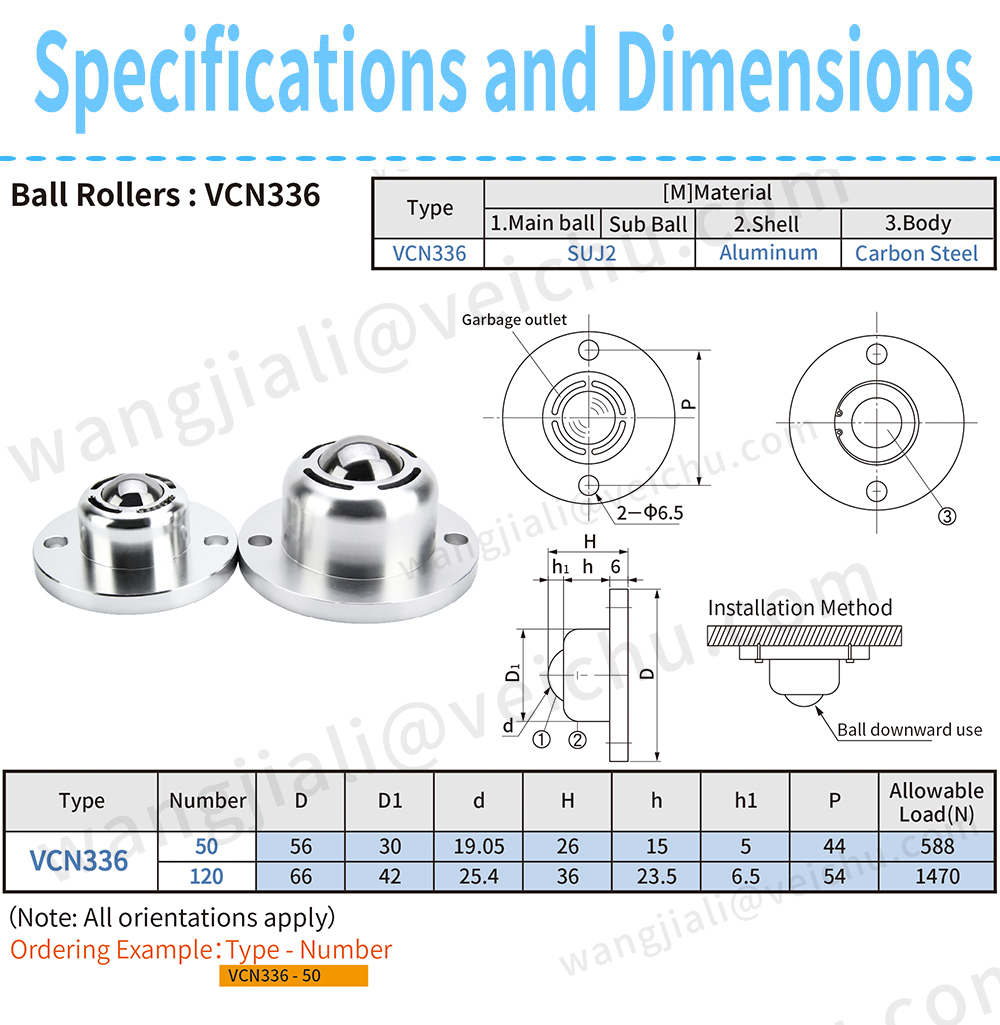

●Technical Specifications
| Parameter | Range/Details |
|---|---|
| Ball Material | Body: Carbon Steel Shell: Aluminum Ball: SUJ2 |
| Thread Specification | 56mm/66mm(can customizable) |
| Load Capacity | Static Load: 588N–1470N; Dynamic Load: Reduced proportionally |
| Operating Temperature | -30°C to +120°C (high-temperature models up to 200°C) |
| Protection Rating | IP54/IP65 (dustproof and waterproof options) |
●Application Scenarios
Industrial Automation
Steering modules for conveyor systems (e.g., assembly lines, packaging lines).
Flexible support for robotic chassis or end-effectors.
Logistics and Warehousing
Multi-directional components for heavy-duty shelf transfer carts or AGV trolleys.
Auxiliary rolling units in sorting system rails.
Heavy Machinery
Precision positioning for machining tables or mold transfer platforms.
Low-resistance mobile bases for large-scale equipment.
Special Environments
Food and pharmaceutical industries (stainless steel/nylon materials compliant with hygienic standards).
Outdoor engineering equipment (anti-rust and corrosion-resistant designs)
Application case
We can design a special customized solution for you based on your actual usage scenarios. Welcome to consult.
