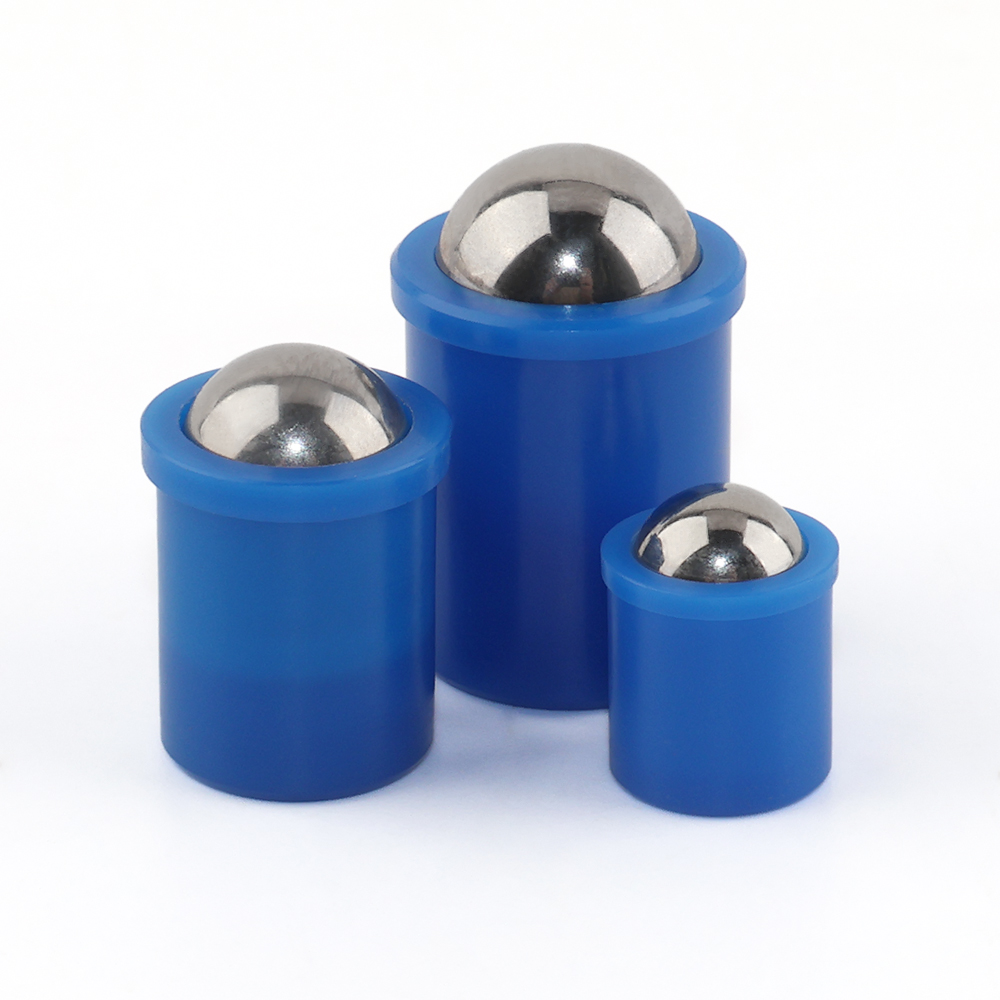

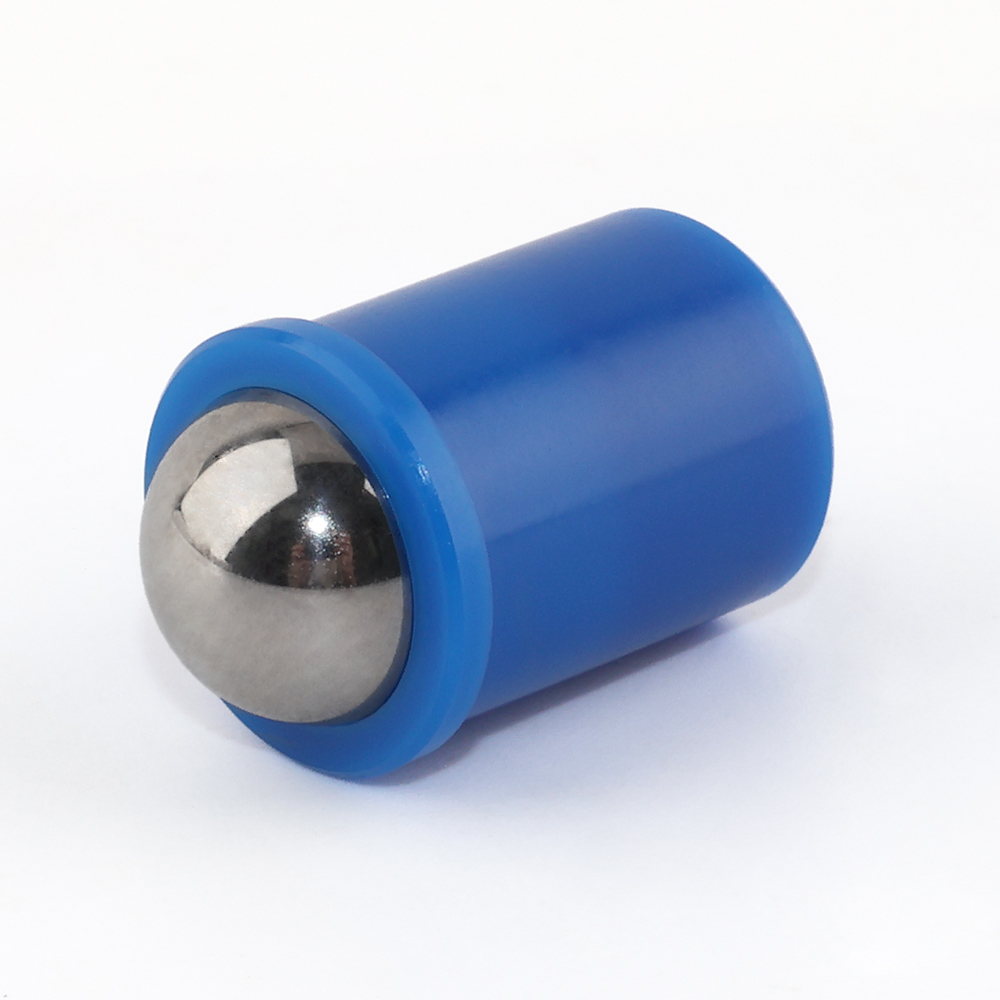

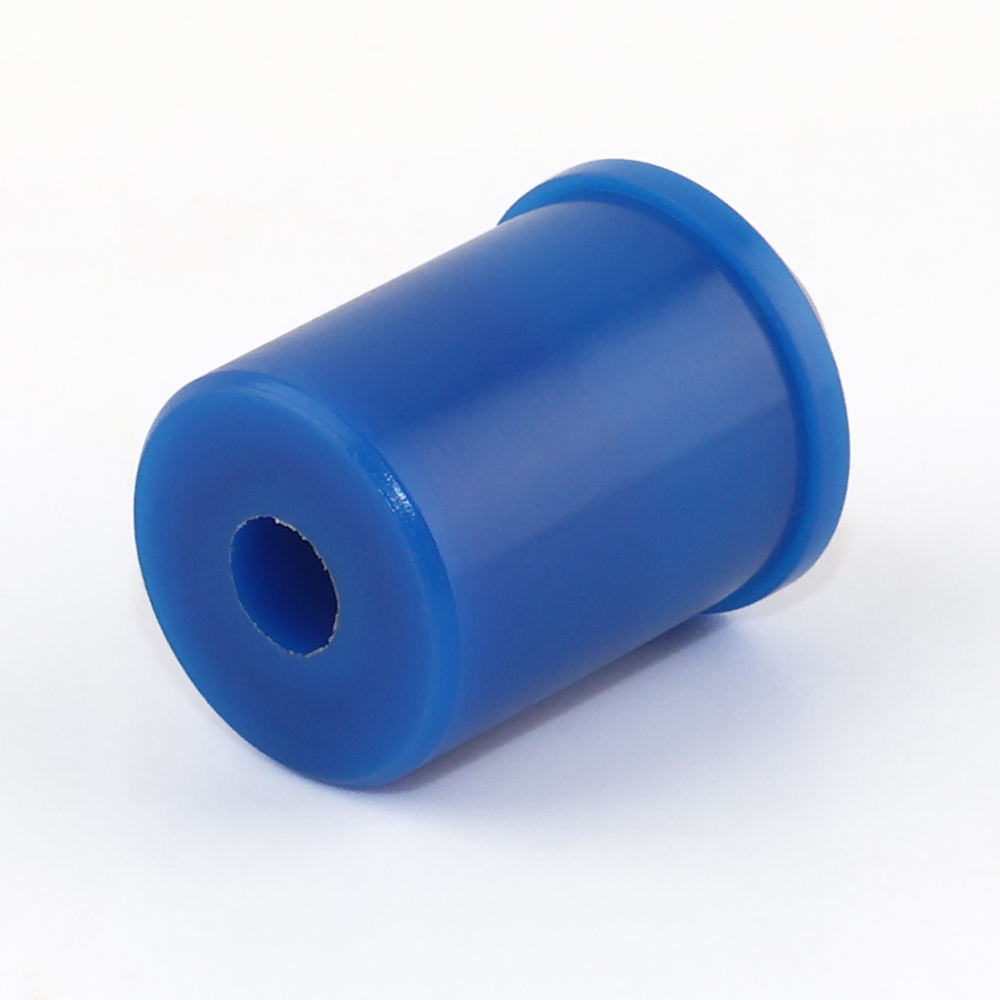

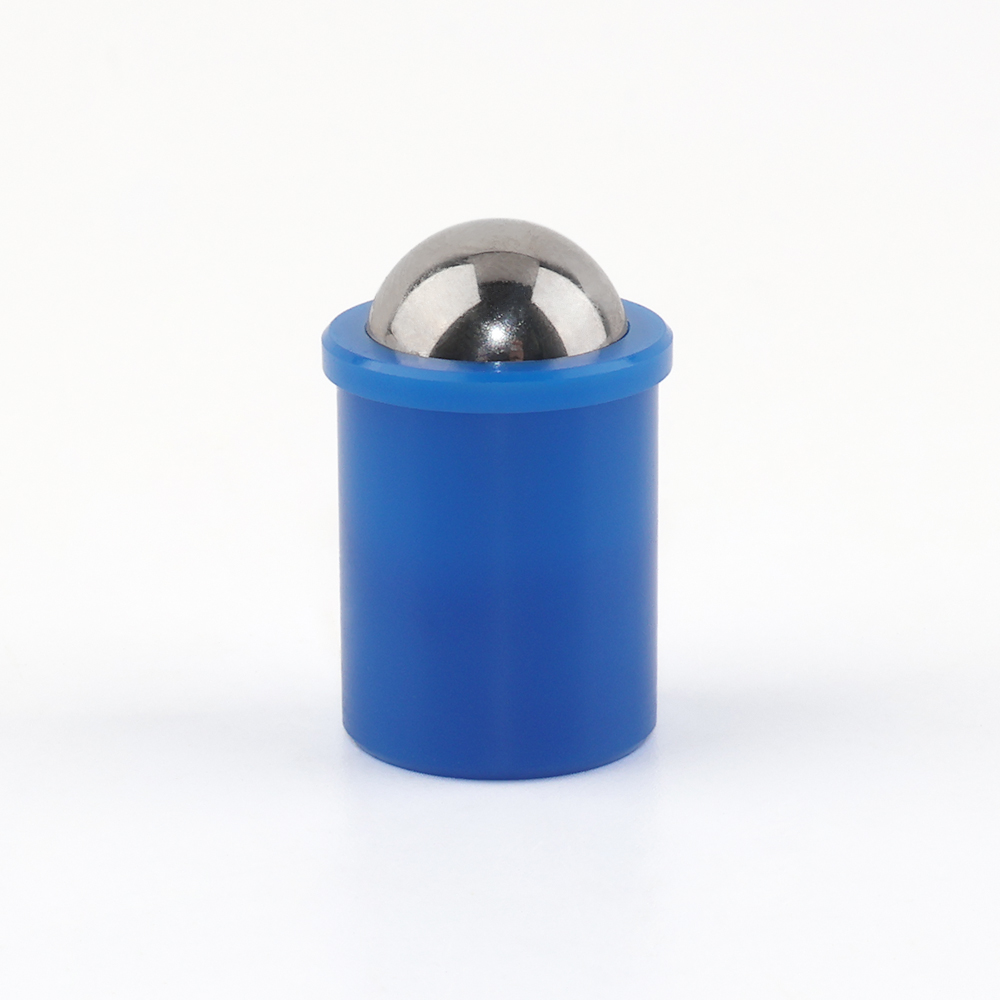

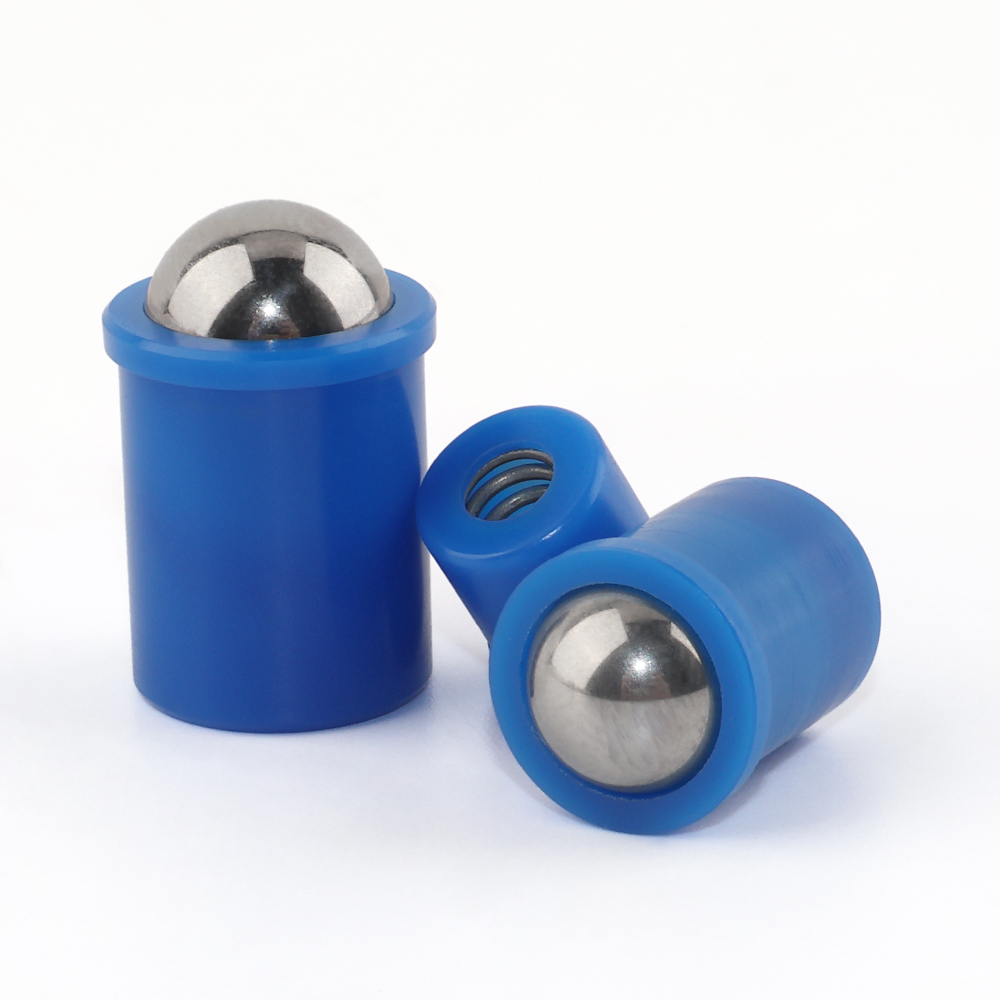

VCN410-NPS POM Ball Plunger - Press Fit,Flange
Share to:
| Material: | |
|---|---|
| Size: | |
| Quantity: | |
Product Description
VEICHU VCN410 Smooth Body Press Fit Ball Plunger Product Introduction
I. Product Overview
The VEICHU VCN410 is a multi-material, multi-specification press-fit ball plunger designed for mechanical positioning, damping adjustment, quick locking, and similar applications. Its core features include material diversity, customizable spring force, and a wide range of sizes, making it suitable for industrial equipment, automotive manufacturing, precision instruments, and more. With a press-fit installation design that eliminates the need for additional fasteners, it significantly simplifies assembly processes.
II. Material and Design Features

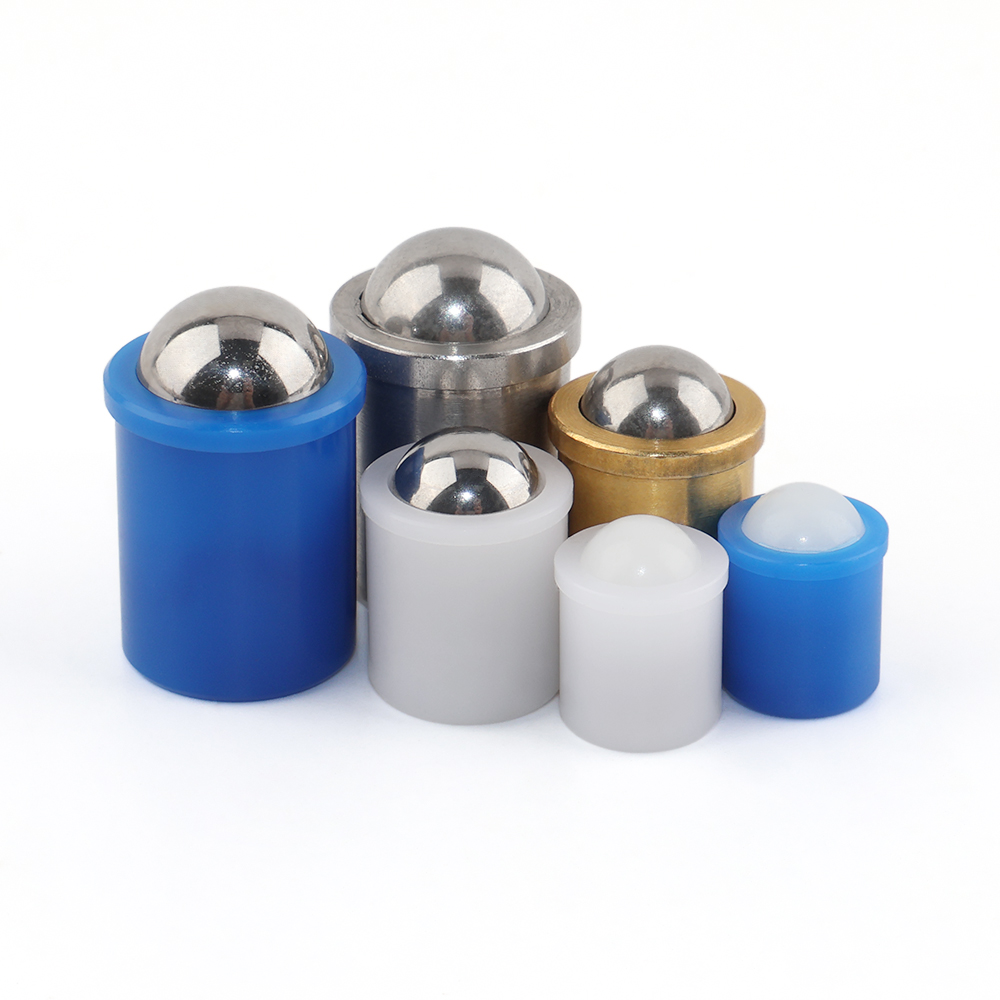

Main Body Material Options
Stainless Steel (SUS): High corrosion resistance, ideal for humid or chemically aggressive environments (e.g., food processing equipment, medical instruments).
Brass: Excellent conductivity, suitable for electromagnetic shielding or high-frequency grounding applications.
POM (Polyoxymethylene): Lightweight and wear-resistant, widely used in precision machinery with low-friction requirements (e.g., 3D printing equipment).
Ball Head Material
SUS440C Stainless Steel: High hardness (HRC 58-60) and impact resistance, ideal for heavy-duty or high-frequency operations.
POM Plastic: Quiet operation and scratch-resistant, perfect for equipment requiring surface protection (e.g., optical instruments).
Spring Force Configuration
Light-Duty: Lower spring force (e.g., 0.5–2 N), suitable for precision positioning or frequent adjustments (e.g., camera gimbals, electronic fixtures).
Heavy-Duty: Higher spring force (e.g., 5–10 N), designed for high-load locking (e.g., machine tool fixtures, automotive assembly lines).

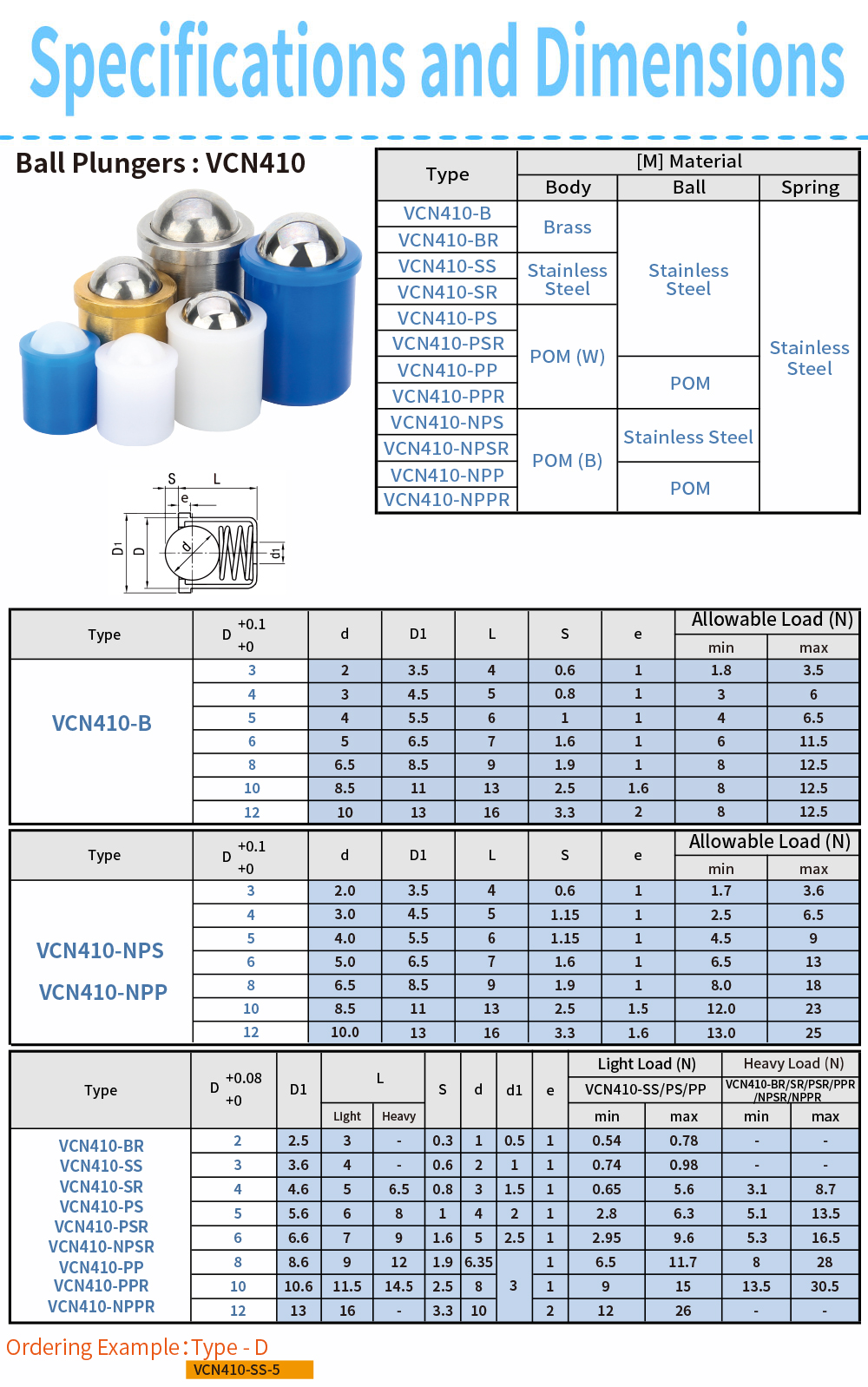

Size Specifications
Available in 2/3/4/5/6/8/10/12 mm diameters to meet diverse bore size requirements, compatible with applications ranging from microelectronics to large machinery components.
III. Applications and Key Features
Industrial Machinery
Machine Tool Fixtures: Quick locking of tools or workpieces to enhance machining efficiency (referencing high-strength demands of machine tool chip conveyors).
Automation Equipment: Ensures repeatable accuracy for robotic arm end-effector positioning.
Automotive Manufacturing
Assembly Line Tooling: Heavy-duty spring force secures components, minimizing vibration-induced misalignment.
Interior Components: Light-duty plungers adjust panel positions without surface damage.
Electronics and Precision Instruments
Optical Equipment: POM ball heads prevent lens scratches, with light-duty designs enabling fine adjustments.
3C Product Fixtures: Stainless steel resists corrosion, ideal for high-cleanliness production environments.
Furniture and Appliances
Adjustable Mounts: Flush installation enhances aesthetics; brass improves durability.
IV. Key Application Features
Quick Installation: Press-fit design eliminates screws, reducing assembly costs.
High Durability: SUS440C ball heads and stainless steel bodies withstand over 100,000 cycles.
Custom Flexibility: Material and spring force combinations cater to diverse needs.
Precision Positioning: ±0.05 mm repeatability for high-accuracy scenarios.
Broad Compatibility: 2–12 mm sizes align with global standard accessories.
V. Purchasing Guidance
Environment: Stainless steel for humid conditions; POM for high-frequency use to reduce wear.
Load Matching: SUS440C for heavy loads; POM for light loads to cut costs.
Size Validation: Select a plunger 0.1 mm smaller than the bore for tight fit.
For detailed parameters or customization, consult the product manual or contact suppliers for technical support.
