Product Overview

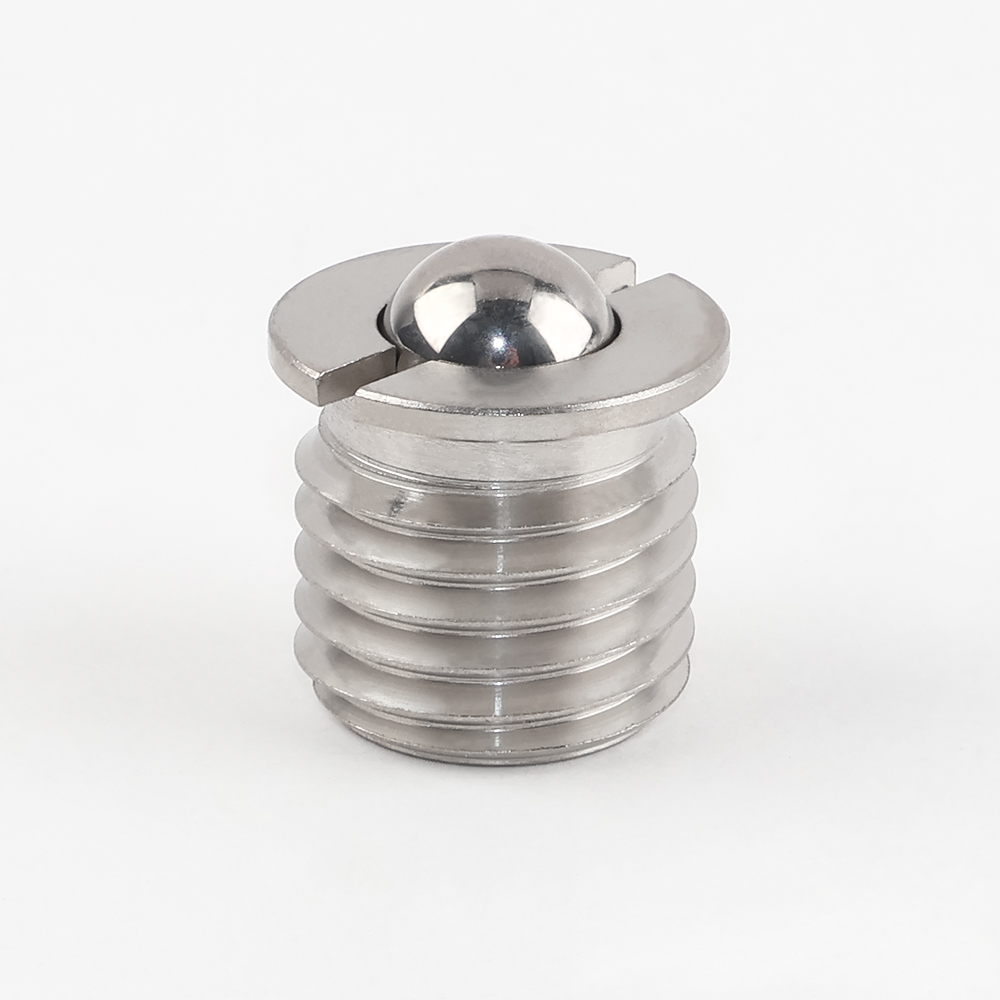

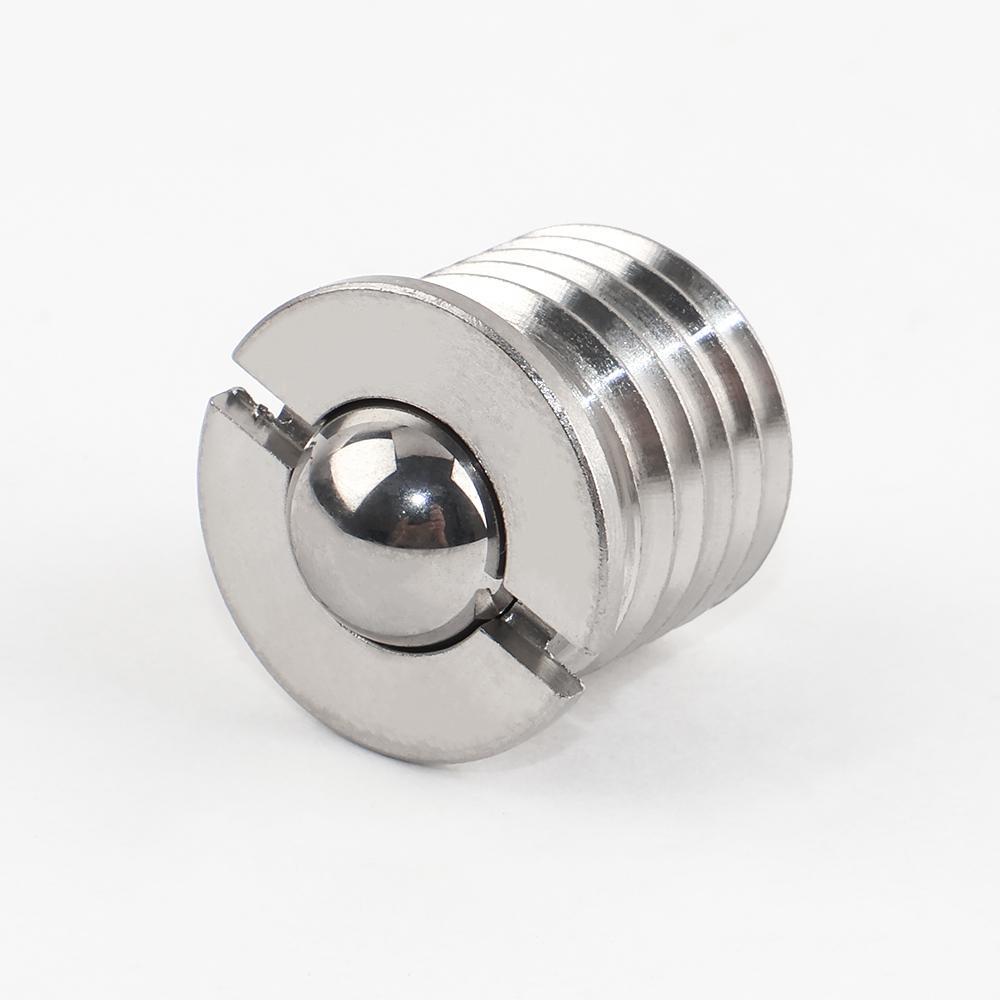

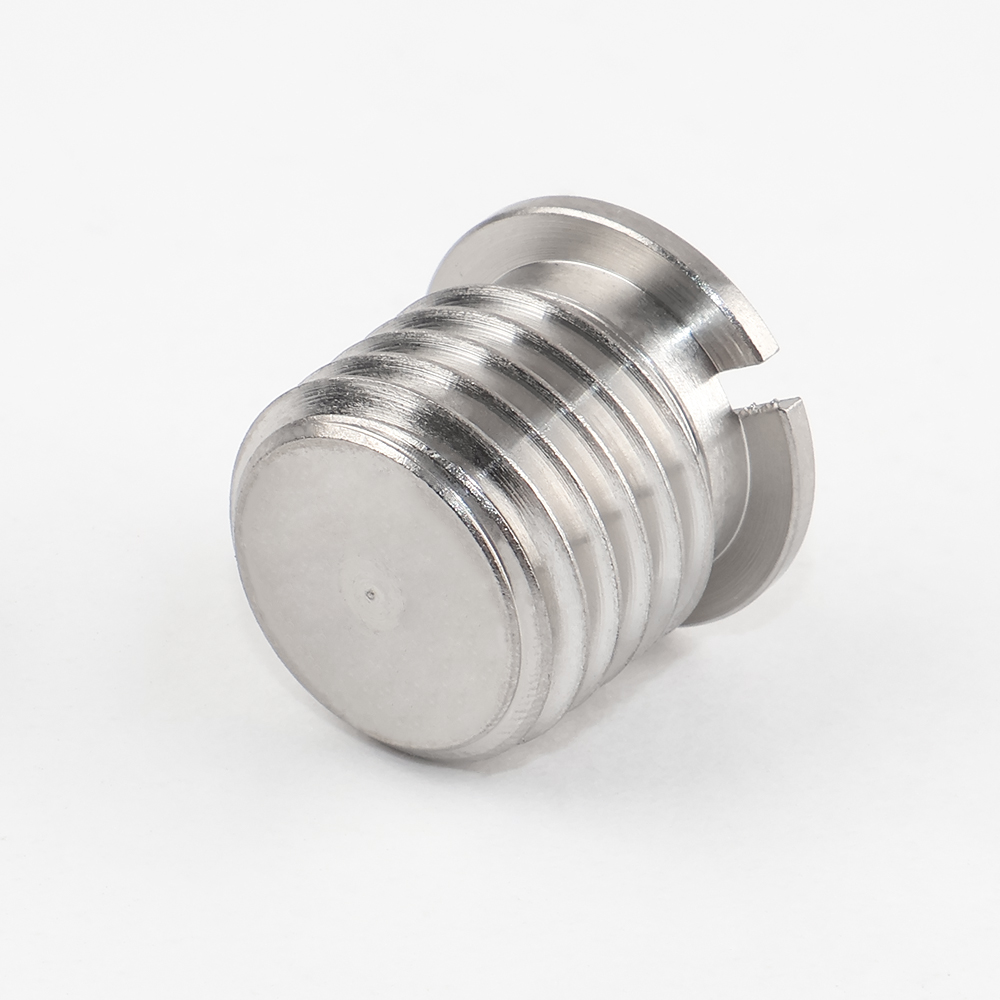

The VCN413-SS Stainless Steel Ball Plunger is a high-precision flanged ball plunger engineered exclusively for industrial equipment positioning, clamping, and buffering applications. Manufactured by VEICHU, a leading provider of precision mechanical components, this series delivers exceptional reliability for industrial manufacturing enterprises, automation system integrators, and precision machinery builders. The plunger body is available in premium stainless steel, high-strength carbon steel, and anti-magnetic brass, paired with a high-hardness US440C stainless steel ball for superior wear and corrosion resistance. Its proprietary flange design, combined with a tool-friendly straight installation slot, drastically improves assembly efficiency and operational stability, making it the go-to solution for high-precision mechanical systems that demand repeatable accuracy.
Key Features & Industrial Performance Advantages
Premium Material & Durability Engineering
Crafted with application-specific material options, the VCN413-SS flanged ball plunger delivers tailored performance for diverse industrial environments. The stainless steel body offers exceptional corrosion resistance for harsh chemical and marine settings, while carbon steel variants provide maximum load-bearing capacity for heavy-impact applications. The core ball component is made of US440C stainless steel with a hardness of HRC58-62, optimized for high-frequency contact cycles without premature wear.
Structural Innovation for Stable Installation & Operation

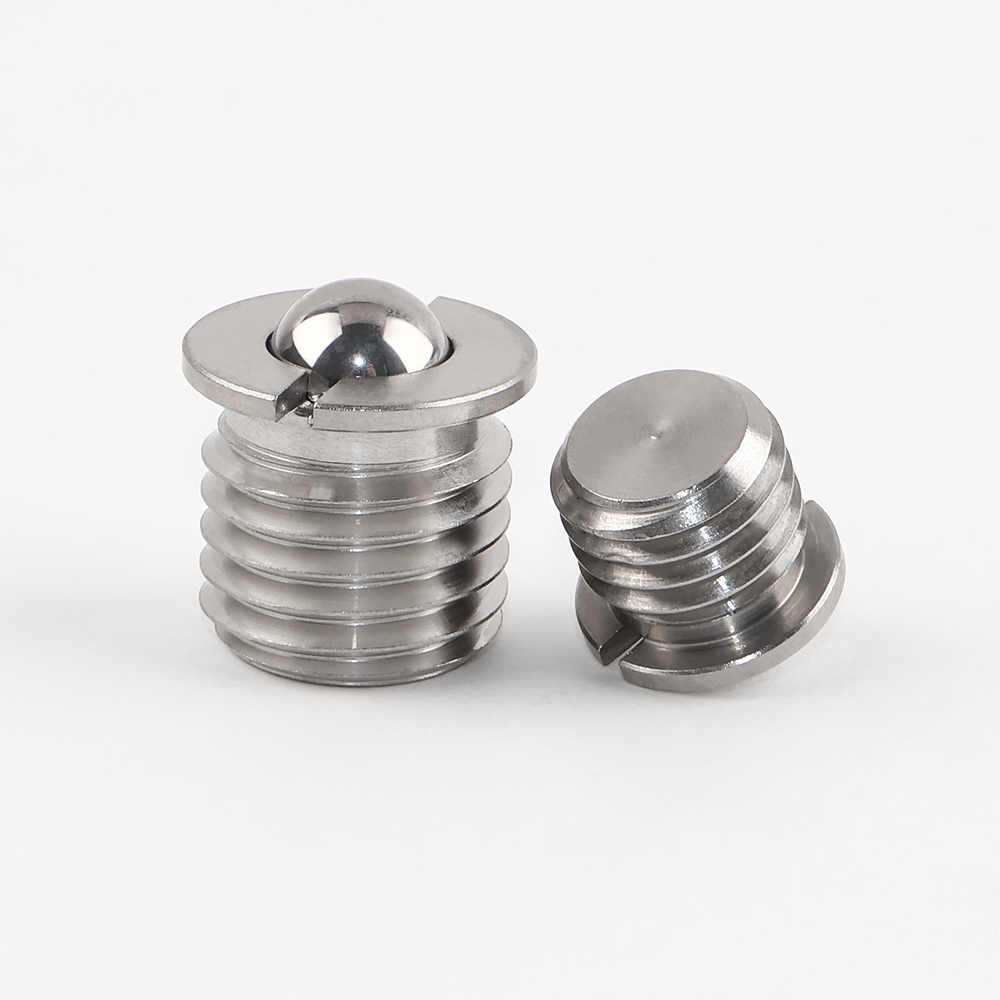

The integrated flange design is a defining feature of the VCN413 series ball plunger, reinforcing mounting stability and minimizing vibration-induced displacement during high-speed or heavy-load operation. The straight installation slot is compatible with standard assembly tools, reducing installation time and complexity for high-volume production lines, while ensuring consistent fixation across repeated assembly cycles.
Unmatched Precision & Environmental Adaptability
This precision positioning component delivers a positioning tolerance of ±0.01mm, guaranteeing repeatable accuracy for continuous mechanical operations. It also offers excellent heat and chemical resistance, making it suitable for extreme industrial environments including high-temperature production workshops, chemical processing equipment, and offshore marine machinery.

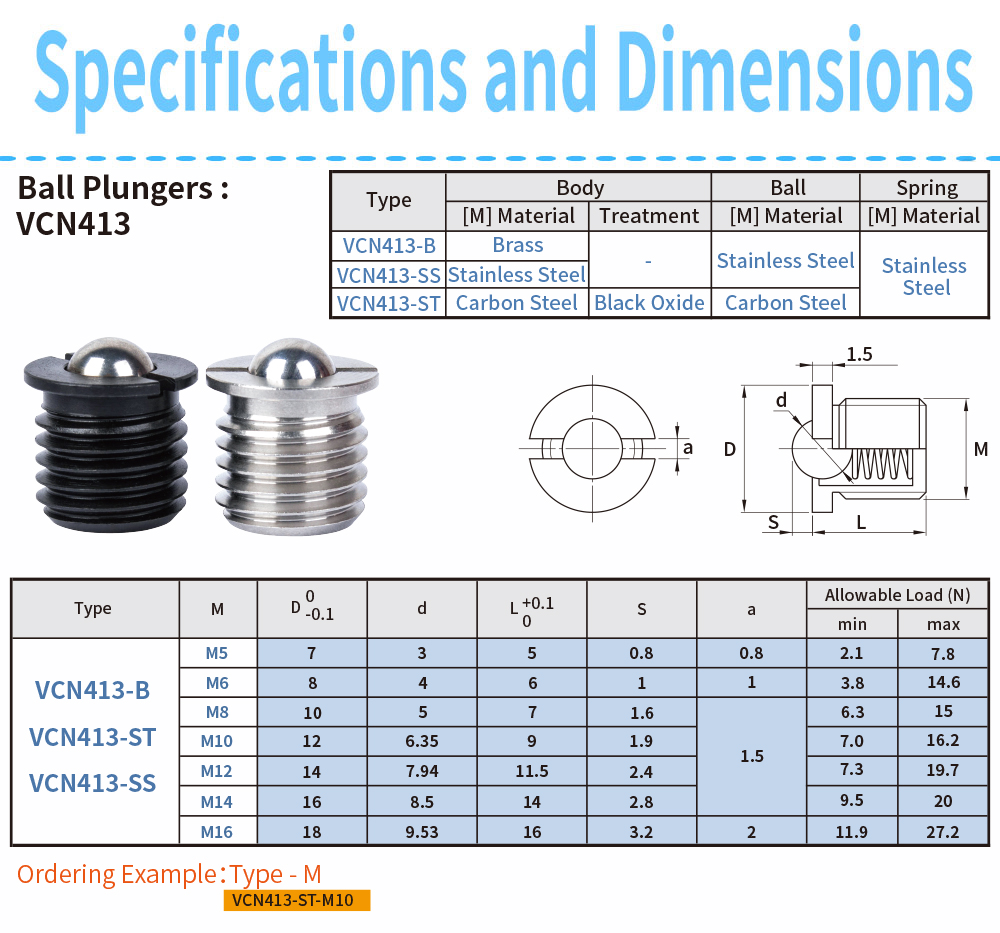

Detailed Technical Specifications
Parameter | Specification Details |
|---|---|
Core Model | VCN413-SS |

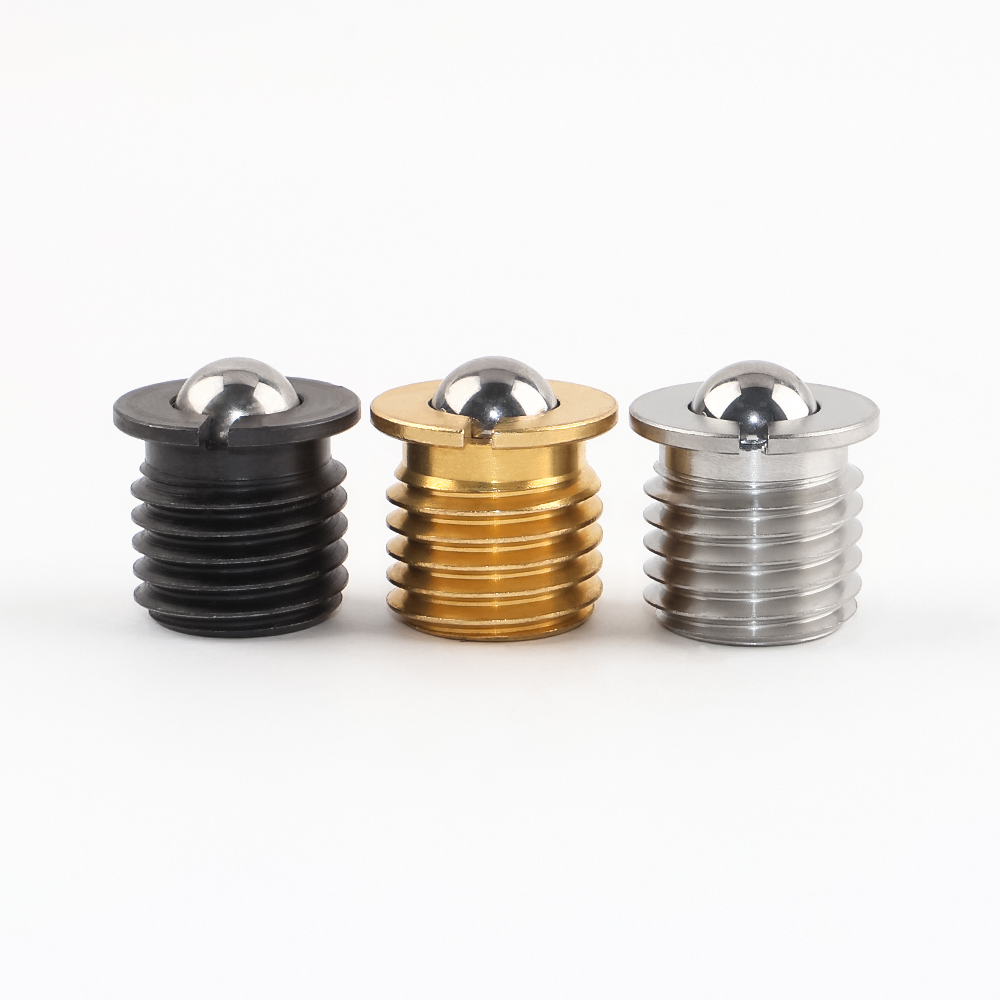

Available Series | VCN413-SS (Stainless Steel), VCN413-ST (Carbon Steel), VCN413-B (Brass) |

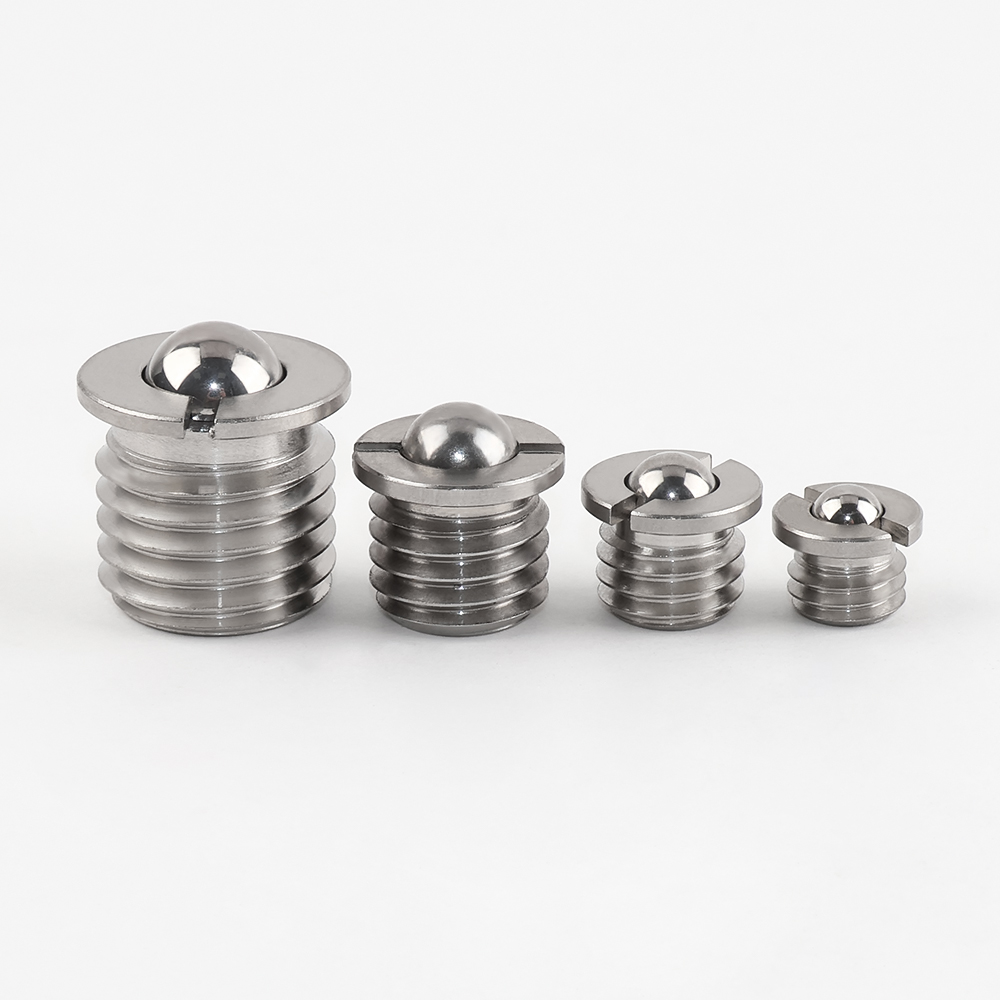

Thread Sizes | M5, M6, M8, M10, M12, M14, M16 |
Ball Material | US440C Stainless Steel (HRC58-62) |
Positioning Tolerance | ±0.01mm |
Core Functions | Precision Positioning, Clamping, Buffering |
Industrial Applications
The VCN413-SS stainless steel ball plunger is widely deployed across core industrial sectors:
Automation Systems: Robotic arm joint positioning, conveyor line guidance systems, and automated assembly line indexing, delivering rapid response and consistent precision to boost operational efficiency.
Precision Instruments: Optical device focus adjustment mechanisms, semiconductor manufacturing equipment, and laboratory testing instruments, with low-friction design minimizing energy loss and extending equipment service life.
Heavy Machinery: CNC machine tool positioning clamps, stamping equipment buffering systems, and mold positioning fixtures, with high-strength carbon steel variants supporting heavy-impact, high-load operating conditions.
Corrosive & Specialized Environments: Chemical equipment sealing components, marine machinery, and offshore drilling systems, with brass and stainless steel variants providing long-term corrosion resistance against seawater, acid, and alkaline media.
Customization & OEM/ODM Manufacturing Services
We offer full customization solutions for industrial business clients with unique application requirements. Our in-house engineering team can modify the VCN413 series ball plunger in terms of size, material composition, surface treatment, and spring force rating to match specific operating conditions. We also provide comprehensive OEM/ODM manufacturing services, including custom branding, packaging, and batch production tailored to your production line and product specifications, with full quality control compliance throughout the manufacturing process.
Ordering, Global Shipping & Warranty
We support flexible ordering options to meet the needs of both small-batch prototype testing and large-volume industrial production. All VCN413-SS ball plunger orders are backed by a 12-month warranty against manufacturing defects, with full quality inspection reports provided for every batch. We offer global shipping services via sea, air, and express courier, with customized logistics solutions for bulk industrial orders to ensure on-time delivery to your facility worldwide.
FAQs
What material variant should I choose for my application?

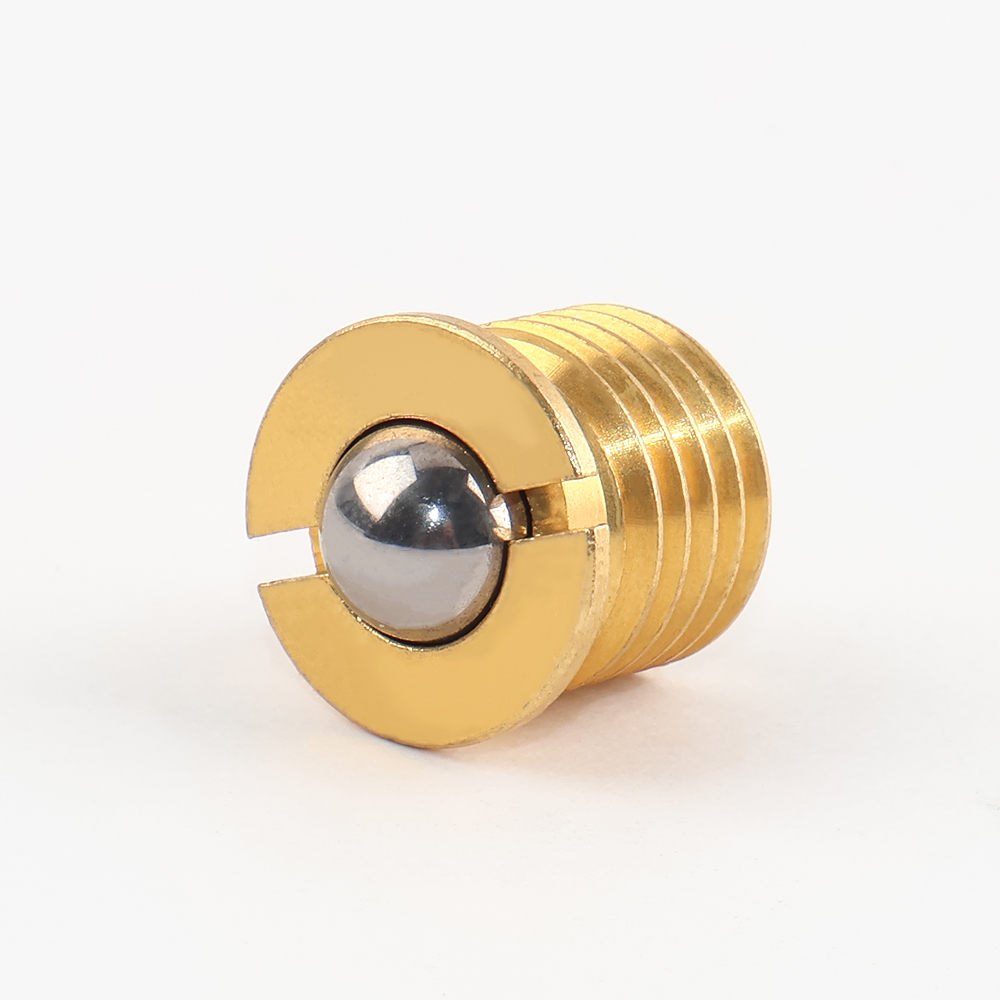

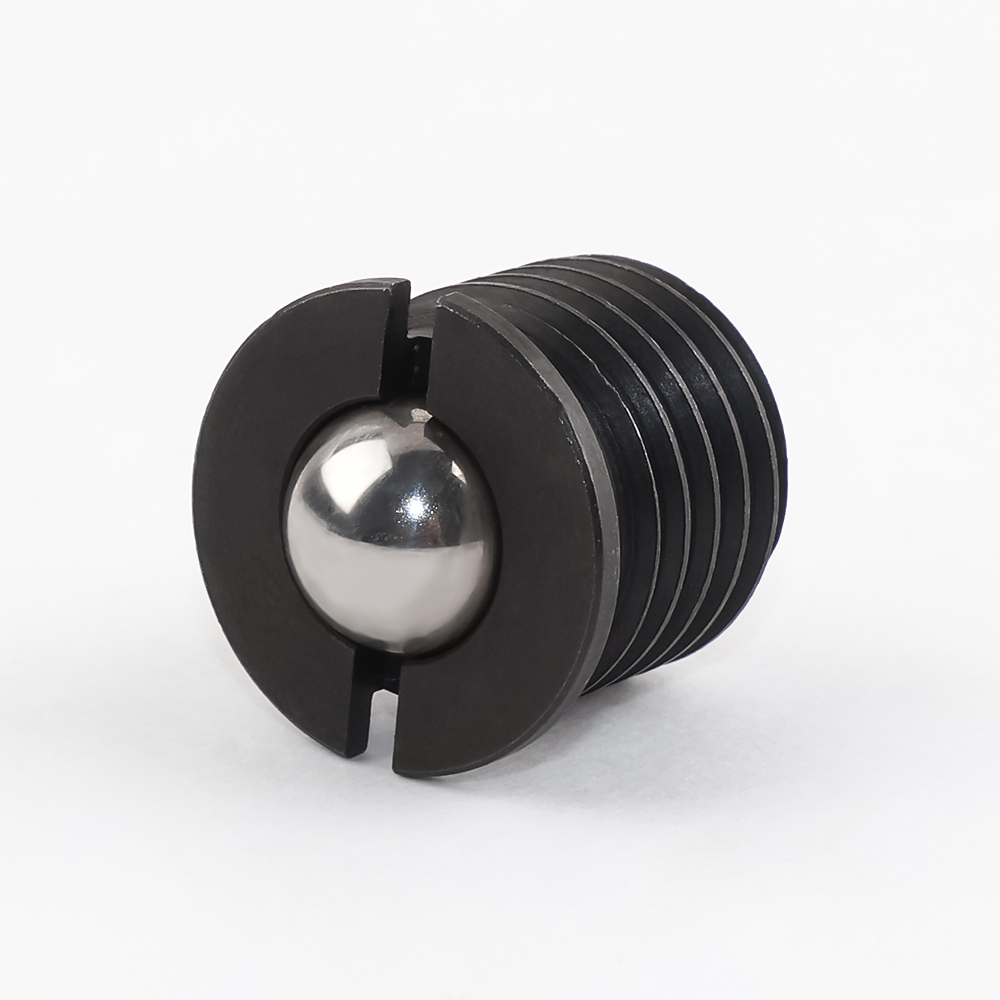

For corrosive or high-humidity environments, the VCN413-SS stainless steel variant is the optimal choice. For heavy-load, high-impact applications, VCN413-ST carbon steel offers maximum strength, while VCN413-B brass is ideal for anti-magnetic and seawater corrosion-resistant requirements.
What is the maximum operating temperature for the VCN413-SS ball plunger?
The standard VCN413-SS stainless steel ball plunger can operate continuously in temperatures ranging from -40℃ to 180℃, with custom high-temperature variants available for extreme heat applications.
Can you provide custom spring force adjustments?
Yes, we offer full customization of spring force ratings to match your specific positioning and clamping requirements, with engineering support to ensure optimal performance for your application.
