Product Description
Product Introduction

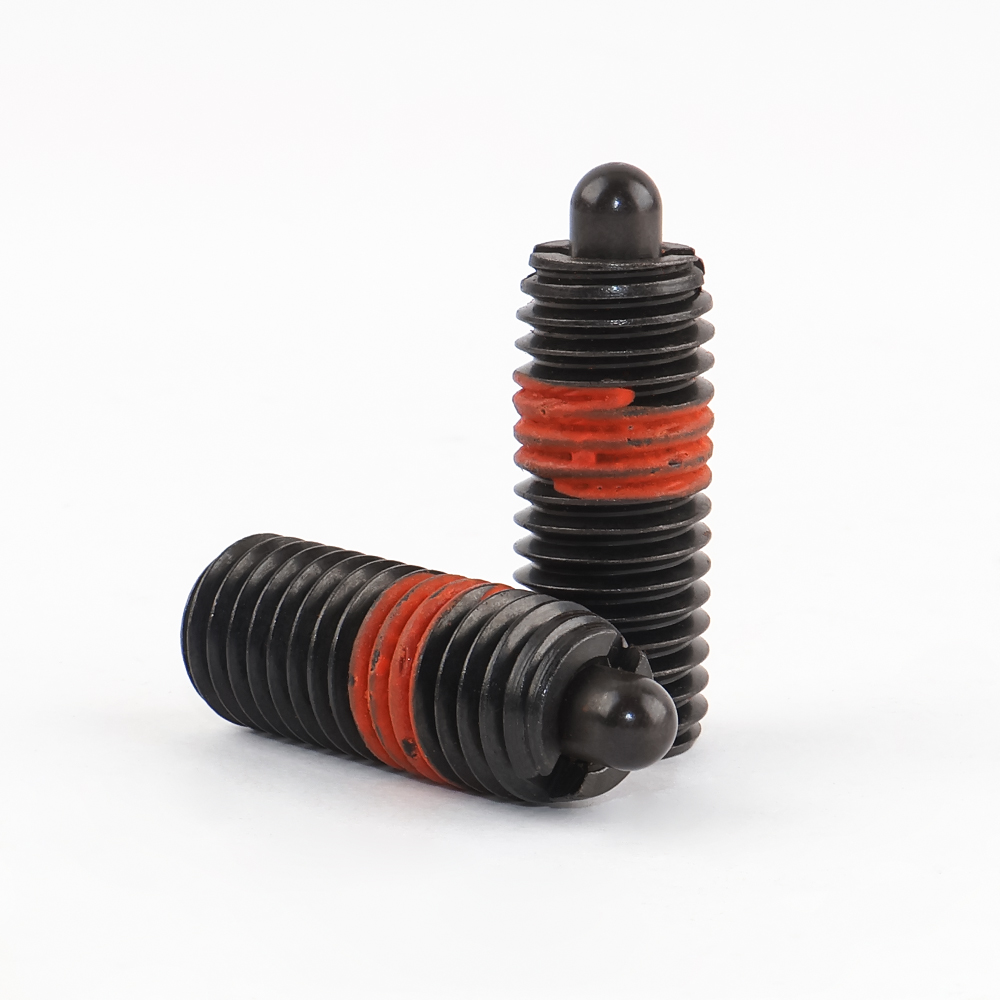

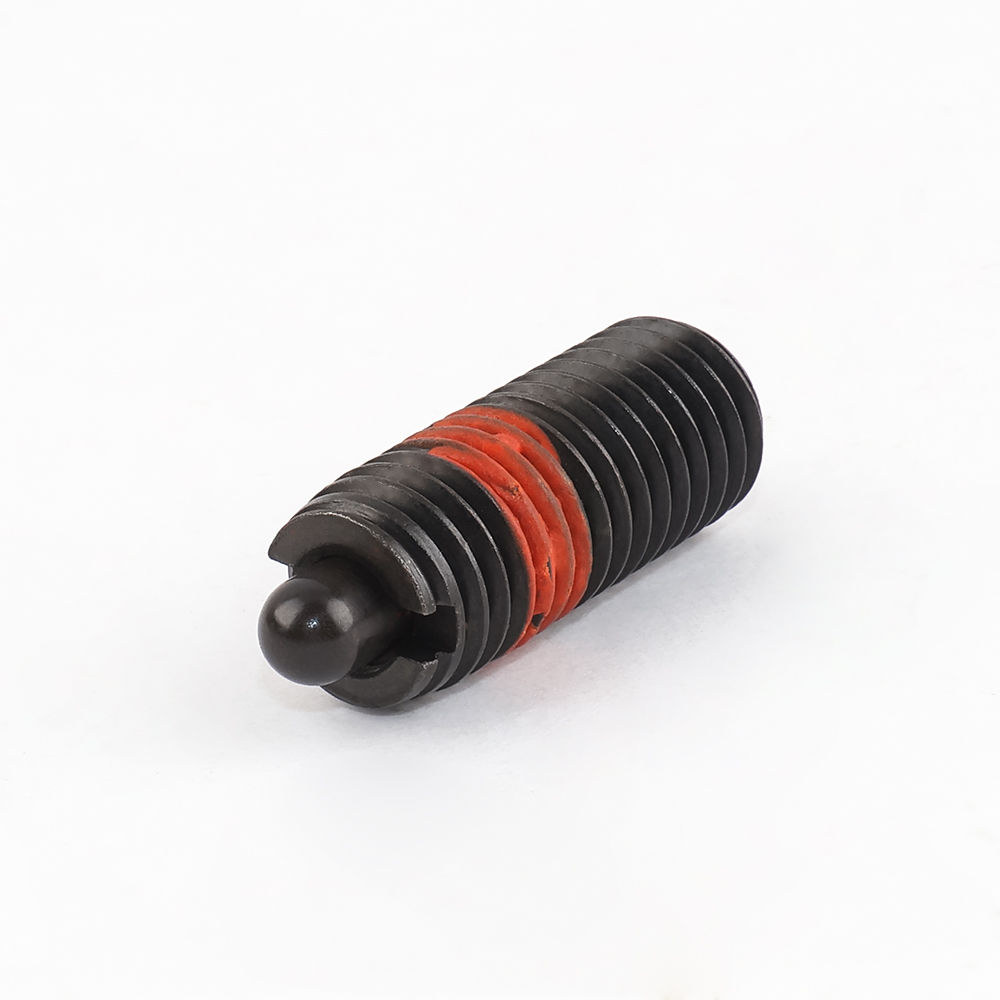

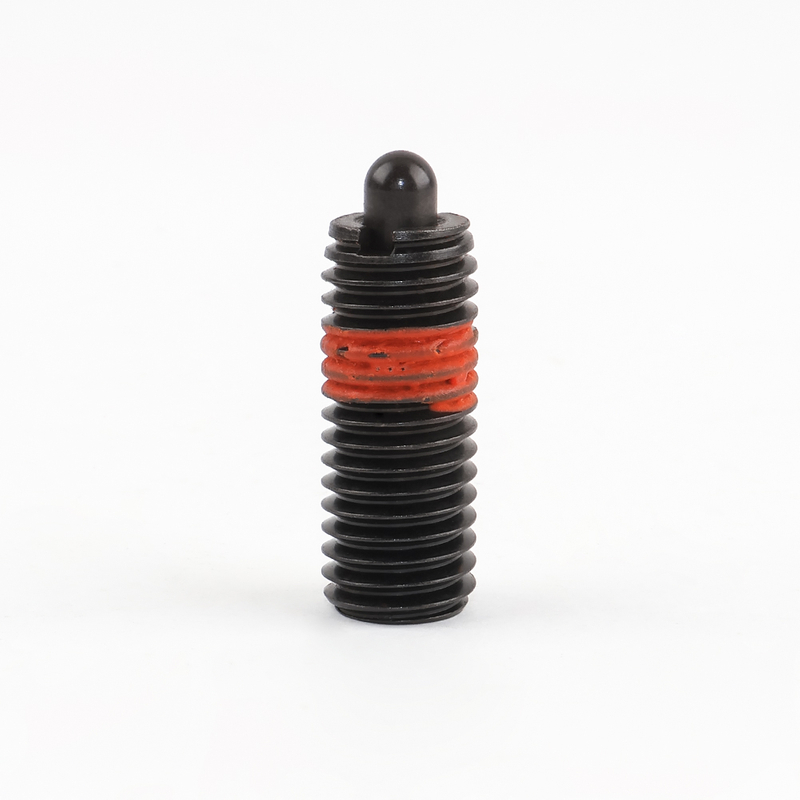

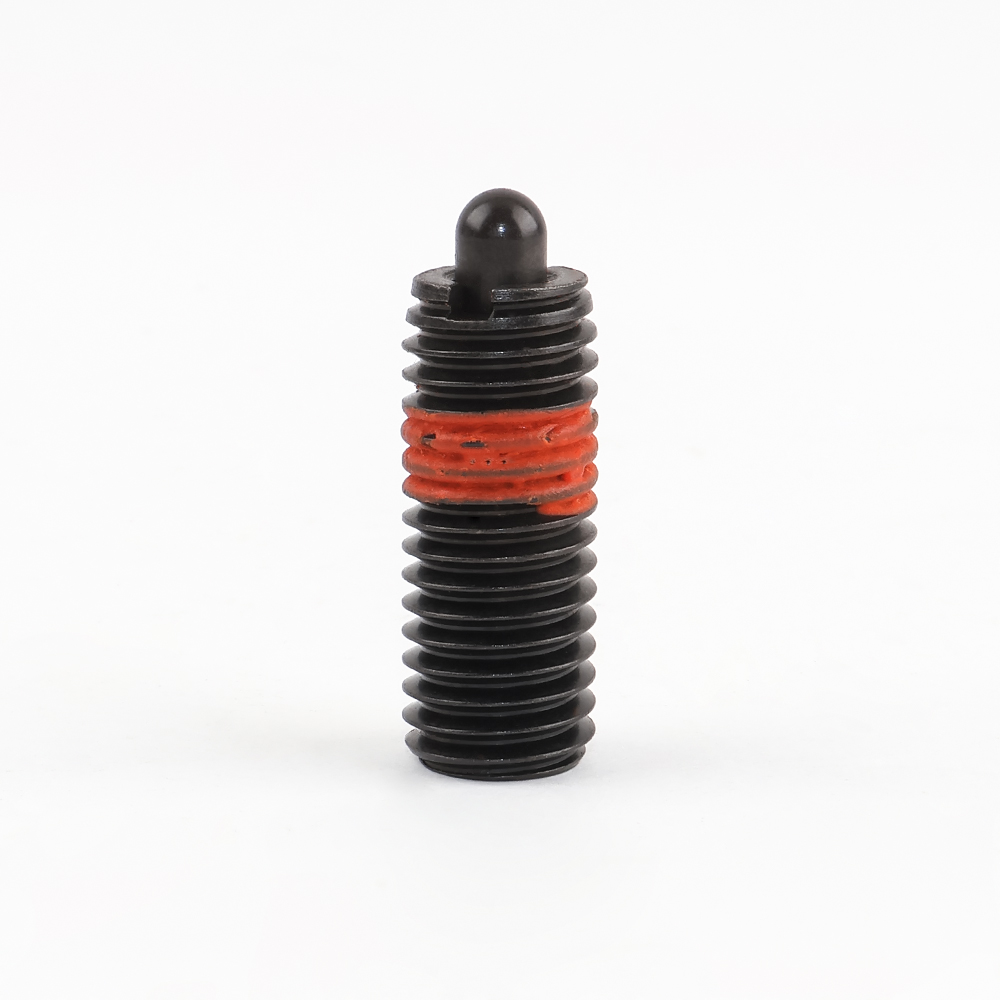

Threaded spring plungers are mechanical positioning components driven by internal springs to actuate a ball or plunger head. Featuring a metal threaded body, they screw directly into equipment bases. Their core function is to provide retractable spring pressure for workpiece positioning, indexing, or datum adjustment. Standard construction includes a threaded sleeve, spring, ball/plunger head, and locking mechanism .
Key Features
●Precision Positioning & Control
Preloaded springs ensure consistent contact pressure, achieving repeatable positioning accuracy (≤0.1mm error). Ideal for precision jigs and automation.
Extended-life springs reduce fatigue for enhanced durability.
●Versatile Operation Modes
Standard Type: Automatically rebounds after external force release.
Locking Type : Rotational mechanism holds plunger retracted for easy workpiece loading/unloading.
●Environmental Adaptability
Black oxide-coated steel withstands 250°C.
Compact designs with 7.1mm retraction suit space-limited applications.
●Vibration Resistance

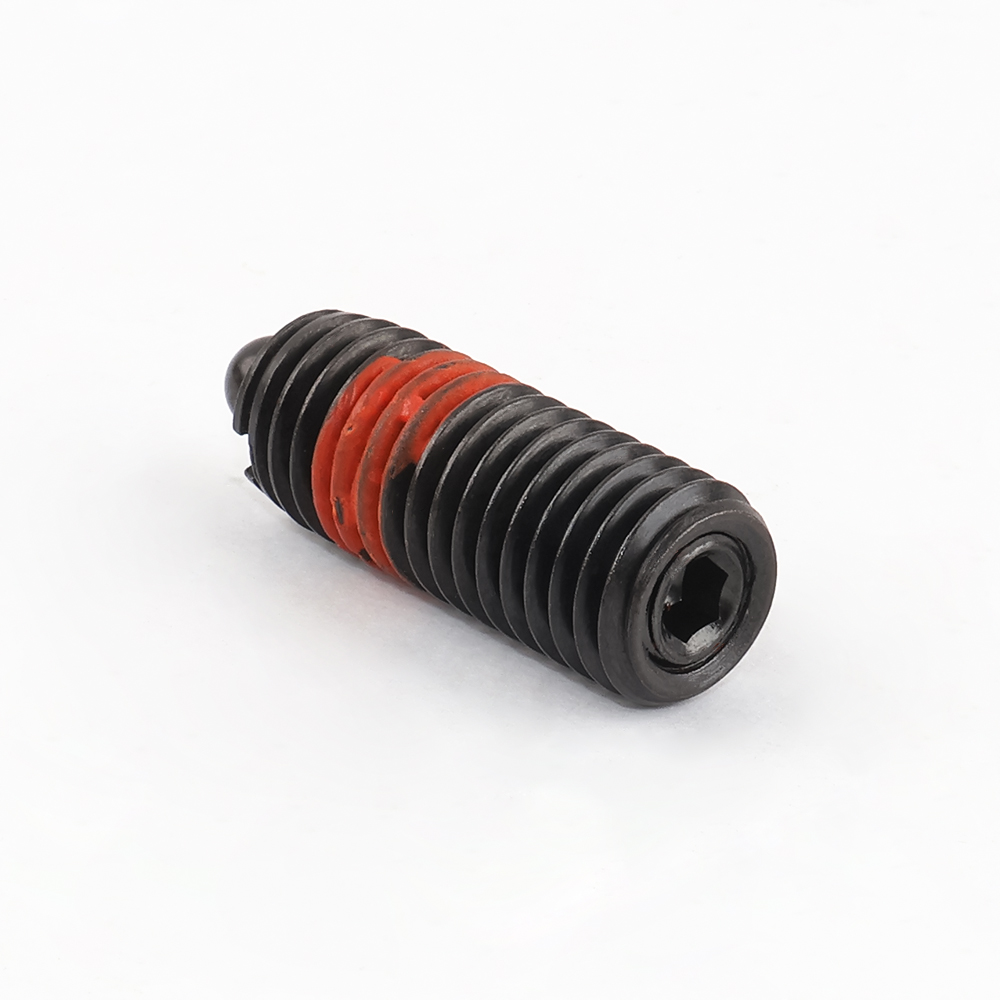

Nylon thread locks prevent loosening under vibration.

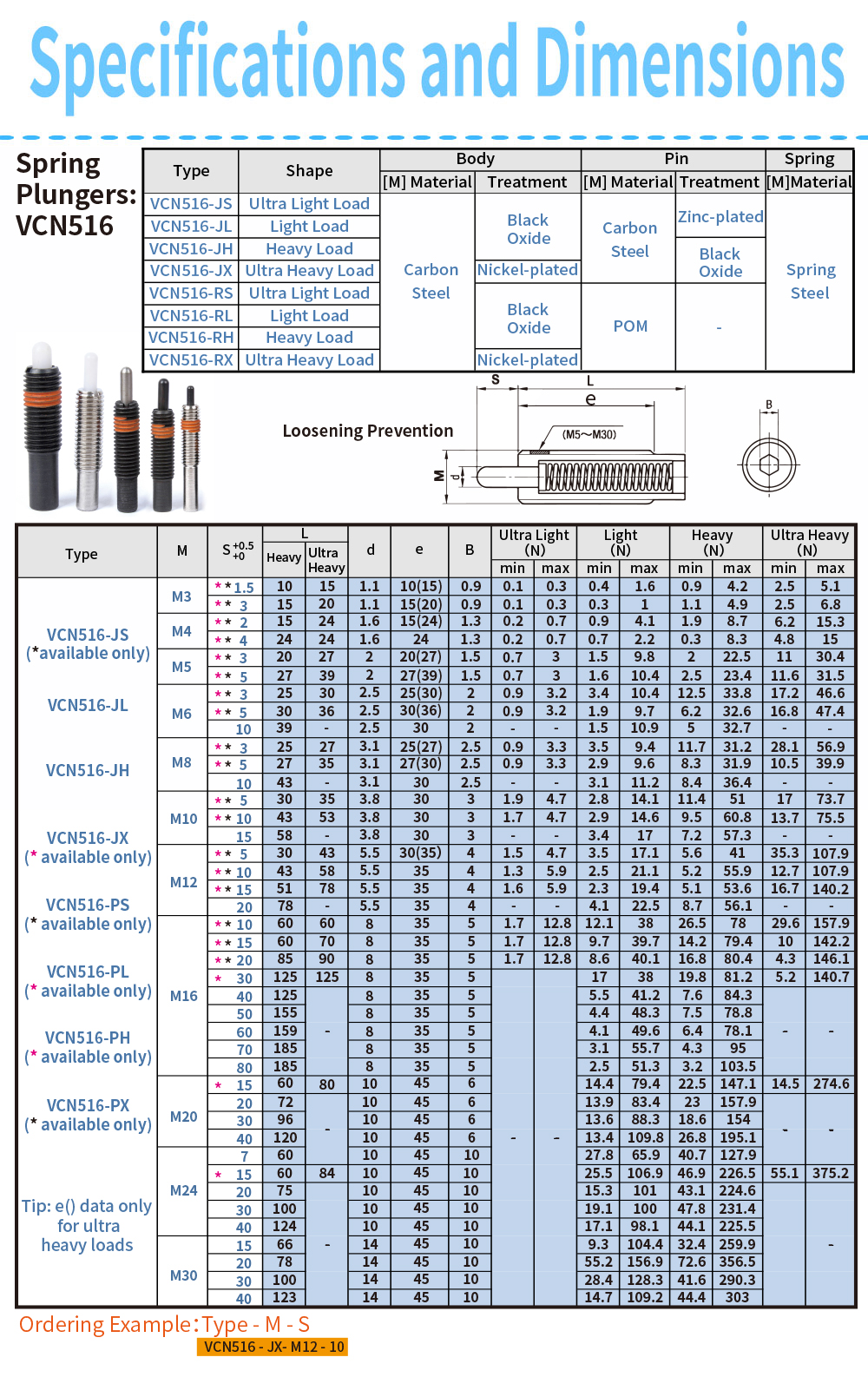

Technical Specifications

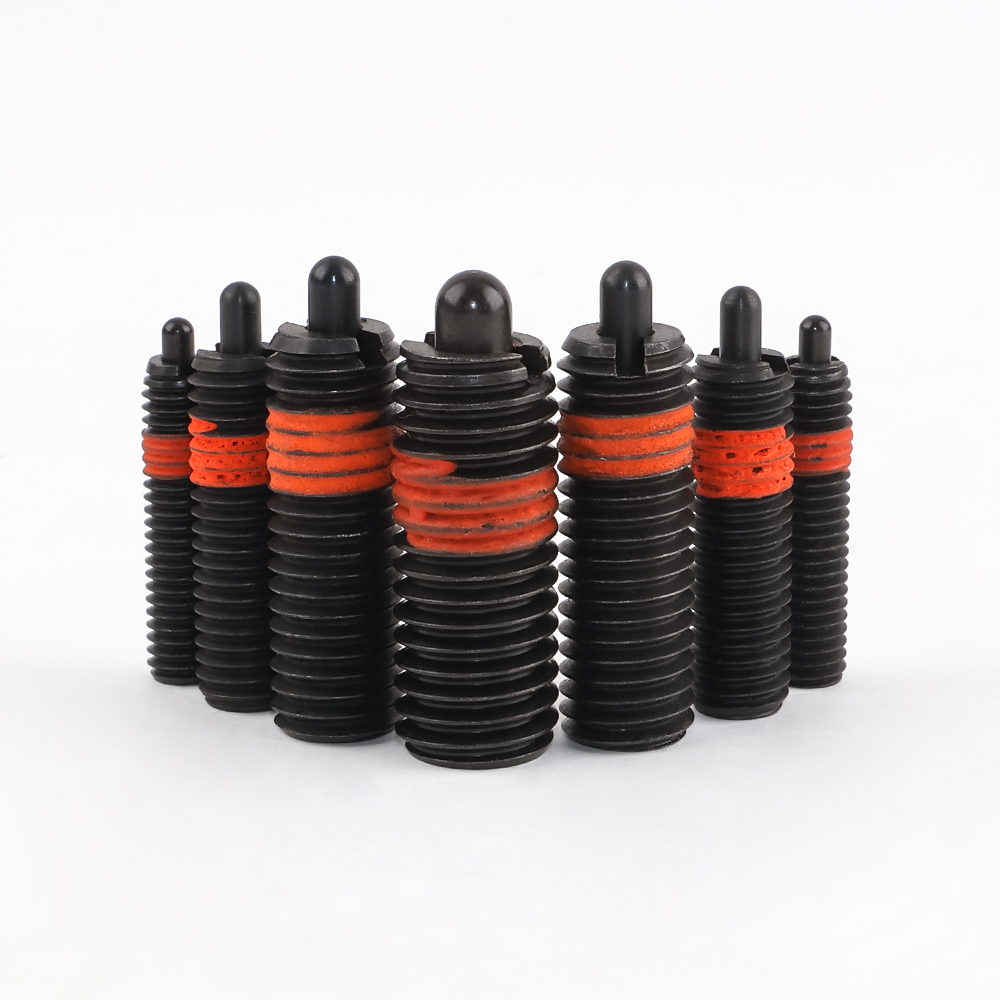

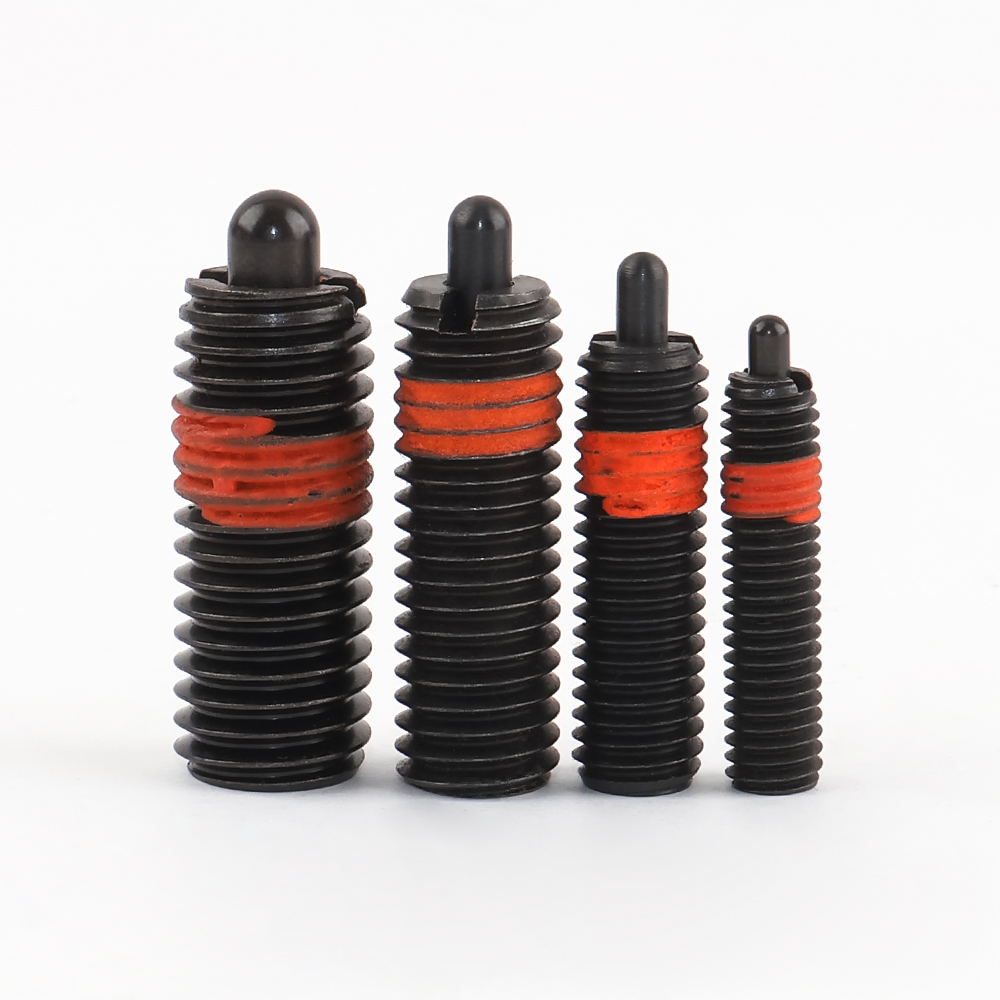

| Parameter | Range |
|---|---|
| Thread Size | M3–M30 (metric coarse/fine) |
| Spring Force | 0.1N (light-duty) – 276N (heavy-duty) |
| Stroke Length | 1.5mm–40mm |
| Installation Torque | 1.3–2Nm (thread-dependent) |
| Temp. Range | -30°C to 250°C (SS/steel) |
Applications
Precision Manufacturing: Mold indexing , fixture clamping to prevent workpiece shift.
Automation: Robotic end-effector tool locking, conveyor station indexing.
Specialized Fields:
Medical: Biopsy instrument adjustable part fixation;
Electronics: LED display module alignment ;
Transportation: Rail vehicle door hinge pin quick-release.
